Technical Details

10MB800FT delivers top-notch midbass punch and clean vocal clarity at a high level output with low distortion and extended midbass response.

Optimized for use in compact enclosures, this midbass speaker provides a smooth vocal response with great output from 500 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.

• 2.5″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 Ohm
• Ventilated voice coil gap reduces power compression
• High Xmax 10” Loudspeaker for more mid bass output
• 800 watts continuous program power rating makes the high acoustical output
• Excellent performance in 2-way or 3-way systems

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.

The Perfect speaker for TUKUTEO® sound.

The high sensitivity rating of 99 dB 1W/1M which makes it capable of generating a lot of output! This 10″ is a great midbass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

The voice coil is wound on a 2.5″ glass fiber with aluminum wire keeping weight to a minimum for an incredibly quick transient response.

Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

Combined with its premium ferrite motor, all these characteristics make this speaker unique and deliver high-performance that achieves exceptional clarity, detail, and dynamics on sound.

Popular custom door panel combination with the 10MB800FT and WG2000Py SLIM Mids & Highs Compression Driver all tuned by Our DSP 2.8X ( digital sound processor ) for the best frequency response, follow settings below:

10MB800FT – High Pass Filter HPF 110 Hz BT18 Filter to Low Pass Filter LPF 1800 Hz BT12, following the compression driver from 1000Hz all way to 17,000Hz

Recommended system package 8x 10MB800FT + 4x WG2000Py SLIM

PRV 10″ Midbass Speaker 10MB800FT 800 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker

2 Speakers – 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel on the bridged channel
4 Speakers – 1x QS3000 at 2 Ohm, 4 speakers in parallel
8 Speakers – 1x QS7000 at 1 Ohm, 8 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 650 Watts RMS musical power ( without clipping )

• 120 Hz at 12 dB per octave filter Crossover / BT12
• 110 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 2,200Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

GENERAL SPECIFICATIONS

Nominal Diameter	10″ (254 mm)
Nominal impedance	8 Ohm
Nominal Power Handling	400 Watts
Continuous Program Power (RMS)	800 Watts
Max Peak Power	1600 Watts
Sensitivity 2.83V at 1m	99 dB
Recommended High Pass Filter* *For Full Power Handling	120 Hz* *12db Per Octave Crossover
Frequency Response at -10dB	65 – 5,300 Hz
Voice Coil Diameter	2.5″ (65 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	11.0 mm
Former Material	Glass Fiber
Magnetic Gap Depth	8.0 mm
Frame Material	Die Cast Aluminum

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	36.73 l
Excursion (mathematical)***	Xmax	3.50 mm
Free Air Resonance	Fs	64.72 Hz
Mechanical Factor	Qms	15.39
Electrical Factor	Qes	0.33
Total Factor	Qts	0.32
Cone Area	Sd	380 cm²
Mechanical Mass	Mms	33.20 g
Bl Factor	Bl	14.39 Tm
Dc Resistance	Re	5.1 Ohms
Inductance	Le	0.40 mH at 1 kHz
Mechanical Mass Without Air	Mmd	29.01 g
Mechanical Compliance	Cms	0.182 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

Overall Diameter	10.25” (260.5 mm)
Front Mount Baffle Cutout	8.97” (228 mm)
Mounting Depth	4.09” (104 mm)
Overall Depth	4.68” (119 mm)
Net Weight	11.01 Lbs (5.0 kg)
Shipping Weight	11.90 Lbs (5.4 kg)
Carton Dimensions W x L x H	11.50 ” x 11.50 ” x 6.50” (292 x 292 x 165 mm)

The TPT-MD10 PRO is a very high efficiency 10″ driver for professional midrange speaker applications. It features a 3″ copper voice coil and a low-mass yet stiff cone to help provide clean, detailed and high-impact sound reproduction.

This Italian-Designed 10″ pro PA speaker is built with the finest components available in the pro audio market. Its aluminum demodulation ring in the motor reproduces audio accurately at concert-level volume.

• Capable of handling 1000 Watts
• Impressive 100 dB sensitivity for maximum output
• Large vented ferrite motor for increased output and power handling
• Aluminum demodulating ring allows for a very low distortion output

The TPT-MD10 PRO is a popular 10″ midrange speaker built like a professional loudspeaker, but has been designed for use in the car audio market.

Designated at 8 Ohm impedance to work great with our high power amplifiers, where you can install multiple speakers on a single system amplifier, you can easily wire 8x speakers in parallel to a TPT-8000 at 1 Ohm or 4x speakers into a TPT-3000 at 2 Ohm, and even just 2x speakers into a TPT-1500 4 Ohm.

Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

Specs:
1000 Watts Max Power
400 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 100 dB
Frequency Response: 80 – 4,000Hz
Voice Coil: 3”
Recommended High Pass Filter with TPT-SP4BT DSP:
140 Hz under 1000 Watts of Amplifier RMS Power with 18dB Slope
125 Hz under 500 Watts of Amplifier RMS Power with 12dB Slope
Sizing:
Mounting Depth: 4.45”
Mounting Cutout Diameter: 9.09″
Overall Size: 10.29″ x 10.29″ x 5.06″

Timpano’s TPT-MD10 is a midbass loudspeaker designed for use in sealed enclosures, but would also work well in any system where high efficiency or high output is the goal. This driver has been painstakingly voiced to create a natural tone with low distortion at high levels.

When looking for a pro audio midbass speaker, the MD series is the obvious choice; combining power, sound clarity, and reliability.

Excellent for midbass, vocal reproduction, and musical instrument applications, the TPT-MD10 10″ speaker has the power and reliability to cope with any pro sound demand.

• 800 watt max musical power handling for tremendous output levels
• Designed to work great in sealed and vented enclosures
• 97 dB sensitivity – Smooth response through the mid-bass and vocal range

The TPT-MD10 is a popular 10″ midbass speaker built like a professional midbass, but has been designed for use in the car audio market.

Designated at 8 Ohm impedance to work great with our high power amplifiers, where you can install multiple speakers on a single system amplifier, you can easily wire 8x speakers in parallel to a TPT-5000 at 1 Ohm or 4x speaker into a TPT-2200 at 2 Ohm. Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

Specs:
800 Watts Max Power
375 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 97 dB
Frequency Response: 75- 5,500Hz
Voice Coil: 2.5”
Steel Basket with High Strength Ferrite Magnet
Recommended High Pass Filter with TPT-SP4BT DSP:

125 Hz under 500 Watts of Amplifier RMS Power with 18dB Slope
120 Hz under 375 Watts of Amplifier RMS Power with 12dB Slope
Sizing:
Mounting depth: 4.36”
Mounting Cutout Diameter: 9.25”
Overall Diameter: 10.14”
Weight: 10.49 Lbs

Designed for small enclosures, this subwoofer will work in motorcycle saddlebags, slingshot pods, or any other enclosure around 1 cubic foot in size. This sub is made from the best materials and components to withstand the elements, so you can enjoy the highest low frequency output while riding or sitting in an open parking lot.

• Optimized for use in compact enclosures this subwoofer is ideal for motorcycle saddlebags
• 4 layer high-temperature copper voice coil capable of handling 1,000 watts RMS program power, which makes high acoustic output
• High roll U surround is attached to the cone with dual stitching allowing a generous 14 mm of Xmax for deep bass reproduction without any issues.
• Another Key premium components that ensure power handling, durability at high excursion are its large 7″ premium grade spider with weaved copper tinsel lead.
• Side Forced Cooling System with vented back plate Design for Better Heat Dissipation
• Dual 4 Ohm, Works well with Mini MDX2500.1 1 Ohm Connect two subs in parallel to 1 ohm

Its shallow profile takes up very little space inside any enclosure. This compact design will fit and sound great in any saddlebag that has about 1 cubic foot.

Recommended enclosure:

• Compact Sealed Box: 0.9 cubic feet
• Compact Ported Box: 1 cubic foot with a 3″ Diameter by 7″ Long Port Tube tuned at 45Hz
• Optimal Ported Box: 1.25 cubic feet with a 3″ Diameter by 9″ Long Port Tube tuned at 37Hz

This subwoofer established the new benchmark for low frequency for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4-wheeler, Slingshot or motorcycle.

This 10-inch subwoofer delivers the kind of bass output you feel outdoors, not just vibrations. Also Available in 8 inch – MT8SW800 D4

PRV 10” Motorsports Subwoofer MT10SW1000 Dual 4 Ohm 1000 Watts Shallow Sub for Motorcycle Slingshot Waterproof

GENERAL SPECIFICATIONS

THIELE-SMALL PARAMETERS

EXTRA INFO

This 12″ car subwoofer will give you bass like never before! The RS12-SUBD4 is perfect for boosting the lows in your car system or shaking your entire neighborhood.

This subwoofer was designed to be a great combination of price and performance without a compromise on quality. It is a must-have for daily builds where you want to keep electrical upgrades to a minimal and get excellent performance with a minimal amount of power.

• Bass machine that will reproduce low-end frequencies with authority with small amount of power
• 4 layer high-temperature copper voice coil capable of handling 1000 watts RMS program power, which makes high acoustic output
• High roll U surround gives an 17.5 mm of Xmax for low bass reproduction without any issues
• Side forced cooling system with vented back plate design for better heat dissipation
• Dual 4 Ohm, easy setup to connect two subs in parallel to 1 ohm

This subwoofer features a beefy magnet motor that enhances its power and bass response, allowing it to handle more power and produce richer, fuller bass tones.

Its double magnet motor combined with flexible high foam surround allows for a remarkable 17.5mm Xmax, delivering high excursion guaranteeing to put out some crazy output.

Put some extra lows in your system with this 12″ sub, which can reach 1.50″ peak-to-peak excursion before damage! Providing deep low frequency bass!

PRV 12” Car Subwoofer RS12-SUB Dual 4 Ohm 1000 Watts Double Stacked Magnet 17.5mm Xmax

Recommended Amplifier configurations:

• 1 Subwoofer – 1x RS900 BASS 2 Ohm, one sub in parallel
• 2 Subwoofers – 1x RS3200 BASS 1 Ohm, both subs in parallel

The LPF on amplifiers should be set between 60 – 90 Hz when using musical power up to 1000 Watts RMS, Subsonic filters should be set according to music style, this will help to avoid subwoofer damage from excess excursion caused by ultra low frequencies.

Take your time and break them in! A brand-new sub is always a little stiff after break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones

Recommended Custom Enclosures: Inside measurements based with 3/4″ wood material.

Single Sub Sealed Enclosure 47 Hz Tunning
All sealed-enclosures should be filled to 50% of poly-fil.

Single Sub Compact Ported Enclosure 36 Hz Tunning

Dual Sub Recommended Ported Enclosure 32 Hz Tunning

GENERAL SPECIFICATIONS

THIELE-SMALL PARAMETERS

EXTRA INFO

This 10″ car subwoofer will give you bass like never before! The RS10-SUBD4 is perfect for boosting the lows in your car system or shaking your entire neighborhood.

This subwoofer was designed to be a great combination of price and performance without a compromise on quality. It is a must-have for daily builds where you want to keep electrical upgrades to a minimal and get excellent performance with a minimal amount of power.

• Bass machine that will reproduce low-end frequencies with authority with small amount of power
• 4 layer high-temperature copper voice coil capable of handling 1000 watts RMS program power, which makes high acoustic output
• High roll U surround gives an 17.5 mm of Xmax for low bass reproduction without any issues.
• Side forced cooling system with vented back plate design for better heat dissipation
• Dual 4 Ohm, easy setup to connect two subs in parallel to 1 ohm

This subwoofer features a beefy magnet motor that enhances its power and bass response, allowing it to handle more power and produce richer, fuller bass tones.

Its double magnet motor combined with flexible high foam surround allows for a remarkable 17.5mm Xmax, delivering high excursion guaranteeing to put out some crazy output.

Put some extra lows in your system with this 10″ sub, which can reach 1.50″ peak-to-peak excursion before damage! Providing deep low frequency bass!

PRV 10” Car Subwoofer RS10-SUB Dual 4 Ohm 1000 Watts Double Stacked Magnet 17.5mm Xmax

Recommended Amplifier configurations:

• 1 Subwoofer – 1x RS900 BASS 2 Ohm, one sub in parallel
• 2 Subwoofers – 1x RS3200 BASS 1 Ohm, both subs in parallel

The LPF on amplifiers should be set between 60 – 90 Hz when using musical power up to 1000 Watts RMS, Subsonic filters should be set according to music style, this will help to avoid subwoofer damage from excess excursion caused by ultra low frequencies.

Take your time and break them in! A brand-new sub is always a little stiff after break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones

Recommended Custom Enclosures: Inside measurements based with 3/4″ wood material.

Single Sub Sealed Enclosure 52 Hz Tunning
All sealed-enclosures should be filled to 50% of poly-fil.

Single Sub Compact Ported Enclosure 38 Hz Tunning

Dual Sub Recommended Ported Enclosure 38 Hz Tunning

GENERAL SPECIFICATIONS

THIELE-SMALL PARAMETERS

EXTRA INFO

The Alpha v2 Series of subwoofers is our all around daily entry level sub. A single wide high strength magnet and a standard high compression pole cap are the foundation for this motor. A multilayer foam surround is attached to a fiber impregnated linear kraft pulp cone which helps keep things under control in high power applications. A 3″ 4 layer aluminum voice coil yields 17mm of Xmax while keeping the motor force high. The Alpha v2series will work in most enclosure types (sealed, ported, bandpass). Light weight and versatile, the Alpha v2 Series works in a variety of applications from incredibly detailed sound quality systems, to ground pounding multi sub monsters. Gloss carbon fiber caps are standard and you have the option for a third spider for increased mechanical power handling for some applications.

Features

Single 1, 2, or 4 Ohm
Cast basket
Wrap around gasket
Linear reinforced cone
Mulit-layer wide foam surround
Push terminal
Extra heavy lead wire
FEA optimized motor
3” diameter 4 layer coil
Single wide high grade magnet
Dual progressive spiders
6″ Gloss Carbon dustcap
Compression cooling
1000wrms

The Xv4 Series of subwoofers is a super tough daily entry level sub. A double stack of wide high strength magnets and a standard high compression pole cap are the foundation for this motor. A multilayer foam wide surround is attached to a fiber impregnated linear kraft pulp cone which helps keep things under control in high power applications. A 3″ 4 layer aluminum voice coil yields 27mm of Xmax while keeping the motor force high. The X v4 Series will works best in ported or 6th order enclosures. Ultra tough and versatile, the X Series works in a variety of applications where excellent durability and output is required. Gloss carbon caps are standard along with the option of an extra spider for higher FS/QTS applications such as SPL burp classes.

Features

Dual 1 & 2 Ohm
Cast basket
Wrap around gasket
Linear reinforced cone
Mulit-layer wide foam surround
Push terminal
Extra heavy lead wire
FEA optimized motor
3” diameter 4 layer coil
Wide double stack high grade magnet
Dual progressive spiders
6″ Gloss Carbon dustcap
Compression cooling
Optional extra spider

For basket finishes: please include color code from https://www.prismaticpowders.com

Sky High Car Audio BMX Series Subwoofers

Available in 6.5” – 18” | D1/D2 Ohm Options

BMX: Where Output Meets Endurance.

After years of development, trial and error, and decades immersed in the car audio industry, the BMX Series from Sky High Car Audio has finally arrived—representing the culmination of everything we’ve learned from competing, building, and manufacturing elite-level subwoofers. With deep roots in the basshead community and ownership in some of the most respected brands in the game, we’ve poured all our knowledge into the design and execution of what we believe is a true game-changer. The all-new BMX Series isn’t just a subwoofer—it’s the next evolution in high-performance bass.

At its core, the BMX Series is a high-excursion, true-to-size subwoofer featuring a 3” 8 layer voice coil, rated for 2500W RMS of clean musical power, with the motor and coil combination capable of enduring thermal bursts up to 25,000 watts. This beast utilizes a triple-stacked Y35 ferrite motor structure with aluminum shorting ring, pole vents and (4) drilled and tapped backplate holes, giving builders flexibility for reinforced mounting or enhanced cooling. A tooled SHCA magnet boot completes the structure—adding both functional protection and a sleek aesthetic.

Mechanically, the 12”, 15”, and 18” BMX subwoofers push performance with an impressive 32mm Xmax and 39mm Xmech, delivering massive excursion while maintaining control. The 10” stacked spider pack, spaced for increased durability, keeps everything tight and responsive under heavy load. A fiberglass-reinforced cone support lies beneath a hardened paper cone—engineered with a tooled recess for the standard carbon fiber dust cap, maximizing cone integrity and minimizing flex during peak output. To round out the features we utilize a secondary pressure cap nestled under the primary cap which works as a pressure buffer and structural reinforment to the primary cap.

Connection is no afterthought—4-gauge push terminals ensure serious current delivery, while the foam surround is precision-molded for optimal compliance. Finished in an all-black stealth aesthetic, the BMX Series not only performs like a champion—it looks the part too.

With a low FS and high BL, the BMX Series is designed to play across the entire bass frequency range with authority and musicality. It’s not a one-note wonder—it’s a daily demo monster and a competition weapon rolled into one.

Customization Options: Sky High Car Audio is proud to offer in-house custom build options for select subwoofer lines, hand-assembled at our Sparks, NV facility. Customization is available exclusively on the BMX Series 10–18”, FMX Series 12–18”, and FXXL Series 12–18” models. We offer custom Prismatic Powders powder coating in single-stage or two-stage finishes to match your build’s aesthetic (additional cost and lead time apply). For those looking to stand out in the lanes or the show floor, forged carbon fiber cone upgrades are available on FMX and FXXL subs for a premium finish and added cone rigidity. Builders can choose between direct leads (with length and color options) or push terminals on FMX and FXXL models, which come standard with direct leads. We also offer box support add-ons for our threaded backplates and optional back plate cooling modifications for all eligible series (back plate cooling to drop 1/1/26). Lastly we can build you a custom spider pack to meet your needs, but for daily music we highly suggest the stock build form for suspension.

Where Output Meets Endurance.

Welcome to the Sky High Car Audio Revolution.

Available in 6.5” – 15” | D2/D4 Ohm Options

FE: Unreal Value. Real Bass.

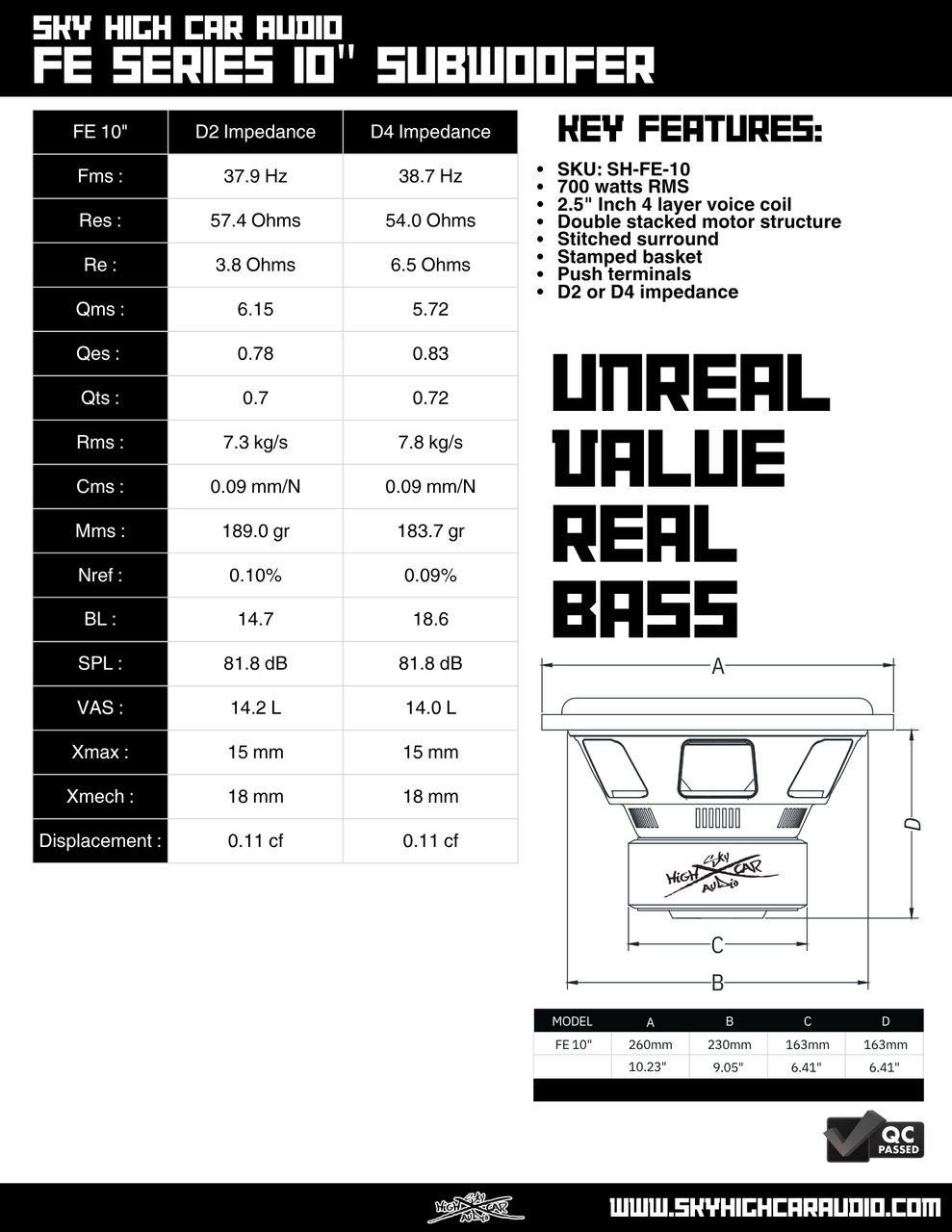

Meet the FE Series—Sky High Car Audio’s most accessible line of subwoofers, created for enthusiasts who want quality bass on a budget. Designed for clean output, daily reliability, and efficient power handling, the FE Series proves that affordable doesn’t mean under-built. With real motor strength, high-temp voice coils, and thoughtful design elements carried over from our higher-end lines, this is entry-level done the Sky High way.

Built with a durable stamped steel basket, the FE Series keeps costs low while maintaining solid structural integrity. The 6.5” FE starts under $100 shipped—something nearly unheard of in today’s audio market—yet still brings serious low-end performance to the table.

The 6.5” and 8” FE models feature 2” 4-layer high-temp voice coils, rated at 300W and 400W RMS respectively. Both use double-stacked ferrite motor structures, and come equipped with Sky High 10-gauge direct leads for clean, simple connections in tight installs.

Moving up to the 10”, 12”, and 15” versions, each sub is powered by a 2.5” 4-layer high-temp coil and rated for 700W RMS. These larger models feature a double-stacked ferrite motors, but are upgraded with push terminals for secure, high-current connectivity. They’re built to offer strong musical performance while giving builders and hobbyists a sub they can rely on at an unbeatable price point.

All FE subwoofers are designed for daily use—tight, responsive bass that blends into your system without overpowering it, yet still hits with enough authority to feel. Whether you’re building your first system, upgrading a stock setup, or stacking value in a budget-friendly build, the FE Series delivers.

Big Bass. Small Budget.

Welcome to the Sky High Car Audio Revolution.

Available in 6.5” – 18” | D2/D4 Ohm Options

FXB: Sky High Performance. Everyday Price.

The FXB Series by Sky High Car Audio is designed to deliver powerful, controlled bass at an unbeatable value. Built for those who want serious performance without breaking the bank, the FXB Series brings real-world output, reliable design, and our signature engineering approach to a more accessible price point. Whether you’re upgrading your daily driver or building a clean, budget-conscious system, the FXB Series offers solid performance with no shortcuts where it counts.

The FXB Series 6.5” is compact, efficient, and surprisingly potent. With a 15mm Xmax, 400W RMS rating, and a 2” high-temp voice coil, this small-frame subwoofer punches above its weight. A double-stacked ferrite motor, 5.5” progressive spiders and 10-gauge direct leads handle clean power transfer. Designed with a shallow mounting depth, it fits easily into doors and tight sealed applications without sacrificing output or control.

The FXB Series 8” follows suit with a bit more throw and power. With a 17mm Xmax, 500W RMS rating, and the same double-stacked Y35 motor structure, it runs on a slightly larger 6.5” spider pack and 10-gauge direct leads. Still compact in depth, the FXB 8” is ideal for small ported or sealed enclosures where space is tight but impact matters.

The FXB Series 10” is where things get serious. Featuring a 30mm Xmax, this sub is rated for 1000W RMS and is built around a 3” 4-layer voice coil, the same coil used in our h

larger 12”–18” FXB subs. The motor remains a double-stacked ferrite design, and the suspension includes a full-size 8.8” progressive spider for added linear control. Finished with a cast aluminum basket and push terminals, the FXB 10” is one of the most capable budget 10s on the market.

Every FXB subwoofer carries the Sky High Car Audio design language—blacked-out aesthetic, tooling for strength, and real-world durability. These aren’t stripped-down entry-level drivers—they’re the result of smart material choices and years of design refinement to bring maximum value to everyday builds.

Sky High Performance. Everyday Price.

Welcome to the Sky High Car Audio Revolution.

1000 Watts Max Power Handling

2.5″ Voice Coil

98.5 dB Sensitivity

75HZ-6.5KHz of frequency response

GENERAL SPECIFICATIONS

Nominal Diameter          10” (254mm)

Max Power Handling      1000 w

RMS Power Handling     500 w

Frequency Response      75Hz-6.5KHZ

Nominal Impedance       4ohm

Sensitivity                         98.5dB

Magnet                              Neodymium

Voice Coil Diameter        2.5″

Voice Coil Wire               CCAW

THIELE-SMALL PARAMETERS

Equivalent Volume         Vas        26.8 L

Free Air Resonance        Fs           76 Hz

Mechanical Factor          Qms      4.5

Electrical Factor               Qes       0.37

Total Factor                     Qts        0.34

Cone Area                        Sd          349.6cm²

Mechanical Mass            Mms     27.96 g

BI Factor                           BI           10.77 Tm

Dc Resistance                  Re          3.2 Ohms

MOUNTING INFO

Overall Diameter                          10.31”(262mm)

Front Mount Baffle Cutout          9.25″(235mm)

Mounting Depth                           4.09″(104mm)

Overall Depth                                 4.52″(115mm)

600 Watts Max Power Handling

2″ Voice Coil

98.5 dB Sensitivity

70HZ-7KHz of frequency response

GENERAL SPECIFICATIONS

Nominal Diameter          10” (254mm)

Max Power Handling      600 w

RMS Power Handling     300 w

Frequency Response      70Hz-7KHZ

Nominal Impedance       4ohm

Sensitivity                         98.5 dB

Magnet                              Ferrite

Voice Coil Diameter        1.5″

Voice Coil Wire               CCAW

THIELE-SMALL PARAMETERS

Equivalent Volume         Vas        37.94 L

Free Air Resonance        Fs           72 Hz

Mechanical Factor          Qms      5.51

Electrical Factor               Qes       0.48

Total Factor                     Qts        0.44

Cone Area                        Sd          349.6cm²

Mechanical Mass            Mms     22.21 g

BI Factor                           BI           8.21 Tm

Dc Resistance                  Re          3.2 Ohms

MOUNTING INFO

Overall Diameter                          10.11”(257mm)

Front Mount Baffle Cutout          9.13″(232mm)

Mounting Depth                           3.85″(98mm)

Overall Depth                                 4.21″(107mm)

• 20% longer 3” 8 layer coil

• BL^2/RE increased by as much as 50% (plat 12V1 vs Plat 12V2)

• 8.5” spider pack with insulated dual leads.

• Carbon fiber cones and dust caps will come standard with the platinum line.

• New high roll tooled surrounds.

• Cast aluminum frame

• conservative rated at 2,500RMS/5,000Watts

• XMAX 35MM

•For mounting Resilient Sounds V2 models with trim rings, we recommend a hex head screw(Last picture) that avoids flaring to prevent cracking the trim ring.

• BOX SPECS

  CUBIC FT	1.5-2.25 CUBIC FT PER SUBWOOFER
  TUNING	28-33HERTZ
  PORT AREA	12-16 SQ INCHES OF PORT AREA PER CUBIC FT

  MOUNTING DEPTH	9.125 INCHES
  CUTOUT	9.25 INCHES

  DISPLACEMENT

  0.22 CUBIC FT

• Trim Ring Removal Instructions

  The Resilient Sounds V2 trim ring is a decorative and functional piece used to enhance aesthetics and secure the surround. Please note it is not meant to be removed unless doing a recone and doing so may void your manufacturer warranty. However, should you choose to remove it here is the process and tools you will need.



  -Phillips Screwdriver

  -Pliers

  -Heat Gun

  -Pry Tool

  -Personal Protective Equipment (PPE)



  1. You will need a phillips screwdriver to remove the 4 screws securing the trim ring to the frame. There may be residual adhesive on the screws preventing them from coming all the way out and you may need pliers once unscrewed to free the screws.



  2. There may be excess adhesive protruding from the surround that may have adhered to your trim ring. So next you will utilize a heat gun going around the trim ring with a pry tool slightly breaking the adhesive free. The Frame and Trim Ring will be hot! USE CAUTION! Be sure to use a tool that won’t damage your trim ring or frame and do not pry too much at once as you may break the ring.



  3. By this point your ring should be free from the frame. Handle it with care as it may still be hot. When reinstalling the ring ONLY hand tighten the screws.

-3″ 4 Layer Voice Coil (25% longer than V1)

-10″ Spider Pack with Dual Sewn Leads

-NEW High Roll Tooled Surround

-Triple Stack 220mm Motor with Venting (15% larger than V1)

-Aluminum Shorting Ring

-Cast Aluminum Frame

-Aluminum Gasket

-4 Ga Push Terminals

-Engraved Bottom Plate

-Molded Motor Boot

-Conservatively Rated 1500 Watts RMS

-Dual 2 Ohm or Dual 4 Ohm

-XMAX 31MM

-Available in 10″, 12″, 15″, and 18″

-For mounting Resilient Sounds V2 models with trim rings, we recommend a hex head screw(Last picture) that avoids flaring to prevent cracking the trim ring.

Trim Ring Removal Instructions

BOX SPECS

Recone picture is generic & may not accurately reflect the appearance of the product you will be provided.

**Does not include bonding agents or shims.  Please consult a professional repair person or facility to complete your rebuild.  No warranty on recone kits.

Recone picture is generic & may not accurately reflect the appearance of the product you will be provided.

**Does not include bonding agents or shims.  Please consult a professional repair person or facility to complete your rebuild.  No warranty on recone kits.

The SoundQubed HDB2-210LE-D4 is a dual 10” loaded and ported subwoofer enclosure engineered for serious bass in a space-efficient design. With two 4-ohm dual voice coil subwoofers wired in parallel to a 1-ohm final load, this box delivers 800W RMS and 1600W peak power handling. Its 94dB sensitivity and 29Hz–250Hz frequency range ensure powerful, tight low-end performance, perfect for daily drivers and SPL setups. Housed in a durable 5/8” MDF enclosure with a side port tuned to 35Hz, and finished in sleek black vinyl, the HDB2-210LE-D4 is ideal for those seeking hard-hitting bass in a mid-sized footprint.

The SoundQubed HDB2-110LE-D2 is a compact, high-performance 10” loaded and ported subwoofer enclosure designed for powerful bass in tight spaces. Featuring a 10” subwoofer with dual 2-ohm voice coils wired to a 1-ohm final load, this enclosure delivers 400W RMS and peaks at 800W, offering deep, responsive low-end. With a sensitivity of 91dB and a 29Hz–250Hz frequency range, it’s optimized for clarity and impact. Housed in a durable 5/8” MDF box with a side port tuned to 35Hz and finished in sleek vinyl, the HDB2-110LE-D2 is perfect for daily drivers, stealth builds, or compact audio systems demanding serious bass without taking up too much room.

The Trinity M Series 10″ Subwoofer Recone Kit is designed to bring your Trinity M Series subwoofer back to its original performance. This premium kit ensures your subwoofer delivers powerful, distortion-free sound with every rebuild.

Kit Includes:

• Essential rebuild components specifically for the Trinity M Series 10″ Subwoofer Recone Kit
• Excludes bonding agents and shims for added flexibility during repairs

Why Choose the Trinity M Series 10″ Subwoofer Recone Ki?

• Tailored for the Trinity M Series 10” subwoofer to guarantee compatibility
• Built to deliver superior sound quality and durability
• Perfect for professional installation for a seamless rebuild

Please note, the Trinity M Series 10″ Subwoofer Recone Kit does not include bonding agents or shims. For best results, consult a professional repair technician. Images are generic and may not accurately reflect the exact product provided.

No warranty is offered on recone kits, but the Trinity M Series 10″ Subwoofer Recone Kit guarantees premium components to restore your subwoofer to peak performance.

Requires 2.5” seat lift. INCLUDES BILLET SEAT LIFT KIT

Cut to fit two 10”

Cutout 9.25″ Mounting Depth 9″

** These boxes only fit on Fords with a flat back seat floor. Boxes may come with small imperfections due to the manufacturing process. **

DOES NOT INCLUDE SUBWOOFERS

BOXES THAT ARE NOT IN STOCK –  WILL BE MADE TO ORDER (ALLOW 3 WEEKS)

Requires 2.5” seat lift. INCLUDES BILLET SEAT LIFT KIT

Cut to fit two 10”

Cutout 9.25″ Mounting Depth 9″

** These boxes only fit on Fords with a flat back seat floor. Boxes may come with small imperfections due to the manufacturing process. **

DOES NOT INCLUDE SUBWOOFERS

BOXES THAT ARE NOT IN STOCK –  WILL BE MADE TO ORDER (ALLOW 3 WEEKS)

Fits 1999-2006 GM Extra Cab trucks.

Cut to fit two 10”

Cutout 9.25″ Mounting Depth: 8″

Enclosure Requires 2.5″ Seat Lift, seat lift that is included.

* Will only fit 2007 early cabs styles (cat eye front clip style)

** Boxes may come with small imperfections due to the manufacturing process. Some truck models rear seat assembly may vary from standard production, causing fit issues. Contact Gately Audio with questions.**

DOES NOT INCLUDE SUBWOOFERS

BOXES THAT ARE NOT IN STOCK –  WILL BE MADE TO ORDER (ALLOW 3 WEEKS)

ported enclosure .75” Russian Baltic Birch

Tunes to 33hrz and has an estimated bandwidth of 25-67hrz.

Made for HDS SoundQubed subwoofers

Cutout: 9.375″ Mounting Depth: 10.12″

Boxes may come with small imperfections due to the manufacturing process. BOXES THAT ARE NOT IN STOCK –  WILL BE MADE TO ORDER (ALLOW 3 WEEKS).

This listing is for an LOADED 2 x 10″ , 1.75 Cu Ft Enclosure with 33.6″ of port area.

The enclosure measures 27″ W X 14.5″ H x 14.813″ D. It is made out of .75″ Russian Baltic Birch and has a stained exterior finish.

This enclosure is tuned to 33hz and has an estimated bandwidth of 25-67hz. This is estimated as there is amplifier tuning and other factors that will take place to final sound reproduction.

This enclosure was developed to run our highly sought after HDS series subwoofers.

Cutout: 9.375″ Mounting Depth: 10.12″

Boxes may come with small imperfections due to the manufacturing process. BOXES THAT ARE NOT IN STOCK – Can be made to order. But please allow a 3-4 week production time. Can be faster at times, depending on season.

SUBWOOFER INFORMATION

The Heavy Duty Street 3.2 Series 1200W Subwoofer improves on its predecessor in terms of build, sound quality, heat dispersion, and frequency response. The 10, 12, or 15-inch models are available with dual 2 or 4-ohm voice coil.

The HDS3.2 series is a perfect option for elevating your daily-driver car audio system build to the next level. First, choose a sealed, ported, or band-pass enclosure. Once you decide on an enclosure option, pair your sub(s) with the appropriate S Series monoblock amp. From there, enjoy easy wiring in series or parallel thanks to the 10 AWG push terminals. Soon you’ll be on your way to a dramatically enhanced listening experience.

As with any SoundQubed subwoofer, proper break-in is key to enjoying long life from your HDS3.2. Make sure you follow the steps to loosen up the suspension before pushing these subs to the limit.

The HDS3.2 1200W Subwoofer
The dual-magnet motor features a bumped T-yoke for greater travel and better heat resistance. Additionally, the vented, electroplated back plate gives heat a way out and decreases turbulence in the coil gap. The HDS3.2 series uses a 3-inch diameter, four-layer, copper dual voice coil with a conical back plate for long-distance travel.

The HDS3.2 series feature cast aluminum frames. This upgrade provides better heat sinking and increased excursion over stamped-steel baskets. A softer three-piece spider system achieves enhanced performance and lower tuning. As a result, the HDS3.2 has an F(s) of 28.26 Hz compared to 35 Hz for the HDS3.1.

An Extended Range of Motion (EROM) surround profile keeps your cone diameter as large as possible while allowing for long, controlled excursion. The EROM profile gives you more cone area, greater stiffness, and lower mass for more accurate coil signal response. The HDS3.2 has a non-pressed, fiber added cone for maximum rigidity and long life.

RMS POWER = 2400watts RMS

MAX Power = 4800 watts RMS

Package includes

(2) Soundqubed HDS3.210-D4 Subwoofers

(1) Soundqubed 2 X 10″ CuFt Subwoofer Enclosure

This is a recone kit for a HDS2.2-10. Choice between Dual 4 ohm or Dual 2 ohm voice coils.

RECONE KIT – This is a drop-in style recone. This kit will come with CA Glue and Activator to make the correct attachment points. Make sure to space your recone accordingly as a poorly installed recone, will not last.

ALL SALES FINAL on recones due to the nature of the item.

This is a recone kit for a HDS3.2-10. Choice between Dual 4 ohm or Dual 2 ohm voice coils.

RECONE KIT – This is a drop-in style recone. This kit will come with CA Glue and Activator to make the correct attachment points. Make sure to space your recone accordingly as a poorly installed recone, will not last.

ALL SALES FINAL on recones due to the nature of the item.

This is a recone kit for a HDX3-10. Choice between Dual 1 ohm or Dual 2 ohm voice coils.

RECONE KIT – This is a drop-in style recone. This kit will come with CA Glue and Activator to make the correct attachment points. Make sure to space your recone accordingly as a poorly installed recone, will not last.

ALL SALES FINAL on recones due to the nature of the item.

The enclosure measures 27″ W X 14.5″ H x 14.813″ D. It is made out of .75″ Russian Baltic Birch and has a stained exterior finish.

This enclosure is tuned to 33hz and has an estimated bandwidth of 25-67hz. This is estimated as there is amplifier tuning and other factors that will take place to final sound reproduction.

This enclosure was developed to run our highly sought after HDS series subwoofers.

Cutout: 9.375″ Mounting Depth: 10.12″

Boxes may come with small imperfections due to the manufacturing process. BOXES THAT ARE NOT IN STOCK –  Can be made to order. But please allow a 3-4 week production time. Can be faster at times, depending on season.

**Subwoofer NOT INCLUDED. Please seek the loaded enclosure listing for a combined discount of purchasing both items at once!**

Welcome to the 2024 Soundqubed lineup; Loaded and powered, wedge firing enclosure! This setup provides a simple and easy setup for your truck, your car, your boat. Whatever is in need of a little more bass that has almost no space to use!

This listing is for our HDS2-110SL-WA wedge setup. What does all that mean? This means you are getting a single 10″, slim subwoofer, in a stylish, yet functional wedge enclosure that ALREADY HAS AN AMPLIFIER installed, giving the 10″ subwoofer the power it needs.

When we say compact design, we mean it. This unit is all of (Bottom) 7.87″ Wide X (Top) 4.8″ x 16.7″ Wide X 13.6″ Height. Again, this includes subwoofer AND amplifier! It would have been easy to just leave the box in black carpet. But then, how would they know what brand is giving the power when you can’t see anything? So, we added a fully threaded logo in the biggest design we could fiit, on the back plate of the box. Fold the seat down or up and you’ll easily see, what brand is giving you the beats that you’re looking for.

Now lets jump into the specifications of this setup.

Crafted with precision, the HDX-PA10M-8 boasts an aluminum basket that not only enhances its durability but also contributes to its overall performance. The combination of Ferrite and Neodymium Motor Material ensures a powerful and efficient audio experience, delivering crisp and clear sound reproduction.

Equipped with a 2.5″ Voice Coil size, this speaker is engineered to handle a wide range of frequencies, offering a Frequency Response of 40Hz – 5kHz. This ensures that every nuance of your music is faithfully reproduced, from midrange to highs.

With a remarkable 97dB Sensitivity rating, the HDX-PA10M-8 is incredibly efficient in converting power into sound, allowing you to enjoy your music at lower volumes without sacrificing quality. This also makes it an ideal choice for those who prefer to push their audio system to the limits.

The HDX-PA10M-8 can handle an impressive 500 watts RMS Power, ensuring that it can handle even the most demanding audio setups. With a maximum power handling of 1,000 watts, this speaker is ready to deliver an intense audio experience that will leave you in awe.

Featuring an 8 Ohm Impedance voice coil, the HDX-PA10M-8 is compatible with a wide range of amplifiers, making it easy to integrate into your existing audio system. Its 10″ size strikes the perfect balance between portability and performance, allowing you to install it in various locations without compromising on sound quality.

In conclusion, the HDX-PA10M-8 is a Pro Audio speaker that is built to dominate the competition. With its robust construction, powerful motor, and impressive specifications, this speaker is ready to take your audio experience to new heights. Whether you’re a professional or an enthusiast, the HDX-PA10M-8 is the perfect choice for those who demand nothing but the best.

This listing is for ONE speaker. If you need a pair, please order minimum quantity TWO.

The HDX3 series heavy-duty subwoofer is well suited for use as a competition subwoofer with a beefy, monstrous, made in the USA dual voice coil! Find it in 12 inch, 15 inch and 18 inch sizes!

The HDX3 can handle 1500 Watts RMS power and 4500 Watts Peak power for burps.

HDX3’s motor features a thick top plate, high motor force, and a tight gap for high-efficiency speaker design. A taller 4-spoke, cast aluminum frame makes room for a larger diameter spider for lower tuning and greater accuracy. The larger diameter spider’s new roll profile allows for low F’s without sacrificing power handling or control.

The HDX3’s taller and wider surround allows for even more precise excursion and new pulp-blend cones are stronger than previous fiberglass-laminate designs- And they’re lighter too!

We are ditching the stitching on the 1500 Watt Power Band.
Other improvements over the HDC series subwoofers include the presence of a thicker, more robust aluminum former, as well as black anodizing. Double slit venting and a higher temperature resin are included for increased cooling abilities, enhanced performance, and a longer subwoofer life.

Distinctive in appearance and construction, the E series features a gunmetal-colored stamped basket, providing a unique visual identity that sets it apart from the B, M, and H series subwoofers. Despite its budget-friendly design, the E series does not compromise on performance. Each subwoofer is equipped with a 3″ high-temperature dual voice coil and a double-stacked motor structure, ensuring durability and powerful sound output. The motor structure is further enhanced with Finite Element Analysis (FEA) for improved cooling and performance stability.

Available in 10″, 12″, and 15″ sizes, the E series subwoofers are conservatively rated at 800 watts RMS with a peak power handling of 2400 watts. This power capability allows the E series to deliver deep, impactful bass that meets the demands of everyday listening as well as more intensive audio setups. The subwoofers are available in dual 2-ohm and dual 4-ohm configurations, providing flexibility in wiring options to suit various amplifier setups and impedance requirements.

The E series subwoofers are best suited for ported, 4th order, or 6th order bandpass enclosures. These enclosure types maximize the subwoofer’s performance potential, allowing it to produce rich, resonant bass that enhances any audio experience. The design and engineering of the E series draw from the successful elements of the B, M, and H series subwoofers, incorporating high-quality materials and technologies to ensure reliable performance. This includes the use of durable components and advanced motor cooling features that are critical for maintaining optimal performance during extended use.

Quality assurance is a cornerstone of Trinity Audio Solutions’ manufacturing process. Every E series subwoofer undergoes rigorous testing to ensure it meets the company’s high standards before reaching the market. This extensive evaluation process guarantees that customers receive a product that not only meets but exceeds their expectations. Although the E series is a new addition to the Trinity lineup, it is anticipated to quickly garner positive reviews and testimonials from satisfied customers, much like the M and H series subwoofers.

To further ensure customer satisfaction, Trinity Audio Solutions backs the E series subwoofers with a 1-year manufacturer warranty. This warranty provides peace of mind, assuring customers that their investment is protected and that support is readily available should any issues arise. Additionally, recone kits are available for all Trinity subwoofers, including the E series, enabling users to maintain their subwoofers’ performance over time.

In summary, the Trinity Audio Solutions E series subwoofer offers an exceptional balance of performance, affordability, and reliability. Designed for the everyday bass enthusiast, it provides powerful bass output and versatile installation options, all while maintaining the high standards of quality and durability that Trinity Audio Solutions is known for. Whether you’re a dealer, distributor, or end-user, the E series is poised to become a go-to choice for high-quality, value-oriented bass performance.

At the heart of the M series subwoofer lies a triple stacked ferrite motor, enhanced through Finite Element Analysis (FEA) for optimal structure and performance. This 650oz motor design ensures powerful bass reproduction with minimal distortion, even at high volumes. Additionally, the subwoofer’s optimized airflow system, spanning both the motor and basket, facilitates efficient heat dissipation, allowing for extended periods of operation without compromising performance.

The subwoofer’s construction features a triple-layer foam high excursion surround, providing durability and flexibility for enhanced bass response. Complementing this is a rigid composite paper cone, engineered to deliver precise and accurate bass reproduction across the frequency spectrum. The M series subwoofer also boasts a 10″ quad-layer progressive nomex spider pack in the 12-18” versions and a 3″ BASV high-temperature dual voice coil, further enhancing its performance capabilities.

Recognized as a leader in the market for low-end reproduction, the M series subwoofers excels in delivering deep, impactful bass that resonates with clarity and definition. Whether used in a ported or bandpass enclosure, this subwoofer is ideally suited for both daily bass enthusiasts and competitive car audio competitors seeking to push the limits of their sound systems.

Prior to its release, the M series subwoofer underwent extensive testing, including rigorous FEA modeling and real-world trials, ensuring its performance and reliability meet Trinity Audio Solutions’ exacting standards. Each product undergoes meticulous quality control checks, guaranteeing that only the finest units make their way to customers.

With a track record of satisfied customers pushing the boundaries of audio performance, the Trinity Audio Solutions M series subwoofer has proven its resilience in extreme environments, withstanding immense power levels up to 18,000 watt bursts without succumbing to damage. Additionally, customers can take comfort in the availability of recone options and a generous 1-year manufacturer warranty, further demonstrating Trinity Audio Solutions’ commitment to customer satisfaction and product longevity.

The B series features a robust cast basket and maintains Trinity Audio Solutions’ signature all-black sleek design, ensuring both durability and aesthetic appeal. Each subwoofer in the B series is equipped with a 3″ high-temperature dual voice coil, which provides the capability to handle 1500 watts RMS. This power rating ensures that the subwoofers can deliver deep, impactful bass while maintaining clarity and precision.

A notable aspect of the B series is its high excursion capabilities, facilitated by 10″ spiders on the 12″ and larger models, and 8.6″ spiders on the 10″ models. This design allows for greater movement of the cone, resulting in more dynamic and powerful bass output. Additionally, the double-stacked motor design, enhanced with Finite Element Analysis (FEA) cooling features, ensures that the subwoofers remain cool and efficient even during prolonged use. The B series subwoofers are equipped with advanced cooling mechanisms to prevent overheating, ensuring reliable performance under various conditions.

Available in 10″, 12″, 15″, and 18″ sizes, the B series subwoofers offer a range of options to suit different installation requirements and preferences. They are versatile enough to be used in various enclosure types, including ported, 4th order, and 6th order bandpass boxes. Trinity Audio Solutions recommends these configurations to maximize the subwoofers’ performance, delivering optimal bass response and sound quality.

The development of the B series was driven by extensive testing, FEA modeling, and multiple iterations, ensuring that each subwoofer meets Trinity Audio Solutions’ high standards of quality and performance. The rigorous testing process includes various stress tests to ensure durability and reliability. This meticulous approach guarantees that customers receive a product that not only meets but often exceeds their expectations.

Customer satisfaction is a top priority for Trinity Audio Solutions, and the B series subwoofers have already garnered positive feedback from numerous users. Although designed as a more accessible option, the B series does not compromise on the quality and performance that Trinity Audio Solutions is known for. The subwoofers are built to withstand extreme conditions, with some users reporting successful runs at over 174 dB with no damage to the subwoofers.

To further support customers, Trinity Audio Solutions offers recone kits for all their subwoofers, including the B series, allowing users to maintain their subwoofers’ performance over time. Additionally, a 1-year manufacturer warranty provides peace of mind, ensuring that any issues can be promptly addressed.

In conclusion, the Trinity Audio Solutions B series subwoofers represent a perfect blend of performance, versatility, and value. Designed for the up-and-coming basshead, these subwoofers deliver powerful and dynamic bass without requiring extensive modifications or high-end equipment. With their robust design, advanced features, and rigorous testing, the B series subwoofers are set to become a favorite among bass enthusiasts seeking high-quality sound at an accessible price.
