Description

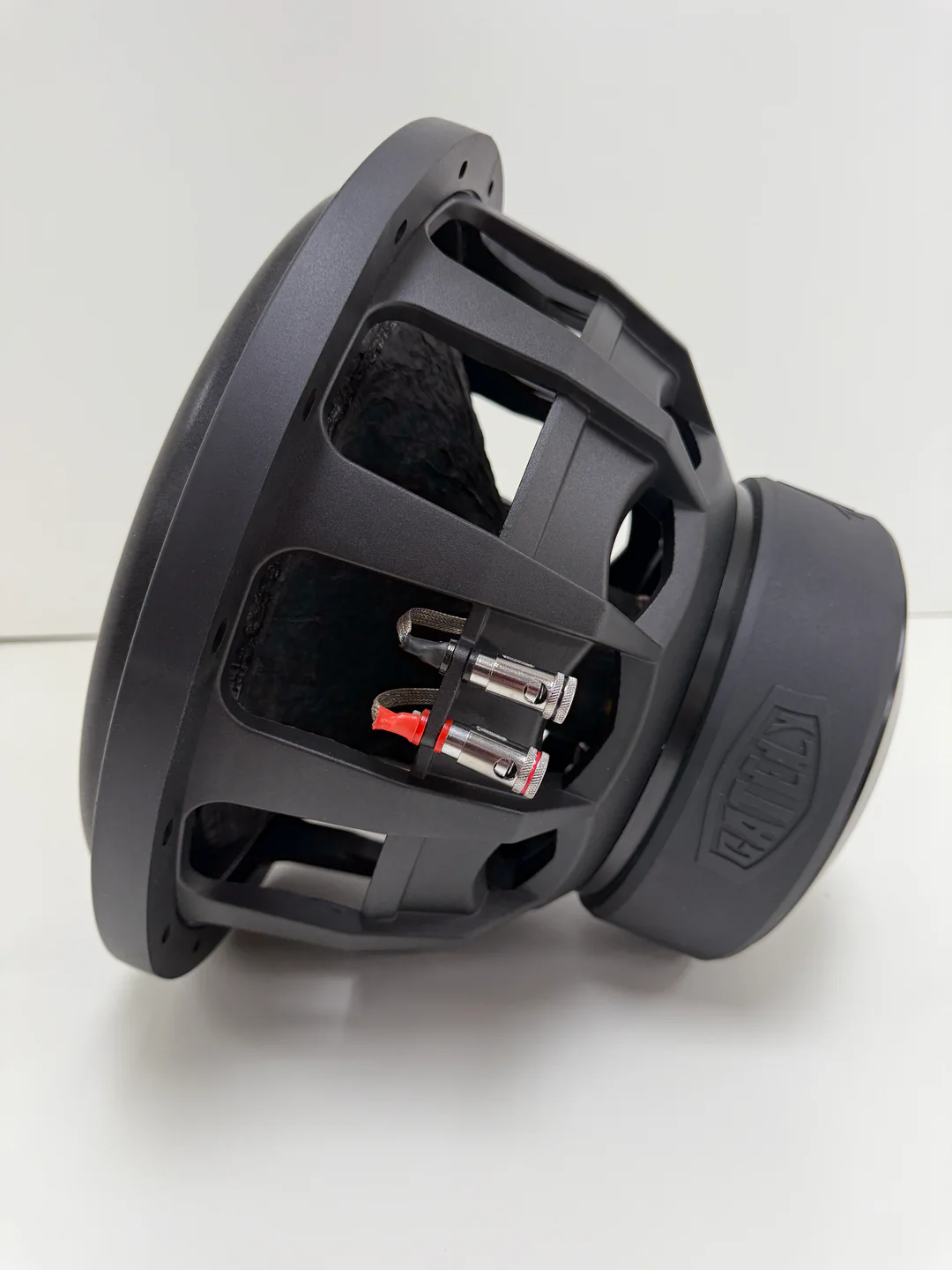

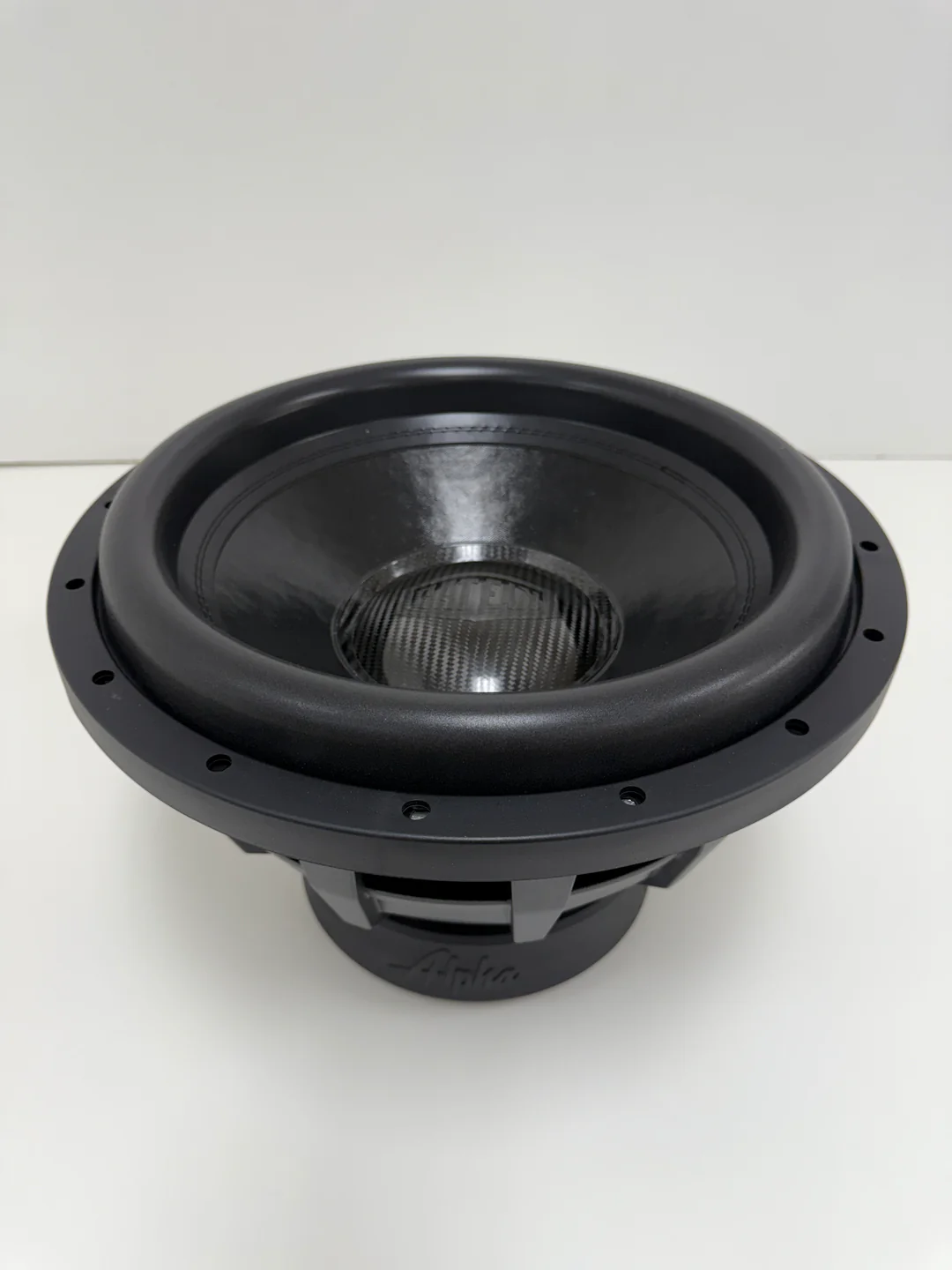

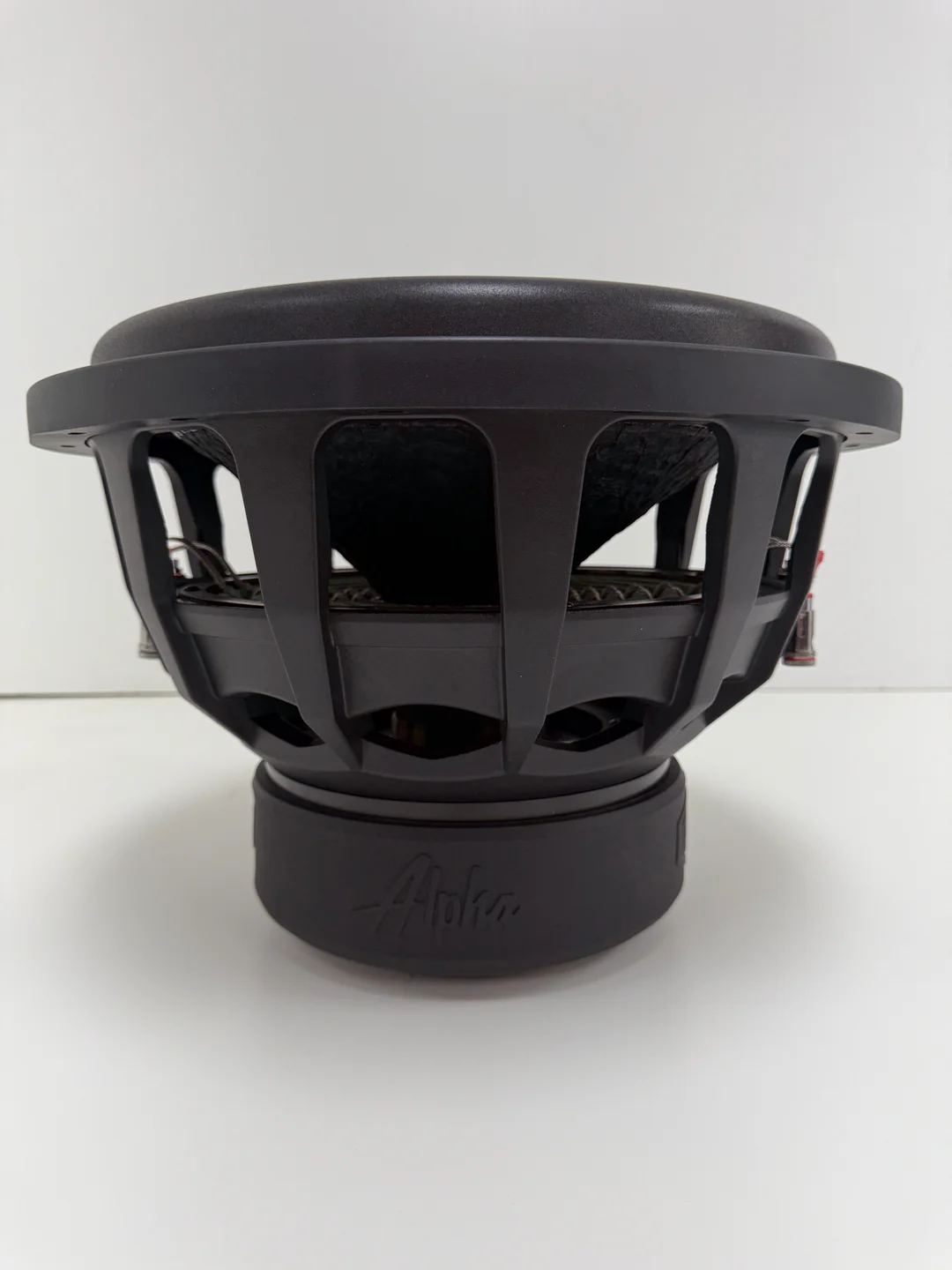

GATELY AUDIO Alpha series 15″ subwoofer.
Cutout Diameter 14.1″
Mounting Depth 9″
3″ 4 layer voice coil
8.5″ Y35 250oz Ferrite Motor

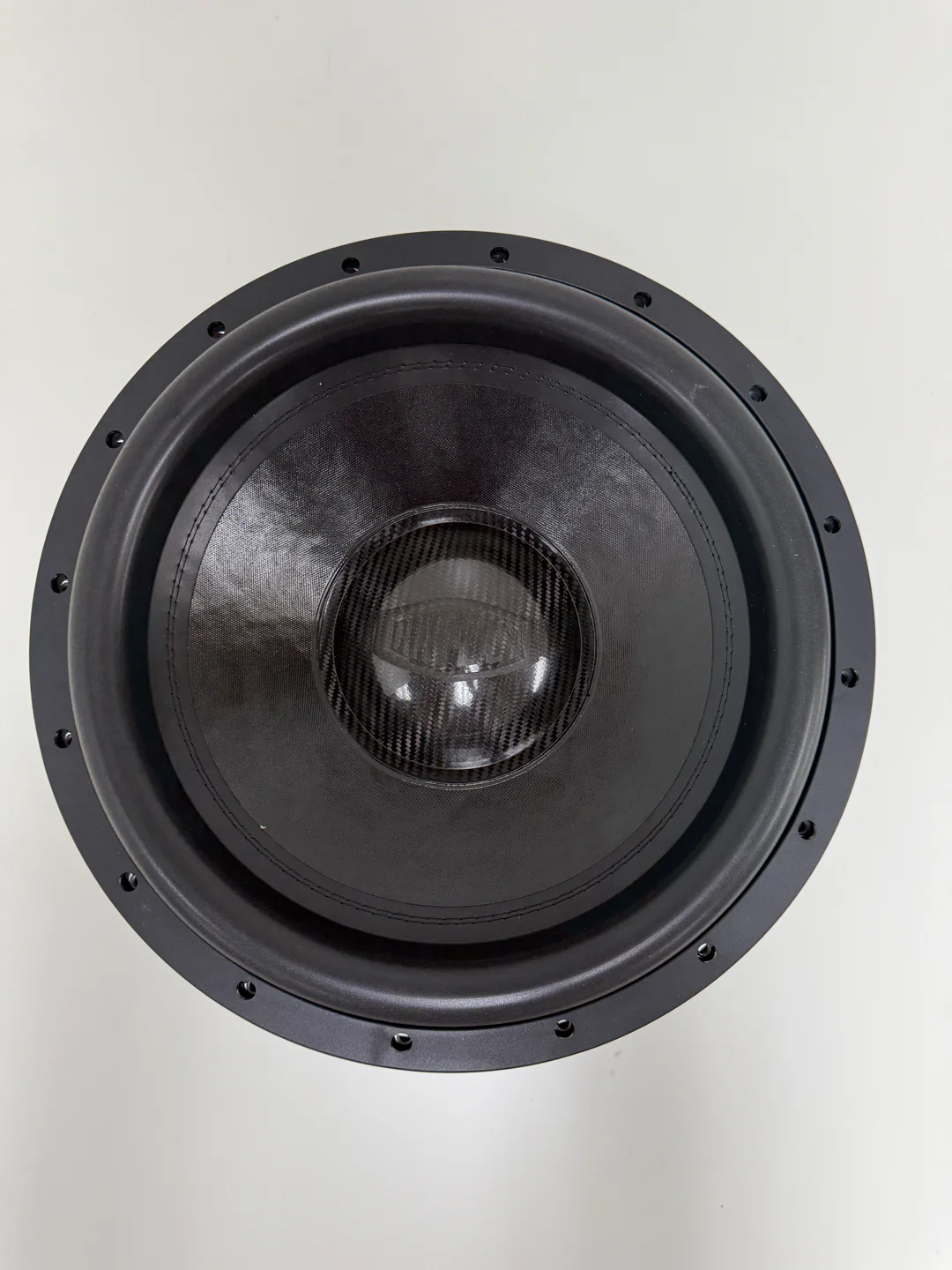

GATELY shield embossed carbon fiber dustcap
2000 watt RMS
Weight: 50 lbs.
|
SPECIFICATIONS
|
|
| Watts | 2000 RMS |
| MIN INTERNAL VOL | 3.0 cubic feet |
| MAX INTERNAL VOL | 4.0 cubic feet |
| MIN Port Area | 40 sq inches |
| MAX Port Area | 50 sq inches |
Alpha 15″ D3
f(s) = 34.42 Hz
Q(ts) = 0.675
V(as) = 51.46 liters (1.817 cubic feet)
SPL = 86.33 dB SPL 1W/1m
Nominal Diam. = 0 mm (15 in.)
Model: Alpha V2 15 inch Dual 3 Ohm
R(e) = 1.631 Ohms
Q(es) = 0.7549
Piston Diam. = 323.9 mm (12.75 in.)
SPL = 93.24 dB SPL 2.83 Vrms
C(ms) = 0.054 mm/N
Z(max) = 15.4 Ohms
L(e) = 0.577 mH at 10kHz
Q(ms) = 6.374
BL = 13.6
n(0) = 0.265 %
M(ms) = 396 grams
