Description
The PRV Audio FR Series sets a new standard of value in high-performance Fullrange speakers. The 6FR200 fullrange speaker is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter.
- True full-range response ( 80 – 20,000Hz ) makes it easy to add midrange and high frequency to any system
- Impressive choice for a compact, high output home, car, and professional audio systems – 8 Ohm impedance
- 92.5 dB – High efficiency, you do not need a lot of power to achieve extreme SPL levels

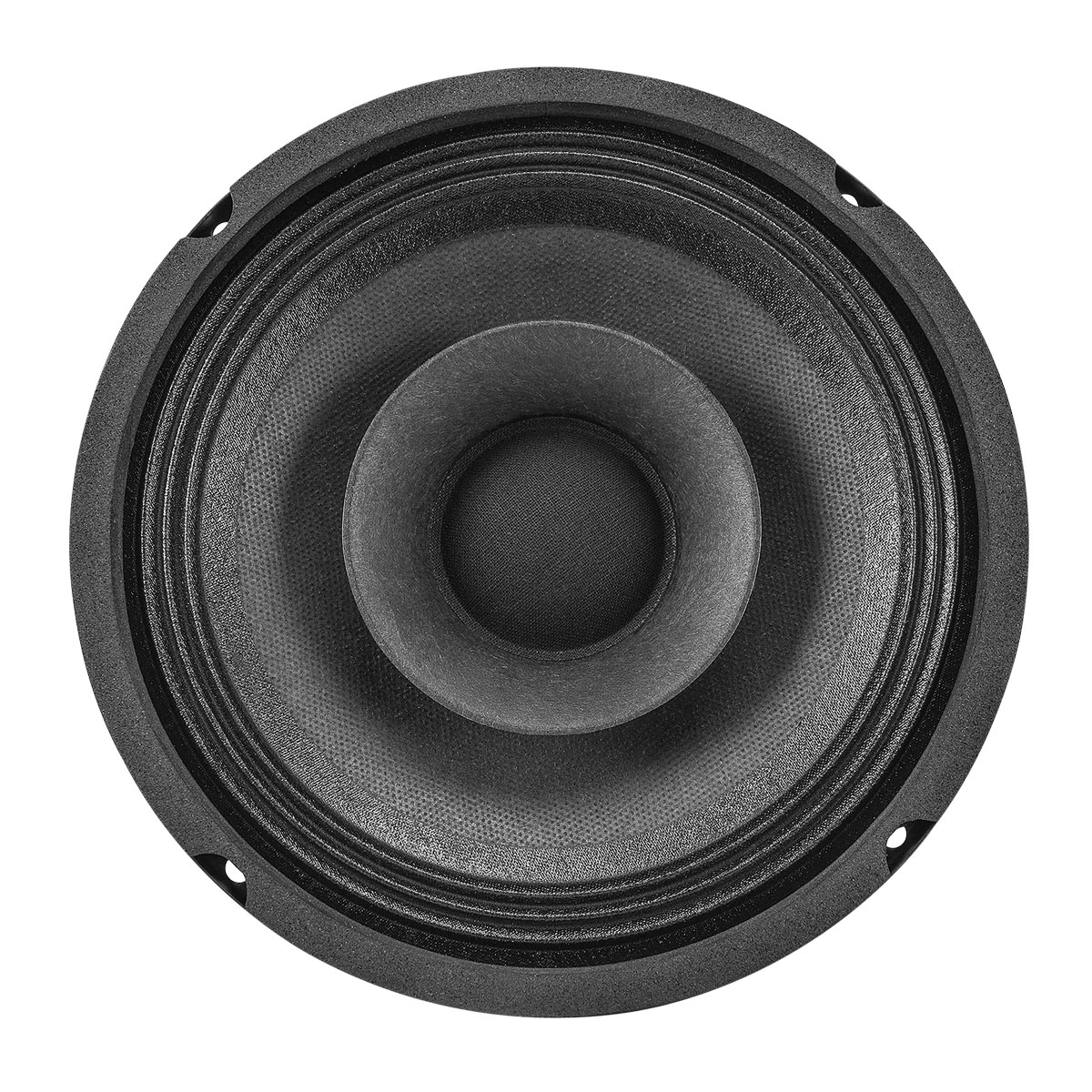

- Dual Cone Full Range Loudspeaker – Secondary “whizzer” cone improves high frequency response
The dual cone setup maximizes sound clarity. The primary cone handles lows to midrange frequencies while the smaller whizzer cone increases high-frequency response, yet it still has a wide frequency range, 80Hz to 20,000Hz, despite its small size.
In addition to delivering superior performance across a wide range of frequencies, its innovative design sets it apart from traditional speakers.
These full-range speakers are focused on a combination of a small motor with a copper ring and an unique whizzer cone with a woven-cloth dust cap which provides exceptional clarity, deep mid-bass, high detail, and dynamics at high sensitivity.
Great option for car audio systems and simple portable speaker designs. Whether you’re a DIY audio enthusiast or a professional sound engineer, the FR series is the go-to choice for any audio project that demands exceptional sound quality and clarity all from a single speaker.

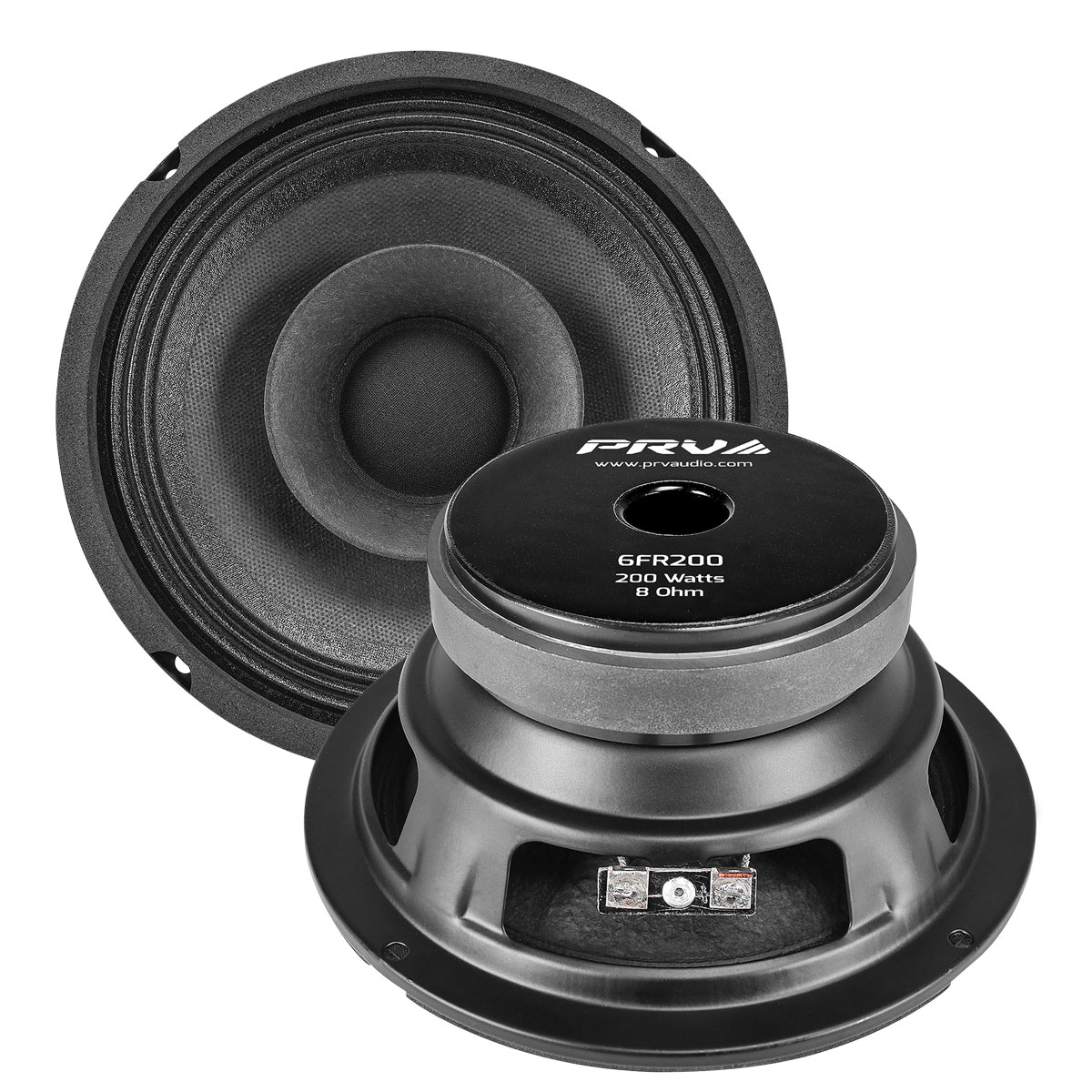

PRV Audio 6.5″ Fullrange Speaker 6FR200 PRO Audio Loudspeaker 200 Watts / 8 Ohm
Recommended HPF using PRV Digital Signal Processor DSP when using up to 200 Watts RMS musical power ( without clipping )
- 85 Hz at 12 dB per octave filter Crossover / BT12
- 70 Hz at 18 dB per octave filter Crossover / BT18
We do not recommend using a LPF at low power to take advantage of its high frequency response.

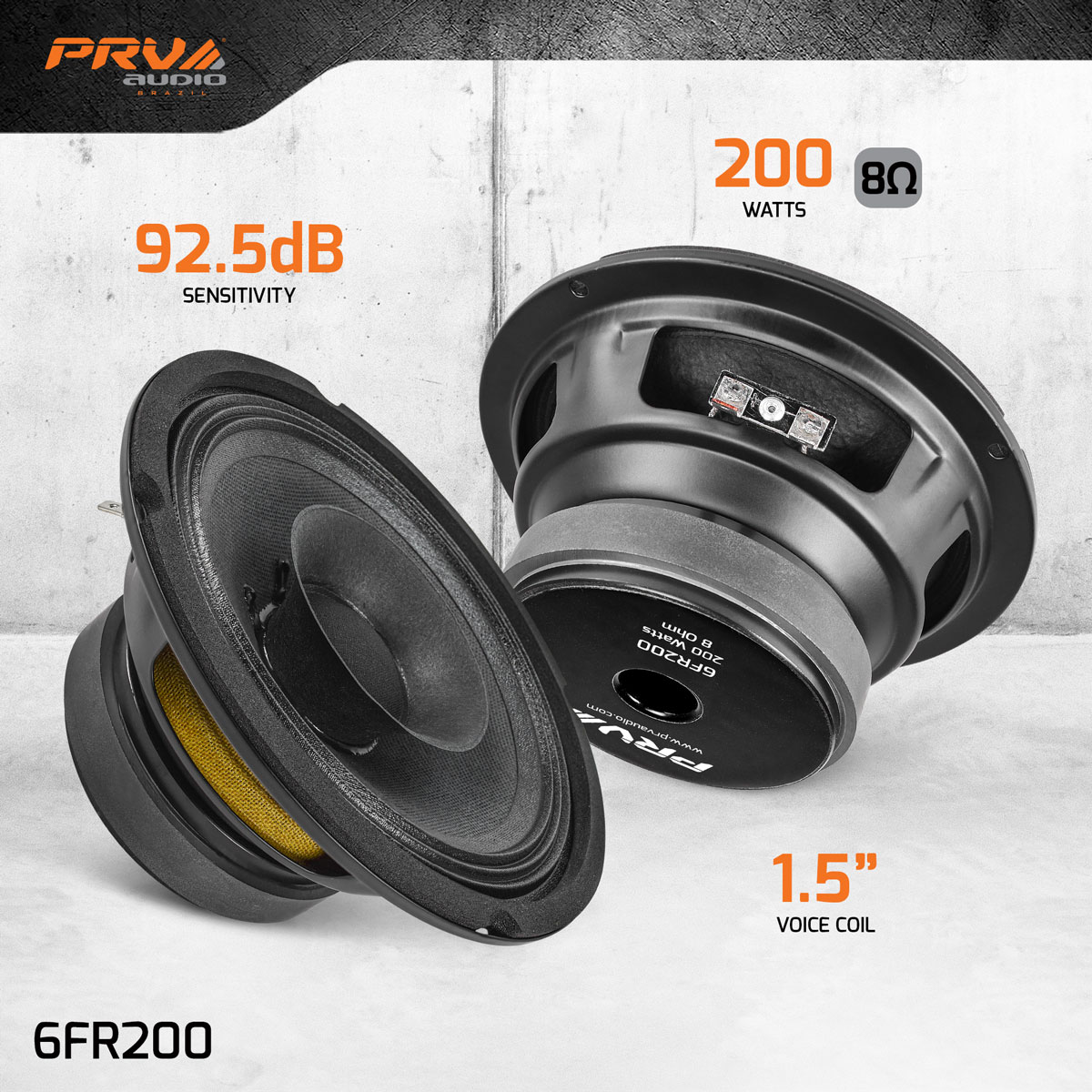

GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 100 Watts |
| Continuous Program Power (RMS) | 200 Watts |
| Max Peak Power | 400 Watts |
| Sensitivity 2.83V at 1m | 92.5 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling |
85 Hz** **12db Per Octave Crossover |
| Frequency Response | 80 – 20,000 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 10.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 6.93 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 111.7 Hz |
| Mechanical Factor | Qms | 15.69 |
| Electrical Factor | Qes | 1.40 |
| Total Factor | Qts | 1.29 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 8.37 g |
| Bl Factor | Bl | 5.17 Tm |
| Dc Resistance | Re | 6.4 Ohms |
| Inductance | Le | 0.264 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 7.40 g |
| Mechanical Compliance | Cms | 0.242 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

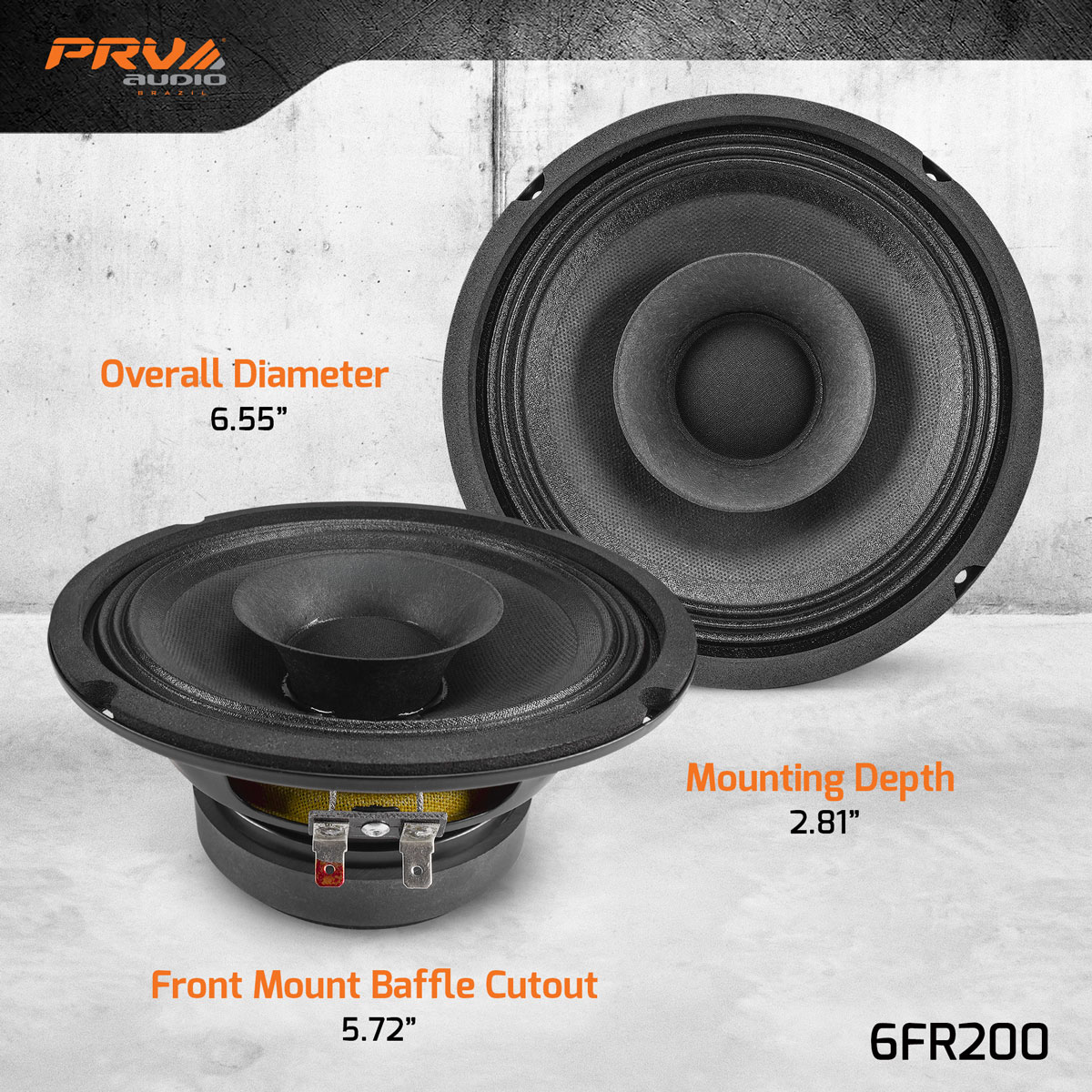

EXTRA INFO
| Overall Diameter | 6.55” (166.5 mm) |
| Front Mount Baffle Cutout | 5.73” (145.5 mm) |
| Mounting Depth | 2.81” (71.5 mm) |
| Overall Depth | 3.09” (78.5 mm) |
| Net Weight | 2.78 Lbs (1.27 kg) |
| Shipping Weight | 3.08 Lbs (1.4 kg) |
| Carton Dimensions W x L x H | 6.89” x 6.89” x 3.74” (175 x 175 x 95 mm) |
