Description
Utilizing a favorite 4 stack ferrite magnet design using US steel cut on our water jet and finish machined on our CNCs, there is plenty of motor force in the FEA derived design for both daily and SPL use. Utilizing a solid pole and staged aluminum cooling helps keeps thermal temperatures under control. Utilizing a special 144 tinsel count leadwire that is double sewn to the spider pack, there are no losses in power transfer to the coil

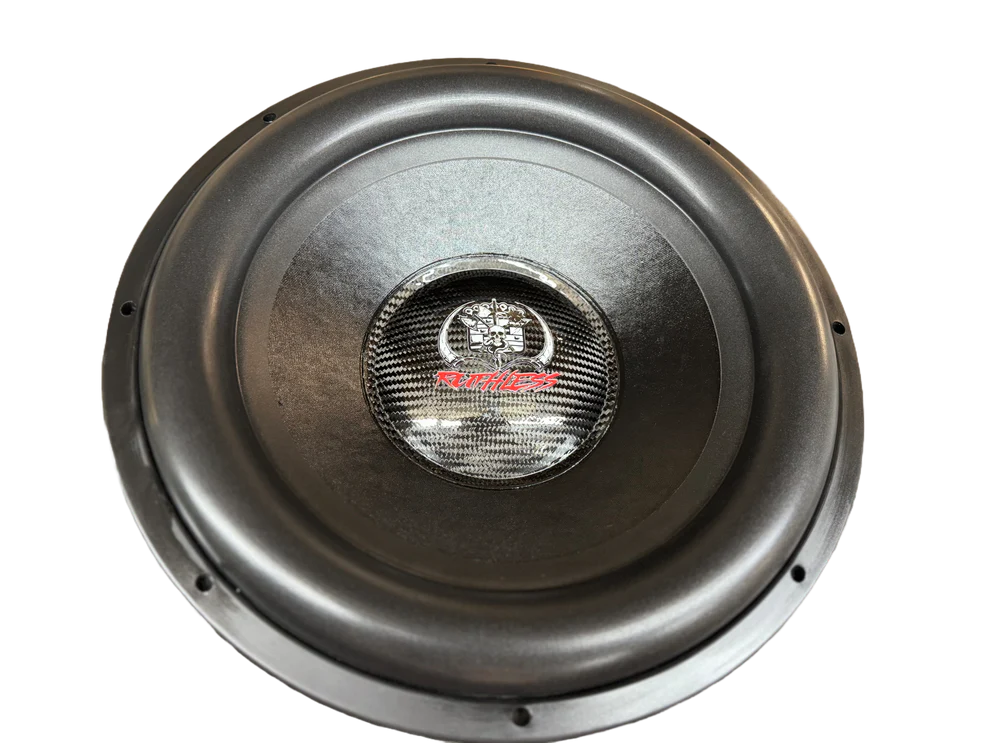

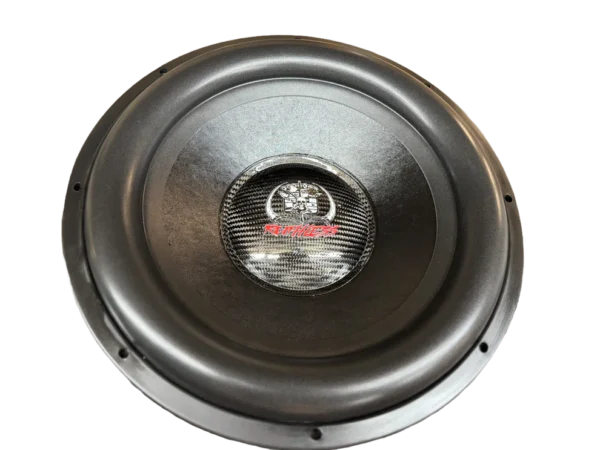

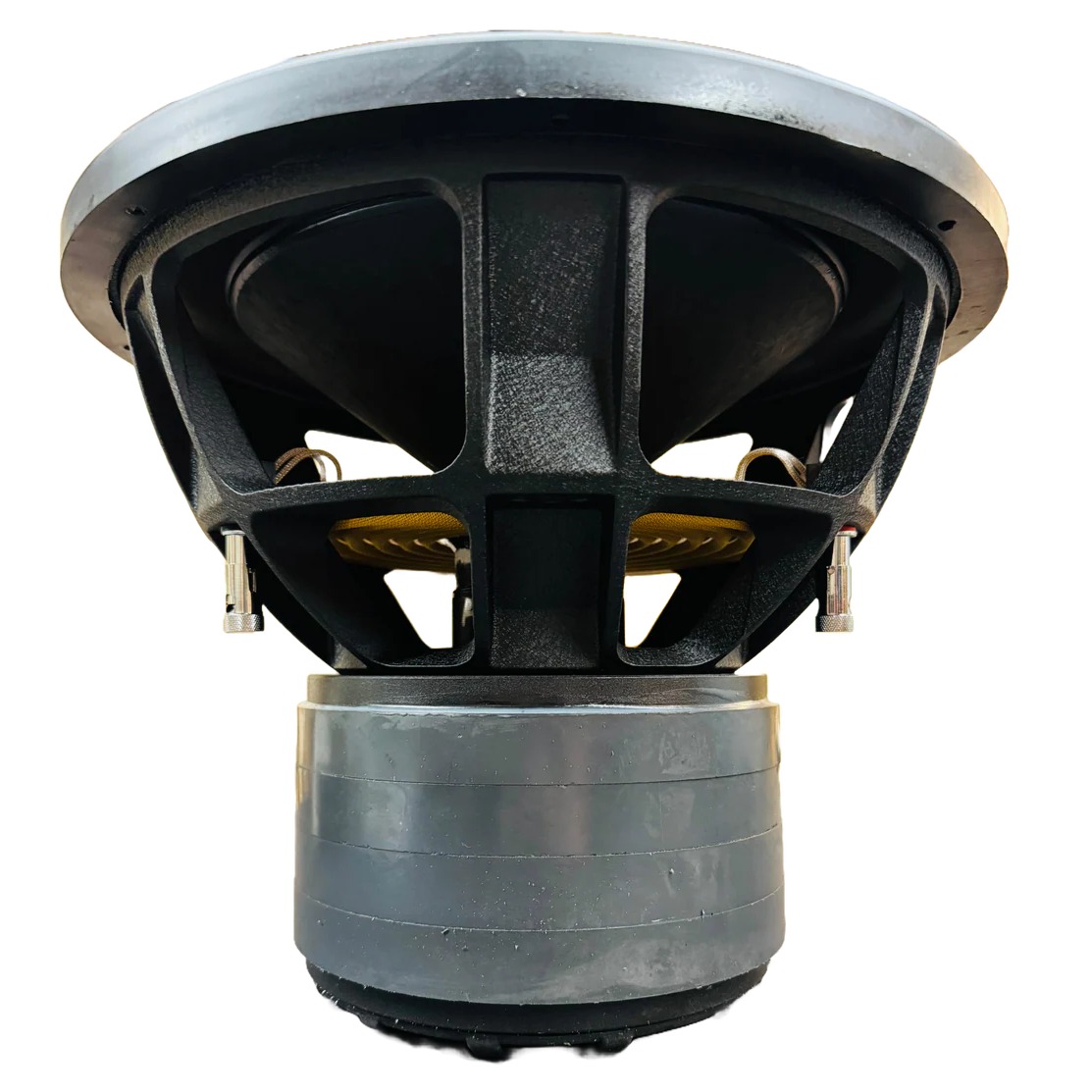

Available in 15″ and 18″
Dual .7 and Dual 1.7 Ohm
2500 watts RMS

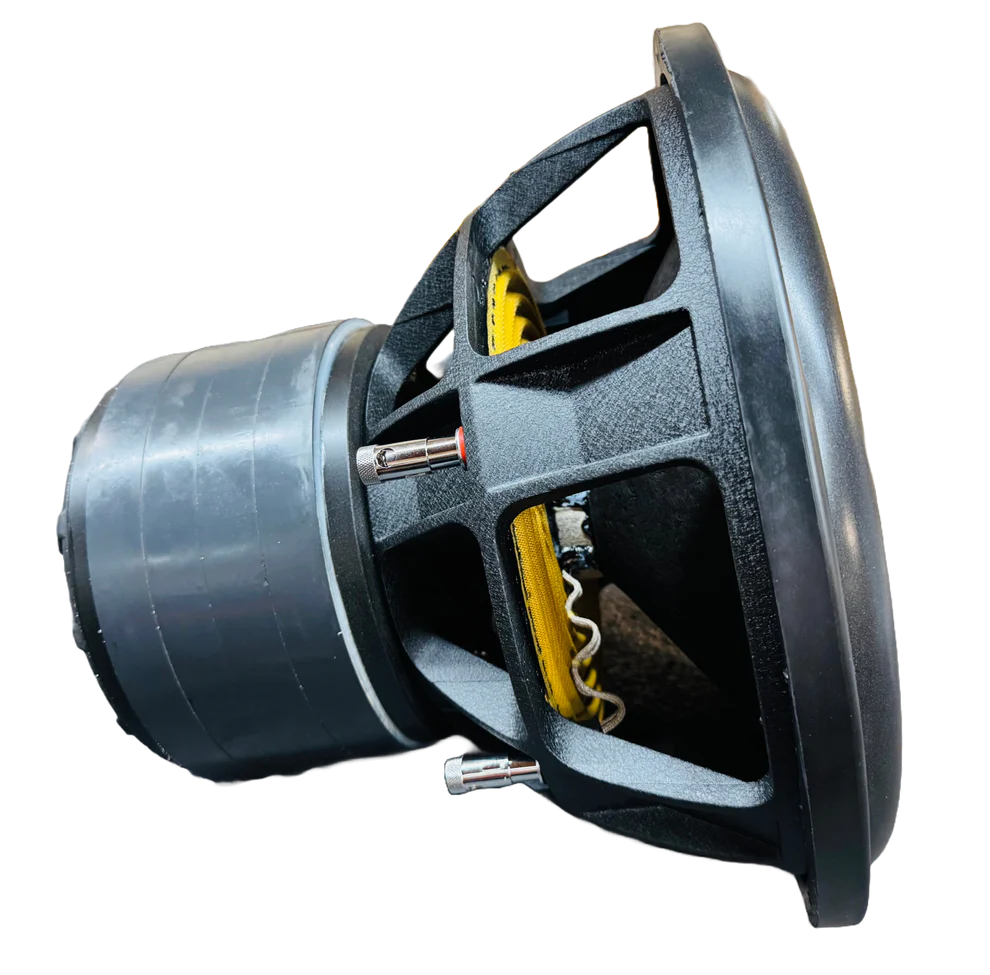

Extra heavy aluminum basket
Wrap around gasket
Kraft pulp fiber reinforced cone
Dual layer wide foam surround
Standard heavy duty stitched hybrid lead or push/hybrid termination
144 tinsel count leads
FEA optimized motor design
High Flux density design
3” diameter 4 layer coil

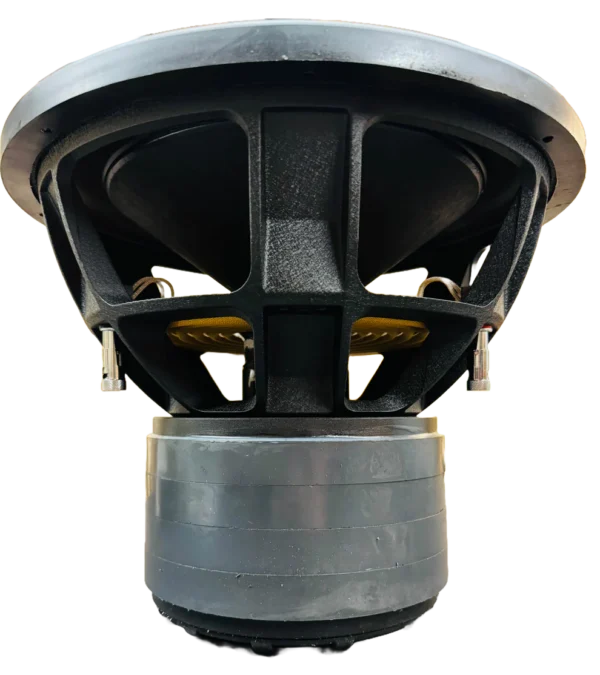

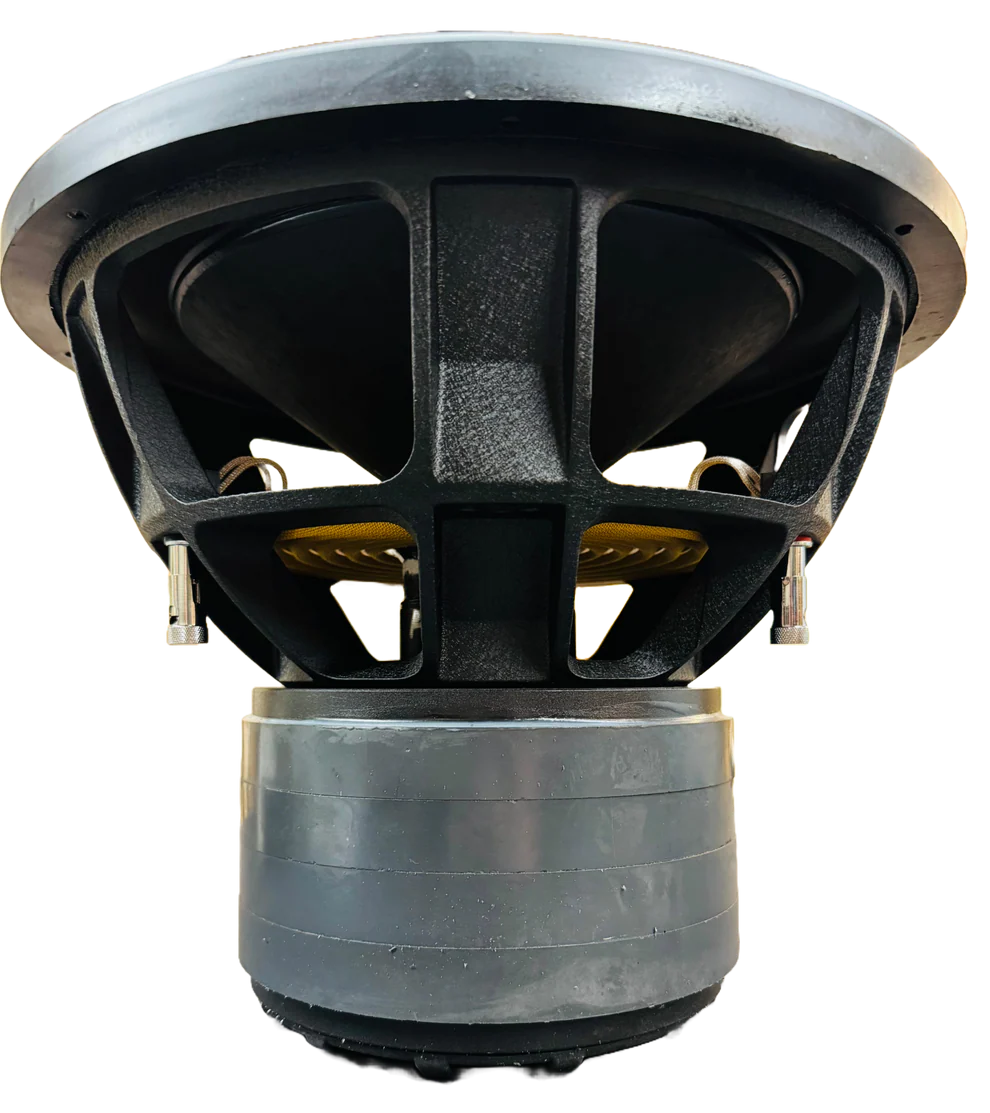

Quad stack magnets

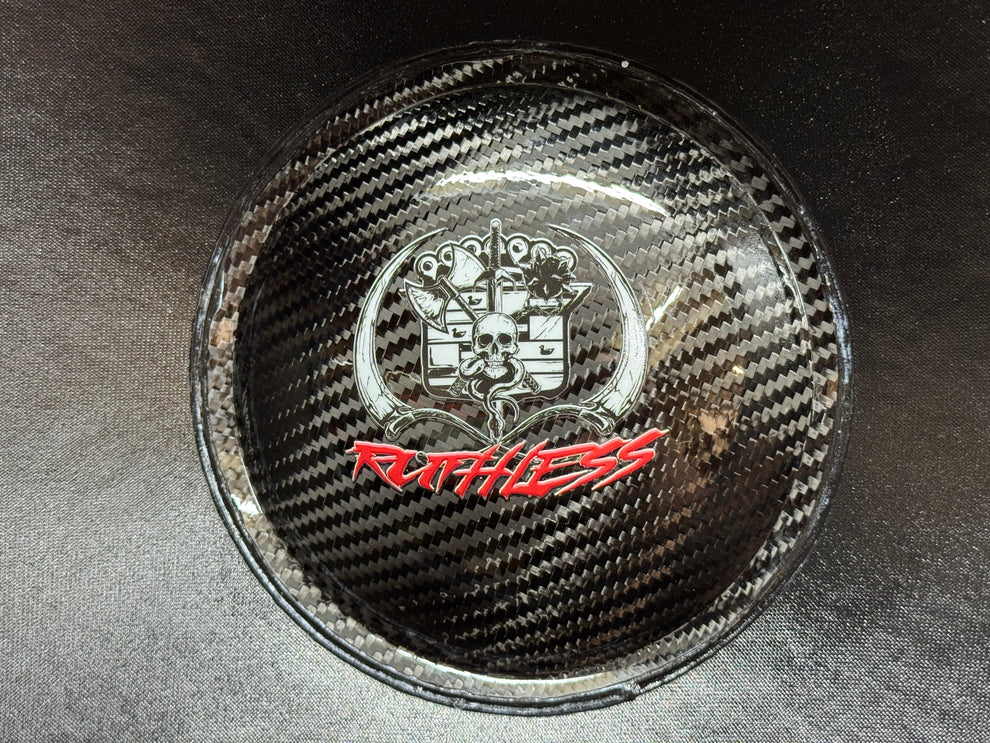

Carbon cap standard
Water jet and machined in house from US steel
5 progressive spiders
T/S parameters coming soon
