Description

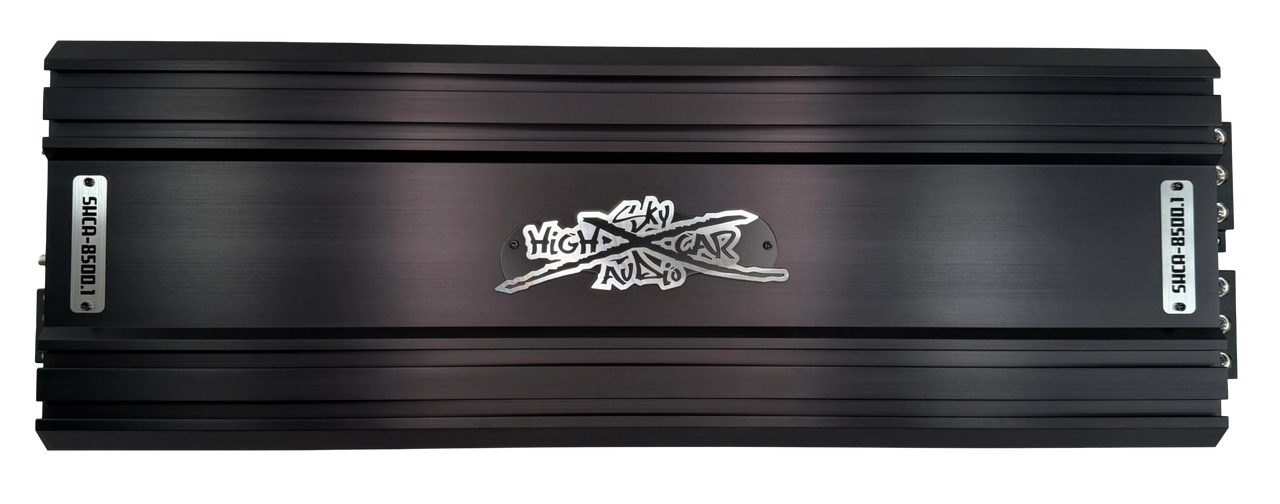

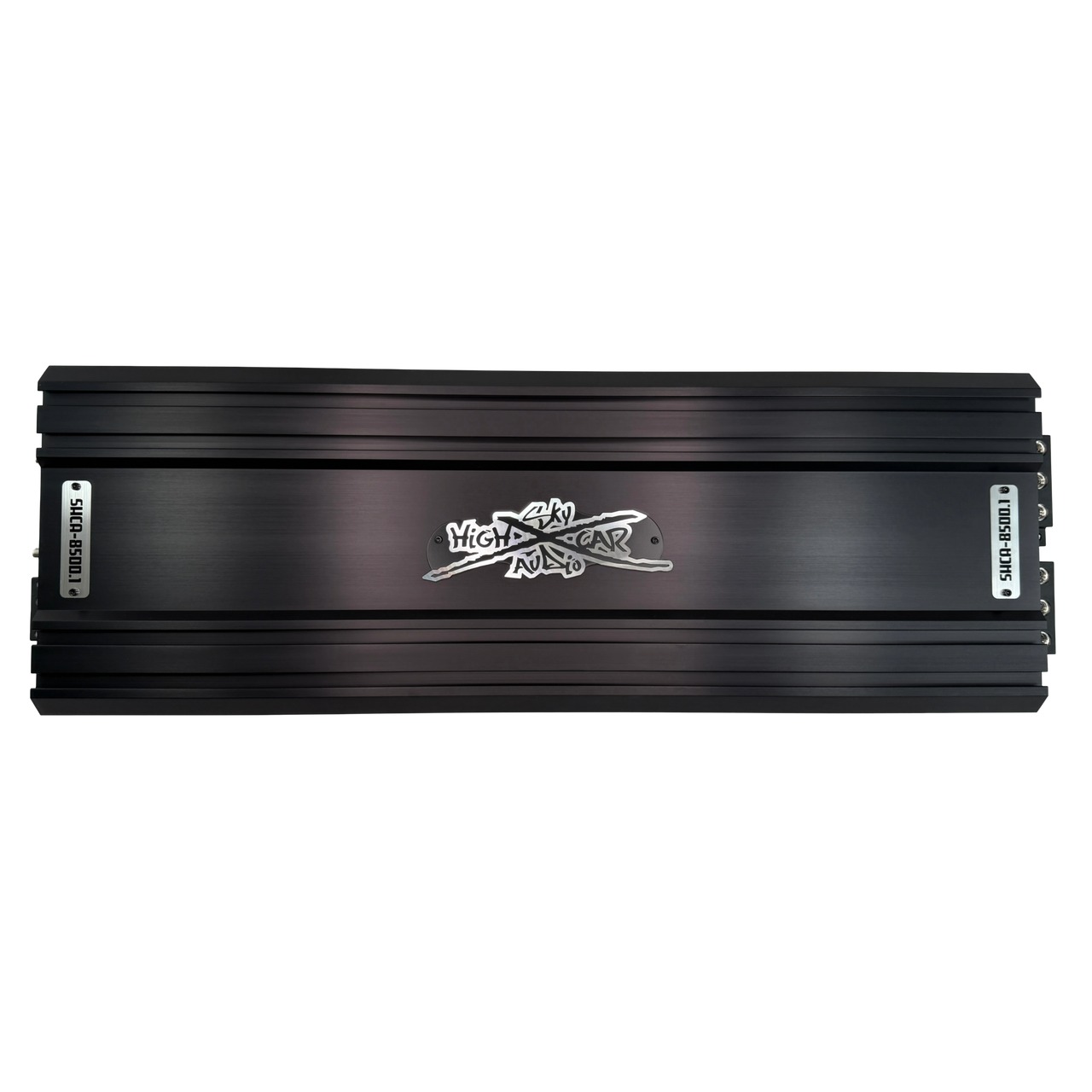

Sky High Car Audio SHCA8500.1 – Elite Performance. Zero Apologies.
Rethinking the amplifier: The most customizable and vertical amp EVER. It’s not just a statement; it’s facts.
| Korean Built | Class D | 0.5Ω Stable | Individually QC Tested | Ultra Fast Switching | Balanced Input Circuit | Onboard Synchronizer | Strappable | 3 Levels of Modular Cooling | Premium Customization in Color, Mounting & Appearance | Acrylic Back | Expansion-Ready |
Full-Tilt Power. Full-Time Confidence.
The SHCA8500.1 steps up to serious territory—optimized for high-output sub stages, demo rigs, or wall builds where massive wattage needs real cooling and reliable tuning control. This is one of the most versatile 8K-class amps on the market— stylish, efficient, and expandable.
•True 0.5 Ohm Stability
Warrantied and tested to perform under heavy load in real-world conditions.
•17.0vdc Max Operating Voltage – rated at 13.2vdc @ 1 ohm
•1-Year Manufacturer Warranty
Covers manufacturer defects including 0.5Ω operation from date of purchase.
•Korean Engineered & Assembled
Designed by engineers from scratch, using world class parts and optimized with Sky High modular features.
Dimensions
•27.56” (L) × 9.92” (W) × 3.13” (H)
The largest amp before stepping into 5-digit wattage territory—still stackable and modular heat sink compatiblity stays the same.
Efficiency & Airflow Built In

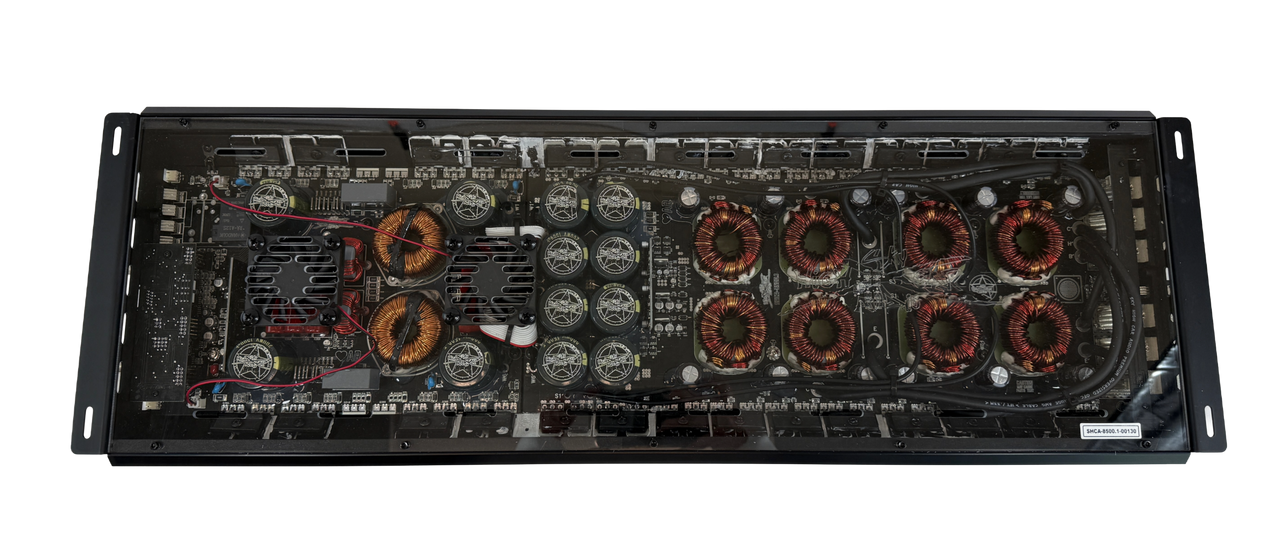

•High-efficiency circuit layout reduces internal heat and stress
•Standard acrylic backplate with internally mounted cooling fan improves reliability and extends performance during high-demand use
•Designed for long play sessions, demo events, and high-output daily systems without heat-based drop-off
Customization That Stands Alone
Flippable Branding System
•Diamond-cut aluminum Sky High logo and aluminum model number plates are fully reversible for clean orientation in any mounting position
Modular Center Panel
•Drop-in customizable overlays available custom or in standard form (sold separately) examples of materials:
•Forged carbon
•Mirror stainless
•Paint-matched aluminum
•Acrylic/plexi light-up options
•No adhesives, no fabrication—just swap and bolt on

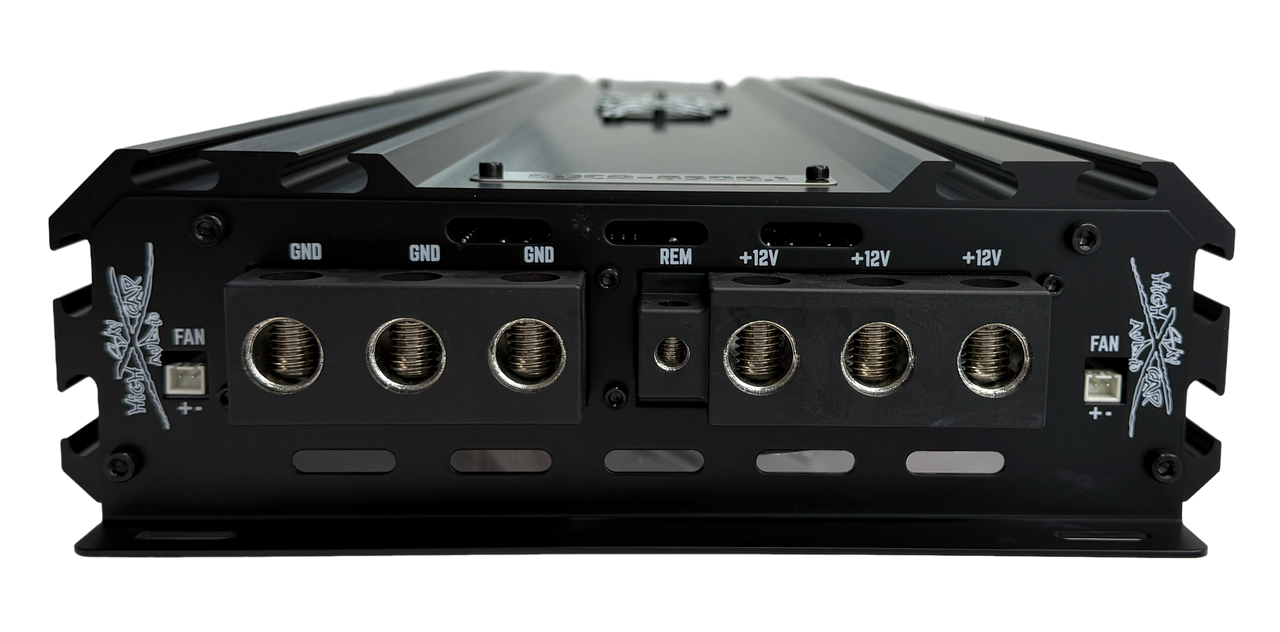

Power Input Flexibility
Input Expansion Kits (Sold Separately)
•Add more 12V power delivery points for high-demand builds
•Available in:
•Cast aluminum
•CNC’d aircraft-grade aluminum
•Copper
Ring Terminal Adapters (Sold Separately)
•Ideal for tight fitments and clean panel work
•Bolt-on design ensures secure, high-conductivity connections
Cooling System Expandability
Passive Cooling Add-Ons (Sold Separately)
•Slide-in extruded aluminum heat sink overlays increase surface area up to 25%
•Available in 5 color options as well in raw aluminum for custom finish work including plain, powder, gold/chrome/copper/ rose gold dip, polish or other high end finishes all available.
-
- Non-anodized coatings will affect cooling potential of aluminum.
Active Cooling (Sold Separately)
•Push/pull fan kits mount to the extruded heatsink extensions and plug into (4) onboard 12V outputs
•Optional thermal bridges link airflow between linked amps
2026 Water Cooling Ready
•Bolt-on water-cooled heatsink system (in development) will include pump, radiator, and lines. Optional tank sold separately.

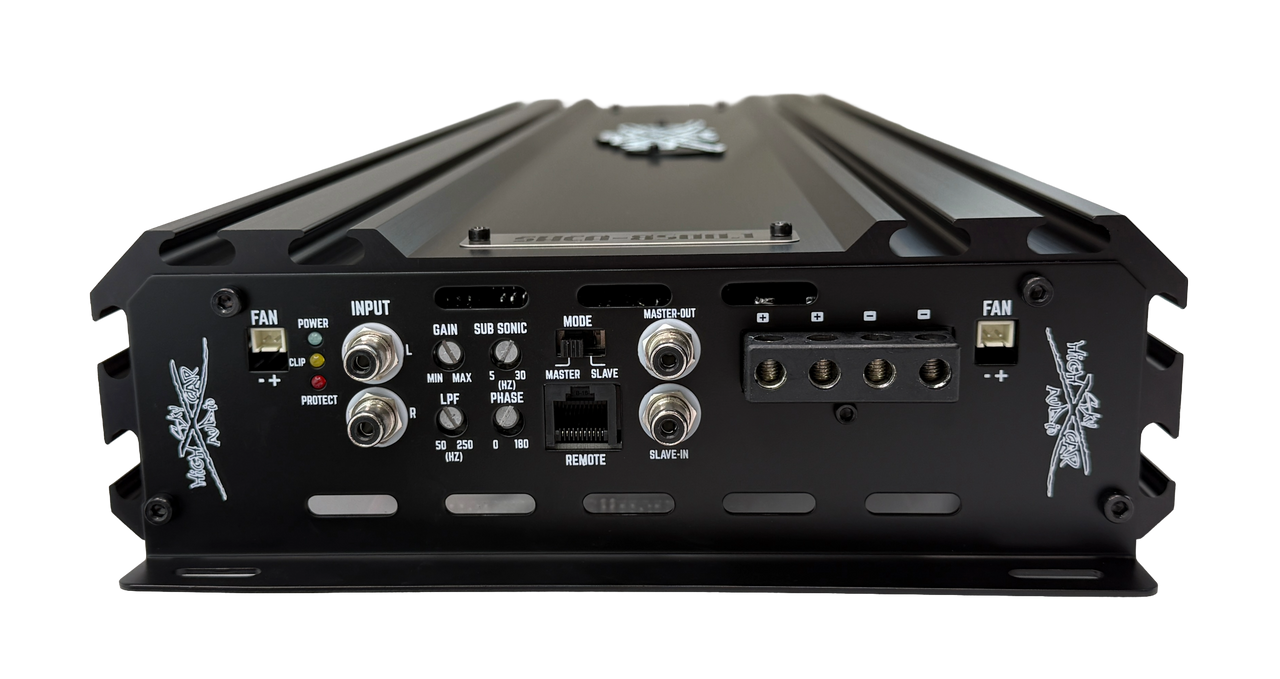

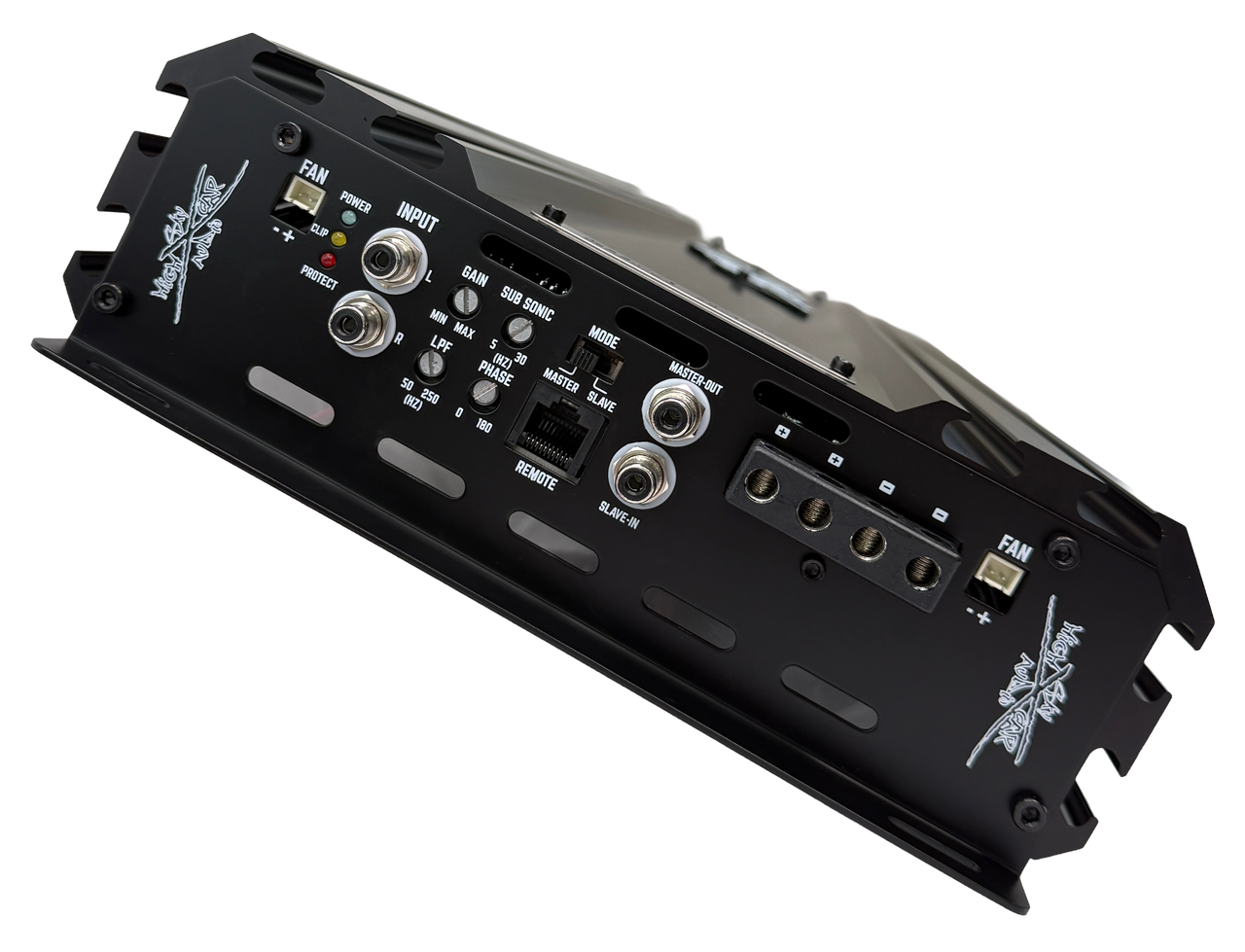

CAT6 Remote System
•Link up to 12 SHCA amps
•Control gain, subsonic, LPF, and phase control all from a single unit.
•Monitor temp or voltage of amps
•Fully compatible with Sky High Smart Bass Knob
Mounting Options for High-End Builds
As with every amp in the SHCA line this amp is designed for modular mounting options to accommodate any system layout.
•Bracket kits (sold separately) allow:
•Stacking
•Vertical mounting (adjustable mounts and static mounts available)
•Floating wall installs
•Side-by-side linking
•Proprietary Slide-lock channels in the heat sink allow for bracket setup
Available in:
•Extruded aluminum (lightweight, modular)
•Cast aluminum (durable and economical)
•Machined billet aluminum (show-grade)
**Optional footless endcaps allow for smooth flush mounting in clean-wall or rail-based installs
SHCA8500.1 – Elite Performance. Zero Apologies.
The SHCA8500.1 is built for elite-level performance and next-level customization. No compromises, no shortcuts—just true power and control for bass-heavy builders.
