Description
Download Manual: manual_bravo-bass_5k-8k
TECHNICAL SPECS (1 Ohm):
- Number of Channels: 1
- RMS Power at 1 Ohm 14.4V 5200W
- RMS Power at 2 Ohm 14.4V 2900W
- Supply Voltage: 9V ~ 17V DC

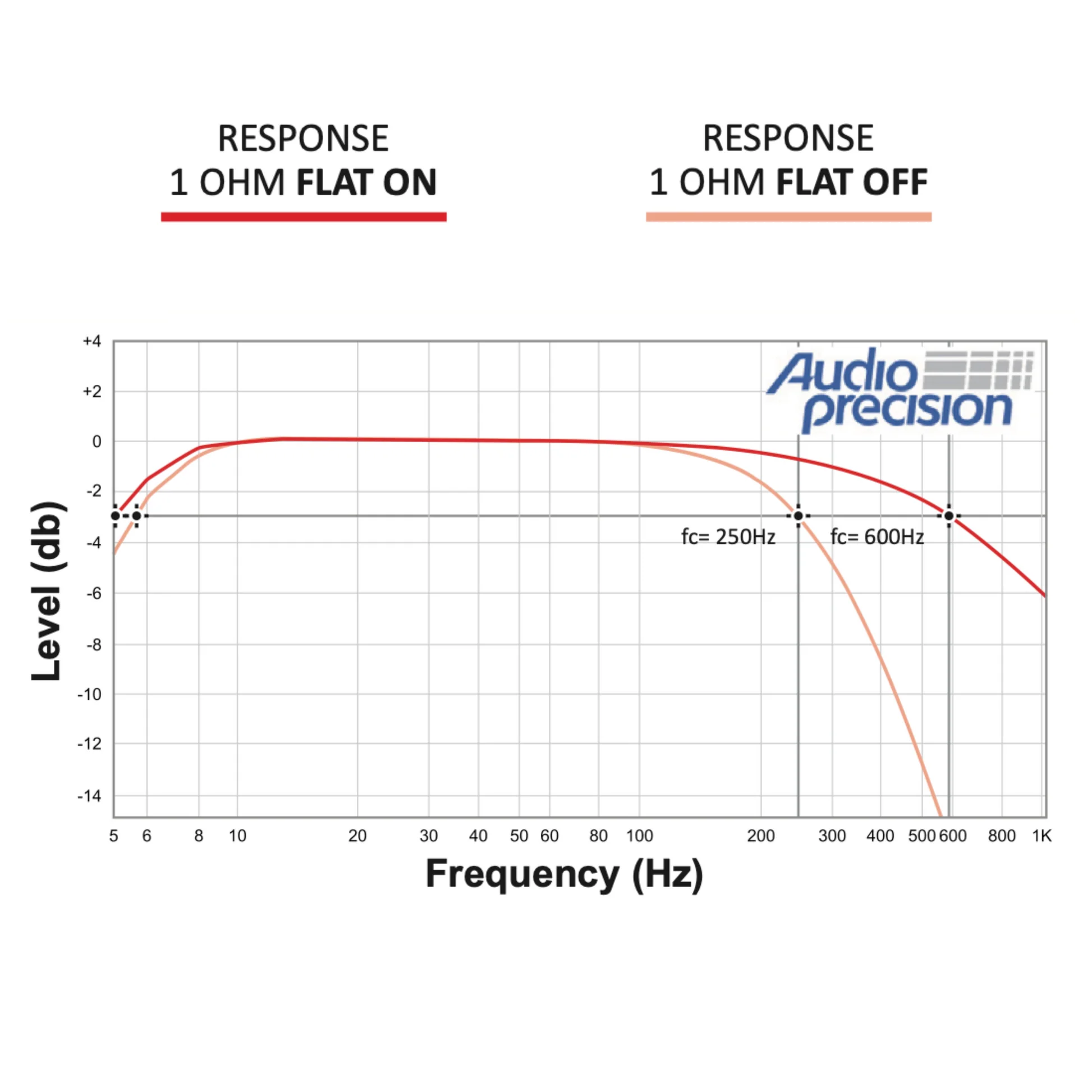

- Frequency Response (-3dB): 5Hz ~ 600Hz (FLAT ON)
- Frequency Response (-3dB): 5Hz ~ 250Hz (FLAT OFF)
- Crossover Low Pass: 30Hz ~ 250Hz
- Crossover Subsonic Filter: 5Hz ~ 40Hz
- Bass boost: 0 ~ +10dB (30Hz ~ 70Hz)
- Signal to Noise: >90 dB
- Input Impedance: 4.8K Ohms
- Musical Consumption: 228A
- BASS Consumption: 456A
- Dimensions (H x W x L): 3.14″ x 9.11″ x 13.11″
- Weight: 9.50lbs
