Description
Product Overview

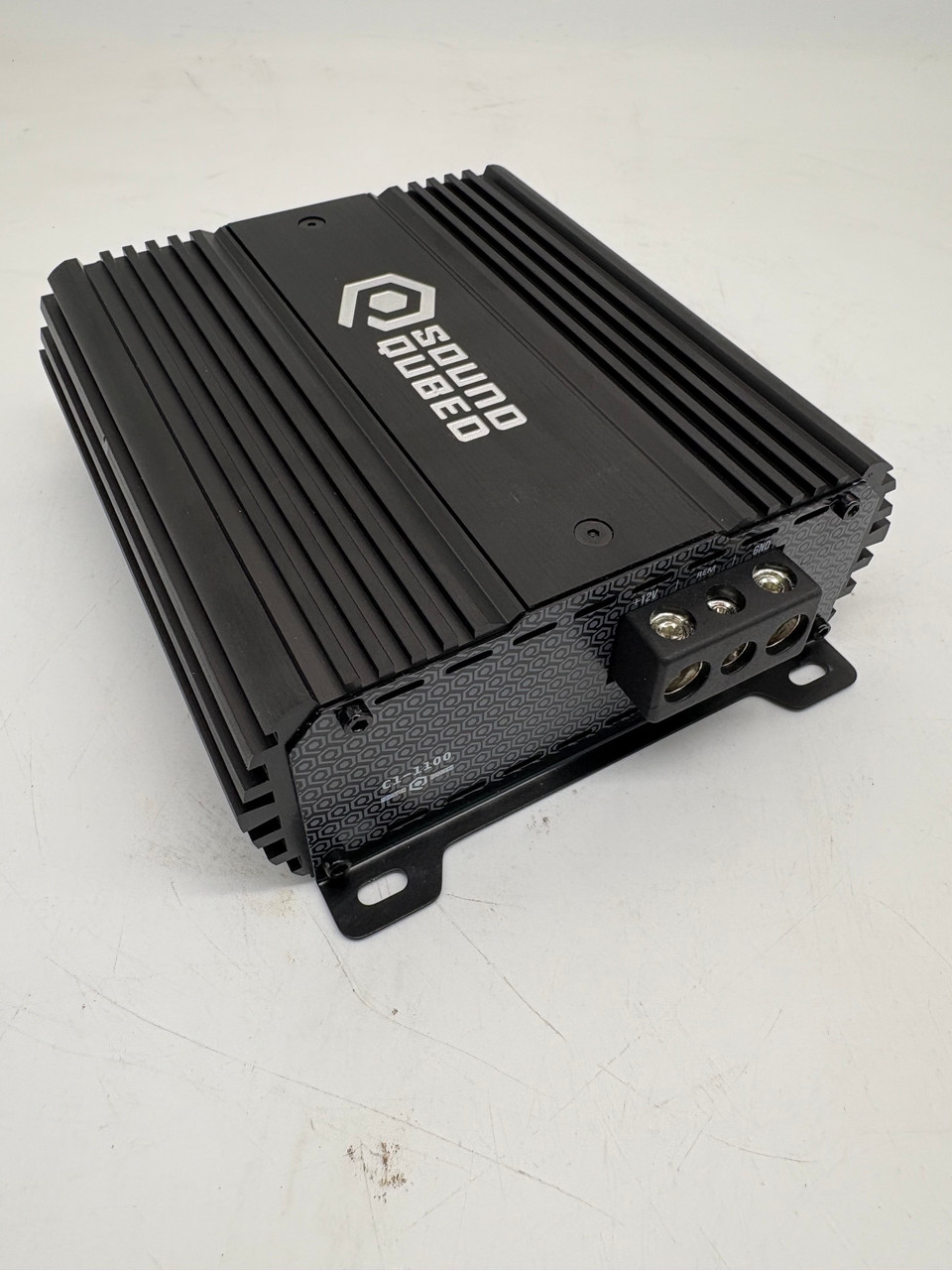

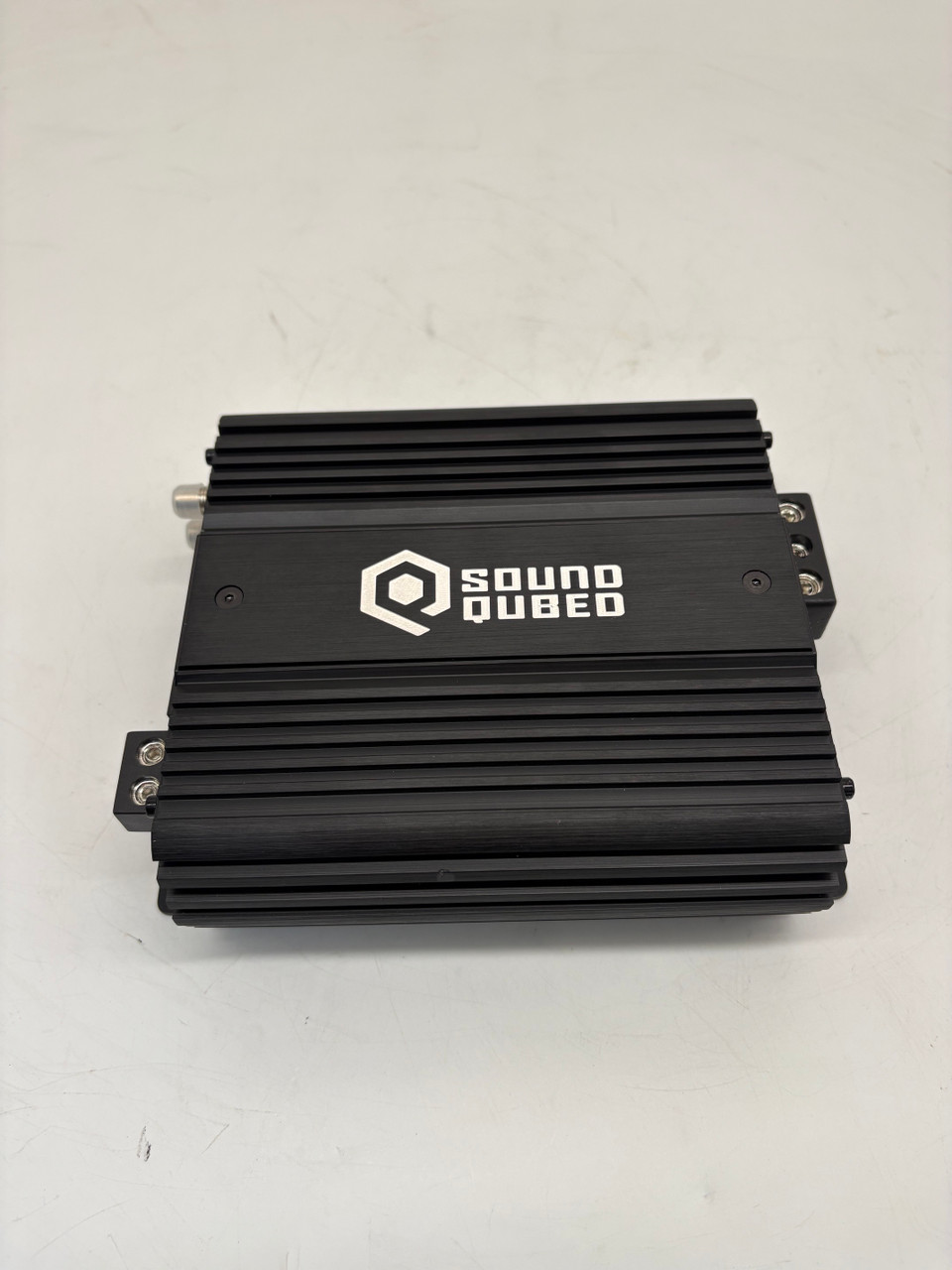

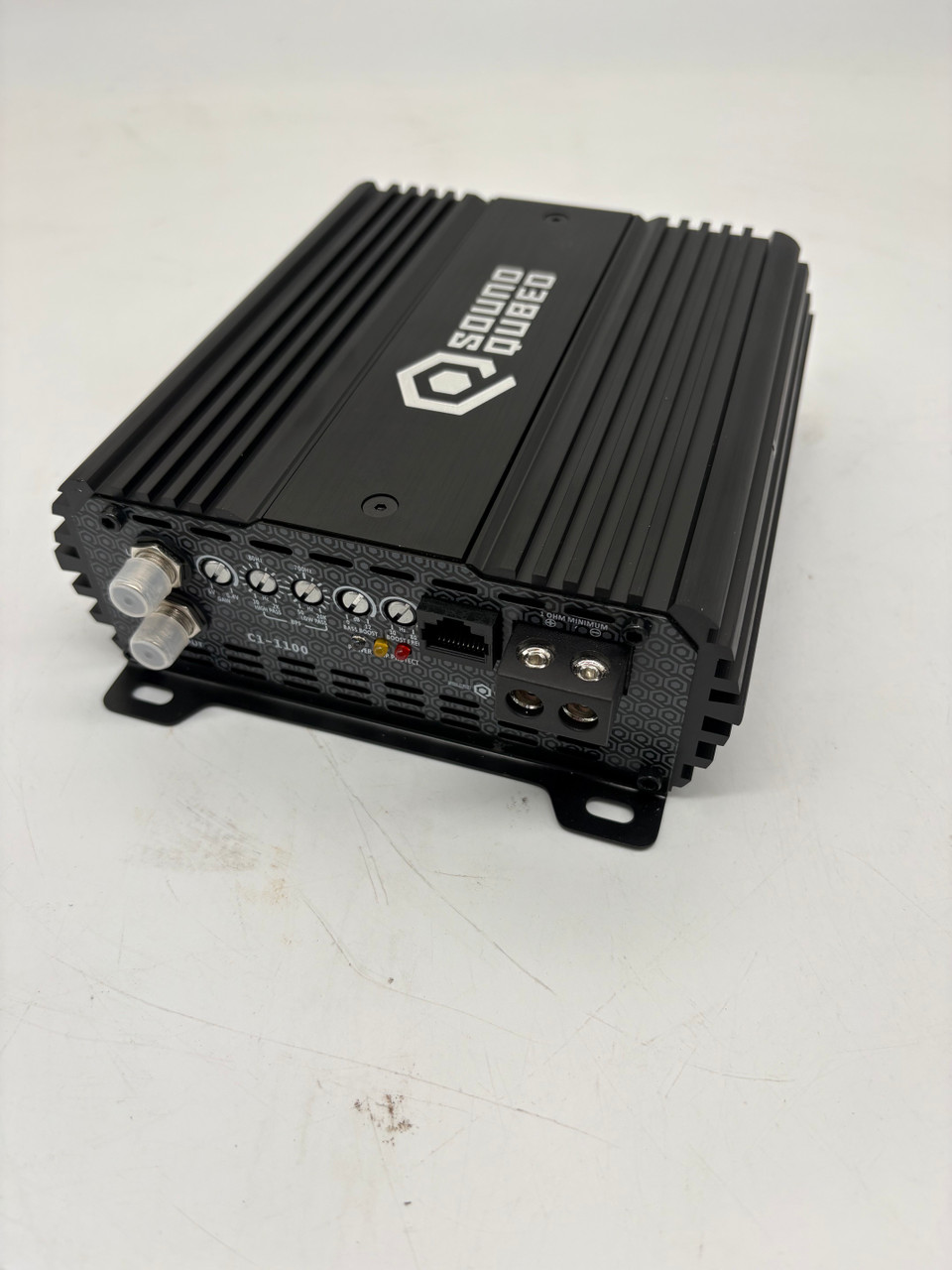

Compact, efficient, and heavy-hitting, the SoundQubed C1-1100 is a high-output C Series monoblock amplifier designed to deliver reliable sub-bass performance in daily ground-pounders and space-conscious builds. Pushing a true 1,100 Watts RMS at 1 Ohm, this Class D monoblock provides clean, uncompressed power to drive high-excursion subwoofers without placing extreme strain on your vehicle’s electrical system.
Built around a high-efficiency MOSFET power supply and a heavy-duty heatsink chassis, the C1-1100 combines thermal stability with precise signal processing. Equipped with a remote bass knob featuring an integrated clipping indicator, it gives you real-time visibility over your signal output so you can safely maximize your system’s output.
Key Features
- 1,100 Watts RMS Power OutputTrue continuous monoblock power engineered to drive single or dual subwoofer configurations with deep, controlled bass.
- 1-Ohm Stable DesignDesigned to operate smoothly down to a 1-ohm load, giving you flexible wiring options for Dual 2-Ohm and Dual 4-Ohm subwoofers.
- Included Bass Knob with Clipping LEDRemote gain controller features an onboard clipping indicator to visually alert you before thermal or signal distortion harms your voice coils.
- Integrated Signal ProcessingIncludes a variable Subsonic Filter and Low-Pass Filter (LPF) to dial in your enclosure’s tuning frequency and protect against over-excursion.
- Solid Set-Screw TerminalsDirect-wire power and speaker blocks ensure solid, vibration-resistant connections for maximum current transfer.
- Comprehensive Protection SuiteBuilt-in safeguards protect against thermal overload, electrical shorts, DC offset, and voltage fluctuations.
Technical Data
| Specification | Details |
|---|---|
| Channels | 1 Channel (Monoblock) |
| Amplifier Class | High-Efficiency Class D |
| RMS Power | 1100 Watts RMS |
| Impedance | 1 Ohms |
| Frequency Response | 10 Hz – 250 Hz |
| Model | C1-1100 (C Series) |
| RMS Power @ 1 Ohm (14.4V) | 1,100 Watts RMS |
| RMS Power @ 2 Ohms (14.4V) | ~650 Watts RMS |
| RMS Power @ 4 Ohms (14.4V) | ~350 Watts RMS |
| Subsonic Filter | 10 Hz – 50 Hz |
| Low-Pass Filter (LPF) | 20 Hz – 200 Hz |
| Signal-to-Noise Ratio | >90 dB |
| Operating Voltage | 8.5V – 16.0V DC |
| Power / Ground Terminals | 4 Gauge Direct Set-Screw Block |
Fitment & Applications
- Daily Subwoofer SetupsPowers single high-output woofers (like the HDS / HDX series) or pairs of entry-to-mid-tier subwoofers with ease.
- Motorcycle & Compact EnclosuresGreat high-power option for compact trunk boxes, under-seat truck enclosures, and ported motorcycle bagger setups.
- Stock Electrical UpgradesDelivers serious low-end performance without requiring massive multi-alternator electrical overhauls.
