Description

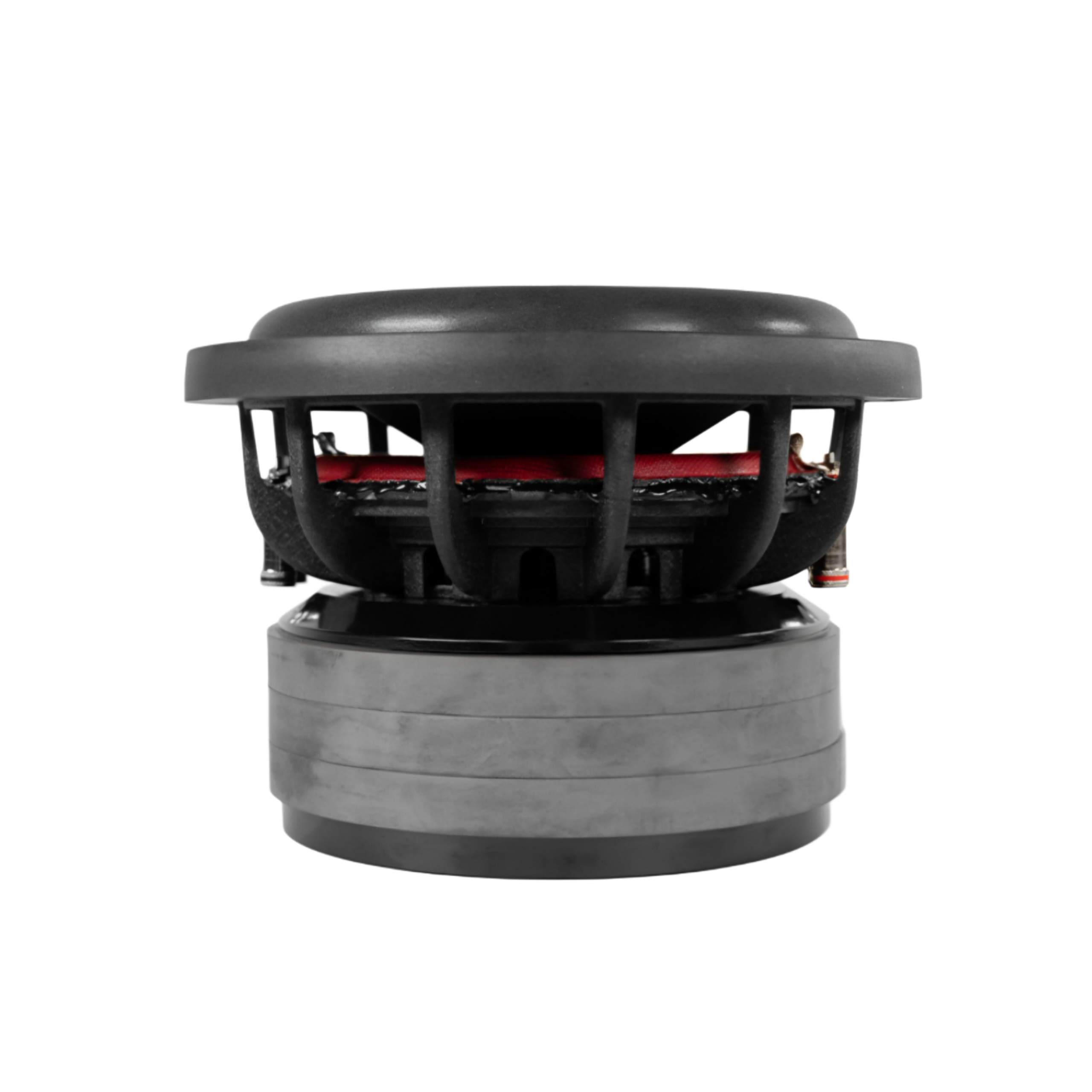

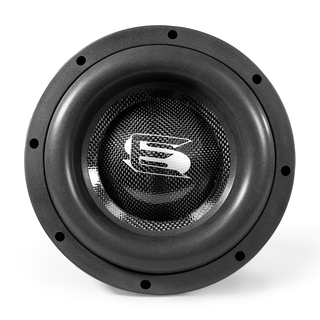

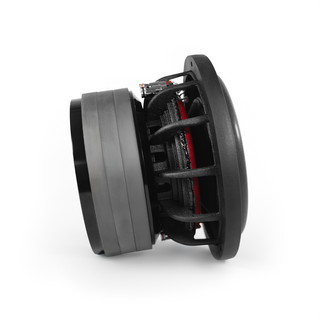

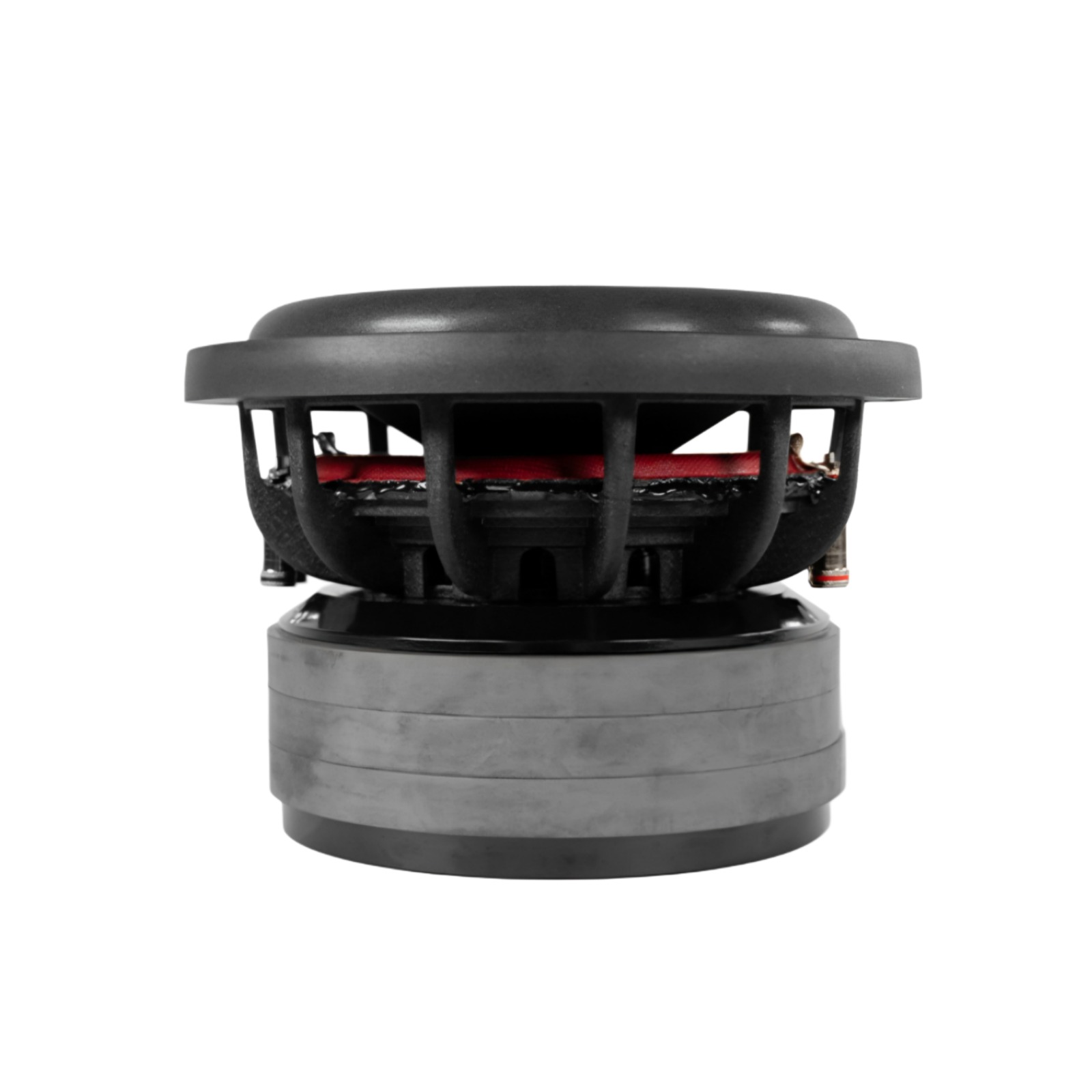

​Elite Sounds ES3000 10″ 3000W RMS Bagger Subwoofer (D1 / D2)
​Overview
​Built specifically for extreme-output motorcycle audio builds, the Elite Sounds ES3000 10″ is a competition-tier bagger subwoofer engineered to produce low-frequency output in fiberglass saddlebag enclosures. Rated for a massive 3,000 Watts RMS, the ES3000 features a heavy-duty 3-inch voice coil, an aggressive motor assembly, and a compact 6.5-inch mounting depth optimized specifically for bagger airspace.
​Available in both Dual 1-Ohm (D1) and Dual 2-Ohm (D2) configurations, the ES3000 gives builders maximum wiring flexibility to drop final amplifier loads to 0.5-Ohm, 1-Ohm, or 2-Ohm mono setups. If you are building a show-stopping demo bike or an extreme-SPL rider system, this sub delivers deep bass that cuts through open-highway wind and engine noise.
​Key Features:
​3,000 Watts RMS Power Handling: High-thermal capacity motor and coil design engineered to handle intense continuous power.
​Optimized for Bagger Airspace: Designed explicitly to perform in ported fiberglass saddlebags with internal volumes between 0.9 and 1.2 net cubic feet.
​High-Temp 3″ Voice Coil: Heavy-duty voice coil assembly ensures cool operation and mechanical stability during extended high-SPL playback.
​Compact 6.5″ Mounting Depth: Shallow motor-to-frame ratio ensures easy clearance inside standard and stretched saddlebag setups.
​Dual 1-Ohm & Dual 2-Ohm Options: Selectable voice coil options for precise amplifier impedance matching.
​Heavy-Duty Push Terminals: Secure high-gauge speaker wire connections built to withstand road vibration.
​Technical Specifications:
SpecificationDetails
• Subwoofer Size: 10 Inches (250 mm)
• Power Handling (RMS): 3,000 Watts RMS
• Voice Coil Diameter: 3 Inches
• Impedance Options: Dual 1-Ohm (D1) or Dual 2-Ohm (D2)
• Mounting Depth: 6.5 Inches (165 mm)
Target Port Tuning: 46 Hz
Ideal Net Enclosure Volume: 0.9 – 1.2 Net Cu. Ft. (after displacement)
Terminals: Heavy-Duty Spring Push Terminals
Application: Ported Motorcycle Saddlebags & Fiberglass Bagger Enclosures
Wiring Guide & Impedance Options:
​Dual 1-Ohm (D1):
​Wire in Parallel for a 0.5-Ohm final load (ideal for high-current mono block amplifiers).
​Wire in Series for a 2-Ohm final load.
​Dual 2-Ohm (D2):
​Wire in Parallel for a 1-Ohm final load (ideal for standard mono block amplifiers).
​Wire in Series for a 4-Ohm final load (ideal for bridged 2-channel or 4-channel amplifiers).
​Enclosure & Tuning Recommendation:
​Bagger Builder Note: The ES3000 requires ported bag enclosures to operate at maximum efficiency. For optimal output and motor protection:
​Target a net box volume of 0.9 to 1.2 Cu. Ft. per woofer after all displacement.
​Target port tuning to 46 Hz for maximum low-frequency impact on the road.
