Elite Sounds ES3000 12 inch Motorcycle Bagger Subwoofer D1 or D2

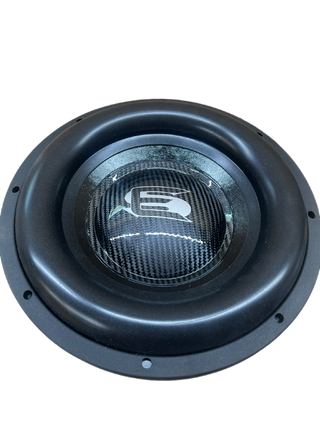

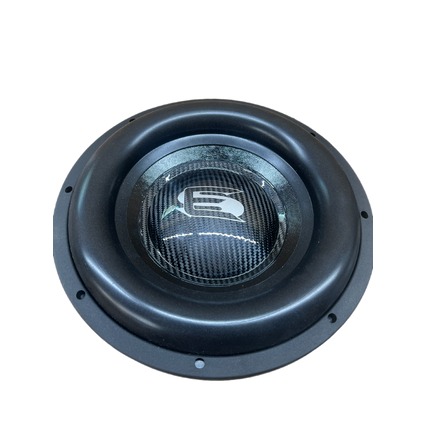

​Elite Sounds ES3000 12″ 3000W RMS Bagger Subwoofer (D1 / D2)

​Overview

​Built for extreme low-end authority and maximum air displacement, the Elite Sounds ES3000 12″ is a competition-grade motorcycle subwoofer engineered to dominate ported bagger setups and custom fiberglass enclosures. Packing a true 3,000 Watts RMS power handling capability, the ES3000 12″ combines a high-flux motor, a heavy-duty 3-inch voice coil, and an aggressive surround build to yield incredible low-frequency extension down the highway.

​Offered in both Dual 1-Ohm (D1) and Dual 2-Ohm (D2) configurations, the ES3000 12″ provides maximum system design freedom whether you are tying into high-current competition mono blocks or bridged multi-channel power. Engineered specifically for ported motorcycle bag enclosures, it produces deep, chest-thumping bass that cuts through wind, exhaust, and high-SPL pro-audio front stages.

​Key Features

​3,000 Watts RMS Power Rating: Engineered with a heavy-duty thermal motor assembly built to sustain continuous high-SPL demo play without power compression.

​Bagger-Tuned Low End: Engineered specifically to move massive air volume in custom-molded 12-inch bagger enclosures.

​3″ High-Temp Voice Coil: Designed for superior heat dissipation, high structural stability, and extreme mechanical excursion.

​Dual 1-Ohm & Dual 2-Ohm Options: Available in D1 or D2 voice coil configurations for precise amplifier impedance matching down to 0.5-Ohm, 1-Ohm, or 2-Ohm final loads.

​Heavy-Duty Push Terminals: Secure spring-loaded wire terminals designed to lock in high-gauge speaker wire and resist intense road vibration.

​Technical Specifications:

Specification Details

• Subwoofer Size: 12 Inches (300 mm)

• Power Handling (RMS): 3,000 Watts RMS

• Voice Coil Diameter: 3 Inches

• Impedance Options: Dual 1-Ohm (D1) or Dual 2-Ohm (D2)

• Mounting Depth: 7.25 Inches (184 mm)

• Target Port Tuning: 42 Hz – 46 Hz

• Ideal Net Enclosure Volume: 1.25 – 1.75 Net Cu. Ft. (after displacement)

• Terminals: Heavy-Duty Spring Push Terminals

• Application: Ported Bagger Enclosures & Custom Fiberglass Builds

Wiring Guide & Impedance Options:

​Dual 1-Ohm (D1):

​Wire in Parallel for a 0.5-Ohm final load (ideal for high-current mono block amplifiers).

​Wire in Series for a 2-Ohm final load.

​Dual 2-Ohm (D2):

​Wire in Parallel for a 1-Ohm final load (ideal for standard mono block amplifiers).

​Wire in Series for a 4-Ohm final load (ideal for high-power 2-channel or 4-channel bridged setups).

​Enclosure & Tuning Recommendation:

​Bagger Builder Note: The ES3000 12″ requires a properly sized, ported fiberglass enclosure to reach peak performance and efficiency on the road.

​Target net box volume between 1.25 and 1.75 Cu. Ft. per subwoofer after driver and port displacement.

​Target port tuning between 42 Hz and 46 Hz for maximum low-frequency output and output density while riding.
