Description
Product Overview

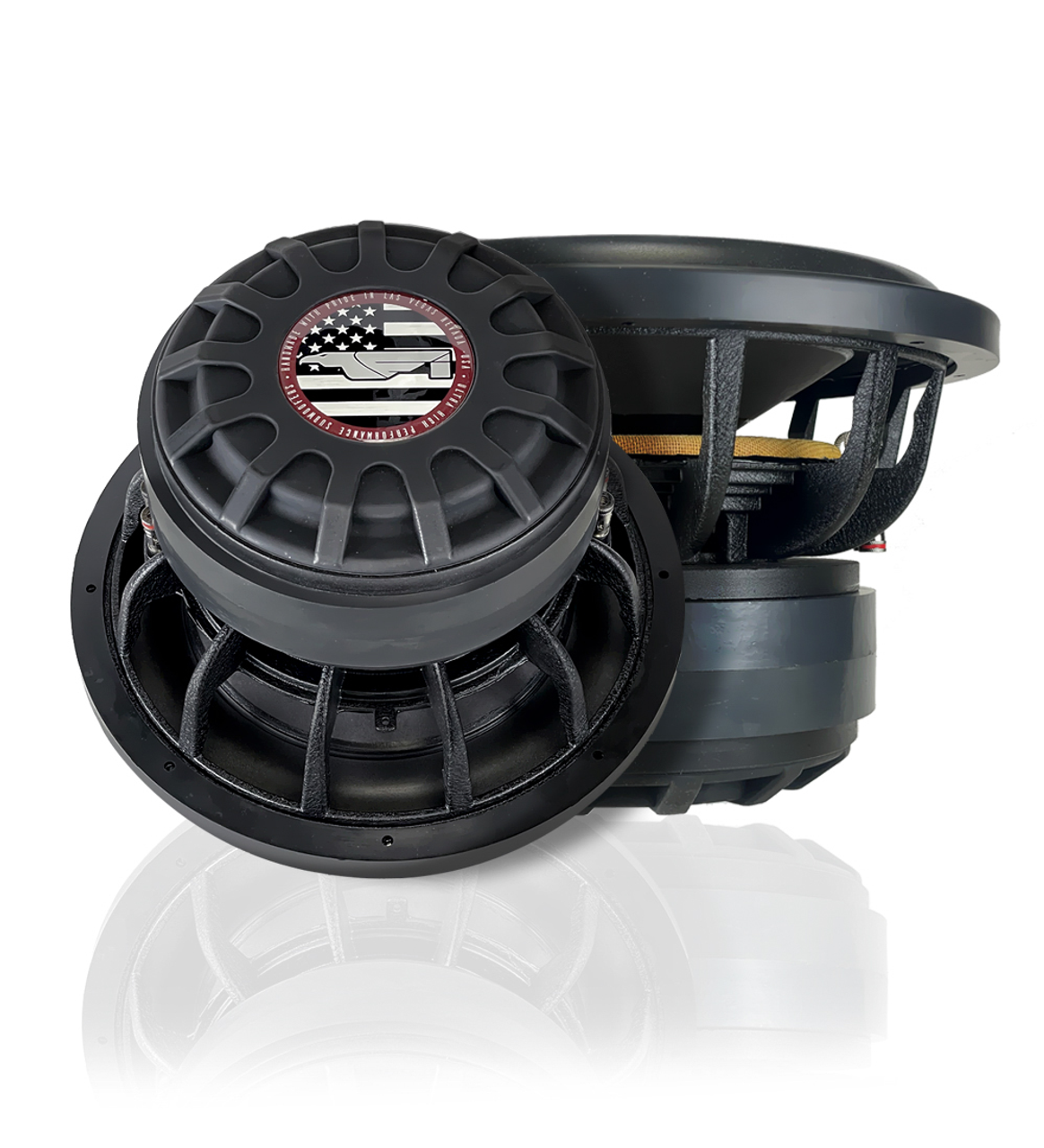

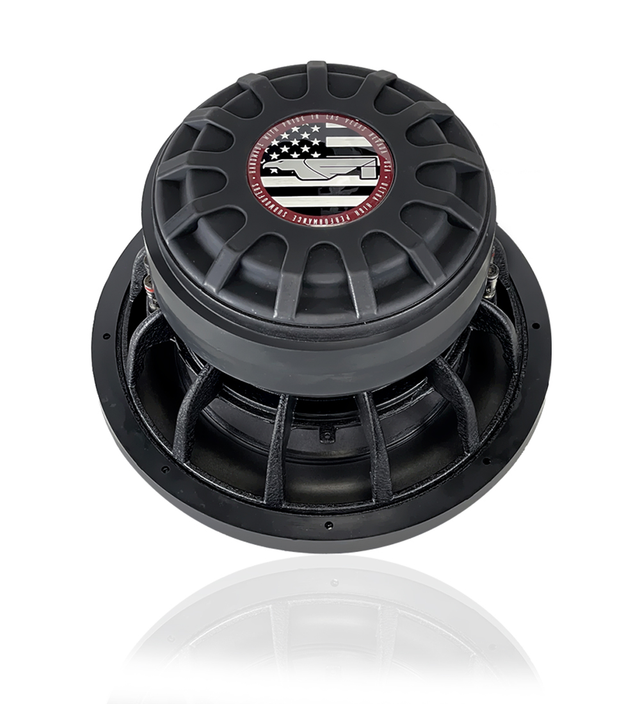

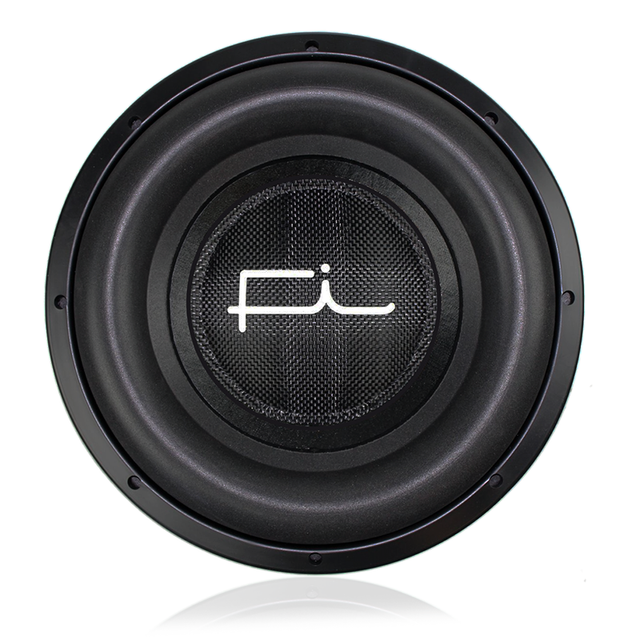

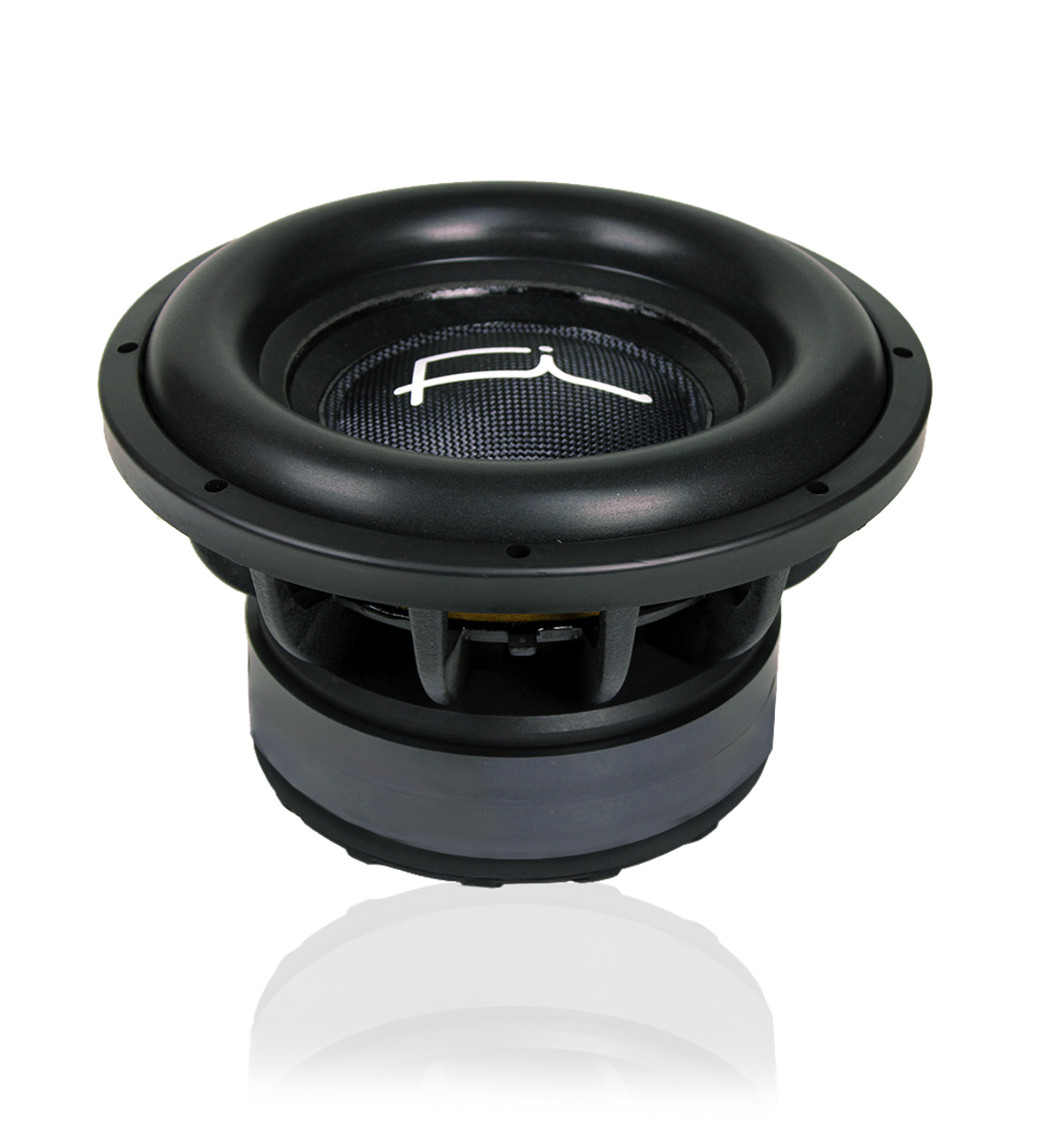

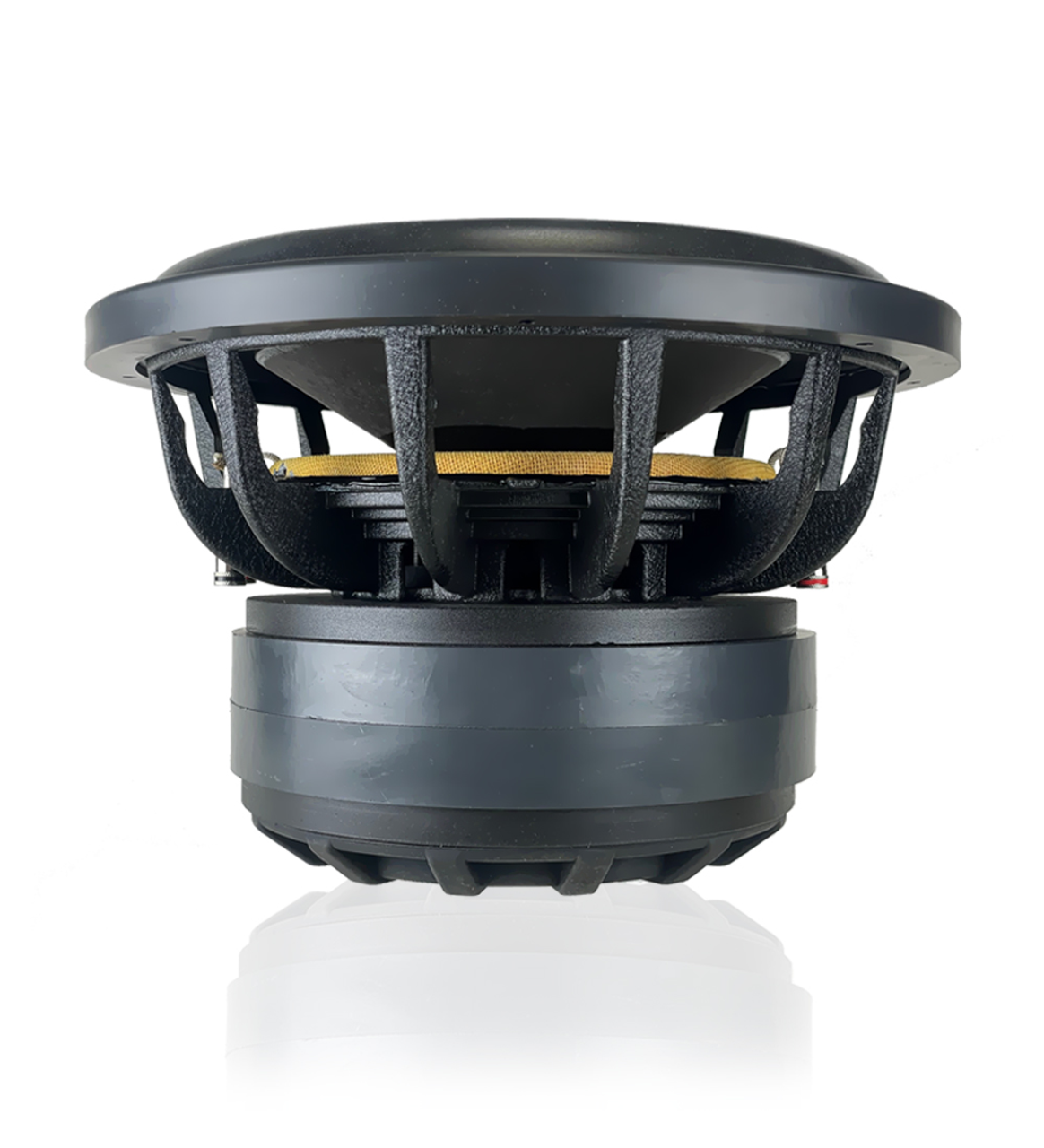

X Series V4
The Xv4 Series of subwoofers is a super tough daily entry level sub. A double stack of wide high strength magnets and a standard high compression pole cap are the foundation for this motor. A multilayer foam wide surround is attached to a fiber impregnated linear kraft pulp cone which helps keep things under control in high power applications. A 3″ 4 layer aluminum voice coil yields 27mm of Xmax while keeping the motor force high. The X v4 Series will works best in ported or 6th order enclosures. Ultra tough and versatile, the X Series works in a variety of applications where excellent durability and output is required. Gloss carbon caps are standard along with the option of an extra spider for higher FS/QTS applications such as SPL burp classes.
Features
Dual 1 & 2 Ohm Cast basket Wrap around gasket Linear reinforced cone Mulit-layer wide foam surround Push terminal Extra heavy lead wire FEA optimized motor 3” diameter 4 layer coil Wide double stack high grade magnet Dual progressive spiders 6″ Gloss Carbon dustcap Compression cooling Optional extra spider
THIELE-SMALL PARAMETERS
Technical Data
| Specification | Details |
|---|---|
| Size | 10 inch |
| Impedance | 2 Ohms |
| Coils | DUAL 1 | DUAL 2 |
| FS | 40.98 |
| RE | 0.8| 1.6 |
| QMS | 5.10 |
| QES | 0.33 |
| QTS | 0.31 |
| MMS | 290g |
| CMS | 5.1^-5 |
| SD | 310cm^2 |
| VAS | 7.08 |
| SPL | 83.4 |
| BL (NA) | 24.94 |
| XMAX | 27mm (One Way) |
| RMS | 1500W |
