Description
Overview

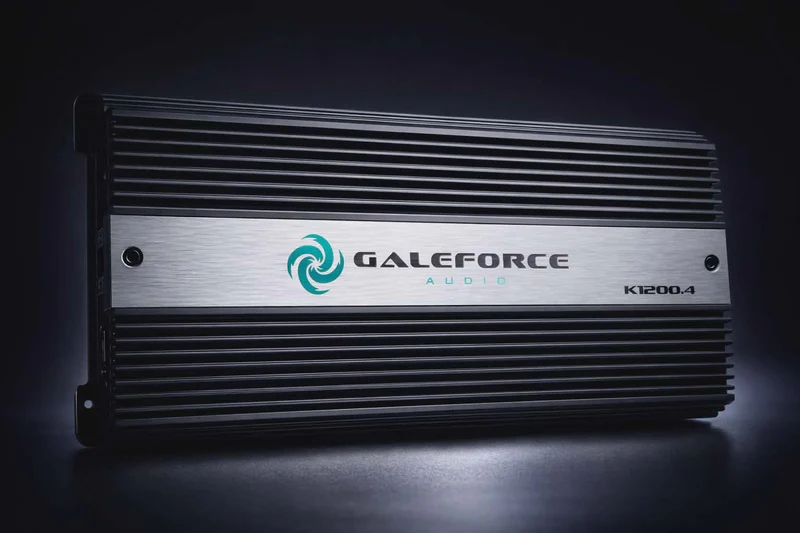

Engineered in Korea for extreme power density, signal purity, and long-term thermal reliability, theGaleForce Audio K1200.4 is a premium Class D 4-channel micro amplifier built for serious mids and highs. Delivering a dyno-certified 1,200 Watts RMS at 12.6V, this compact powerhouse is built to drive multi-speaker door panels, pro-audio array setups, and active front stages without thermal throttling.
Featuring an integrated high-flow cooling fan, heavy-duty internal circuitry, and an ultra-wideband crossover network scaling up to 8 kHz, the K1200.4 provides maximum tuning flexibility and raw power in a footprint small enough for tight amp racks, under-seat mounts, and motorcycle pods.
Key Features
-
Korean Class D Engineering: Built with premium audiophile components to deliver maximum efficiency, rock-solid output, and ultra-low signal distortion.
-
Dyno-Certified 12.6V Output: True 1200W RMS power rated at real-world vehicle charging voltages rather than inflated 14.4V specs.
-
Integrated Forced-Air Cooling Fan: Built-in fan actively draws heat away from internal board components during sustained high-volume playback.
-

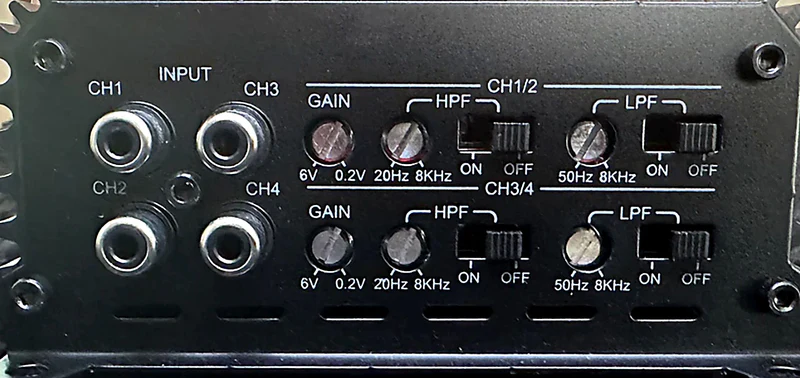

Expanded Crossover Network: High-pass and low-pass filters adjustable up to 8,000 Hz, making active crossovers and band-pass setups effortless for horn tweeters and midrange drivers.
-
Ultra-Compact Micro Footprint: High power density footprint designed to fit tight spaces without sacrificing thermal handling or electrical performance.
Technical Specifications
| Specification | Details |
| Amplifier Class | Full-Range Class D (Korean Build) |
| Channels | 4 Channel |
| RMS Power @ 4 Ohms (12.6V) | 190 Watts x 4 |
| RMS Power @ 2 Ohms (12.6V) | 300 Watts x 4 |
| RMS Power @ 4 Ohms Bridged (12.6V) | 570 Watts x 2 |
| Frequency Response | 20 Hz – 8,000 Hz |
| High-Pass Filter (HPF) | 20 Hz – 8,000 Hz |
| Low-Pass Filter (LPF) | 50 Hz – 8,000 Hz |
| Signal-to-Noise Ratio | >95 dB |
| Fuse Rating | 120 Amps |
| Operating Voltage | 9.0V – 16.0V DC |
| Overall Dimensions (L x W x H) | 10.875″ x 4.75″ x 2.2″ |
Ideal Applications
-
High-Output Pro Audio Door Panels: Power multiple 4-ohm or 2-ohm midrange drivers per channel with real dyno-backed RMS output.
-
Active Front Stages: Run active 2-way or 3-way speaker setups using the wideband 8 kHz onboard crossover network.
-
Compact / Under-Seat Builds: Fits into tight space configurations where traditional 1200W heatsinks cannot.
-
Motorcycle & Powersports Audio: Powerful micro form-factor suited for fairings, saddlebag amp racks, and custom pods.
