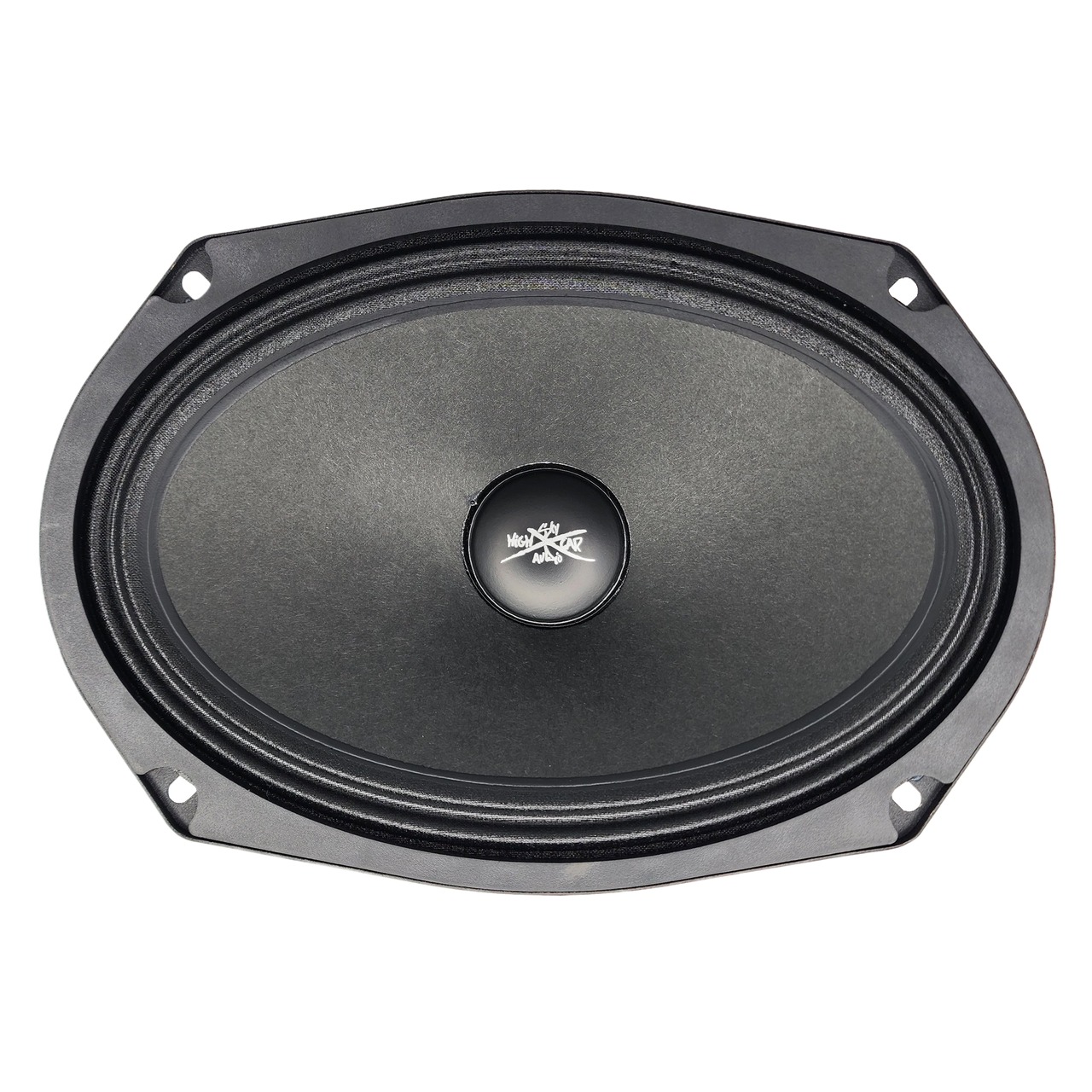

Pro Audio MB694 6×9″ Mid-Bass Loudspeaker with 1.5″ Vc (Single)

Introducing the Sky High Car Audio Pro Audio MB694, a 6×9” Mid-Bass Loudspeaker Designed for Enthusiasts Who Demand Power and Clarity in Their Car Audio Systems.

Crafted with precision and built for performance, the MB694 is engineered to deliver deep, accurate mid-bass response with high efficiency, making it an exceptional choice for any audio setup—whether you’re upgrading your vehicle or building a custom system.

Powerful Performance:

The SH-MB694 handles up to 150W RMS and 300W peak power, ensuring consistent and robust output. With a sensitivity rating of 95dB (1w/1m), this speaker efficiently converts power into sound, delivering dynamic performance across a wide frequency range of 60Hz to 12kHz. A recommended high-pass crossover at 80Hz ensures optimal performance and longevity.

High-Quality Components:

Built with a 1.5” voice coil wound with CCAW (Copper-Clad Aluminum Wire) on a Kapton former, the MB694 is designed to withstand high power levels while maintaining accurate sound reproduction.

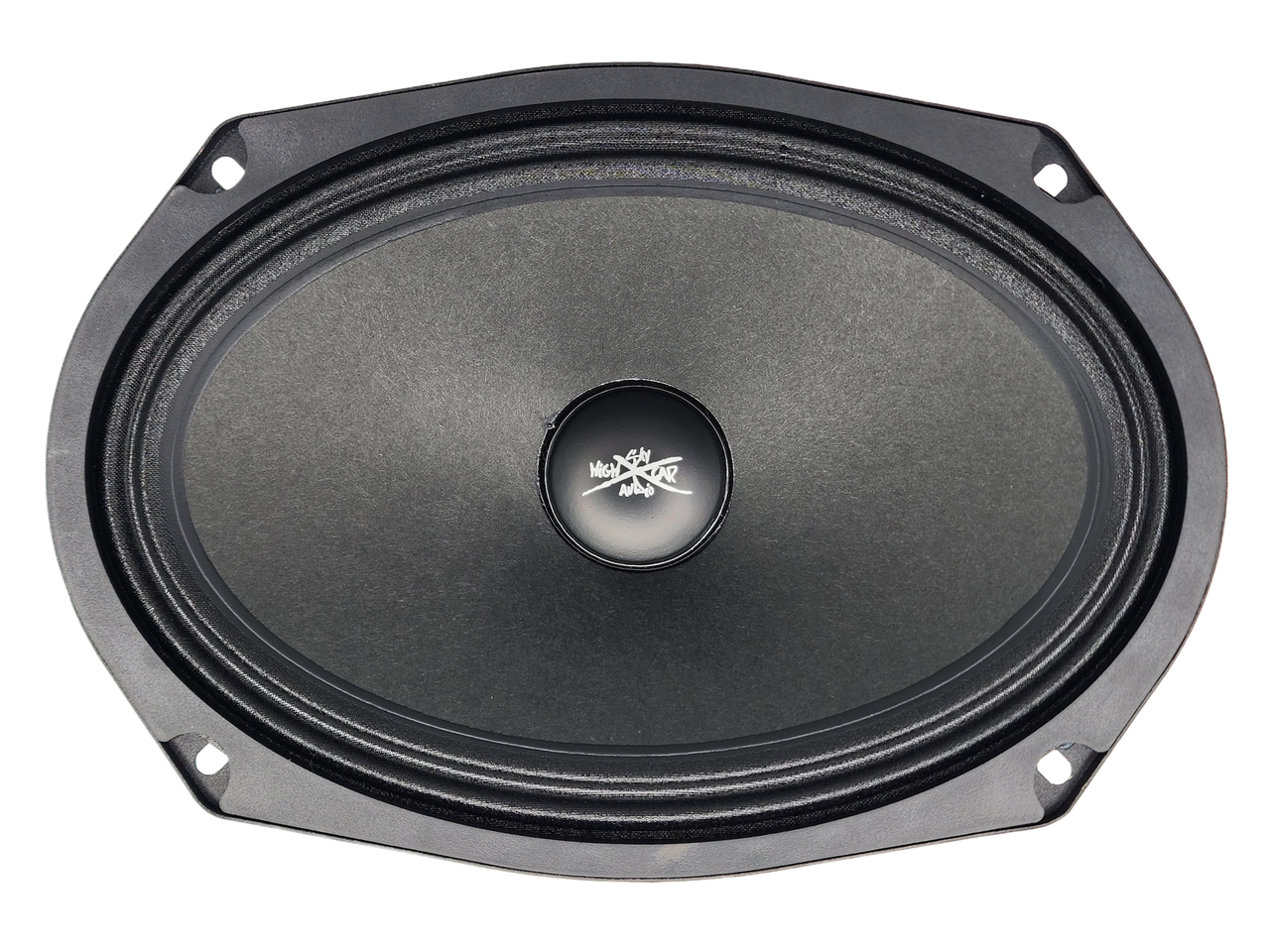

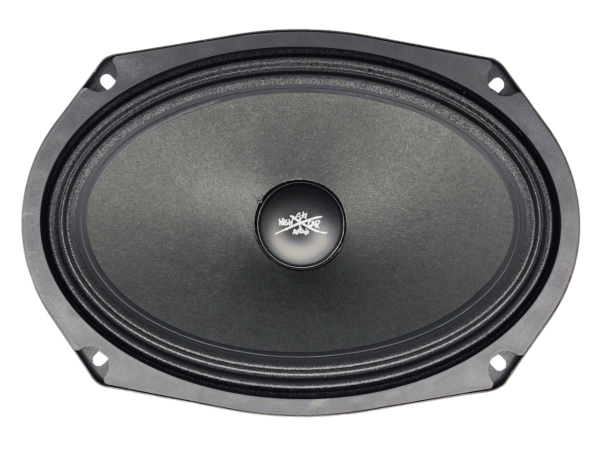

The paper cone and paper dust cap provide a natural, balanced tone, while the cloth surround allows for smooth cone movement, ensuring clean, distortion-free sound even at higher volumes.

Ferrite Motor Design:

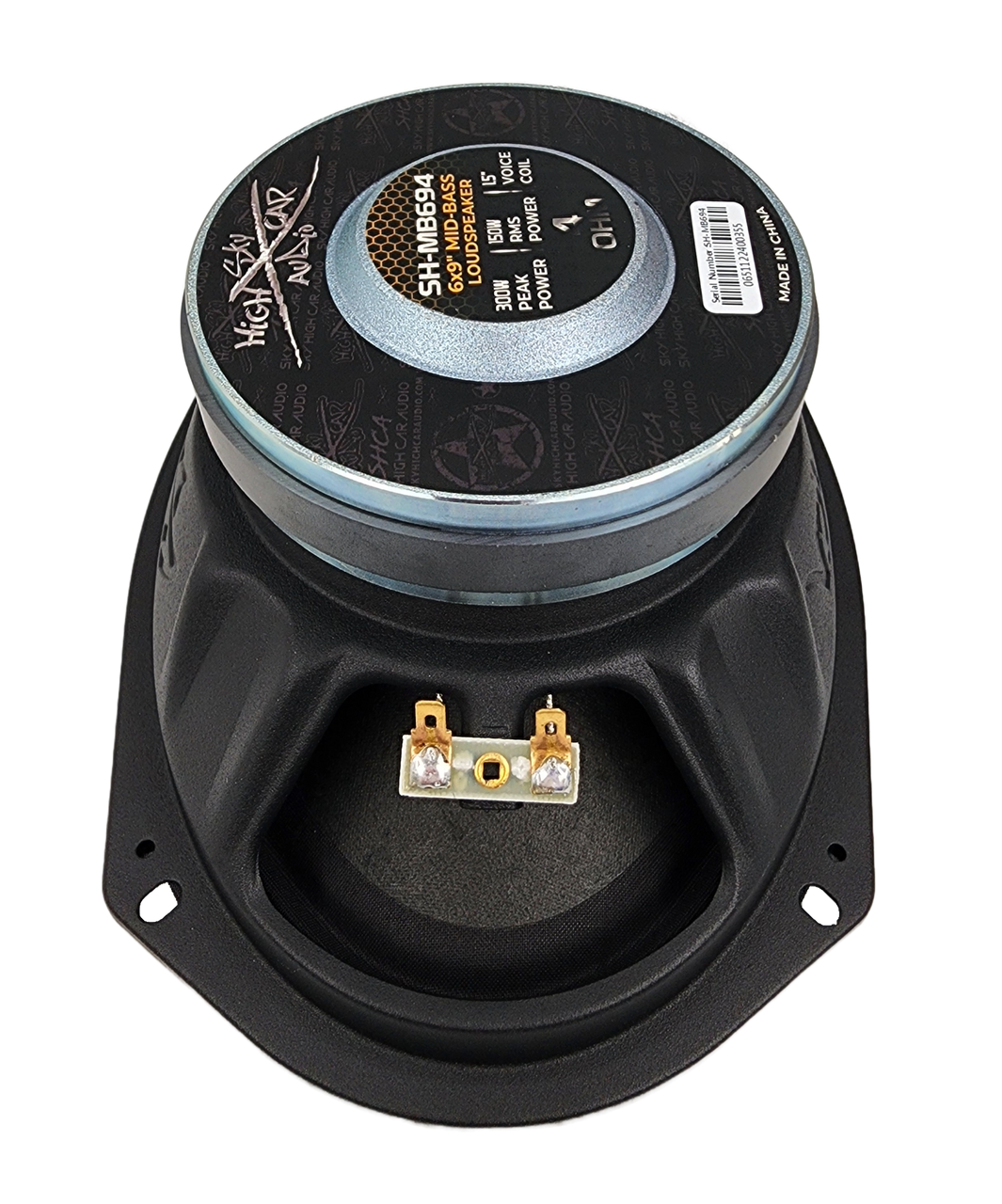

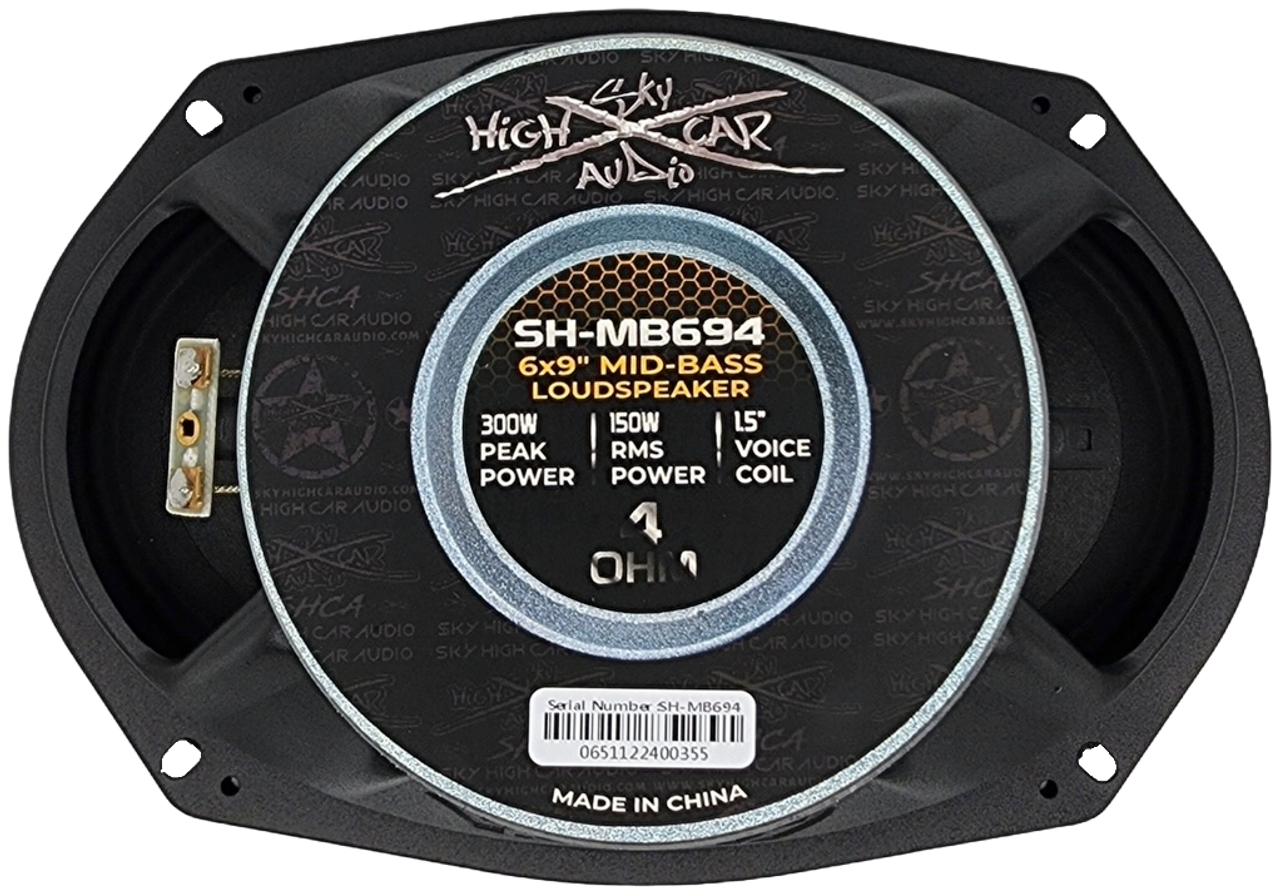

The MB694 is equipped with a 20 oz ferrite magnet, offering a stable magnetic field for accurate cone control.

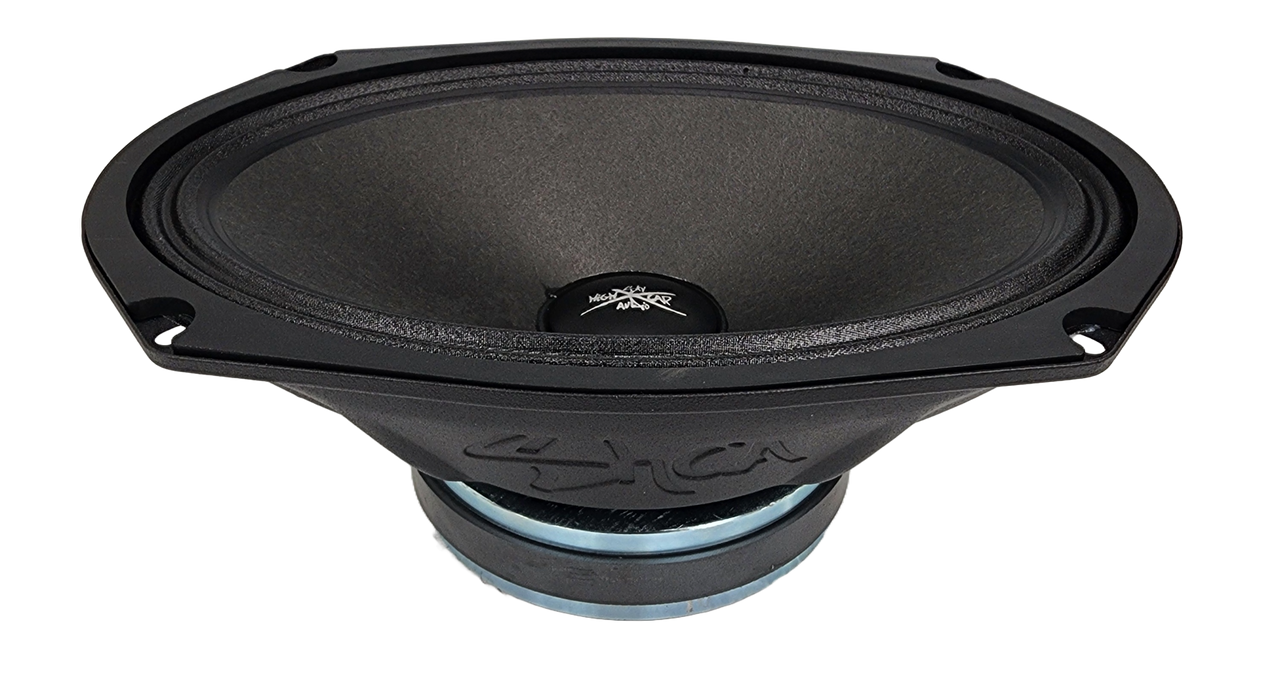

The satin black steel basket provides a sturdy foundation, ensuring structural integrity while minimizing resonance.

Its displacement volume of 0.32L (0.011ft³) makes it a versatile option for a range of installations.

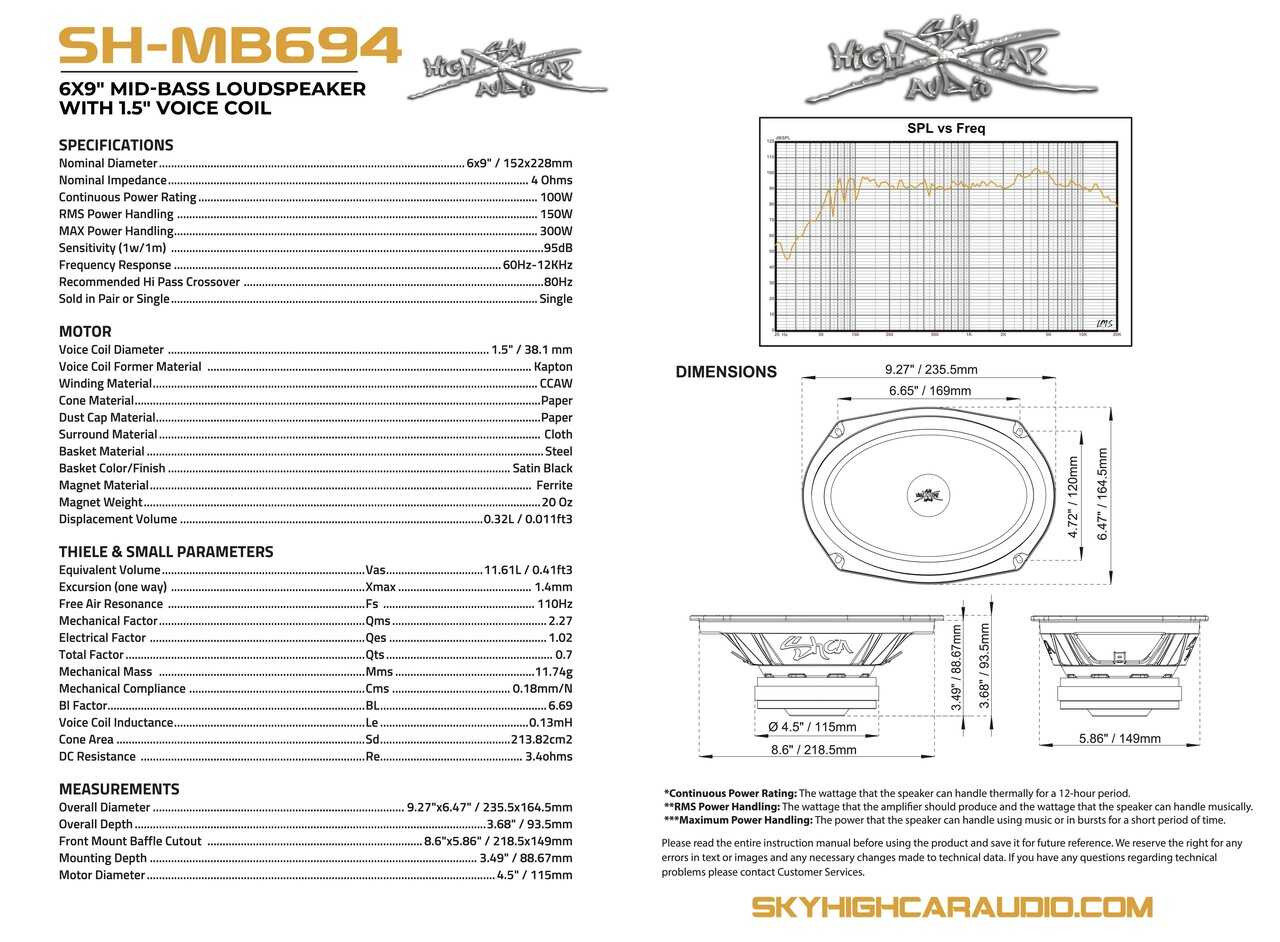

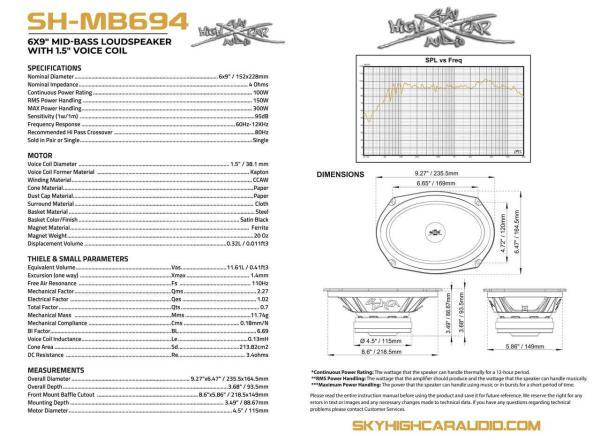

Thiele & Small Parameters:

Designed with precision in mind, the MB694 features:

•Vas: 11.61L / 0.41ft³

•Xmax: 1.4mm (one way)

•Fs: 110Hz

•Qms: 2.27

•Qes: 1.02

•Qts: 0.7

•BL Factor: 6.69

•Le: 0.13mH

These characteristics contribute to tight, controlled mid-bass performance, ideal for enthusiasts seeking precision and punch.

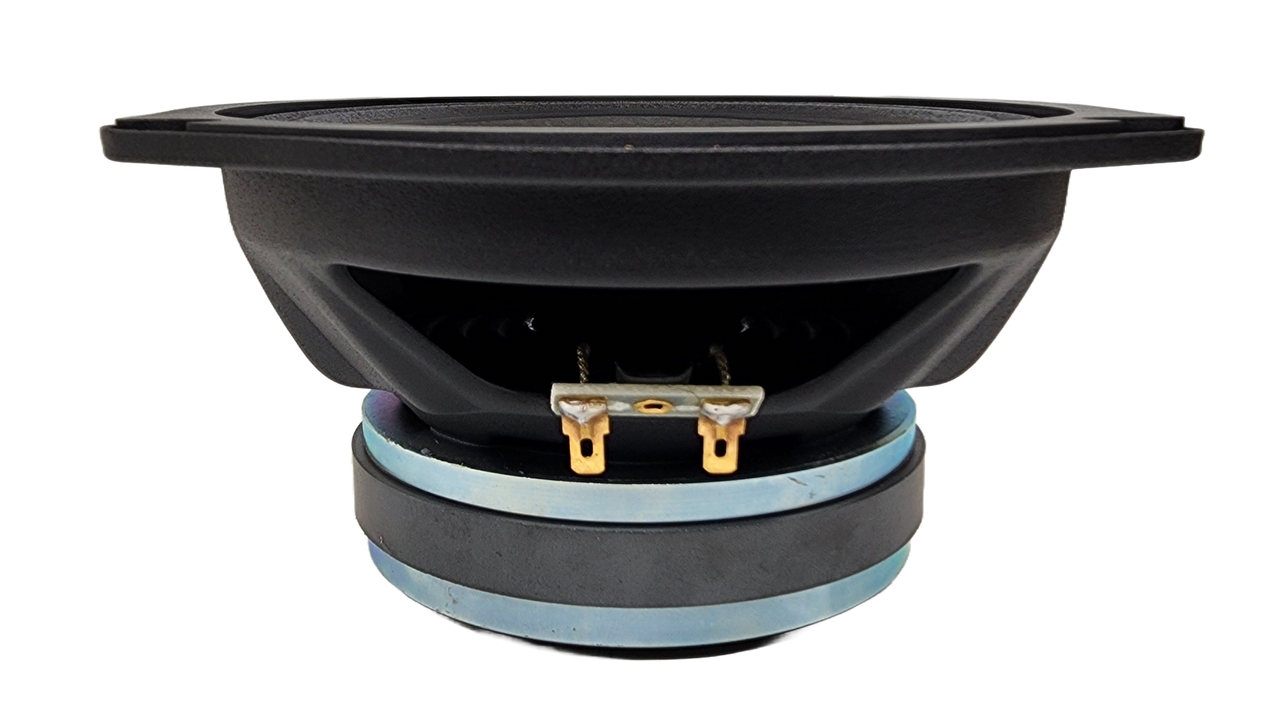

Dimensions and Mounting:

Designed to fit a variety of vehicle applications, the MB694 measures:

•Overall Diameter: 9.27” x 6.47” / 235.5 x 164.5mm

•Mounting Depth: 3.49” / 88.67mm

•Overall Depth: 3.68” / 93.5mm

•Front Mount Baffle Cutout: 8.6” x 5.86” / 218.5 x 149mm

•Motor Diameter: 4.5” / 115mm

Ideal for Custom Installations:

Whether you’re designing a custom system or upgrading your current setup, the Sky High Car Audio Pro Audio MB694 delivers powerful, accurate mid-bass with the durability and performance that car audio enthusiasts demand.
