PRV 10 inch 8 Ohm Mid Bass Speaker PRV-10MB800FT

For high output speaker systems, PRV Audio’s 10MB800FT midbass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on midlow midbass frequencies is the key.

10MB800FT delivers top-notch midbass punch and clean vocal clarity at a high level output with low distortion and extended midbass response.

Optimized for use in compact enclosures, this midbass speaker provides a smooth vocal response with great output from 500 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.

The Perfect speaker for TUKUTEO® sound.

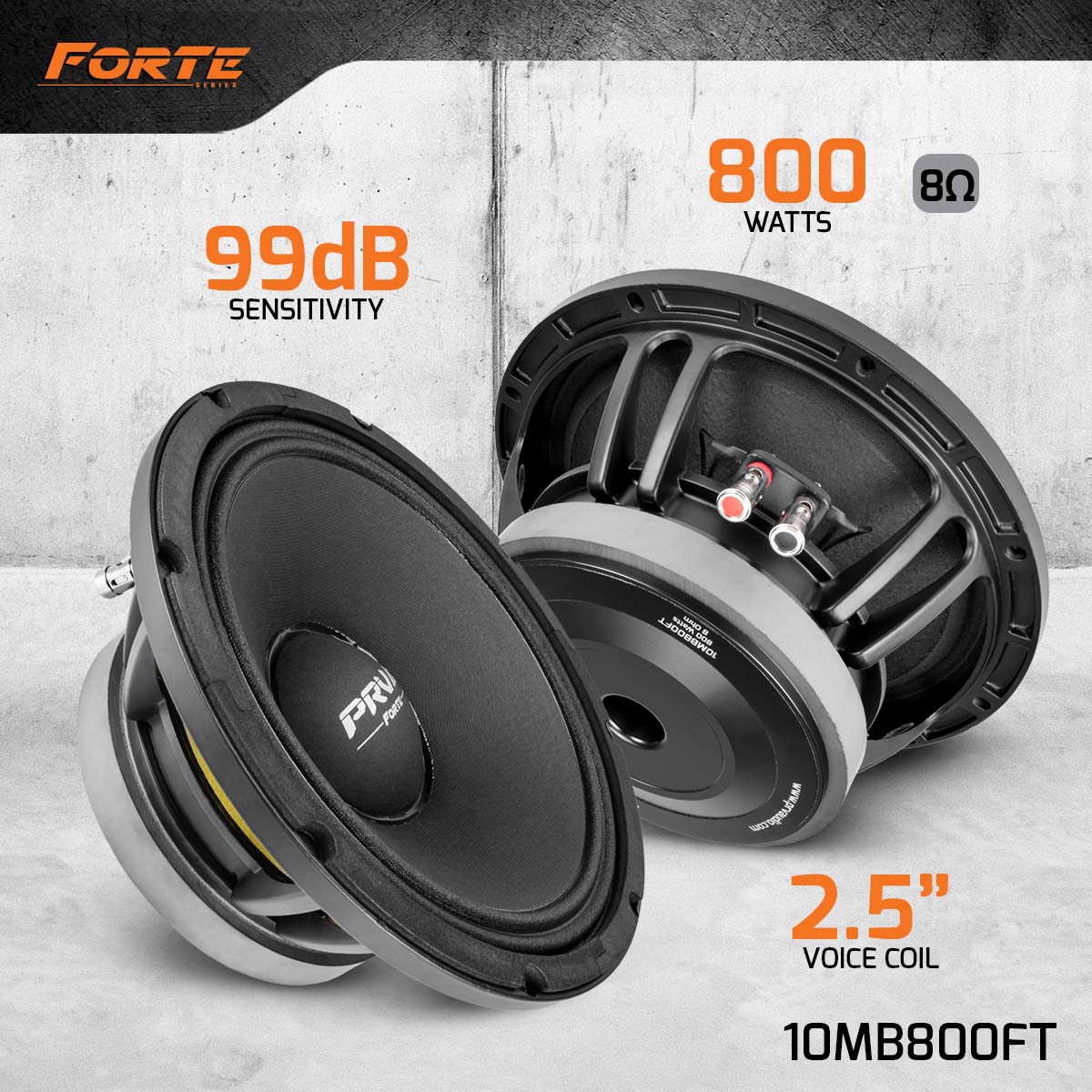

The high sensitivity rating of 99 dB 1W/1M which makes it capable of generating a lot of output! This 10″ is a great midbass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

The voice coil is wound on a 2.5″ glass fiber with aluminum wire keeping weight to a minimum for an incredibly quick transient response.

Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

Combined with its premium ferrite motor, all these characteristics make this speaker unique and deliver high-performance that achieves exceptional clarity, detail, and dynamics on sound.

Popular custom door panel combination with the 10MB800FT and WG2000Py SLIM Mids & Highs Compression Driver all tuned by Our DSP 2.8X ( digital sound processor ) for the best frequency response, follow settings below:

10MB800FT – High Pass Filter HPF 110 Hz BT18 Filter to Low Pass Filter LPF 1800 Hz BT12, following the compression driver from 1000Hz all way to 17,000Hz

Recommended system package 8x 10MB800FT + 4x WG2000Py SLIM

PRV 10″ Midbass Speaker 10MB800FT 800 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker

2 Speakers – 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel on the bridged channel 4 Speakers – 1x QS3000 at 2 Ohm, 4 speakers in parallel 8 Speakers – 1x QS7000 at 1 Ohm, 8 speakers in parallel

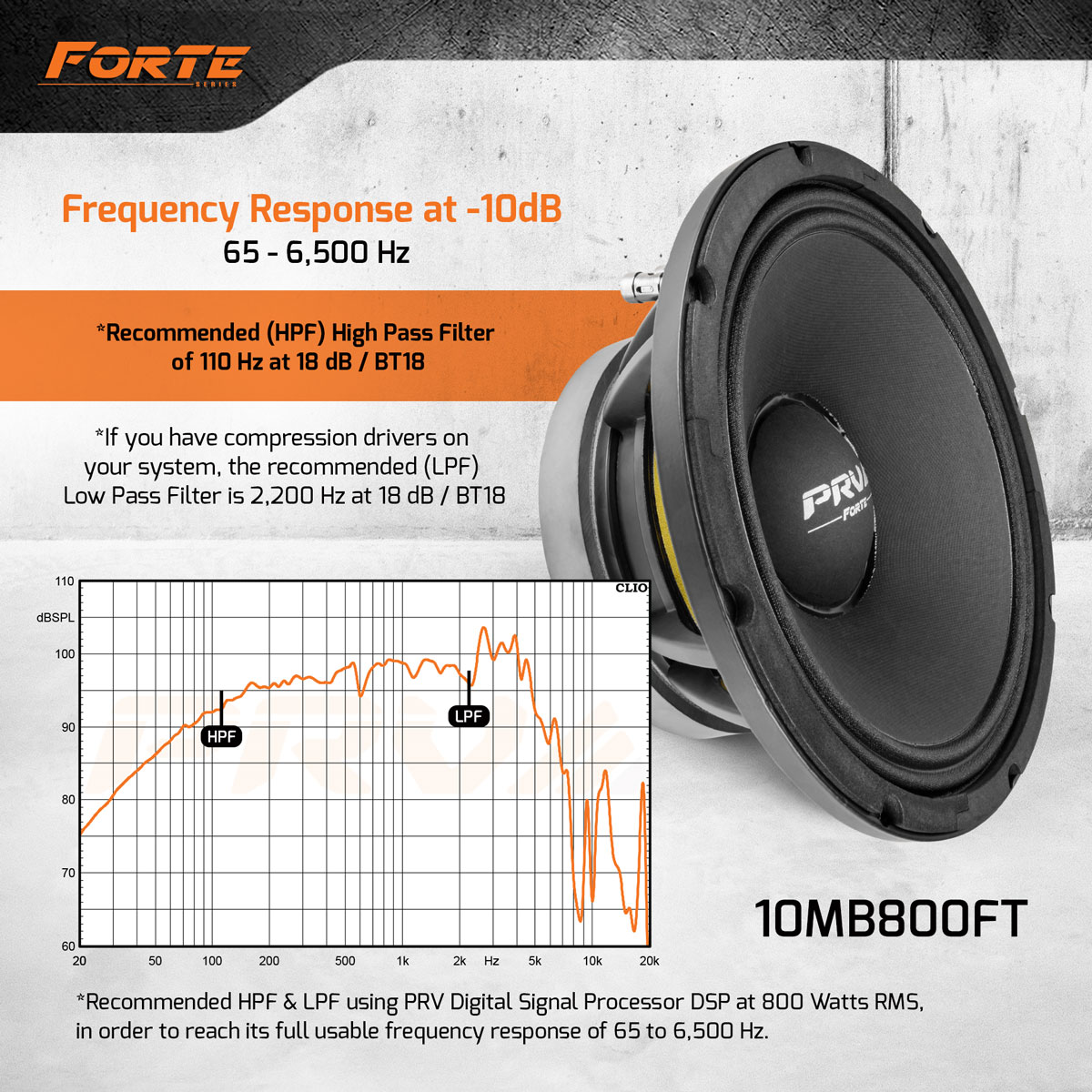

Recommended HPF using PRV Digital Signal Processor DSP when using up to 650 Watts RMS musical power ( without clipping )

If you have compression drivers on your system the recommended LPF is 2,200Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

GENERAL SPECIFICATIONS

THIELE-SMALL PARAMETERS

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO
