PRV 6×9 inch 2-WAY Full range Pro Audio Coaxial Speaker PRV-69cx380-4

The best of the pro audio and car audio worlds are combined in this 6×9″ speaker! The 69CX380-4 coaxial speaker has a built-in tweeter driver, an innovative design that delivers amazing sound clarity.

This 2-way coaxial is the perfect solution for sedans that just want to swap their 6×9″ on the back deck for high-output sound without having to drill additional holes for tweeters or drivers.

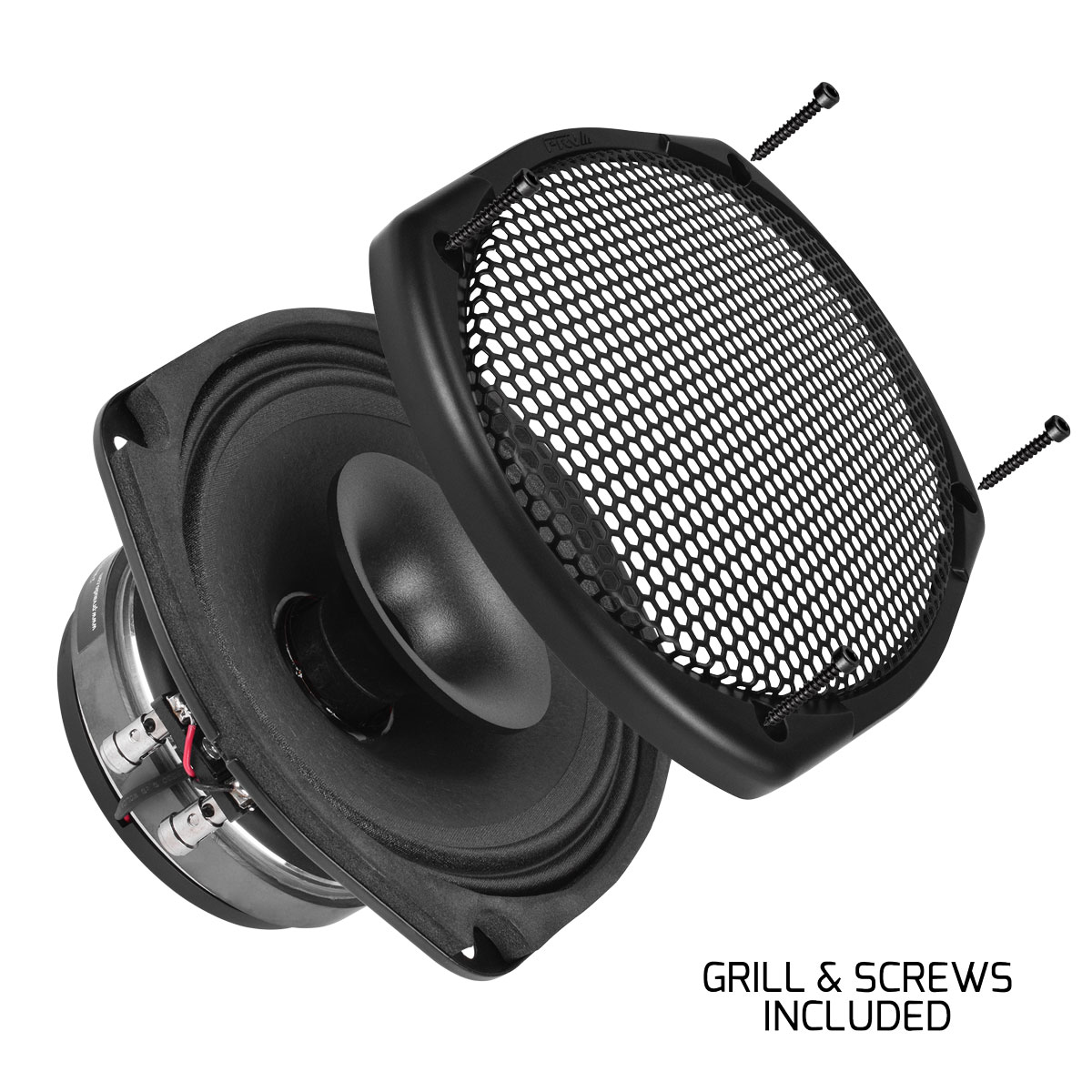

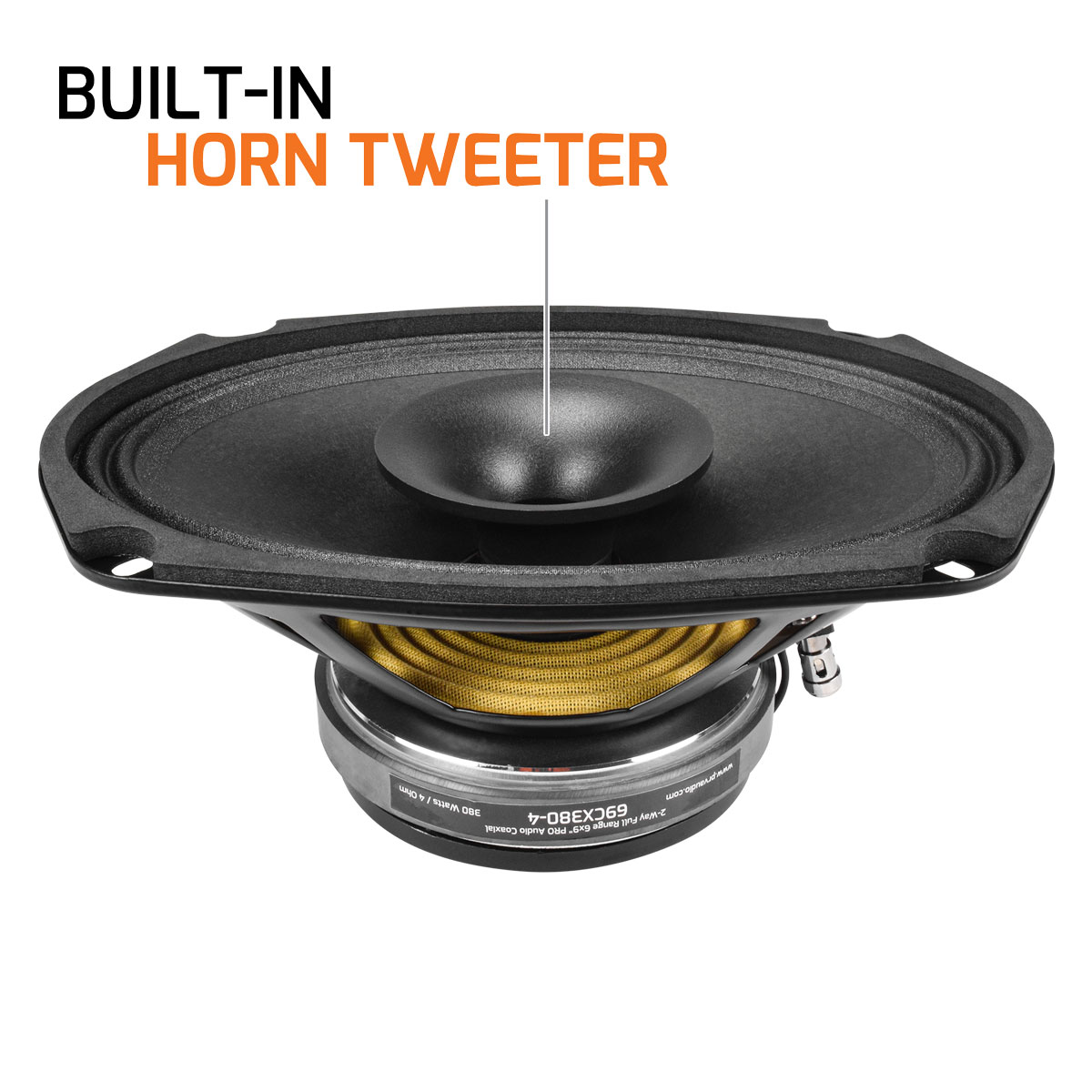

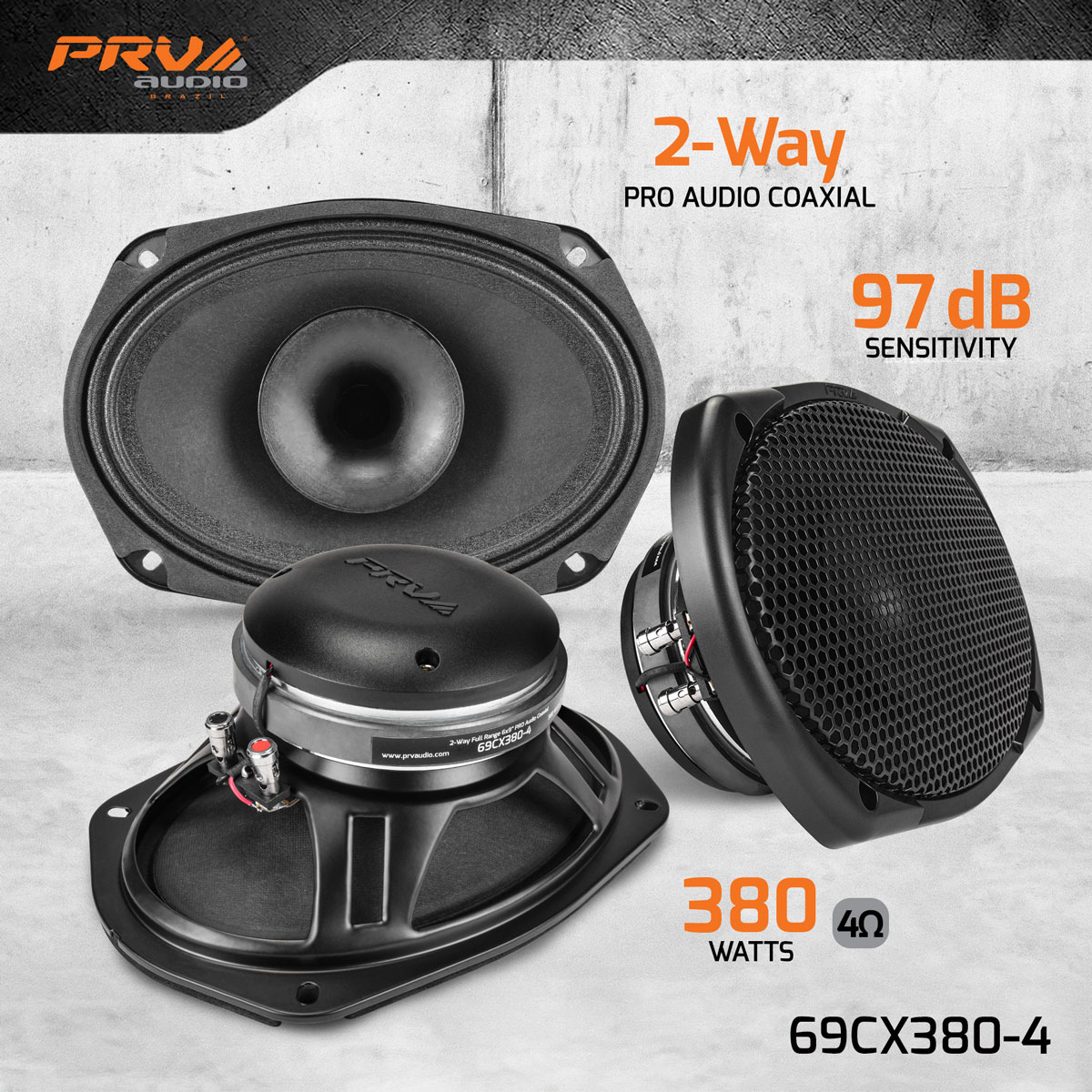

2-Way Coaxial – Transform your sound stereo with one speaker that will play low midbass frequencies and highs at the highest sound output. A built-in driver tweeter with in-line capacitor attenuates perfectly with the speaker, giving you a rich musical response. Full Range Response 380 Watts RMS Music Power Handling, with 97 dB Sensitivity, capable of generating a lot of sound from one speaker! Grill and Mounting Screws Included Also available in 8″ – 8CX380-4 SLIM and 6.5″- 6CX380-4 SLIM

By combining elements from the PRO Audio and Car Audio segments, we have developed a new type of highly efficient coaxial that is able to give high levels of output in a small compact custom system, or even your stock speaker location.

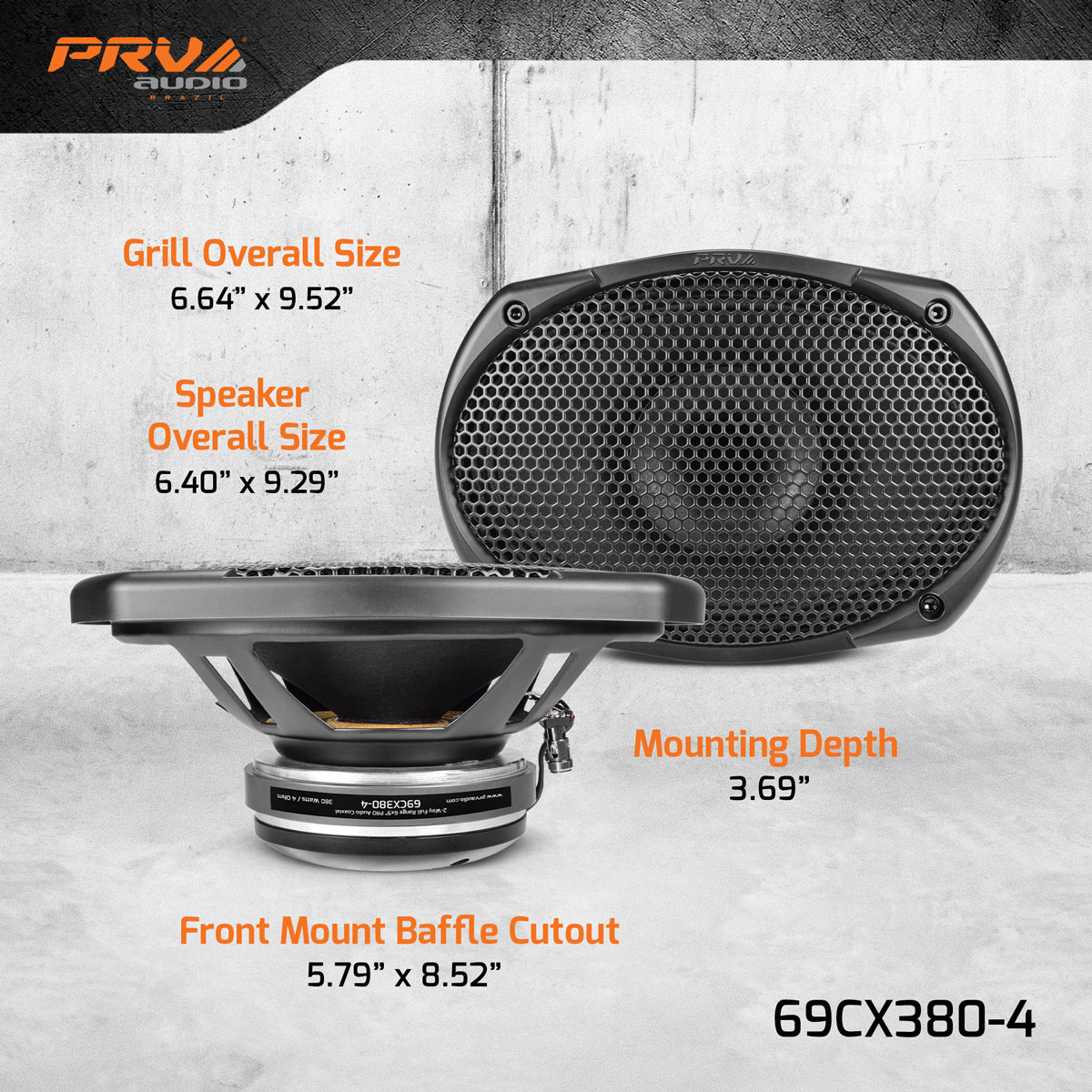

Loud and clear vocals are all within 3.69′′ of mounting depth which makes it really easy to drop in any stock speaker location without much modification.

Its specially composed spider reduces distortion at midbass frequencies, and its double roll surround keeps cone travel linear, while its premium tinsel lead wire is capable of high temperatures.

This makes this speaker not only unique but also gives it all high-performance characteristics and high-quality components, providing exceptional clarity, detail, and dynamic sound.

PRV Audio 6×9” Full Range 2-Way Coaxial 69CX380-4 Car Speaker 380 Watts 4 Ohm – High Output PRO Audio Sound Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP when using the recommended power below:

Low Power Stereo Setup, One Speaker per Channel, no LPF. 2 Speakers – 1x QS800.4 2 Ohm, 1 speaker per channel in the Rear Channel • Amplifier HPF at 90 Hz with 140 Watts RMS musical power Other 2 Front Channels can be used for the speakers for the Front Setup

High Power Stereo Setup, One Speaker per Channel 2 Speakers – 1x MDX1200.2 2 Ohm, 1 or 2 speakers per channel • 110 Hz at 18 dB per octave filter Crossover / BT18, no LPF when using up to 380 Watts RMS musical power

Custom System, High Power 4 Speakers – 1x MDX1800.1 1 Ohm, 4 speakers in parallel • 110 Hz at 18 dB per octave filter Crossover / BT18, no LPF when using up to 380 Watts RMS musical power

GENERAL SPECIFICATIONS

THIELE-SMALL PARAMETERS

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO
