Description
Product Overview
PRV Audio is proud to present our MT8SW800 D4 Subwoofer from the MOTO Series (MT), a high performance line dedicated to motorsport installations.
Designed for small enclosures, this subwoofer will work in motorcycle saddlebags, slingshot pods, or any other enclosure around 1 cubic foot in size. This sub is made from the best materials and components to withstand the elements, so you can enjoy the highest low frequency output while riding or sitting in an open parking lot.
Its shallow profile takes up very little space inside any enclosure. This compact design will fit and sound great in any saddlebag that has about 1 cubic foot.
Recommended enclosure:
This subwoofer established the new benchmark for low frequency for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4-wheeler, Slingshot or motorcycle.
This 8-inch subwoofer delivers the kind of bass output you feel outdoors, not just vibrations. Also Available in 10 inch – MT10SW1000 D4

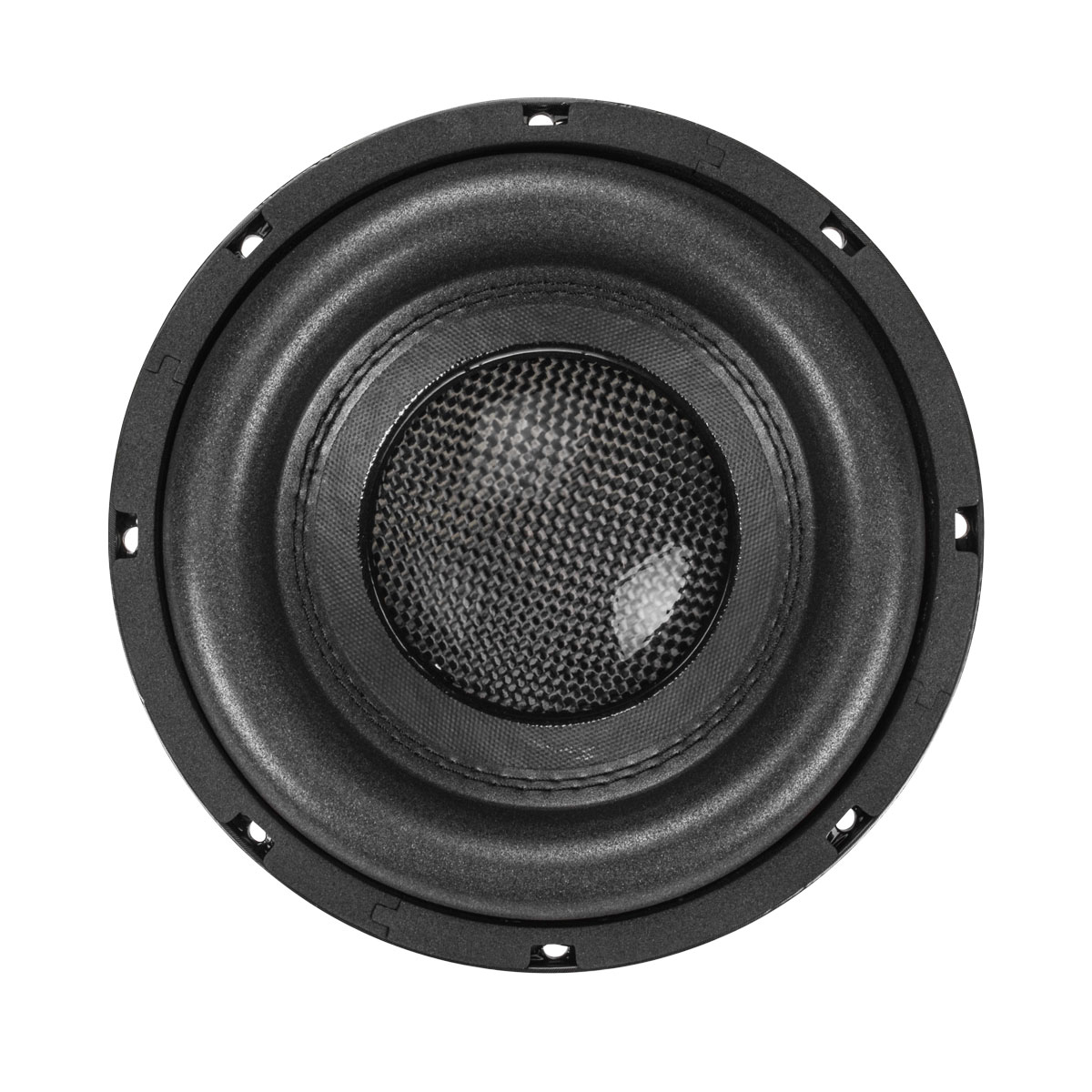

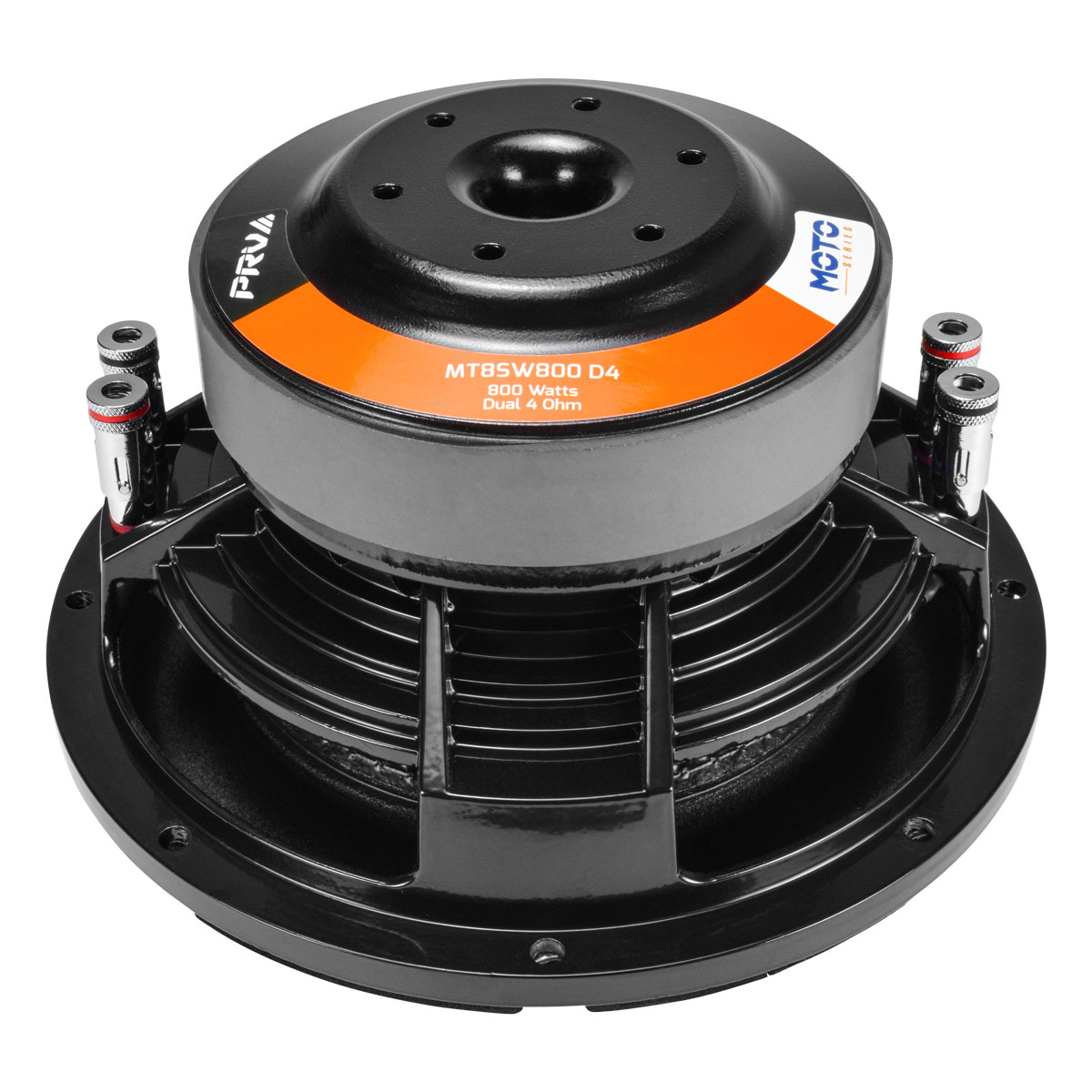

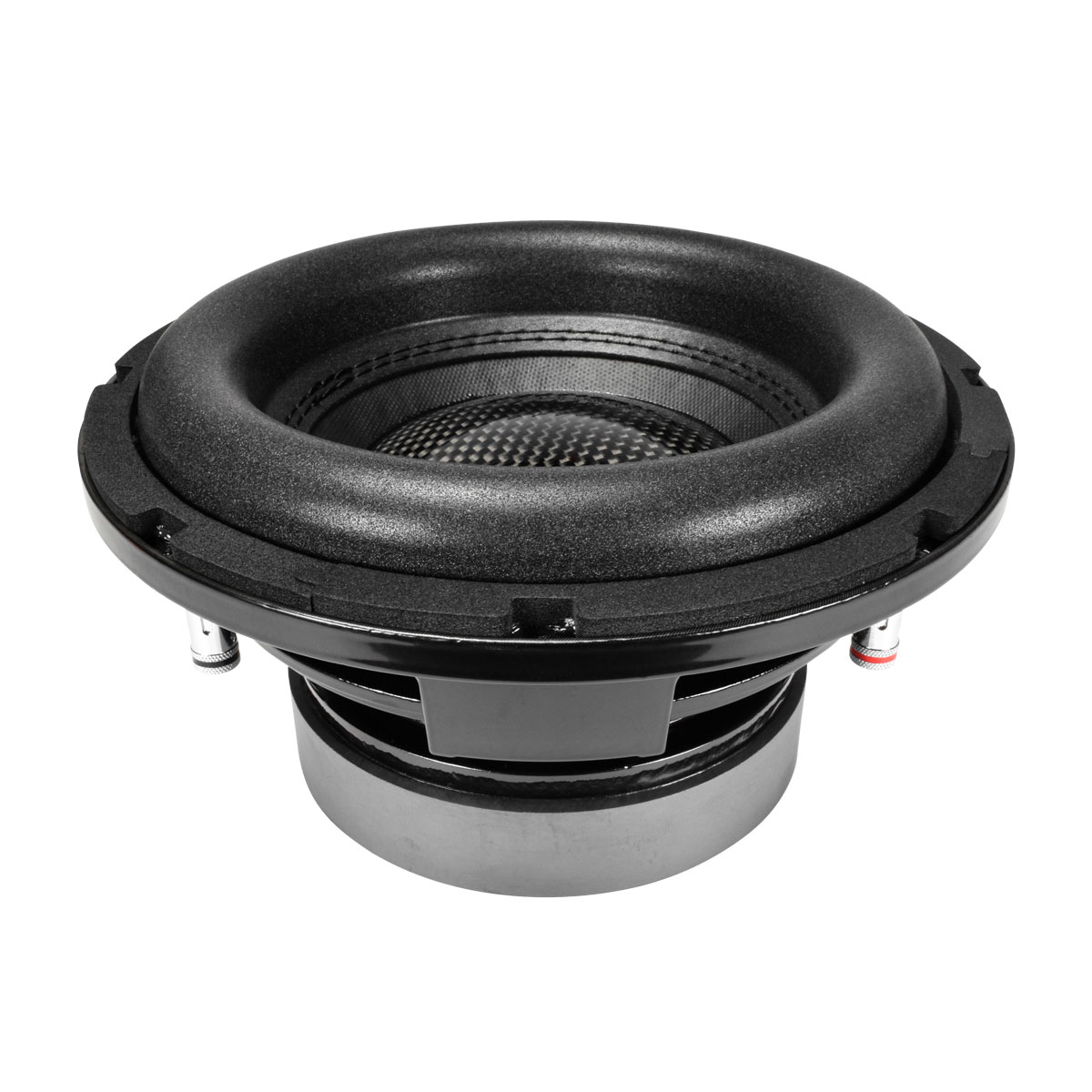

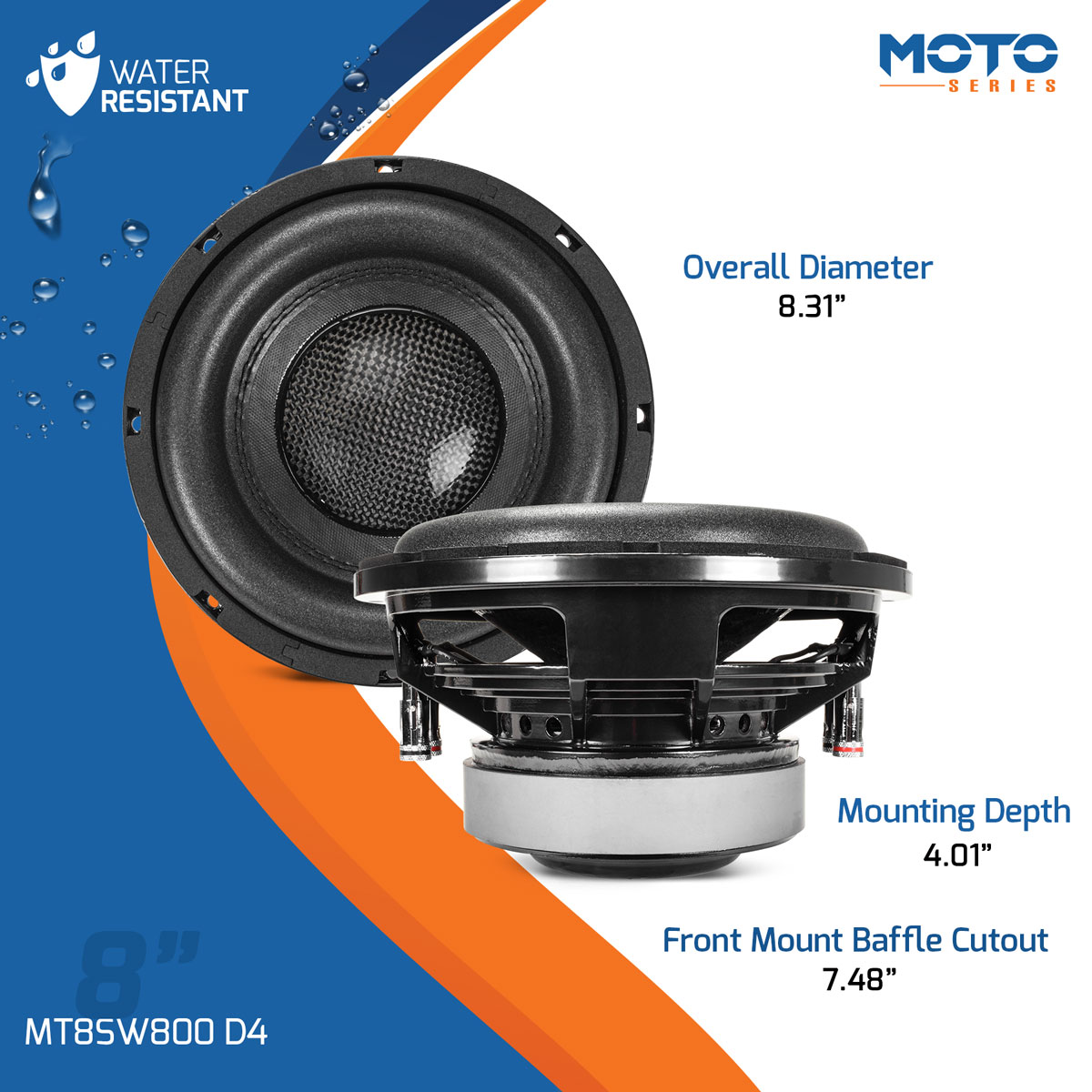

PRV 8” Motorsports Subwoofer MT8SW800 Dual 4 Ohm 800 Watts Shallow Sub for Motorcycle Slingshot Waterproof
GENERAL SPECIFICATIONS
THIELE-SMALL PARAMETERS
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Technical Data
| Specification | Details |
|---|---|
| Size | 8 inch |
| Impedance | Dual 4 Ohms |
| Nominal Diameter | 8″ (203 mm) |
| Nominal impedance | 4 + 4 Ohm |
| Nominal Power Handling | 400 Watts |
| Continuous Program Power (RMS) | 800 Watts |
| Max Peak Power | 1600 Watts |
| Sensitivity 1.41V at 1m | 81 dB (Parallel VC) |
| Voice Coil Diameter | 2.0″ (50 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 33.0 mm |
| Former Material | Black Aluminum |
| Magnetic Gap Depth | 10 mm |
| Frame Material | Die Cast Aluminum |
