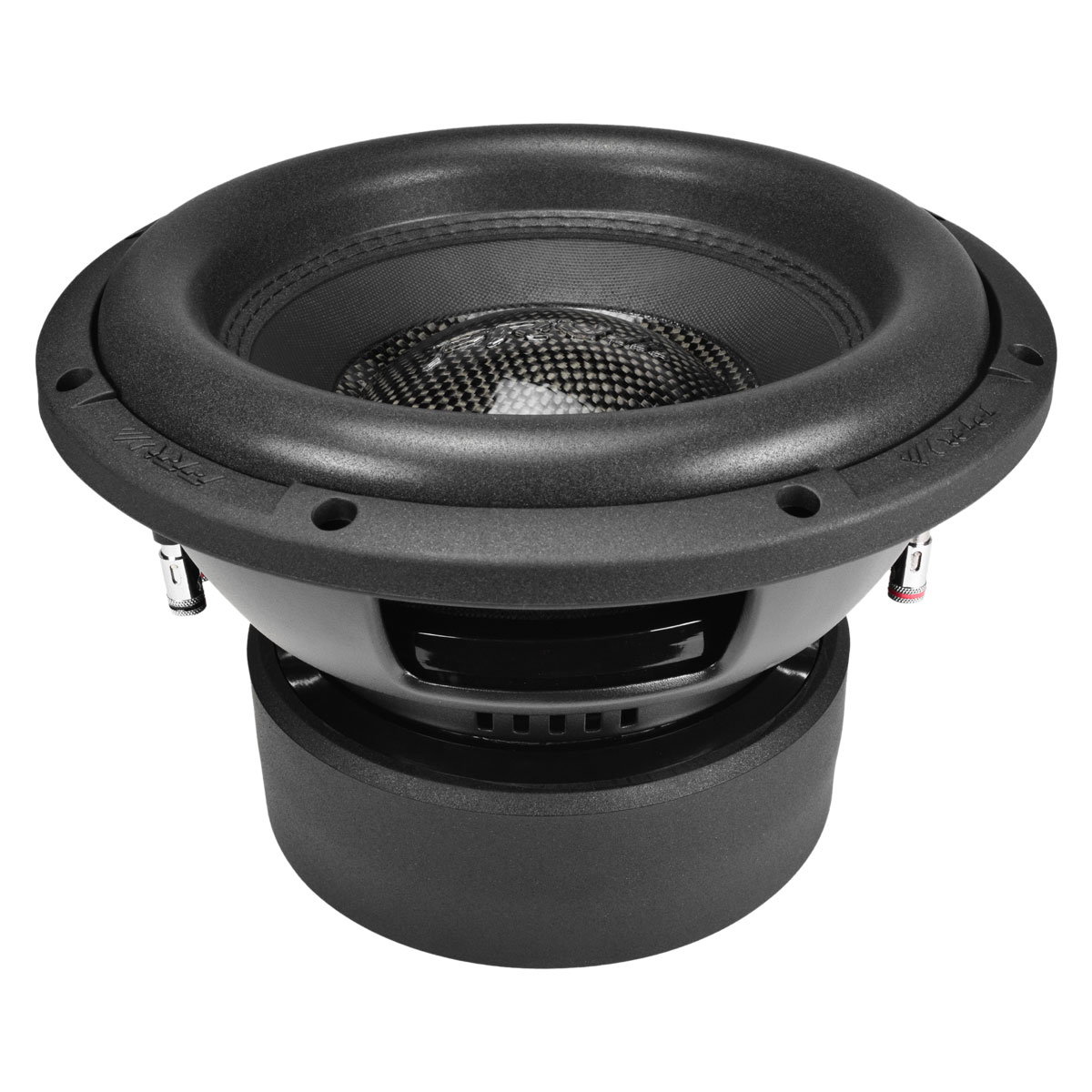

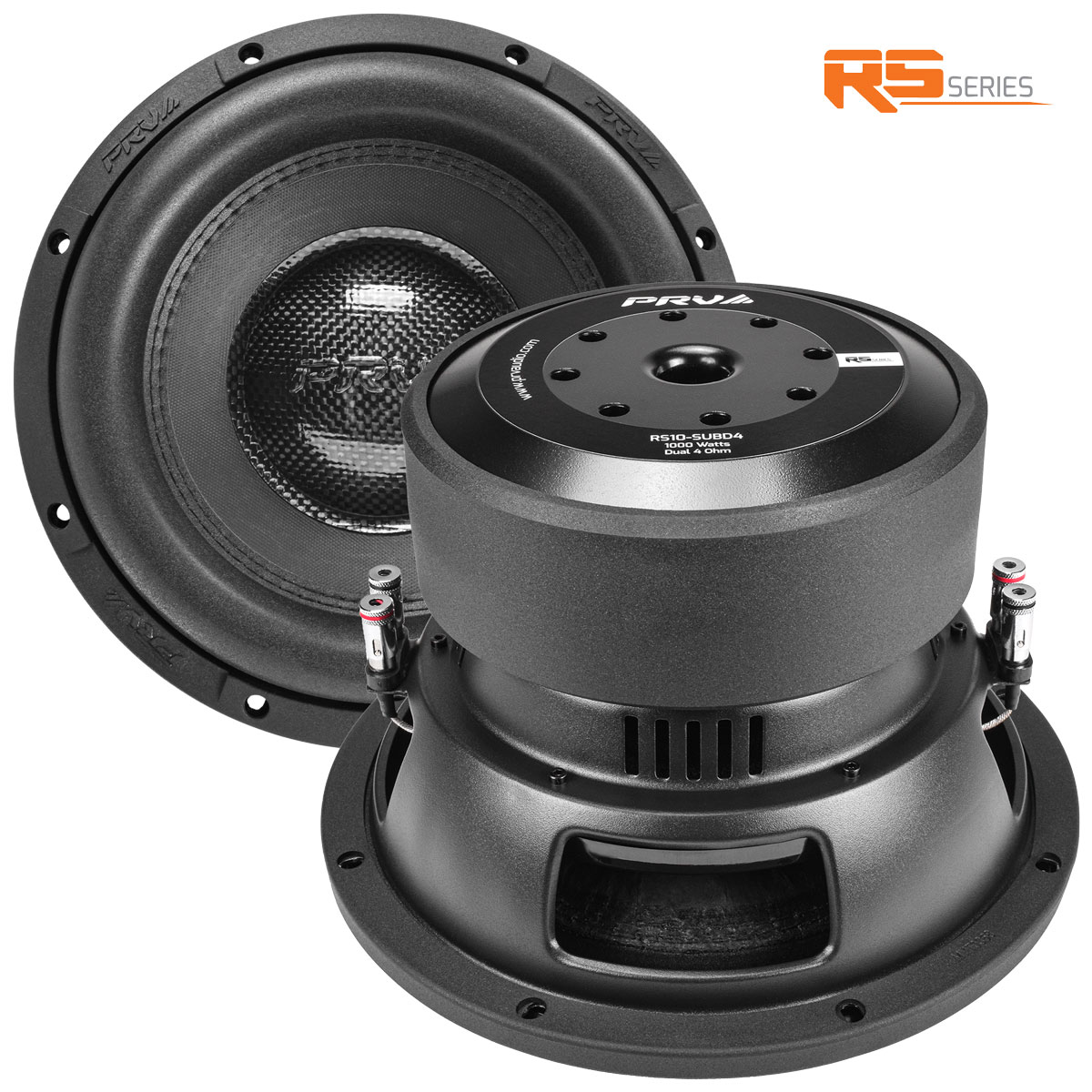

PRV Audio 10 inch RS Series Car Subwoofer D4 PRV-RS10-SUBD4

For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.

This 10″ car subwoofer will give you bass like never before! The RS10-SUBD4 is perfect for boosting the lows in your car system or shaking your entire neighborhood.

This subwoofer was designed to be a great combination of price and performance without a compromise on quality. It is a must-have for daily builds where you want to keep electrical upgrades to a minimal and get excellent performance with a minimal amount of power.

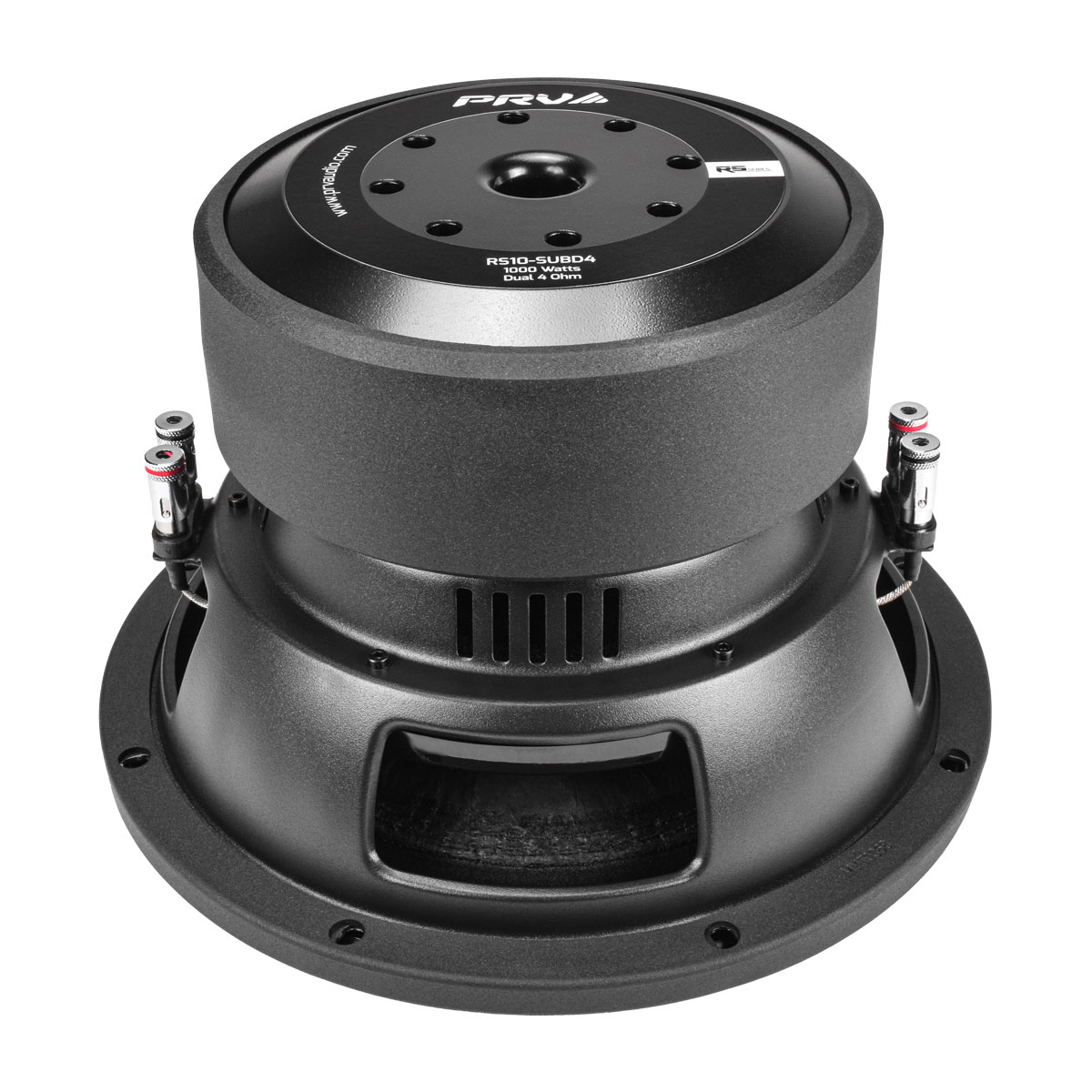

This subwoofer features a beefy magnet motor that enhances its power and bass response, allowing it to handle more power and produce richer, fuller bass tones.

Its double magnet motor combined with flexible high foam surround allows for a remarkable 17.5mm Xmax, delivering high excursion guaranteeing to put out some crazy output.

Put some extra lows in your system with this 10″ sub, which can reach 1.50″ peak-to-peak excursion before damage! Providing deep low frequency bass!

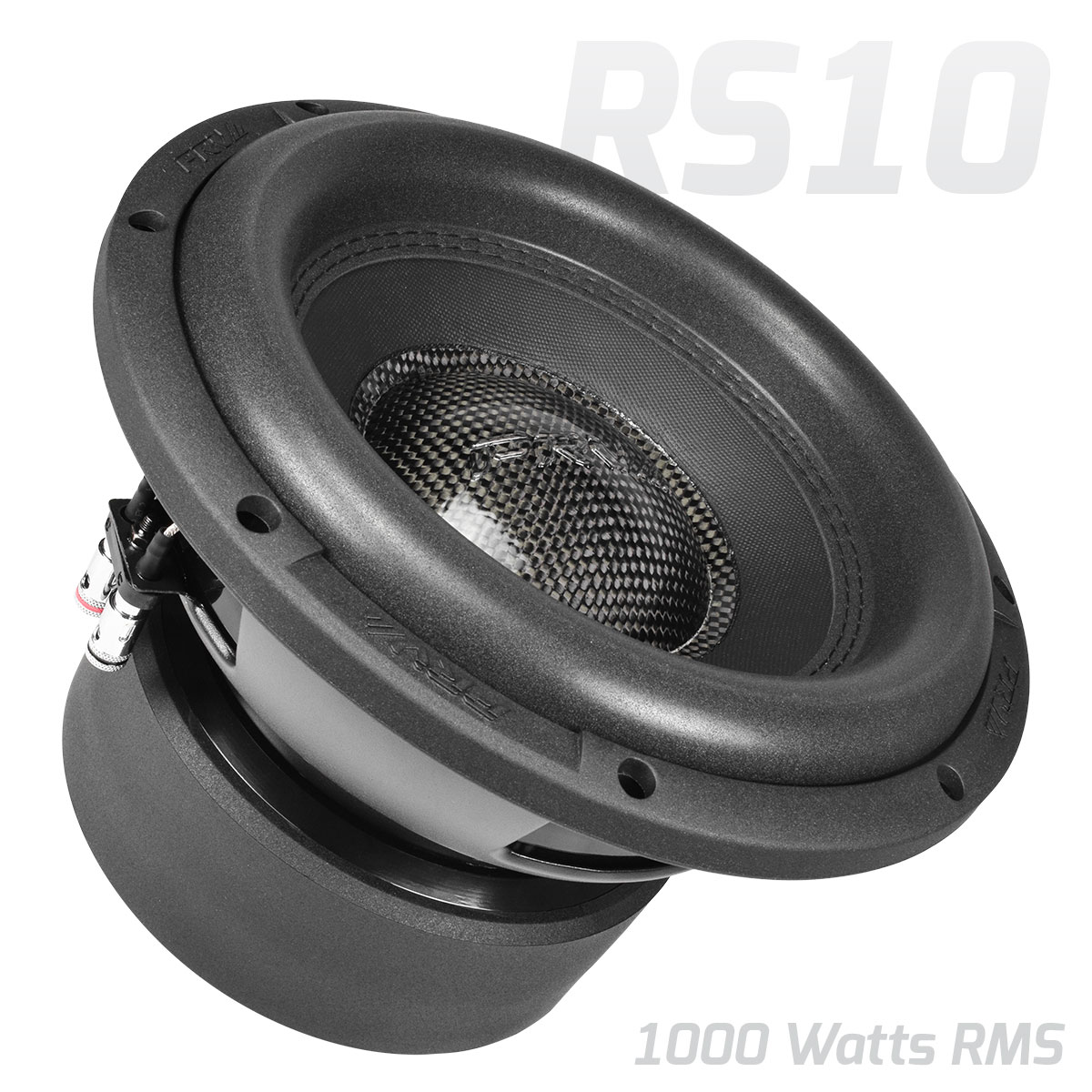

PRV 10” Car Subwoofer RS10-SUB Dual 4 Ohm 1000 Watts Double Stacked Magnet 17.5mm Xmax

Recommended Amplifier configurations:

The LPF on amplifiers should be set between 60 – 90 Hz when using musical power up to 1000 Watts RMS, Subsonic filters should be set according to music style, this will help to avoid subwoofer damage from excess excursion caused by ultra low frequencies.

Take your time and break them in! A brand-new sub is always a little stiff after break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones

Recommended Custom Enclosures: Inside measurements based with 3/4″ wood material.

Single Sub Sealed Enclosure52 Hz Tunning All sealed-enclosures should be filled to 50% of poly-fil.

Single Sub Compact Ported Enclosure 38 Hz Tunning

Dual Sub Recommended Ported Enclosure 38 Hz Tunning

GENERAL SPECIFICATIONS

THIELE-SMALL PARAMETERS

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO
