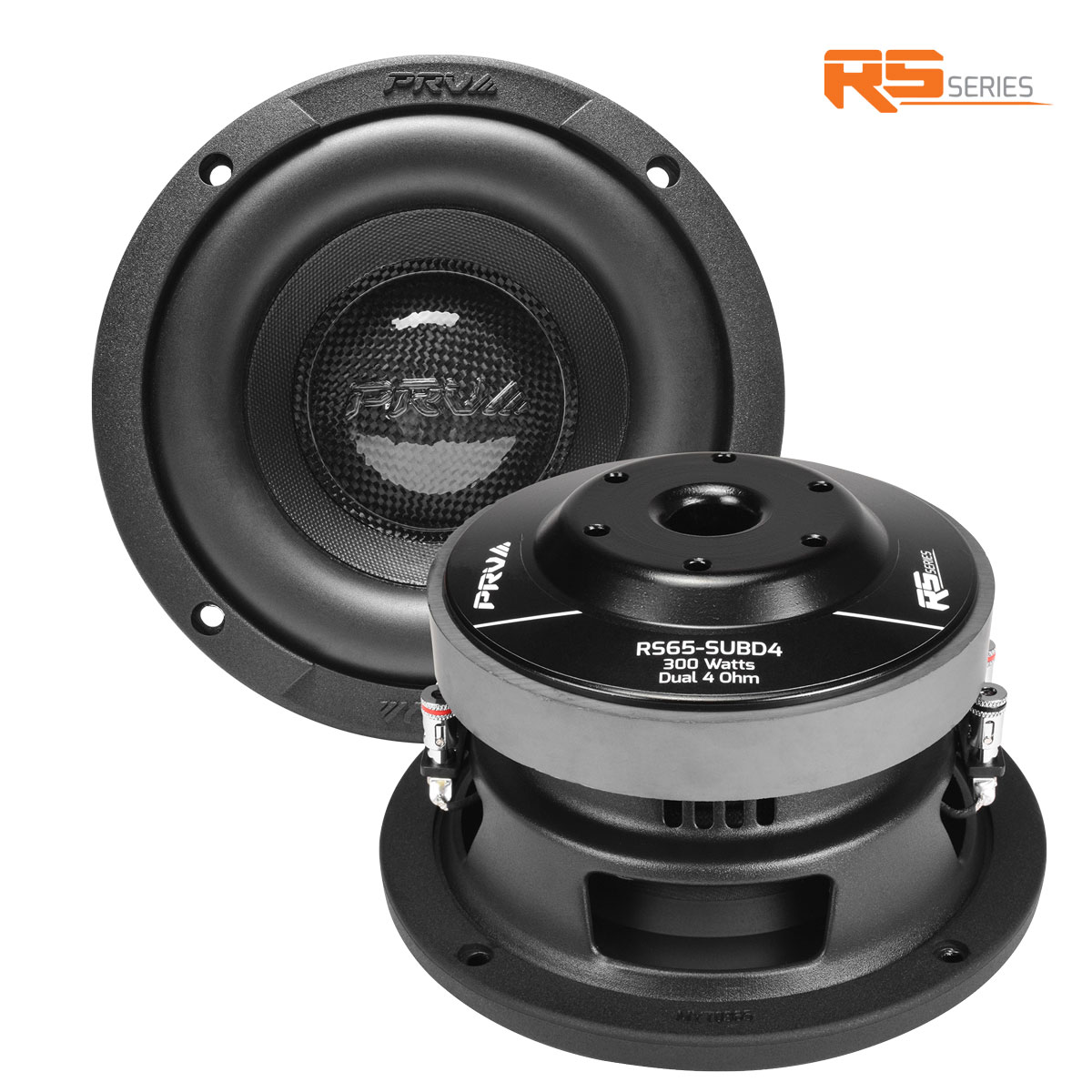

PRV Audio 6.5 inch RS Series Car Subwoofer D4 PRV-RS65-SUBD4

For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.

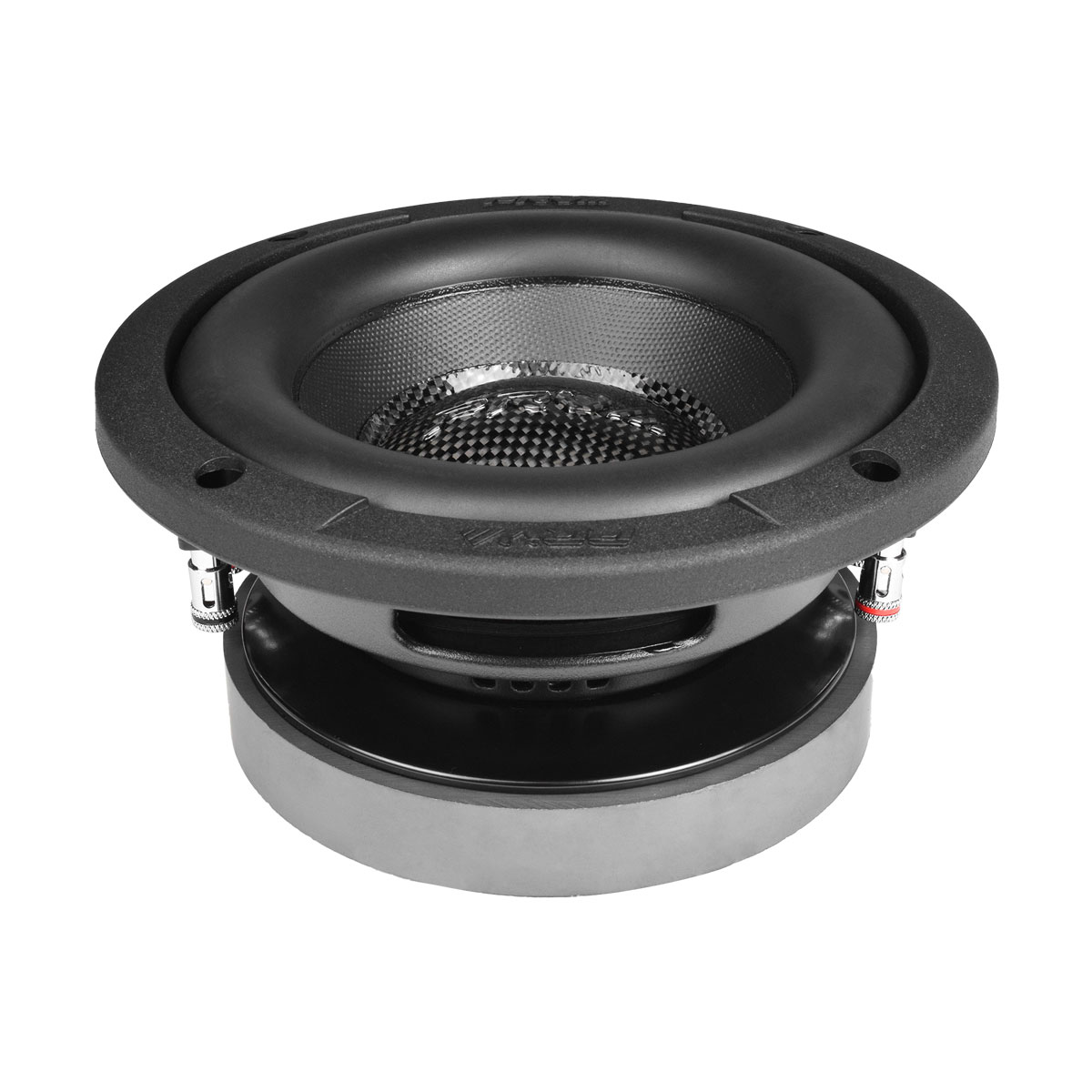

Small and powerful, this 6.5″ car subwoofer RS65-SUB delivers hard hitting bass. This sub was engineered and built with performance in mind, for compact pickup trucks, or any car you want to put a subwoofer in without sacrificing trunk space.

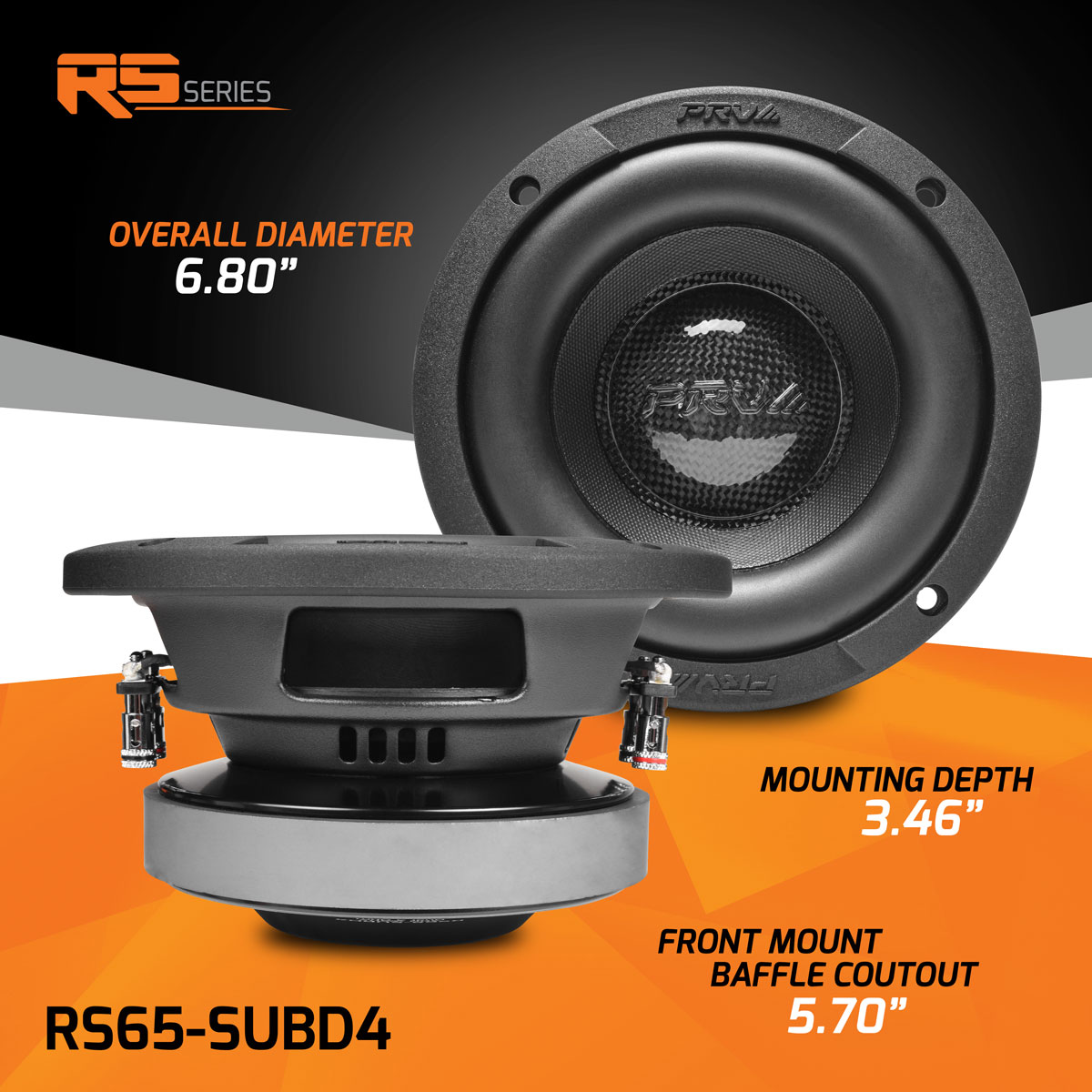

Its shallow profile takes up very little space inside any enclosure. This compact design still focus on performance, maximizes the excursion capability by creating an equal distance between the cone, spider and bottom plate.

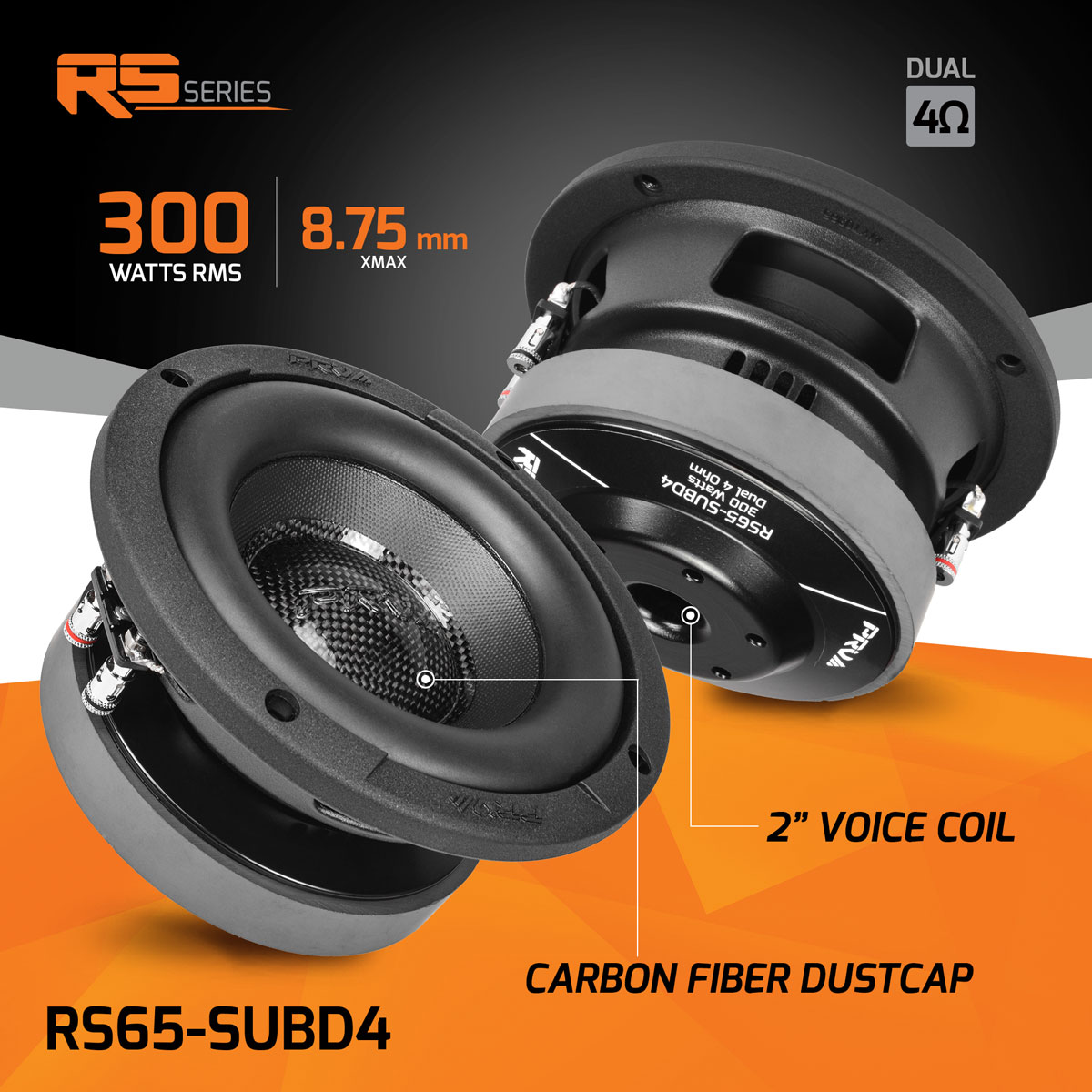

In this mighty 6.5″ sub, can reach 0.82″ peak to peak excursion before damage! Which allows for deep low frequency bass!

PRV 6.5” Car Subwoofer RS65-SUB Dual 4 Ohm 300 Watts Shallow Sub

Recommended Amplifier configurations:

The LPF on amplifiers should be set between 80 – 120 Hz when using musical power up to 300 Watts RMS, Subsonic filters should be set according to music style, this will help to avoid subwoofer damage from excess excursion caused by ultra low frequencies.

Take your time and break them in! A brand-new sub is always a little stiff but after break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones

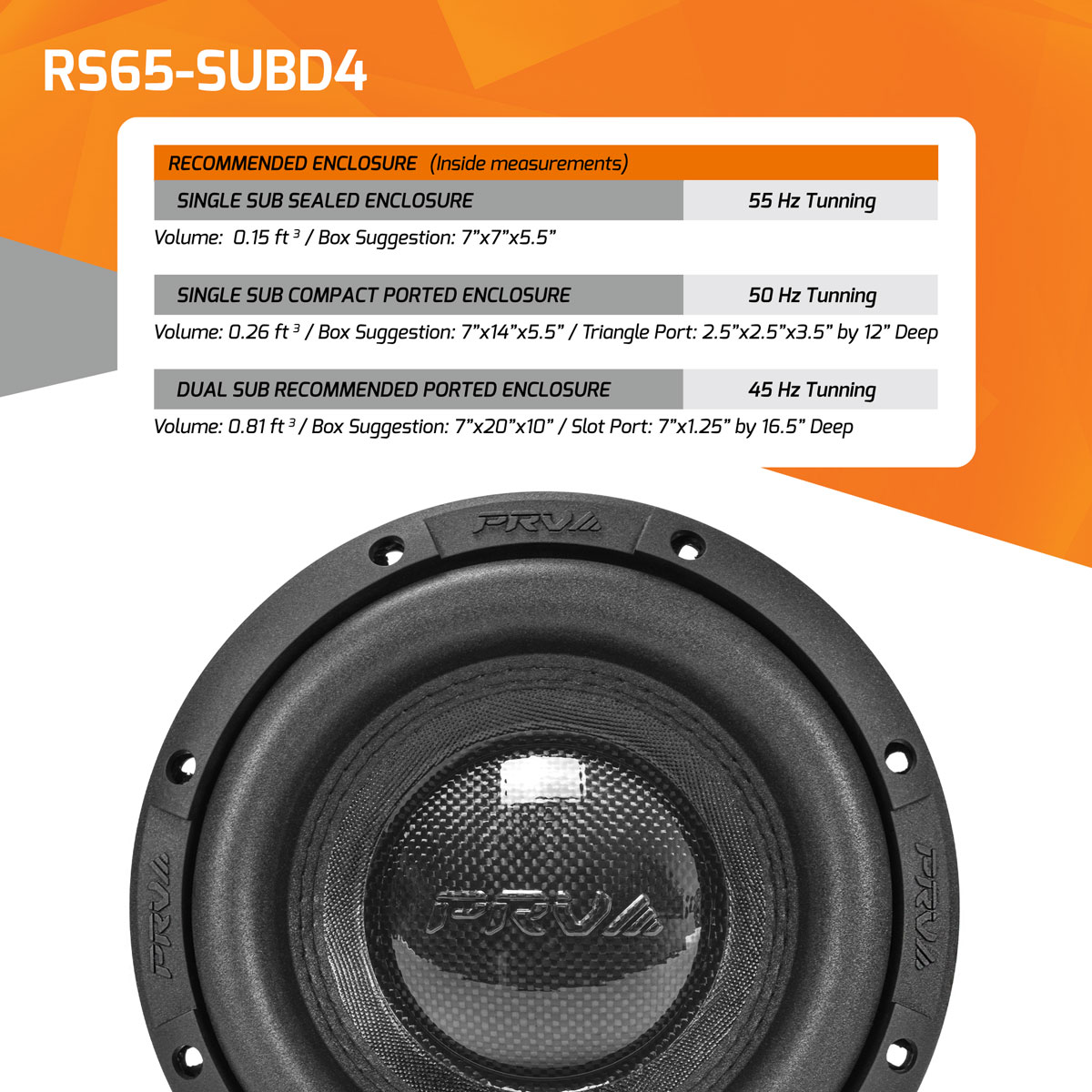

Recommended Custom Enclosures: Inside measurements based with 3/4″ wood material.

Single Sub Sealed Enclosure55 Hz Tunning All sealed-enclosures should be filled to 50% of poly-fil.

Single Sub Compact Ported Enclosure 50 Hz Tunning

Dual Sub Recommended Ported Enclosure 45 Hz Tunning

GENERAL SPECIFICATIONS

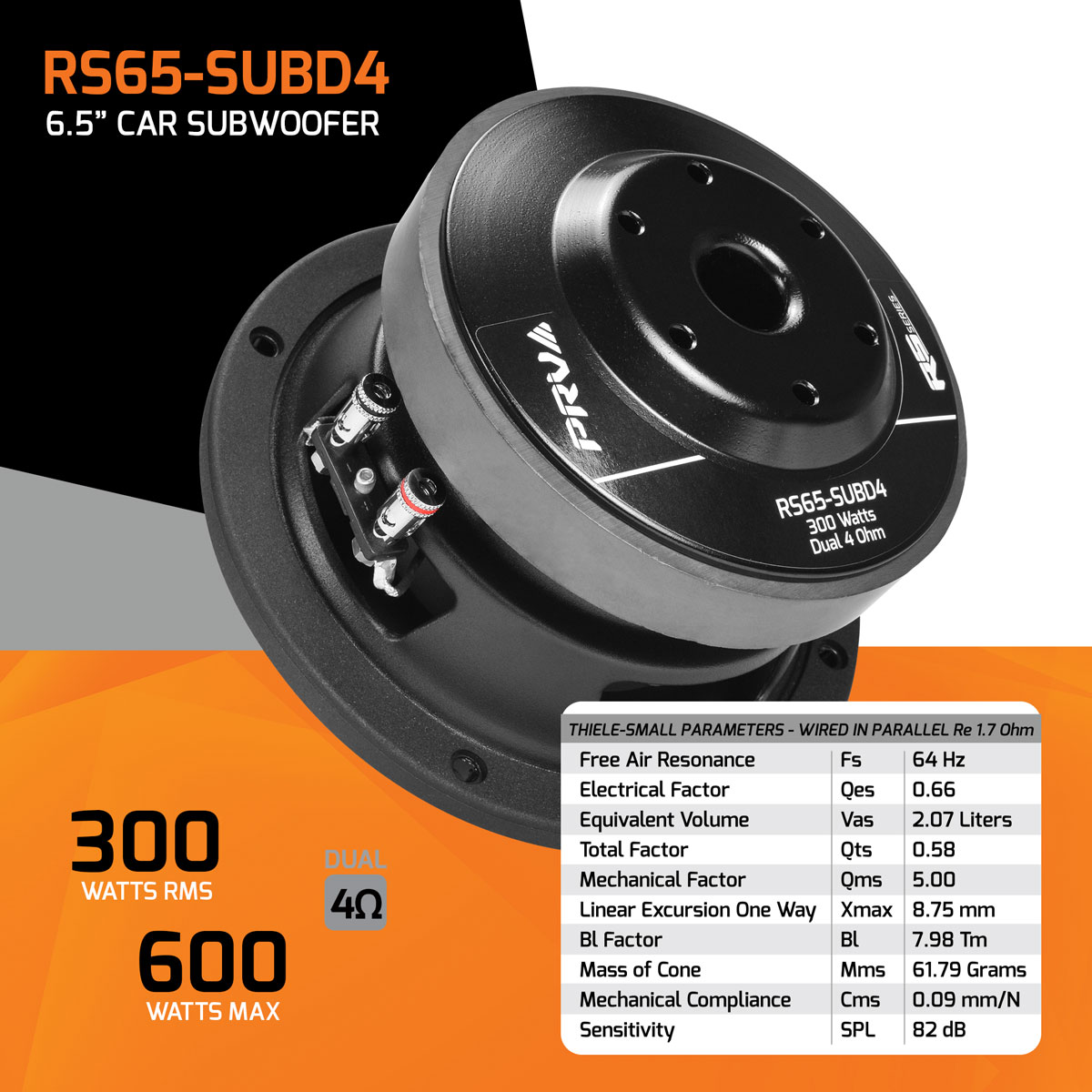

THIELE-SMALL PARAMETERS

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO
