Description
Product Overview
For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.
Add pure lows to your system, this 8″ car subwoofer RS8-SUB delivers responsive bass, thanks to its high Xmax. This sub was engineered and built with performance in mind, for pickup trucks, or any car you want to put a subwoofer in without sacrificing trunk space.

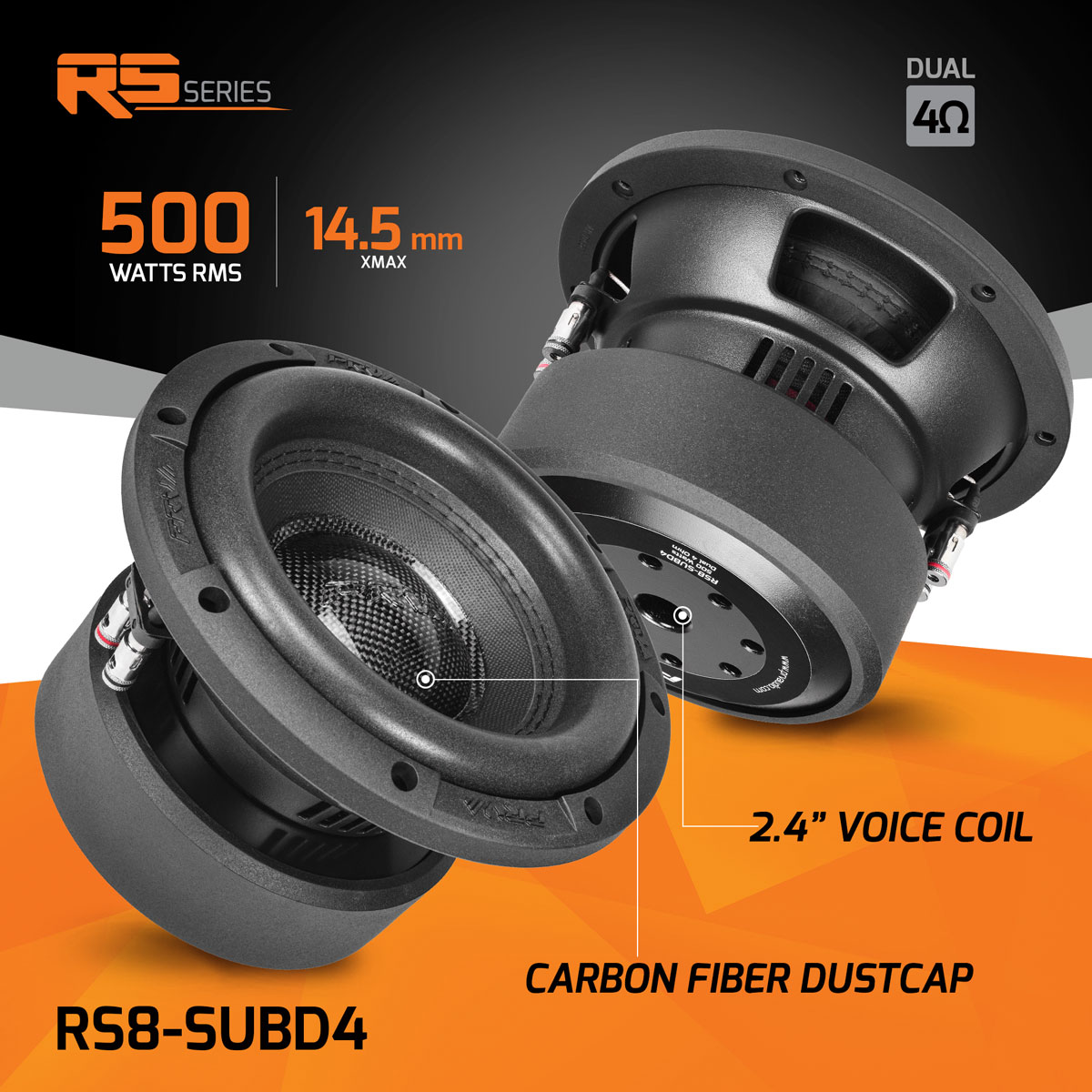

This subwoofer features a beefy magnet motor that enhances its power and bass response, allowing it to handle more power and produce richer, fuller bass tones. Its double magnet motor allows for a remarkable 14.5mm Xmax, delivering high excursion equivalent to bigger size subwoofers
In this beefy 8″ sub, can reach 1.30″ peak to peak excursion before damage! Which allows for deep low frequency bass!
PRV 8” Car Subwoofer RS8-SUB Dual 4 Ohm 500 Watts Double Stacked Magnet 14.5mm Xmax
Recommended Amplifier configurations:
The LPF on amplifiers should be set between 80 – 100 Hz when using musical power up to 500 Watts RMS, Subsonic filters should be set according to music style, this will help to avoid subwoofer damage from excess excursion caused by ultra low frequencies.
Take your time and break them in! A brand-new sub is always a little stiff but after break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones.
Recommended Custom Enclosures: Inside measurements based with 3/4″ wood material.
Single Sub Sealed Enclosure55 Hz Tunning All sealed-enclosures should be filled to 50% of poly-fil.
Single Sub Compact Ported Enclosure 50 Hz Tunning
Dual Sub Recommended Ported Enclosure 42 Hz Tunning
GENERAL SPECIFICATIONS

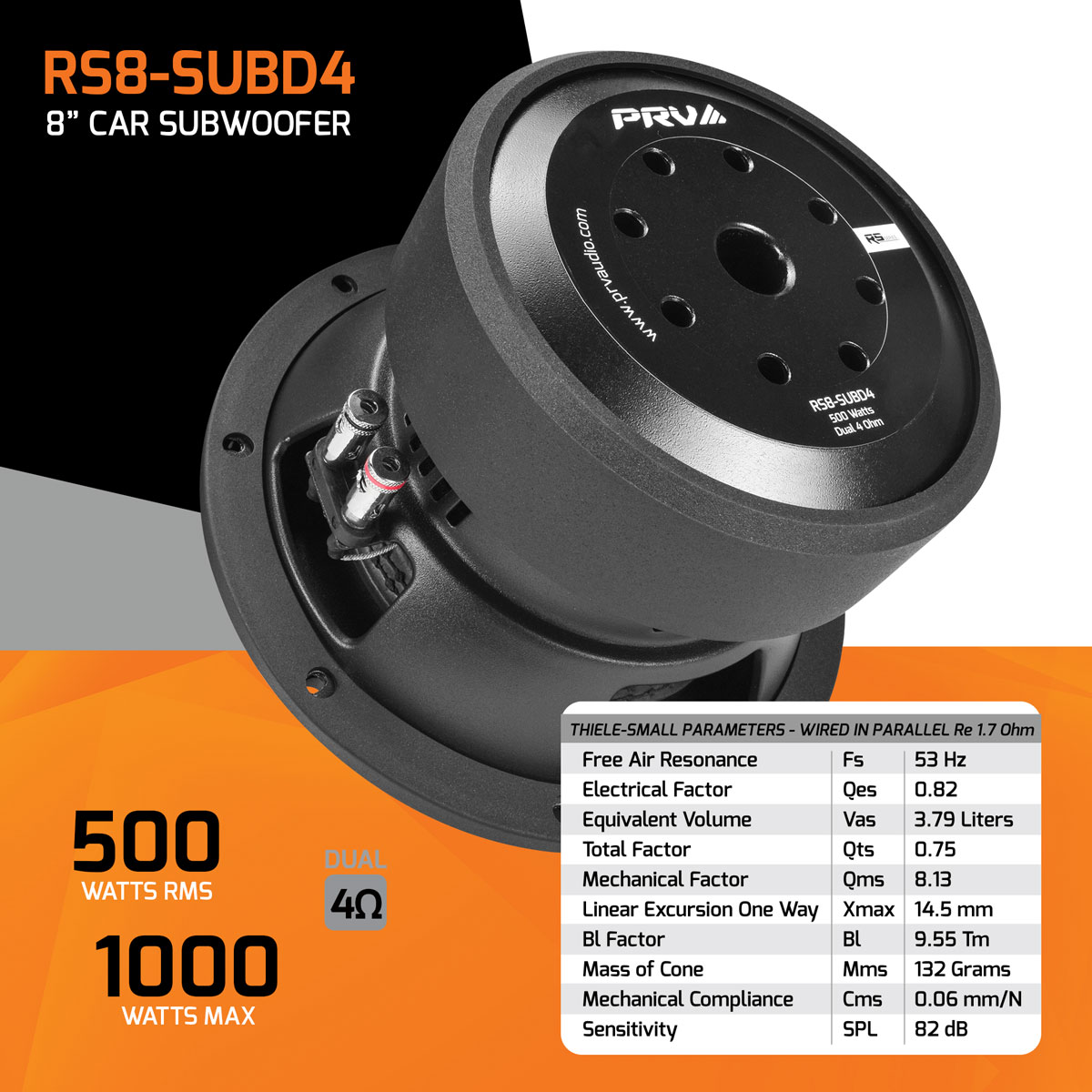

THIELE-SMALL PARAMETERS
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Technical Data
| Specification | Details |
|---|---|
| Size | 8 inch |
| RMS Power | 500 Watts RMS |
| Impedance | Dual 4 Ohms |
| Volume | Box Suggestion |
| 0.54 ft 3 | 11”x10”x8.5” |
