Description
Product Overview
The Pair of TW100SD-4 silk dome tweeter (also referred to as a soft dome) is designed ideally for 2-way system, as an upgrade for that standard factory tweeter. It is the perfect balance between high fidelity sound and a compact design, making this 28 mm dome tweeter a preferred choice for high-end car sound systems.

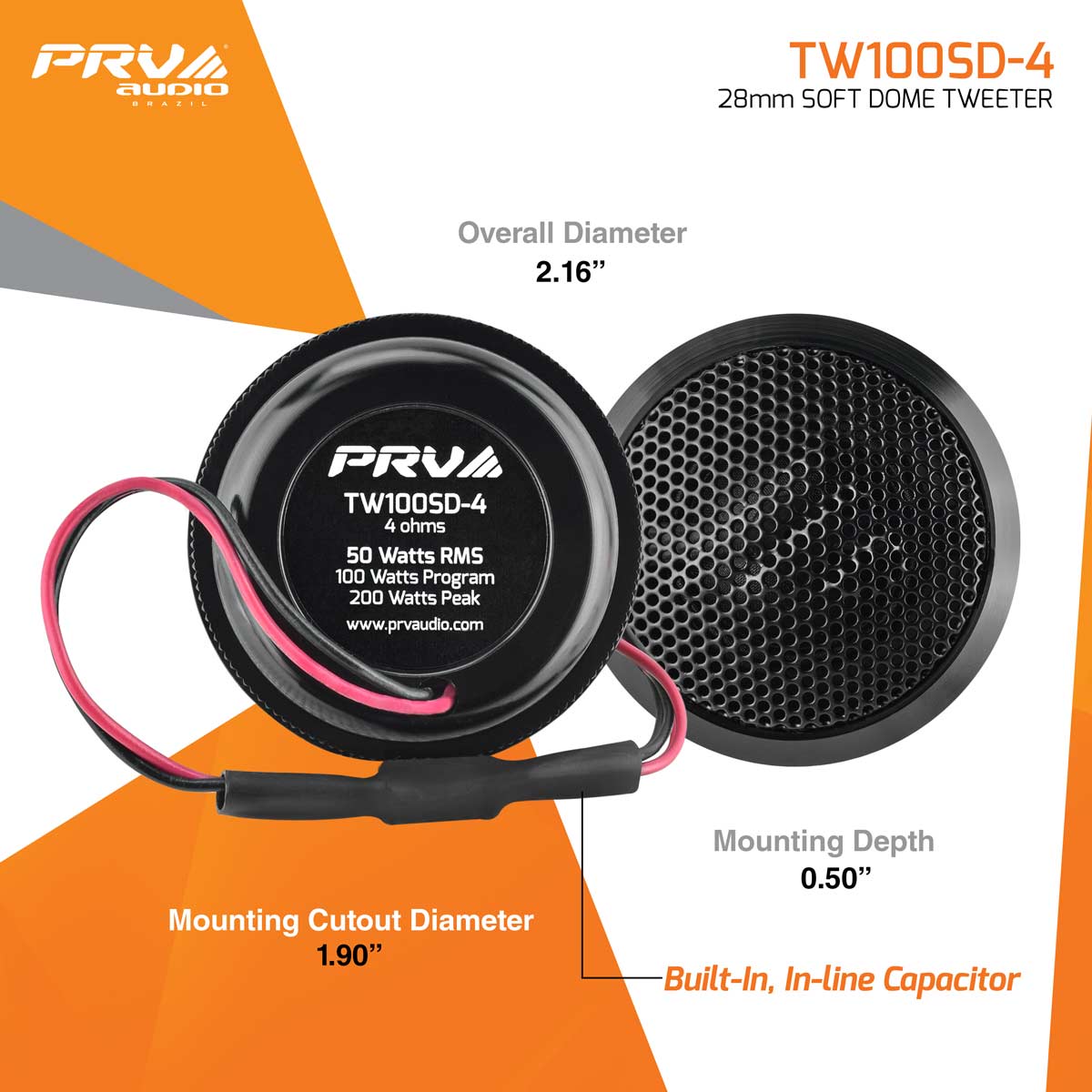

The usage of neodymium magnets as power house ensures high efficiency while still keeping size small, with only 2.16″ diameter and less than 0.50″ of mounting depth on a sleek flush-mount design. Its cloth diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 92 dB from 2,000 to 20,000 Hz.

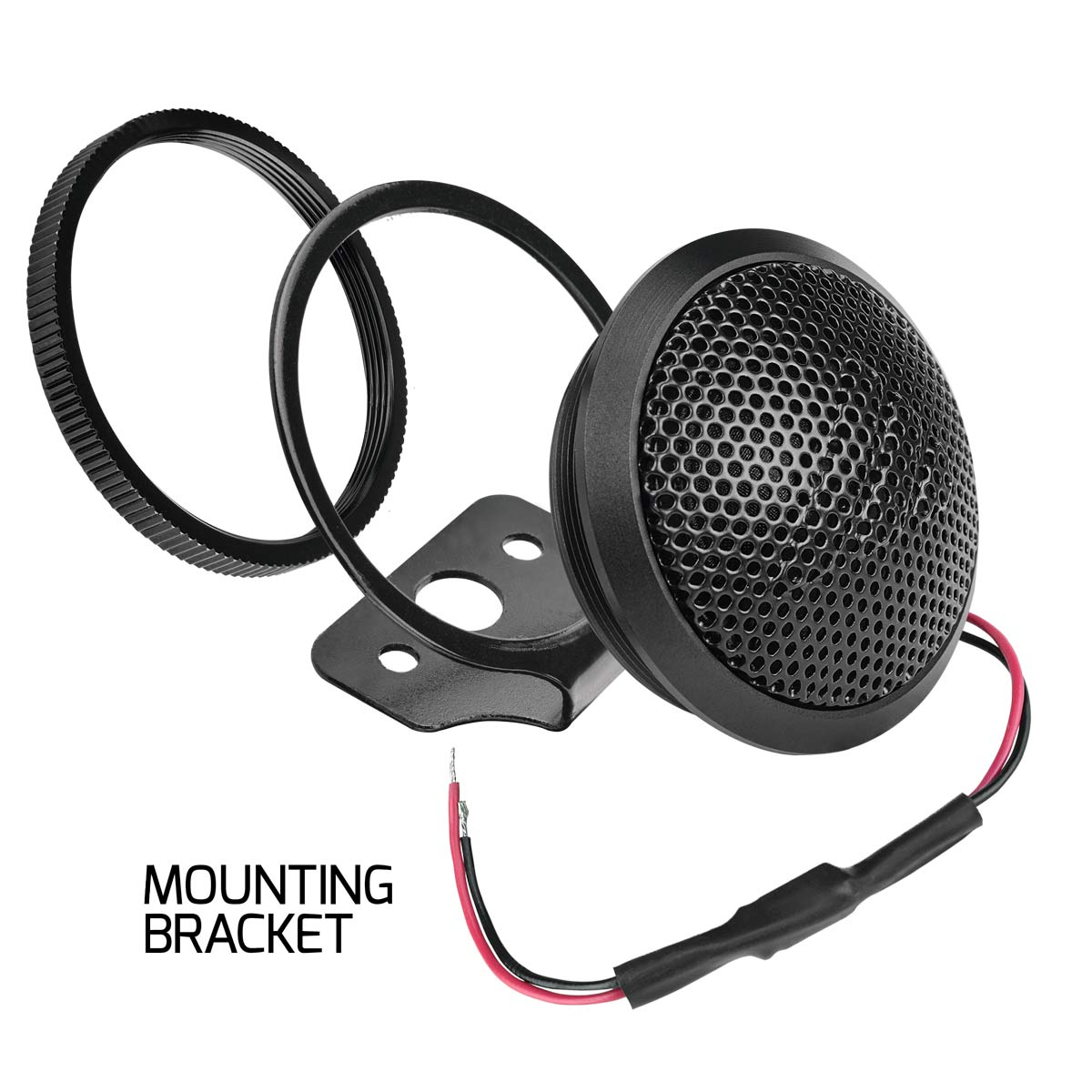

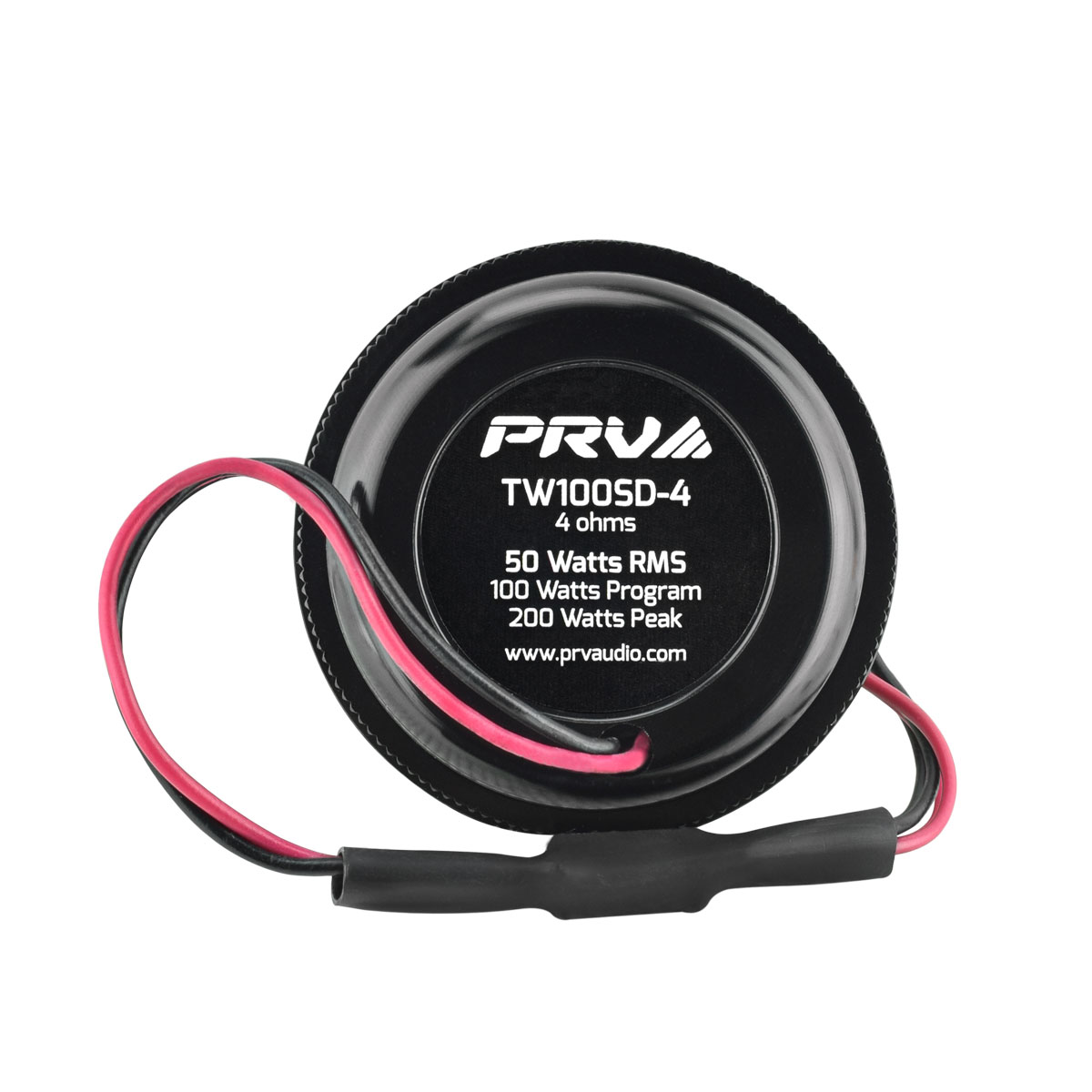

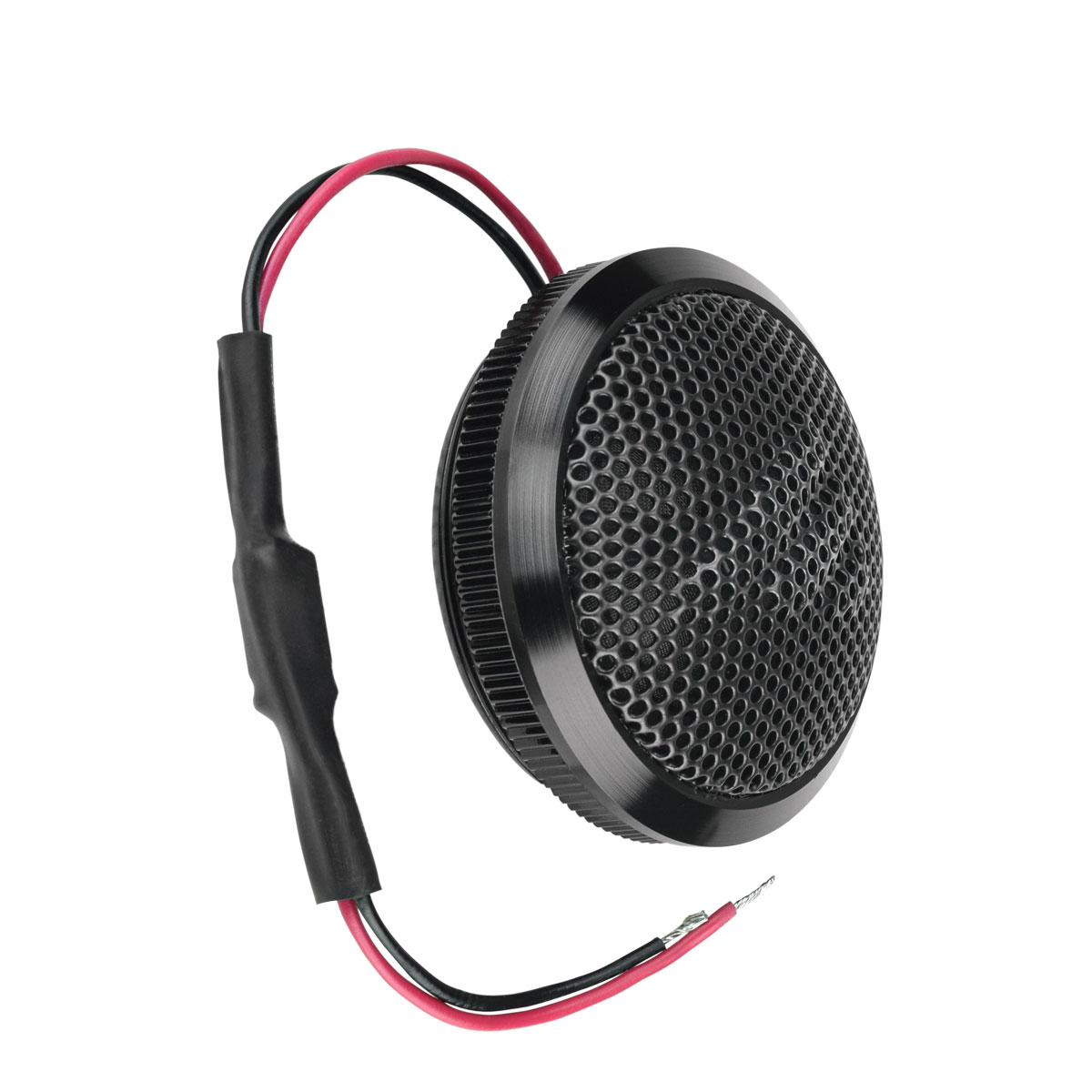

Not only does this silk tweeter look as good as it sounds, its design makes it easy to fit in different locations, with a option of angle mounting bracket. A built-in capacitor is included to attenuate low frequency ranges, ensuring best sound reproduction on a wide frequency range.
Upgrade your factory system and add high fidelity sound to your sound system with TW100SD-4 silk dome tweeter!
GENERAL SPECIFICATIONS
EXTRA INFO
Technical Data
| Specification | Details |
|---|---|
| Impedance | 4 Ohms |
| Sensitivity | 92 dB |
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 50 Watts |
| Program Power | 100 Watts |
| Sensitivity 2.00V at 1m | 92 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 3500 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 2,000 – 20,000 Hz |
| Voice Coil Diameter | 1.0” (25 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
