Description
Product Overview
The WG2200Ph SLIM is a compact horn + driver solution for midrange vocal reproduction that offers high sensitivity and a pleasant sound from the phenolic diaphragm. Its high output and smooth mid range frequency response allow you to use this horn driver in almost any high output audio application for vocal reinforcement: PRO, Home, Car or PROAudioOnWheels® Audio Systems.
The nearly indestructible Phenolic Diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 800 Hz, which makes this driver ideal for reproducing the important vocal range with enough output to keep up the most powerful low frequency speakers.

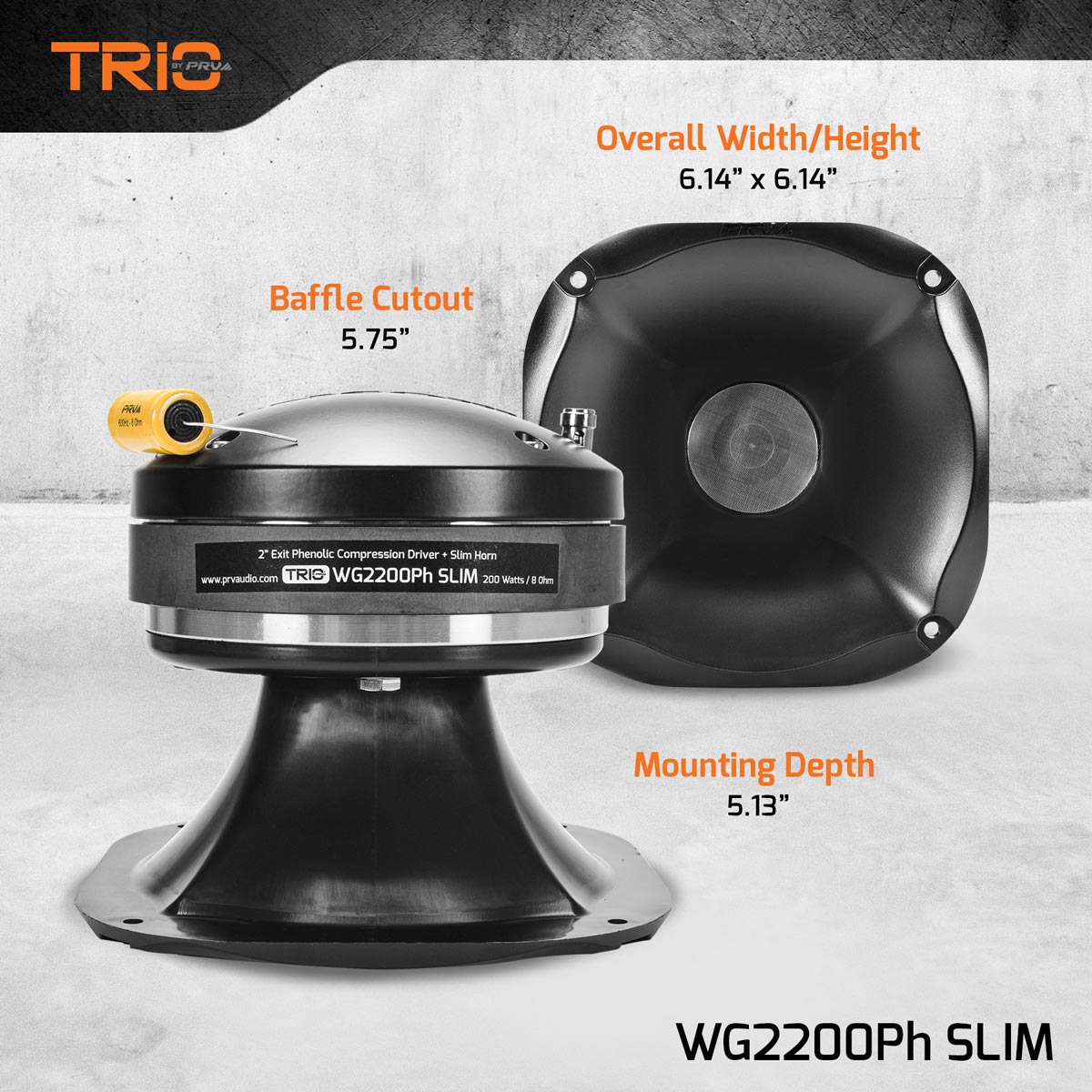

The driver’s small diameter allows front mounting, making it easy to install without detaching the driver from the WGP14-50X Horn.
Combining our company’s extensive experience, and its commitment to customer satisfaction we have created a compact yet very powerful driver that solves the critical component spacing and weight issue.
TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.
The phenolic diaphragm is attached to a 2″ diameter copper-clad aluminum wire with Kapton® former for a high 200 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP
PRV Shallow Mount 2″ Midrange Driver WG2200Ph SLIM 200 Watts 8 Ohm – Vocal Compression Horn driver for Car Audio
GENERAL SPECIFICATIONS
EXTRA INFO
Technical Data
| Specification | Details |
|---|---|
| Size | 2 inch |
| RMS Power | 200 Watts RMS |
| Peak Power | 400 Watts |
| Impedance | 8 Ohms |
| Exit Throat Diameter | 2” (50 mm) |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 100 Watts |
| Continuous Program Power (RMS) | 200 Watts |

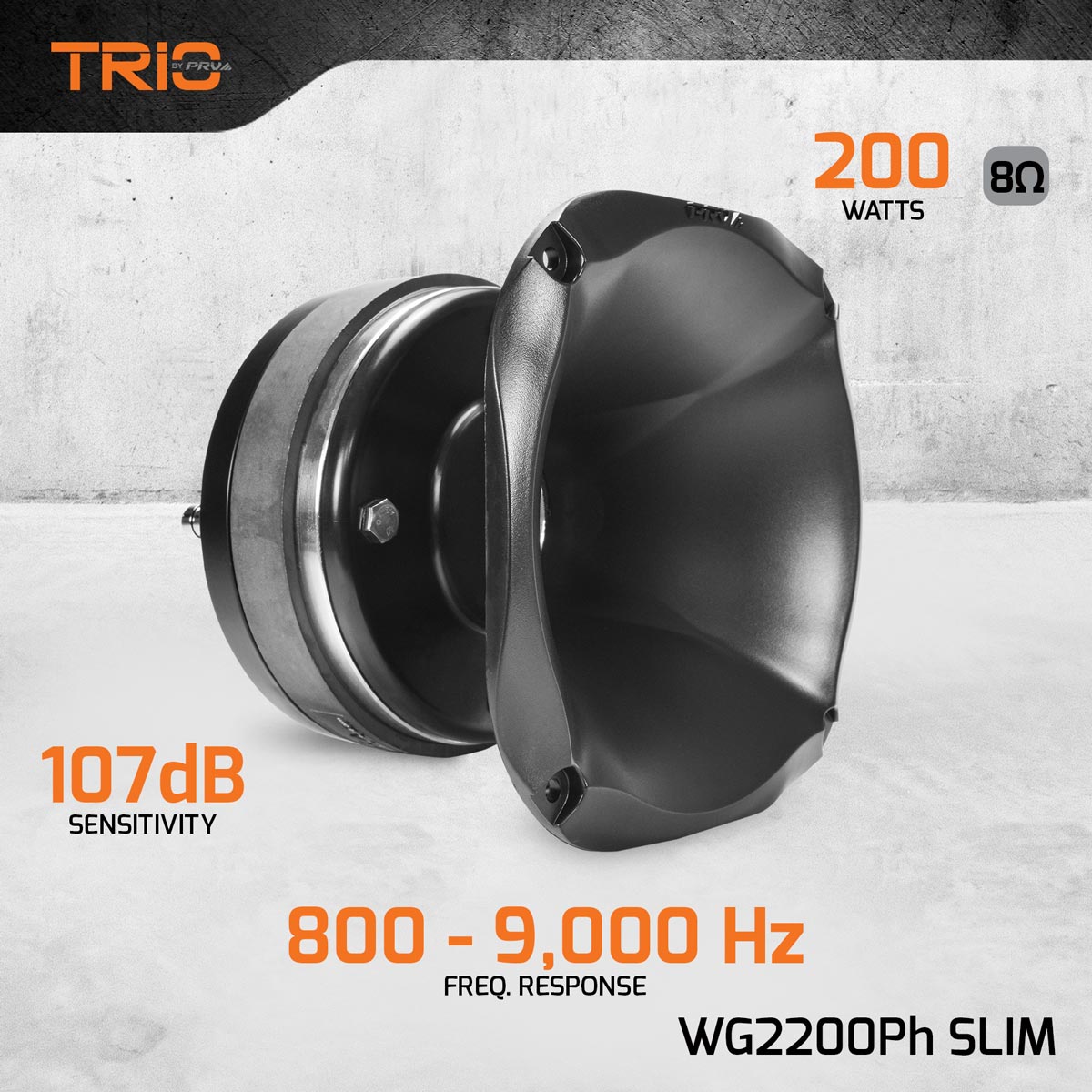

| Sensitivity 2.83V at 1m | 107 dB |
| Recommended High Pass Crossover** **For Full Power Handling | 800 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 800 – 9,000 Hz |
| Voice Coil Diameter | 2”(51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic |
| Flux Density | 1.66 T |
| Magnet Material | Ferrite |
