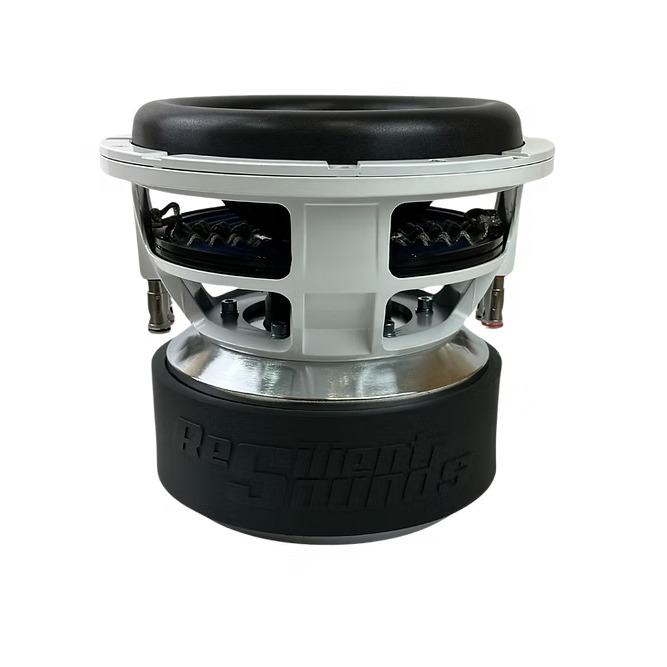

Resilient Sounds GOLD 10 inch V2 1500RMS Subwoofer

-3″ 4 Layer Voice Coil (25% longer than V1)

-10″ Spider Pack with Dual Sewn Leads

-NEW High Roll Tooled Surround

-Triple Stack 220mm Motor with Venting (15% larger than V1)

-Aluminum Shorting Ring

-Cast Aluminum Frame

-Aluminum Gasket

-4 Ga Push Terminals

-Engraved Bottom Plate

-Molded Motor Boot

-Conservatively Rated 1500 Watts RMS

-Dual 2 Ohm or Dual 4 Ohm

-XMAX 31MM

-Available in 10″, 12″, 15″, and 18″

-For mounting Resilient Sounds V2 models with trim rings, we recommend a hex head screw(Last picture) that avoids flaring to prevent cracking the trim ring.

Trim Ring Removal Instructions

Trim Ring Removal Instructions

The Resilient Sounds V2 trim ring is a decorative and functional piece used to enhance aesthetics and secure the surround. Please note it is not meant to be removed unless doing a recone and doing so may void your manufacturer warranty. However, should you choose to remove it here is the process and tools you will need.

-Phillips Screwdriver

-Pliers

-Heat Gun

-Pry Tool

-Personal Protective Equipment (PPE)

1. You will need a phillips screwdriver to remove the 4 screws securing the trim ring to the frame. There may be residual adhesive on the screws preventing them from coming all the way out and you may need pliers once unscrewed to free the screws.

2. There may be excess adhesive protruding from the surround that may have adhered to your trim ring. So next you will utilize a heat gun going around the trim ring with a pry tool slightly breaking the adhesive free. The Frame and Trim Ring will be hot! USE CAUTION! Be sure to use a tool that won’t damage your trim ring or frame and do not pry too much at once as you may break the ring.

3. By this point your ring should be free from the frame. Handle it with care as it may still be hot. When reinstalling the ring ONLY hand tighten the screws.
