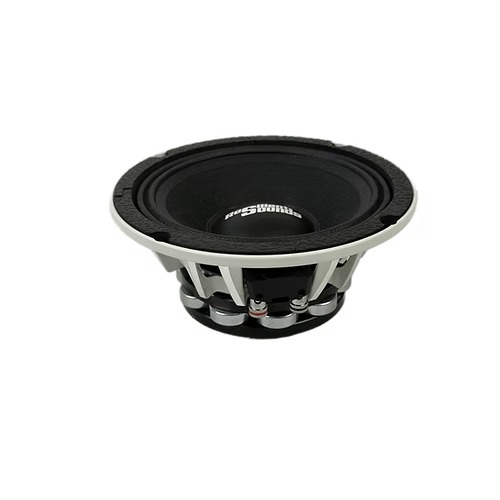

Resilient Sounds NEO 6.5 300w RMS 4ohm 6.5 inch speaker

Description

Neo 6.5



600 Watts Max Power Handling



2″ Voice Coil



96.5 dB Sensitivity



135HZ-12.5KHz of frequency response



GENERAL SPECIFICATIONS



Nominal Diameter          6.5” (165mm)

Max Power Handling      600 w

RMS Power Handling     300 w

Frequency Response      135Hz-12.5KHZ

Nominal Impedance       4ohm

Sensitivity                         96.5dB

Magnet                              Neodymium

Voice Coil Diameter        2″

Voice Coil Wire               CCAW



THIELE-SMALL PARAMETERS



Equivalent Volume         Vas        2.75 L

Free Air Resonance        Fs           138 Hz

Mechanical Factor          Qms      6.53

Electrical Factor               Qes       0.35

Total Factor                     Qts        0.34

Cone Area                        Sd          136.8cm²

Mechanical Mass            Mms     12.66 g

BI Factor                           BI           9.92 Tm

Dc Resistance                  Re          3.2 Ohms



MOUNTING INFO



Overall Diameter                          6.69”(210mm)

Front Mount Baffle Cutout          5.90″(186mm)

Mounting Depth                           2.73″(79mm)

Overall Depth                                 3.01″(89.3mm)
