Description

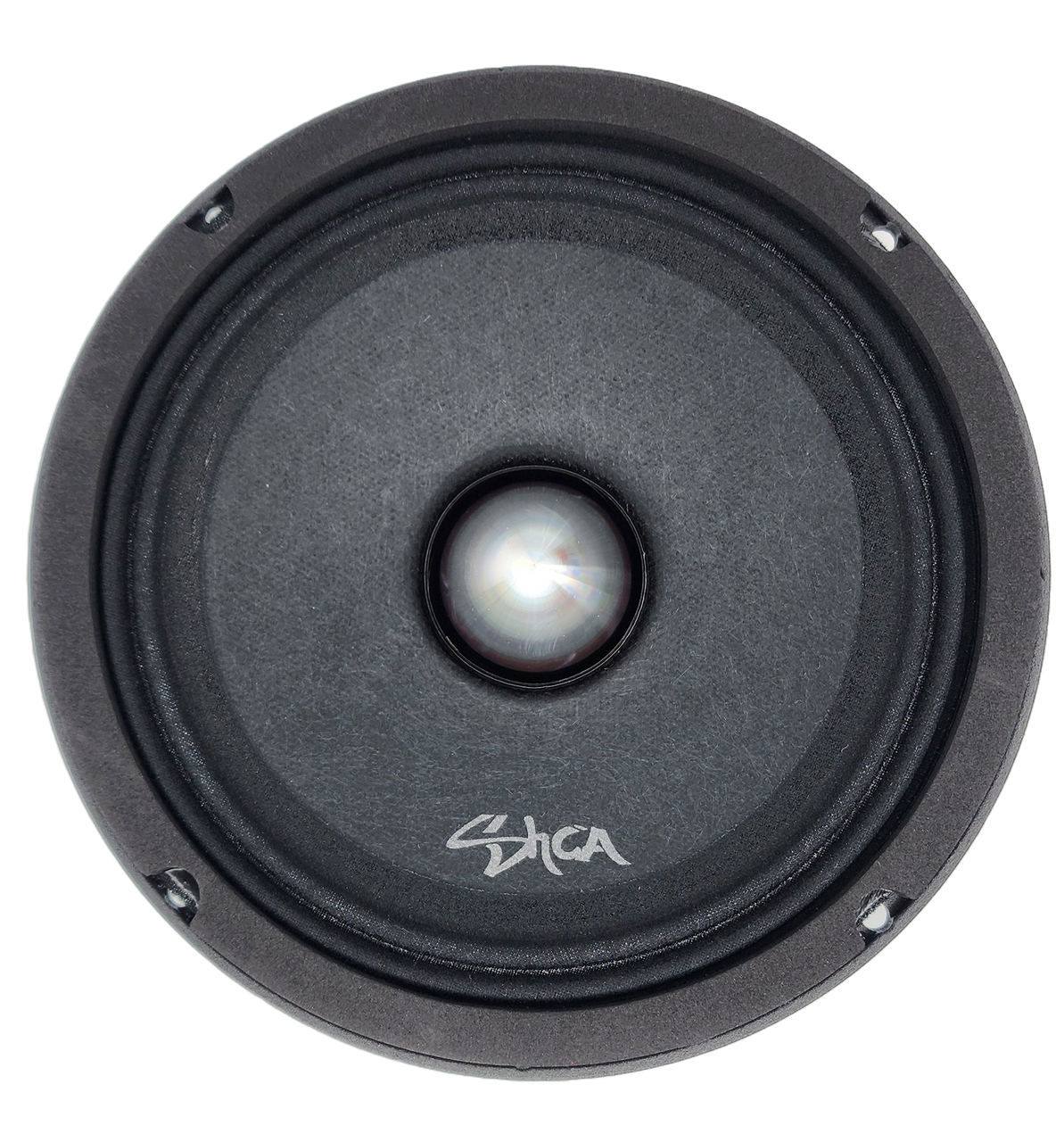

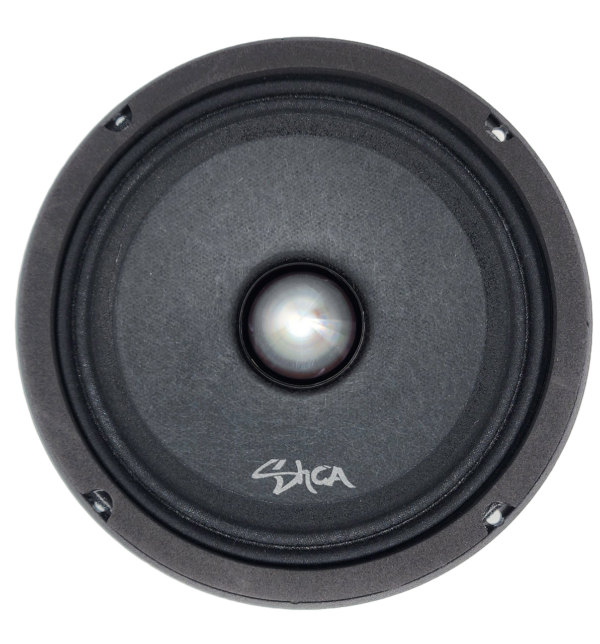

Sky High Car Audio SH-EL64BNEO 6.5” Midrange Loudspeaker with Bullet and Neodymium Magnet
Upgrade your car audio system with the Sky High Car Audio SH-EL64BNEO 6.5” Midrange Loudspeaker, engineered to deliver outstanding performance and precision. Featuring a neodymium magnet and aluminum bullet phase plug, this speaker is built for audiophiles seeking unparalleled clarity and power.
Exceptional Sound Performance
The SH-EL64BNEO offers a wide frequency response of 200Hz to 16KHz and a sensitivity of 96dB, ensuring clear and detailed audio reproduction. With an RMS power handling of 225W and peak power of 450W, this speaker delivers dynamic sound at any volume.
Durable and Advanced Design
Built with a non-pressed paper cone and CNC-machined aluminum bullet, this loudspeaker combines rigidity with lightweight construction for precise sound. A cloth surround enhances its durability, while the robust aluminum basket provides structural integrity for long-lasting performance.
Efficient Motor System
Powered by a 1.5-inch Kapton voice coil and CCAW winding, the SH-EL64BNEO ensures efficient thermal and electrical conductivity. The 7.67-ounce neodymium magnet produces a strong magnetic field, allowing for superior sound output with minimal distortion.
Compact and Versatile Installation
Designed for easy integration, the SH-EL64BNEO has a mounting depth of 2.4 inches and a front baffle cutout diameter of 5.7 inches, making it compatible with most vehicle setups. The included grille adds an extra layer of protection while maintaining a sleek appearance.
Perfect for High-Performance Midrange Audio
Whether you’re enhancing an existing system or building a custom configuration, the SH-EL64BNEO excels in midrange clarity, making it ideal for capturing vocals and instruments with accuracy.
Specifications:
•Nominal Diameter: 6.5 inches / 165mm
•Nominal Impedance: 4 Ohms
•Continuous Power Rating: 150W
•RMS Power Handling: 225W
•Max Power Handling: 450W
•Sensitivity (1w/1m): 96dB
•Frequency Response: 200Hz – 16KHz
•Recommended High-Pass Crossover: 200Hz
Features:
•Cone Material: Non-Pressed Paper
•Bullet Material: CNC Aluminum
•Surround Material: Cloth
•Basket Material: Aluminum
•Magnet Material: Neodymium
•Magnet Weight: 7.67 Oz
•Voice Coil Diameter: 1.5 inches / 38.6mm
•Voice Coil Former Material: Kapton
•Winding Material: CCAW
Measurements:
•Overall Diameter: 6.5 inches / 165mm
•Overall Diameter (with grille): 7.1 inches / 181mm
•Mounting Depth: 2.4 inches / 61.5mm
•Front Mount Baffle Cutout: 5.7 inches / 145mm
•Overall Depth (with grille): 3.45 inches / 88mm
Elevate your audio experience with the Sky High Car Audio SH-EL64BNEO. Sold individually, this midrange loudspeaker is designed to deliver powerful and precise sound for any car audio setup.
Please note: This speaker is sold individually.
