Stetsom

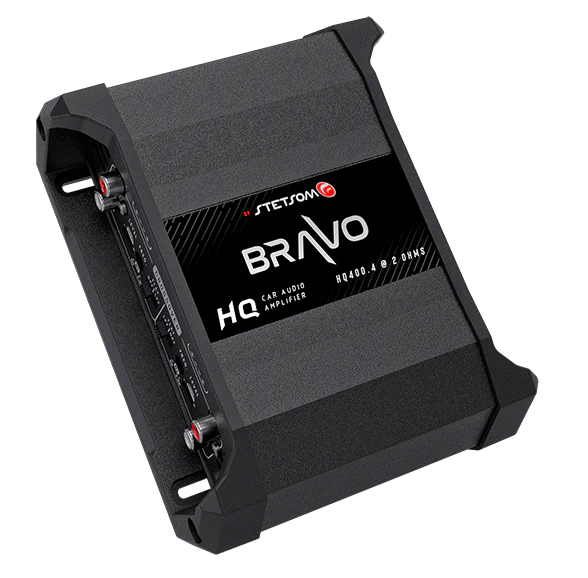

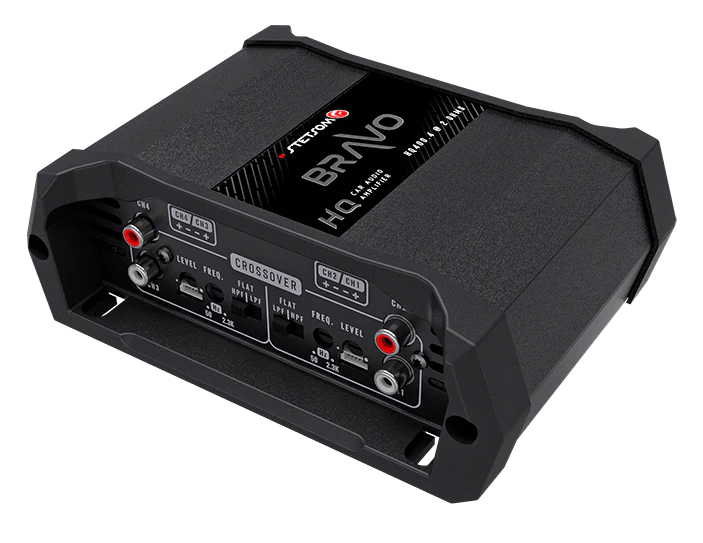

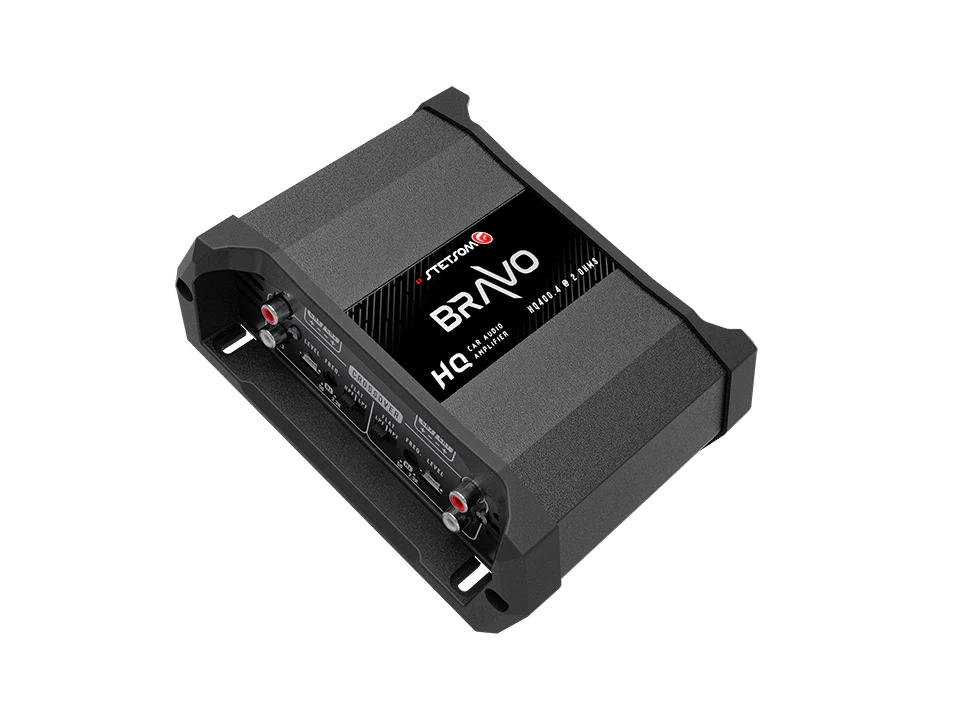

Stetsom Bravo HQ 400.4 Multichannel Amplifier 2 Ohm SM-BRHQ-4004
$114.99
RMS Power400W
Weight640g
01 Overview
The details
Product Overview
Download Manual: manual_bravo_hq400.4
The BRAVO HQ range was developed for car audio lovers looking for performance and sound quality, using a compact, discreet and quiet amplifier.
The amplifier has 4 output channels compatible with bridge mode, frequency cut and level controls, perfect for precise adjustments. Its frequency response of 5Hz to 30kHz allows it to be used in a variety of projects, with subwoofers, woofers, drivers and tweeters.
TECHNICAL SPECIFICATIONS
02 Tech specs
By the numbers
RMS Power 01
400W
Continuous rating
Weight 02
640g
Per unit

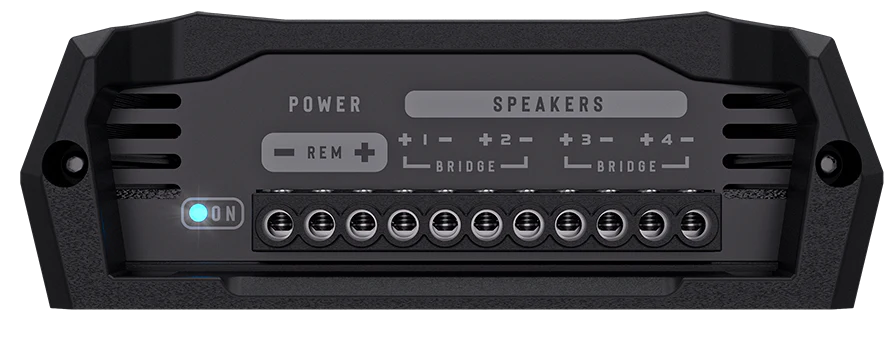

- RMS Power
- 400W
- Impedance
- 2 Ohms
- Number of Channels
- 4
- RMS Power at 4 Ohm
- 2 x 180W RMS @ 14.4V (BRIDGE)
- RMS Power at 2 Ohm 12.6V
- 4 x 85W RMS
- RMS Power at 4 Ohm 12.6V
- 4 x 50W RMS
- RMS Power at 2 Ohm 14.4V
- 4 x 105W RMS
- RMS Power at 4 Ohm 14.4V
- 4 x 60W RMS
- Power @ 12.6V Bridge 4 Ohms
- 2 x 150W RMS (BRIDGE)
- Supply Voltage
- 9V ~15,5V DC

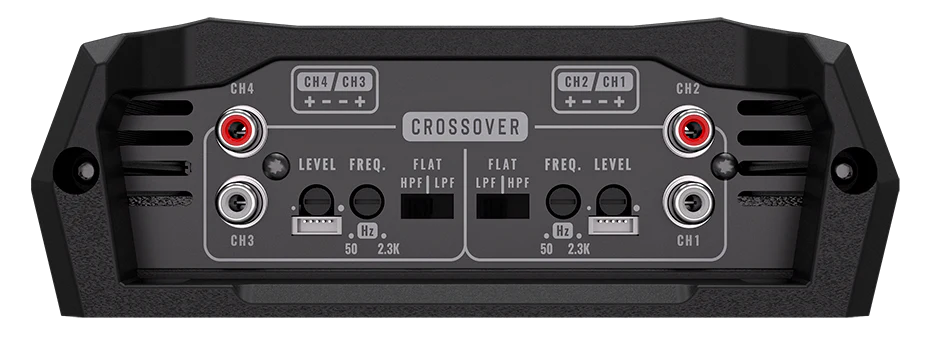

- Crossover Low Pass
- 50Hz ~ 2,3KHz (Variable)
- Crossover High Pass
- 50Hz ~ 2,3KHz (Variable)
- Input Impedance
- RCA: 15K Ohms / HIGH: 1K Ohms
- Impedance Output
- 2 OHMS (STEREO)
- Frequency Response
- 5Hz ~30KHz
- Input Sensitivity
- RCA: 200mV ~ 8,0V / HIGH: 1,5V (FIO)
- Dimensions (H x W x D) mm
- 58,5 x 127 x 167 mm
- Weight Kg
- 640g
- Weight
- 20 lbs
- Dimensions
- 12 × 9 × 4 in
- CHARACTERISTICS
- BRAVO HQ400.4 – 2 OHMS
- Signal to Noise
- >90dB
- Consumption with Signal Musical
- 17A
- Consumption with Signal Bass
- 34A
