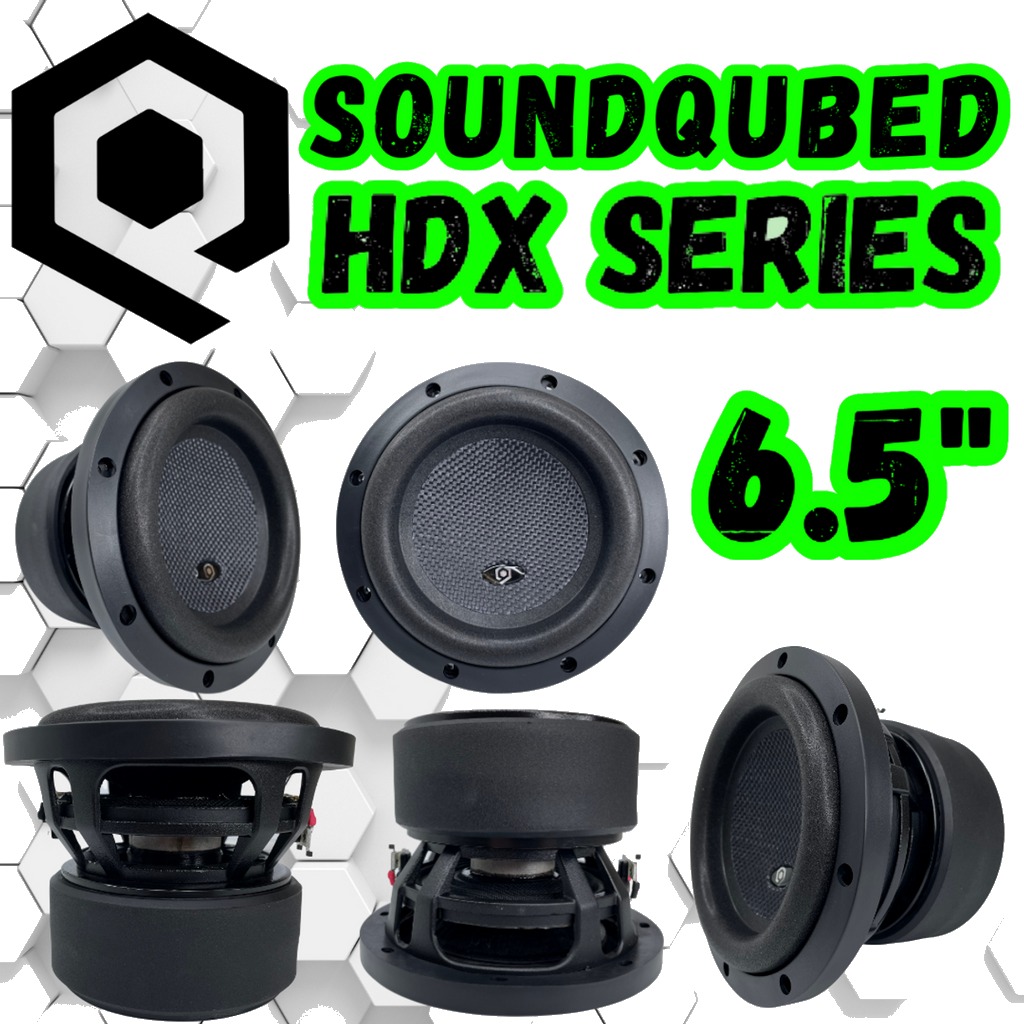

SoundQubed 6.5 inch HDX Subwoofer SQ-HDX65

$149.95

SKU: SQ-HDX65 Categories: , , Tags: , , , Brand:

Description

Product Overview

SoundQubed warrants all products to be free from defects in materials and workmanship for normal use and service for a period of time not to exceed 12 months for subwoofers, components, earbuds and coaxial and 12 months for amplifiers from the original date of retail purchase. Parts returned must be determined by SoundQubed to be defective prior to any warranty credit or replacement is issued. SoundQubed’s obligation under warranty shall be limited to repairing or replacing, at its discretion, any part proven defective. The customer must prepay transportation charges. Final determination of the suitability of the products for the use contemplated by the buyer is the sole responsibility of the buyer. Warranties are non transferable. Warranty Exclusions Burnt or open coils Customer abuse or competition use and power in excess of rating Amplifiers used in competition or run below rated ohm loads or voltage Improper wiring, including size/gauge, paths, termination method, and series/parallel configuration SoundQubed shall not be liable for any special, direct, indirect, incidental or consequential damages that might be claimed as a result of the failure of any part, including claims for delay, loss of profits, or labor SoundQubed shall not be liable for any damages or injuries to persons or property resulting from improper installation or misuse of any part subject to this warranty THERE ARE NO OTHER WARRANTIES EXPRESSED OR IMPLIED EXTENDING BEYOND THOSE SET FORTH ABOVE

Technical Data
Specification Details
Size 6.5 inch
RMS Power 450 W
Peak Power 1000 W
Impedance D2 / D4
Mounting Depth 4.527″
Model HDX 6.5
Magnet Weight 75 Oz
Coil Diameter 2″
Coil Length 30 mm
Woofer Size 6.5″
F(s) 54.235 Hz
Q(ms) 5.521
Q(es) 0.511
Q(ts) 0.546
V(as) 2.317 L
M(ms) 85.480 grams
Sensitivity 1W/1m 81.5
BL 14.84
Xmax 8mm
Sd 13.273″ m2
Displacement .06ft³
Circle Cutout 5.905″
Sealed Enclosure (Cu Ft): .25-.5FT³
Ported Enclosure (Cu Ft): .35-1.0FT³

Additional information

Weight 30 lbs
Dimensions 15 × 15 × 15 in
Dual 2 or 4 Ohms

,
