Description
Product Overview

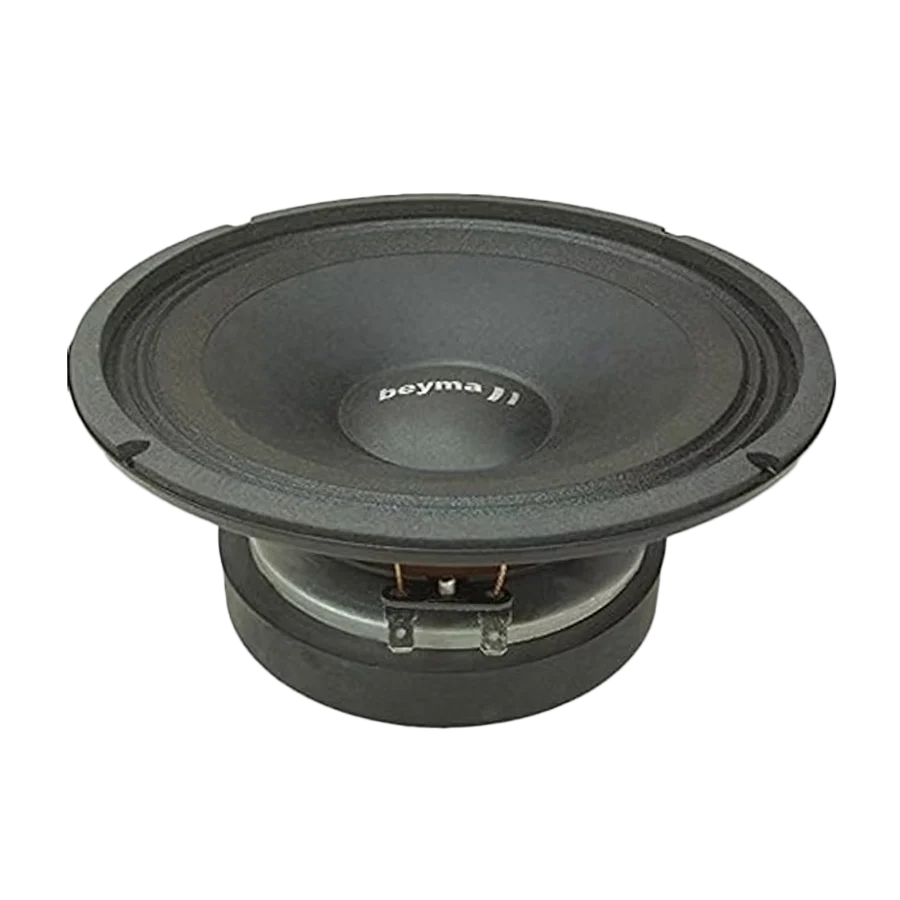

Engineered for multi-speaker arrays and pro-audio sound reinforcement, the Beyma 10MFe-8 is an 8-ohm 10-inch midrange driver built for extreme vocal clarity and efficiency. Featuring a high 97 dB sensitivity rating, this driver produces crisp, articulate vocals and sharp midband dynamics while keeping amplifier load manageable in complex multi-driver setups.
Its 8-ohm impedance configuration makes it ideal for wiring multiple drivers in parallel down to 4-ohm or 2-ohm loads on high-power amplifiers. Whether loaded into pro-audio enclosures, chuchero boxes, or custom door panels, the 10MFe-8 delivers linear, distortion-free midrange performance over long listening sessions.
Key Features
- High Sensitivity (97 dB)Generates high SPL output per watt, ensuring clean, uncompressed vocal projection over heavy sub-bass.
- 8-Ohm Multi-Driver WiringPerfect for custom multi-speaker door panels and arrays, allowing flexible parallel wiring configurations.
- Focused Vocal SpectrumFrequency response optimized from 100 Hz to 6,000 Hz for clear, detailed vocal and instrument reproduction.
- Low Distortion ArchitectureEngineered to maintain vocal integrity and tonal balance even under continuous high-volume playback.
- Durable ConstructionBuilt with a treated paper cone and sturdy steel chassis designed for long-term reliability in mobile and pro environments.
Technical Data
| Specification | Details |
|---|---|
| Impedance | 8 Ohms |
| Sensitivity | 97 dB |
| Nominal Diameter | 10 Inches (250 mm) |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 150 Watts |
| Program Power Handling | 300 Watts |
| Sensitivity (1W / 1m) | 97 dB |
| Frequency Range | 100 Hz – 6,000 Hz |
| Voice Coil Diameter | 1.5 Inches (38.5 mm) |
| Resonant Frequency | 85 Hz |
| Magnet Type | High-Flux Ferrite |
Fitment & Applications
- Multi-Speaker Pro-Audio PanelsExcellent pick for running pairs or quads in parallel to drop overall system impedance safely.
- Chuchero & Demo EnclosuresDelivers clear, long-distance vocal projection in open-air sound systems.
- Live Sound & PA CabinetsGreat replacement or upgrade driver for 2-way and 3-way pro sound cabinets needing efficient midrange output.
Tuning TipSystem Tuning Tip: Set your active high-pass filter (HPF) around 120 Hz to 150 Hz with a 12 dB or 24 dB/octave slope to protect the driver from low-frequency strain and maintain pristine vocal output.
