DS18

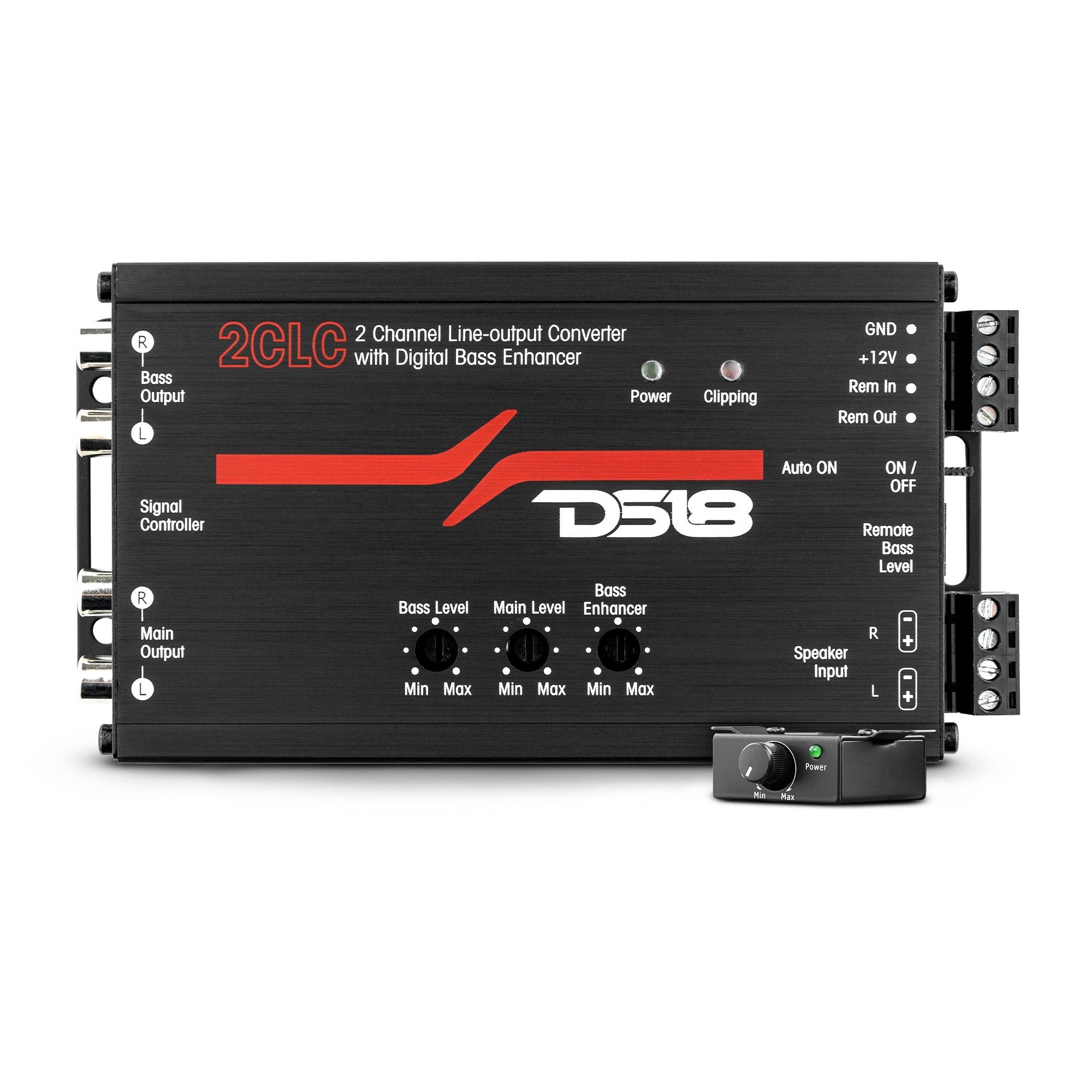

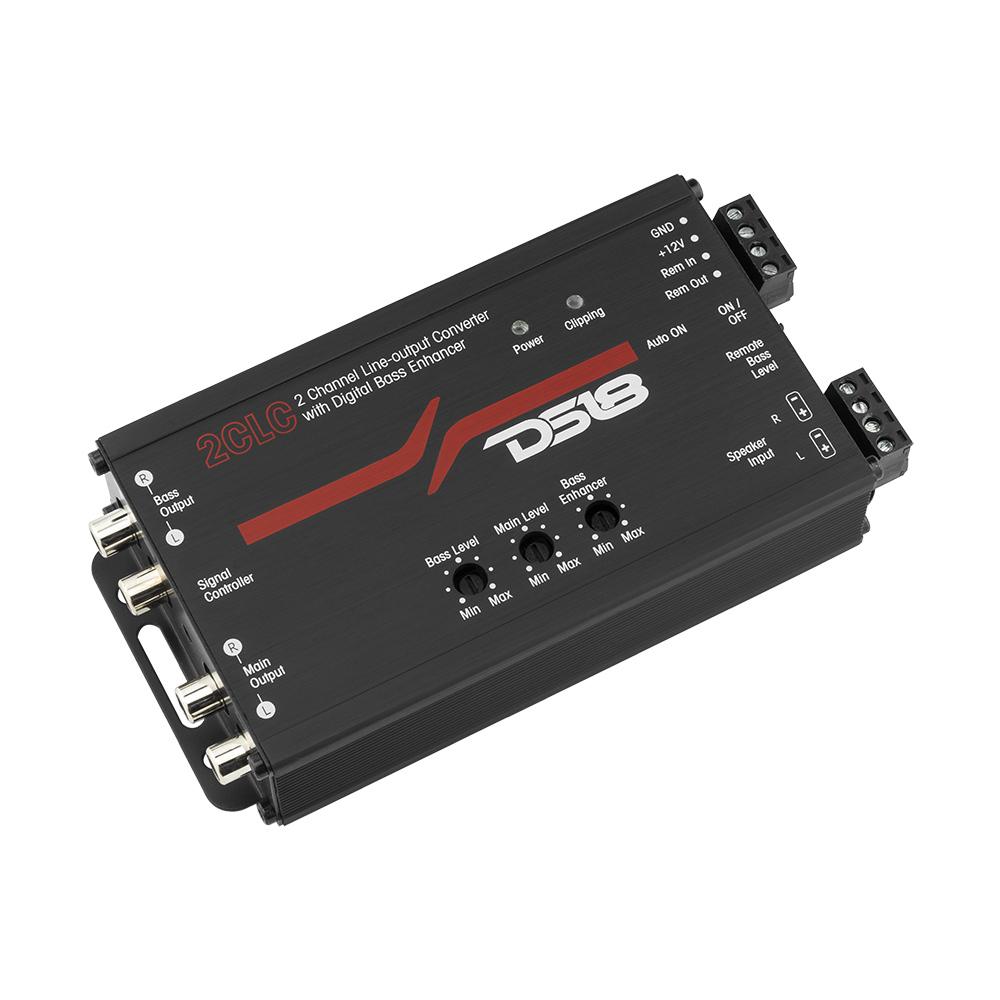

DS18 2CLC 2-Channel Line Output Converter with Digital Bass Enhancer
$119.95
Peak Power400W
Weight11oz
Out of stock
01 Overview
The details
Product Overview
DS18’s two channel line output converter now comes with a convenient and easy to use digital bass enhancer. This device is great if you are wanting to add an external amplifier and subwoofer to your existing factory system for booming bass without having to replace your radio.
Highlights
Technical Details Download 2CLC Product Manual
02 Tech specs
By the numbers
Peak Power 01
400W
Short-burst rating
Weight 02
11oz
Per unit
- Maximum Speaker Level Input
- 400 watts per channel
- Maximum Preamp Output
- 9V rms
- Input Impedance
- 20K Ohms
- Output Impedance
- 150 Ohms
- Power Draw
- 150mA
- Recommended Fuse Rating
- 1 amp
- Speaker Level Input
- 2 channels
- Remote Output
- Up to 150mA
- Dual Amplifier Outputs
- Main/ Bass output
- Frequency response
- 10Hz-100kHz; + 1dB
- Overall Height
- 1.25″
- Heatsink Length
- 539″
- Gross Sible Unit Weight
- 11 oz
- Dash Level Remote Control
- +0db / – 19 dB
- Total Harmonic Distortion
- 0.01%
- Signal To Noise Ratio
- >110dB
- Bass Enhancer
- With adjustable control of bass roll-off
- Selectable Auto ON
- Signal Sensing or remote in
- Level Matching Controls
- Main/ Bass output Level knob

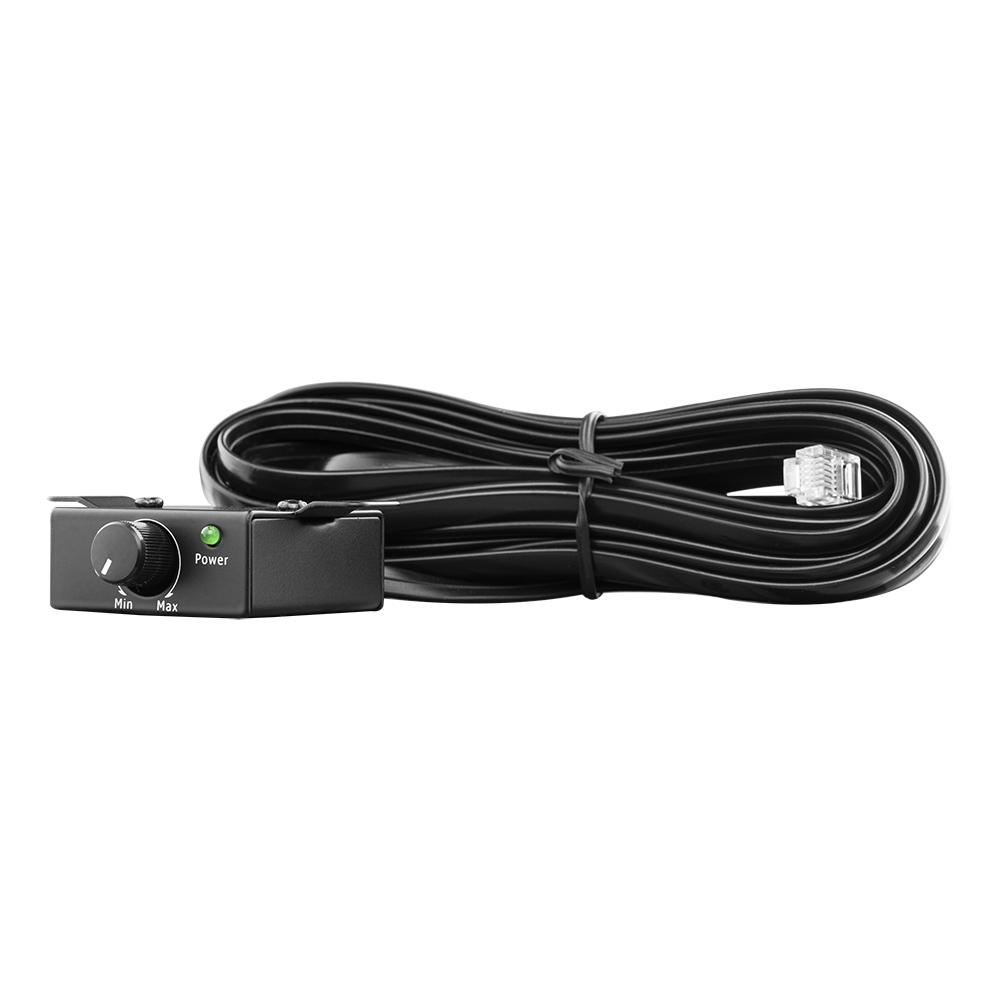

- Dash Remote Level Control
- Included
- LED Indicators
- Power Clipping
- Overall Lengh
- 6.18″
- Overall Wide
- 3.22″
