Description
Product Overview

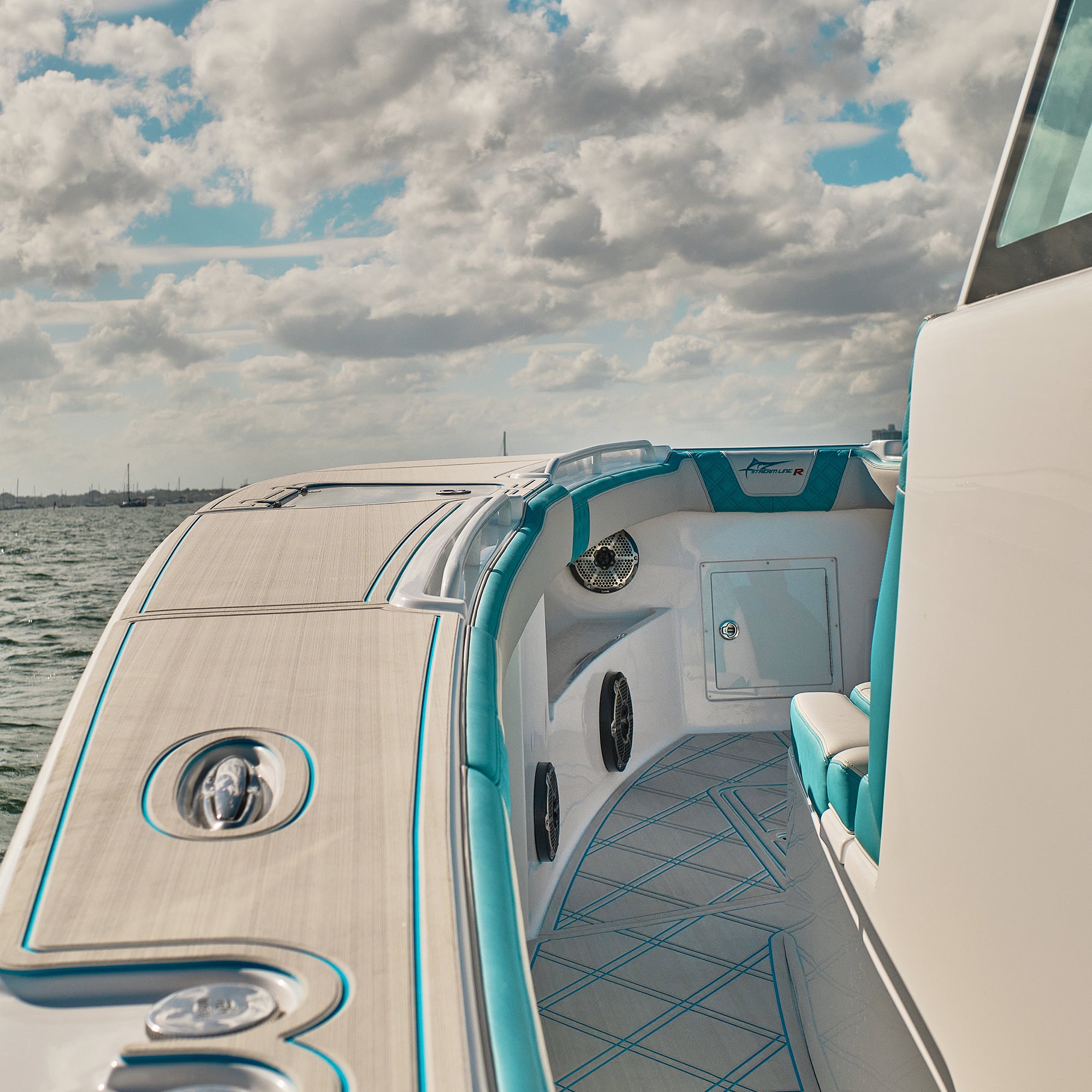

The DS18 Hydro All Elements Series is comprised of many components and accessories to make any build imaginable come to life. With over 50 marine grade compliant products we have whatever you may need for your ATV, UTV, Side by Side, Jeep, Motorcycle, Boat, or anything in between. We invite you to get as creative as possible and make the loudest, clearest system on any terrain, water body, or air.

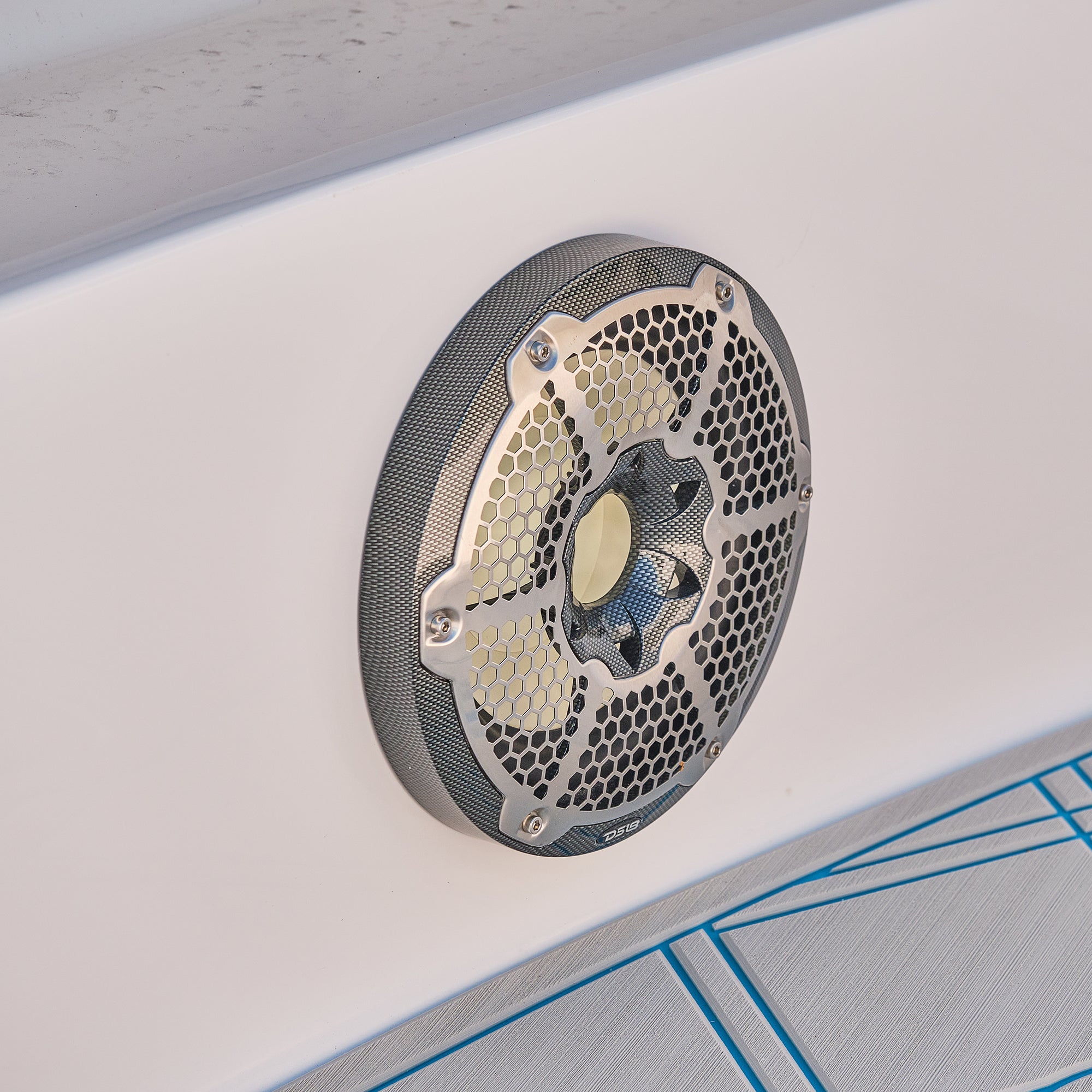

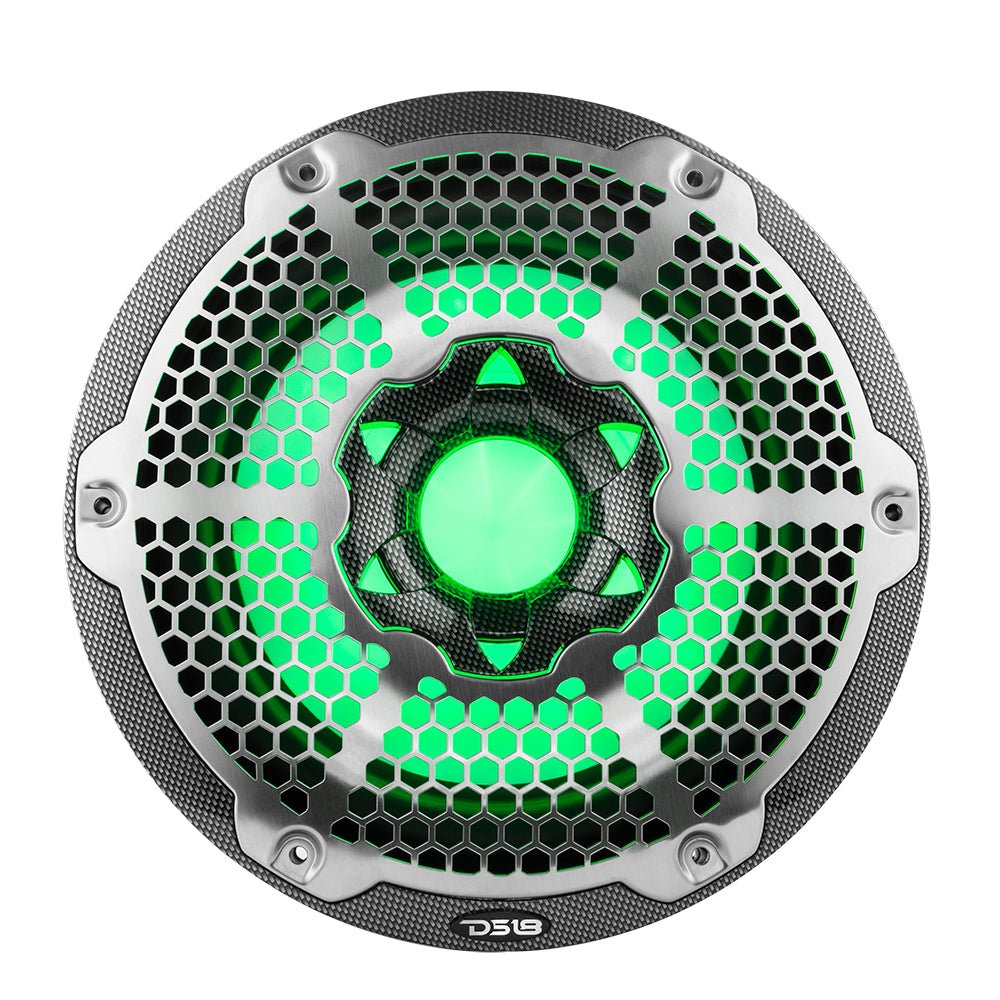

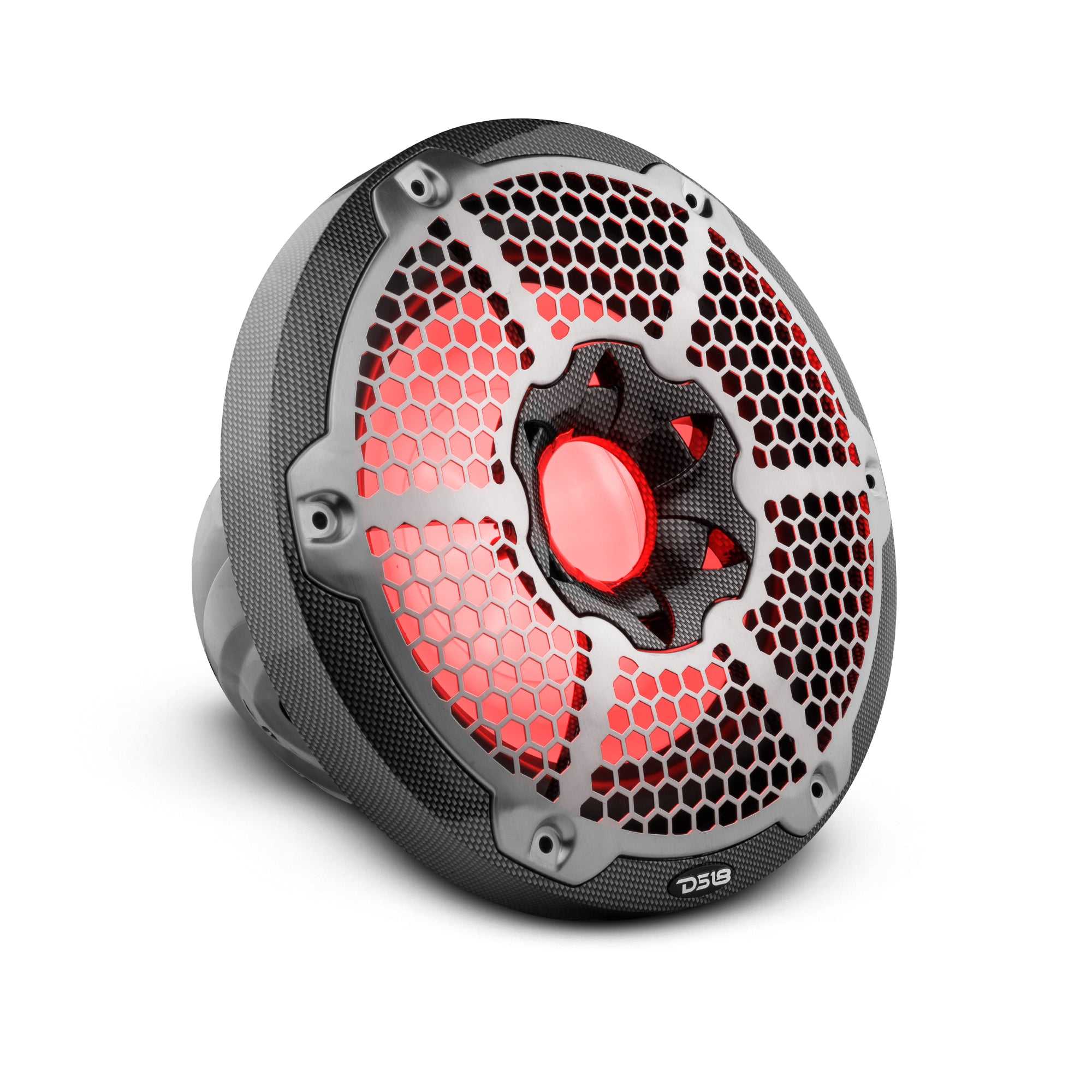

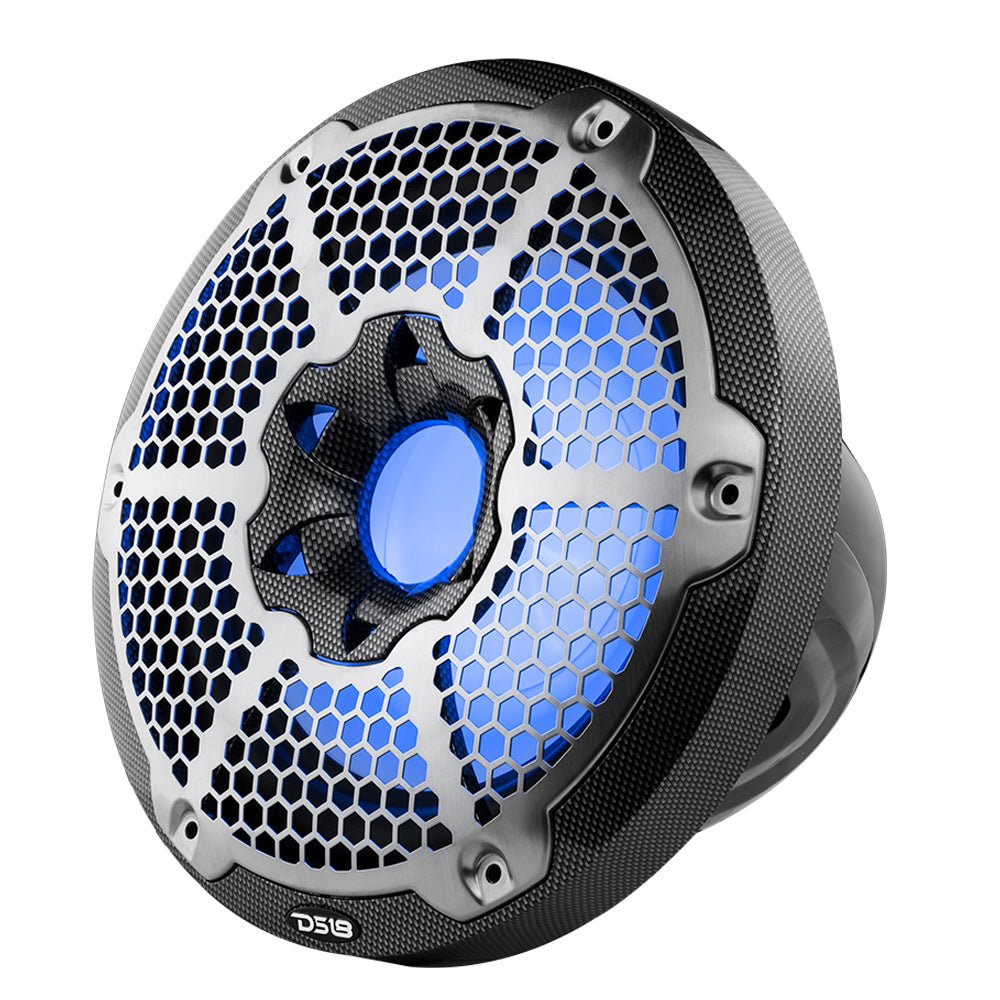

The DS18 Hydro Motorsport and Marine Series rugged yet sleek design, provide its users with trouble free, waterproof (IP65), amazing sound quality. Engineered for all elements, these speakers/subwoofers are a great addition to your marine life and motorsports! The HYDRO Series range in size from 6.5″, 8″, and 10″ with MAX Power up to 600W! Also equipped with an integrated RGB LED Lighting, high temp injection molded composite, ASA Grills with UV coating or a high gloss basket with UV coating.
Compatible with DS18 LED-BTC or any other RF/BT/Wifi Controller for Multi-Function RGB LED Lighting (Sold Separately)
Technical Details CF-10SUB Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 10 inch |
| RMS Power | 300 Watts RMS |
| Impedance | 4 Ohms |
| Mounting Depth | 5.02″ (127.5mm) |
| Model | CF10 |
| Normal Diameter | 10″ |
| Normal Impedance (Ohms) | 4 Ohms |
| Frequency Response (Hz) | 25Hz -2 KHz |
| Voice Coil Diameter | 2″ (50.0 mm) |
| Power Handling RMS/PEAK | 300 W/ 600 W |
| Fs-Free Air Resonance (Hz) | 40 |
| Qts | 0.62 |
| Vas – cu.ft (Liter) | 1.042 (29.5) |
| Sensitivity (1W/1M) | 88 dB |
| Xmax | 0.5″ (13mm) |
| Mounting Hole | 7.87″ (200mm) |
