The details
Product Overview
Why we stock the DS18 EN-DF10A

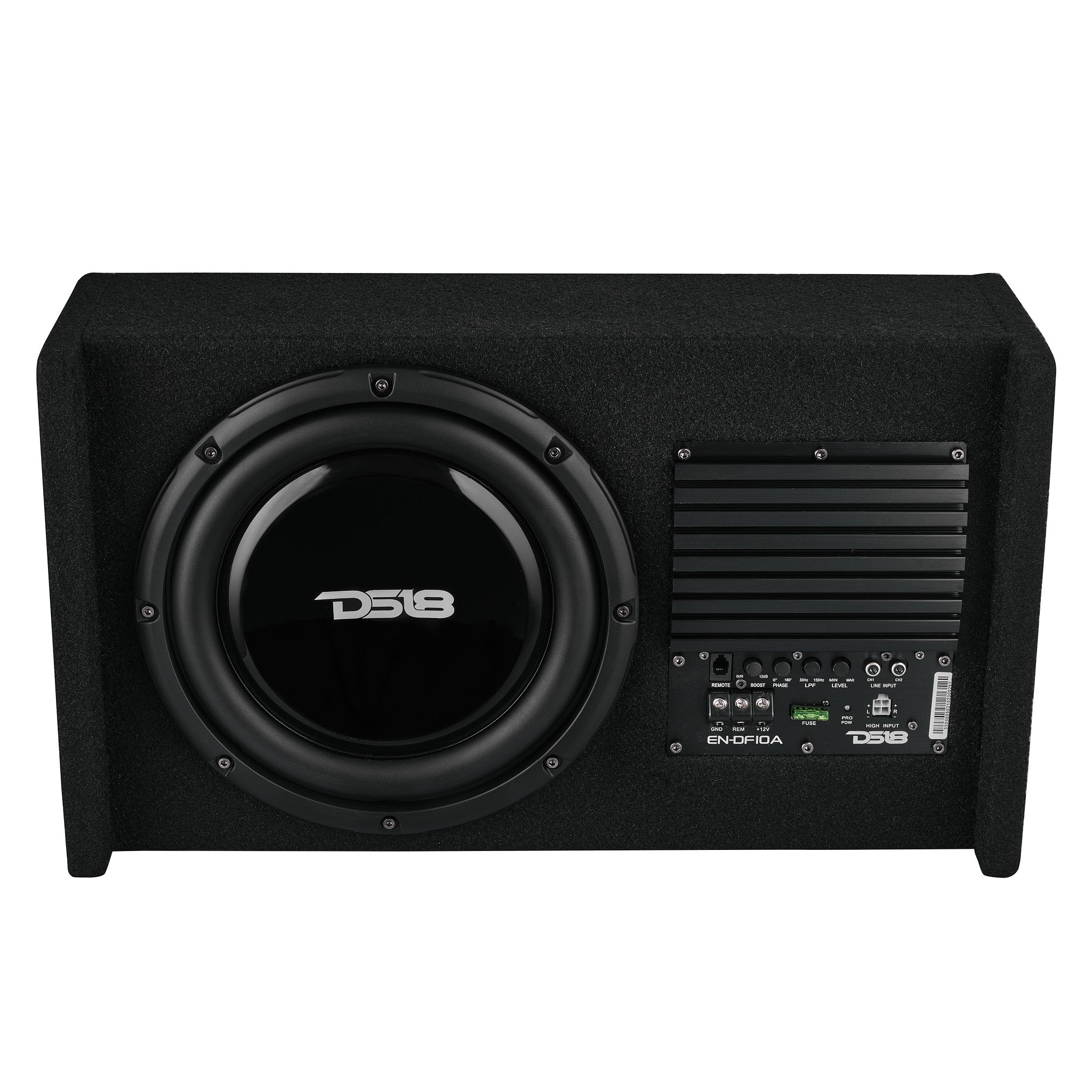

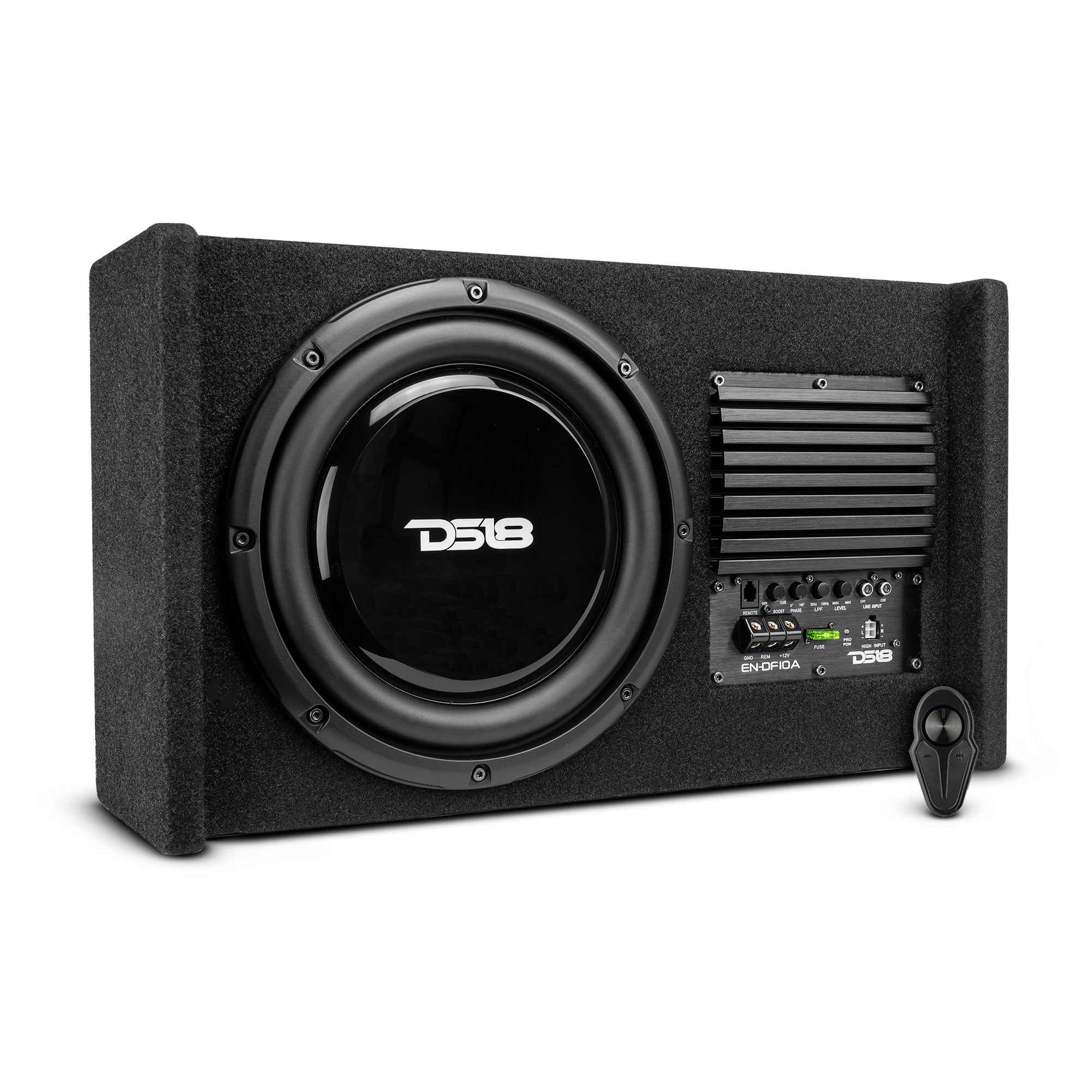

The DS18 EN-DF10A is a loaded, amplified down-firing enclosure with a 10″ active sub and a built-in digital amp. It’s rated 250 watts RMS (500 max) at 14.4V with 86 dB sensitivity and plays from 25Hz to 250Hz.
It gives you a complete under-seat bass system with no separate amp to wire. Already have an amp? Use the passive EN-DF10.
Designed to add magnificent bass to vehicles with minimal amounts of room for larger sized subs and boxes.
The EN-DF10A utilizes a 10 inch subwoofer in a compact enclosure (sized at 20” x 11” x 6”) to help extend and elaborate the bass for your music!
This subwoofer requires an external amplifier to feed it the 300 watts RMS it needs at 4 ohms. Equipped with rubber surround and plastic cone these speakers were built to last. The ferrite magnet and copper voice coil on these speakers gives added stability while enclosed for when these speakers are pushed to their limit.

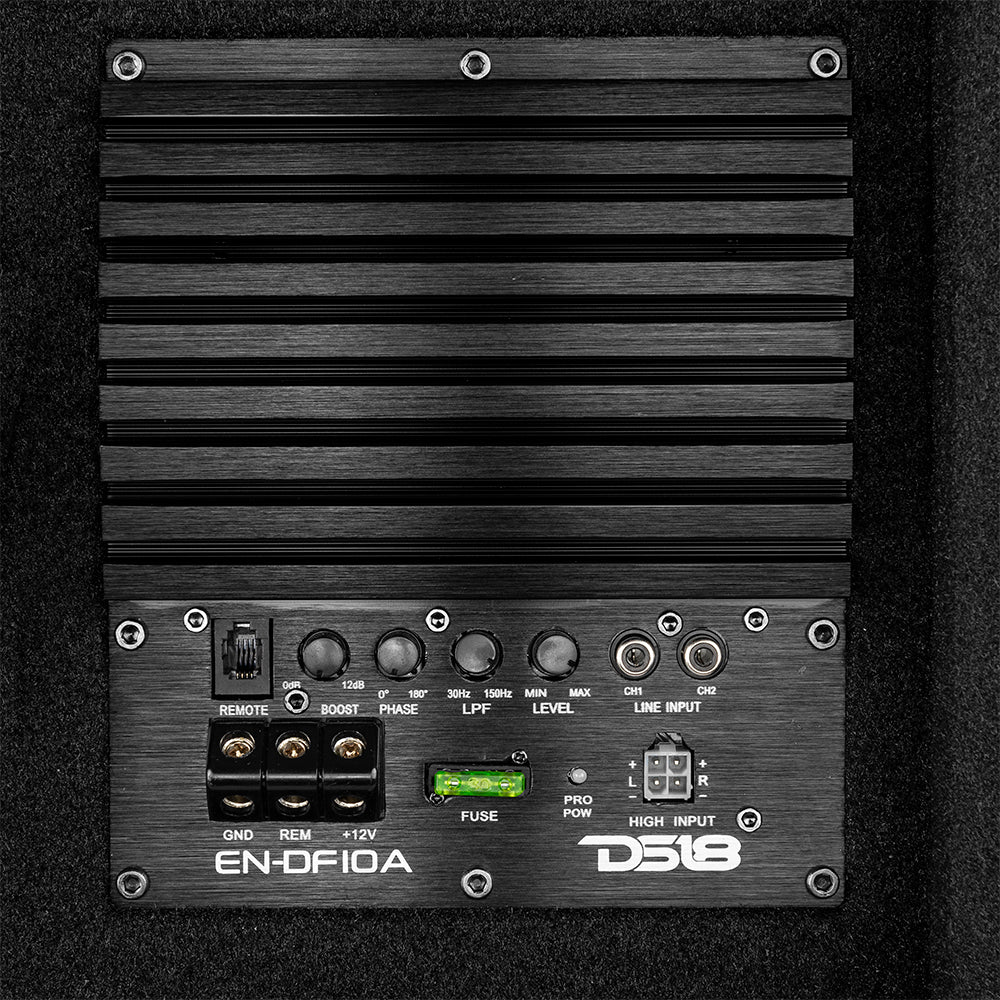

The built in amp provides power at a power rating of 250W RMS and 500W MAX: perfect power settings for long-lasting jam sessions. The included dB boosting, phase adjusting, low pass filtration, and remote bass knob promotes genuine sound clarity by giving complete control over your audio when you need it. This amp also has hi-level inputs so it can be integrated into your factory audio system easily.
This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.
Highlights
Great For
Technical Details
EN-DF10A Product Manual
By the numbers
- Amplifier Class
- Digital
- RMS Power
- 250 Watts RMS
- Peak Power
- 500 Watts Max
- Impedance
- 4 Ohms
- Speaker Type / Size
- 10″ Active Subwoofer
- Total Impedance
- 2 ohms
- Total RMS Power Handling
- 250W (14.4V)
- Total MAX Power Handling
- 500W
- Recommended Lo Pass Crossover
- 80Hz
- Number of Channels
- 1
- Minimum Impedance
- 2 ohms
- Damping Factor
- /
- Low Level Input Range
- 200mV-6V
- High Level Input
- Yes
- X-Over Filter Range
- 30-150Hz
- Bass Boost Range
- 0-12dB
- Infrasonic Filter
- No
- Power Input Terminal Size
- 8 GA
- Fuse Size
- 30A
- DC Output Protection
- Yes
- Short Circuit Output Protection
- Yes
- Voltage Input Protection
- Yes (>17Vdc)
- Frequency Response
- 25-250Hz
- Sensitivity (1w/1m)
- 86dB
- Efficiency @ 4ohm
- 0.75
- Total Harmonic Distortion (THD)
- 0.005
- Bass Boost Frequency
- 80Hz
- High Efficiency Digital Amplifier Built-In
- Yes
- Voice Coil Diameter
- 1.52″ / 38.6mm
- Voice Coil Former Material
- Aluminum
- Winding Material
- Cooper
- Cone Material
- Injection PP Cone
- Dust Cap Material
- /
- Surround Material
- Rubber
- Basket Material
- Steel
- Magnet Material
- Ferrite
- Magnet Weight
- 40 Oz
- Size
- 10 inch
- Overall Height
- 11.6″ / 295mm
- Overall Width
- 20.27″ / 515mm
- Overall Depth
- 6.3″ / 160mm
- Very Strong Wood (MDF) Box for better sound
- Yes
- Remote Level Knob to get easy amount of Bass control
- Yes
- Amplifier Type
- Subwoofer Monoblock
- Signal to Noise Ratio
- 80dB
- Auto Turn-On
- Yes
- Selectable X-Over
- LPF Fixed
- Phase Selector
- 0°～180°
- Led Indicator
- Power / Protection
- Remote Level Control
- Yes, Dash Mount
- Cooling Fan
- No
- Voltmeter
- No
- Thermal Protection
- Yes (>75℃)
- Over-Load Protection
- Yes
- Clipping Protection
- No
