Take complete control of your audio with the best high-strength 7-band stereo equalizer / crossover available in aftermarket audio: DS18’s EQX7PRO! The EQX7PRO pushes your system past its limits by strengthening its signal and clearing distortion!

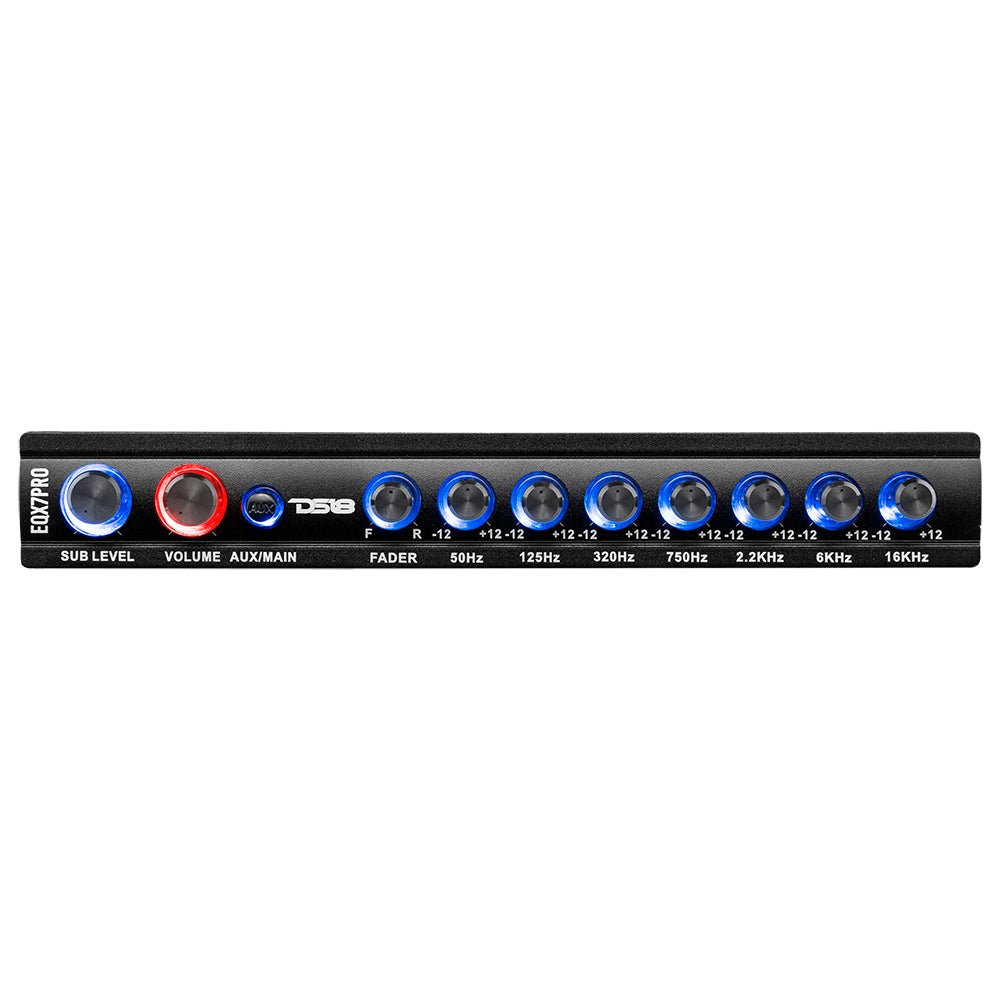

All 7 Bands (50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz) are designed to deliver the most precise audio with frequencies adjustable between -12 to +12dB (-15 to +15dB for subwoofer frequencies) and 7v output LED indicators on each Band and Output!

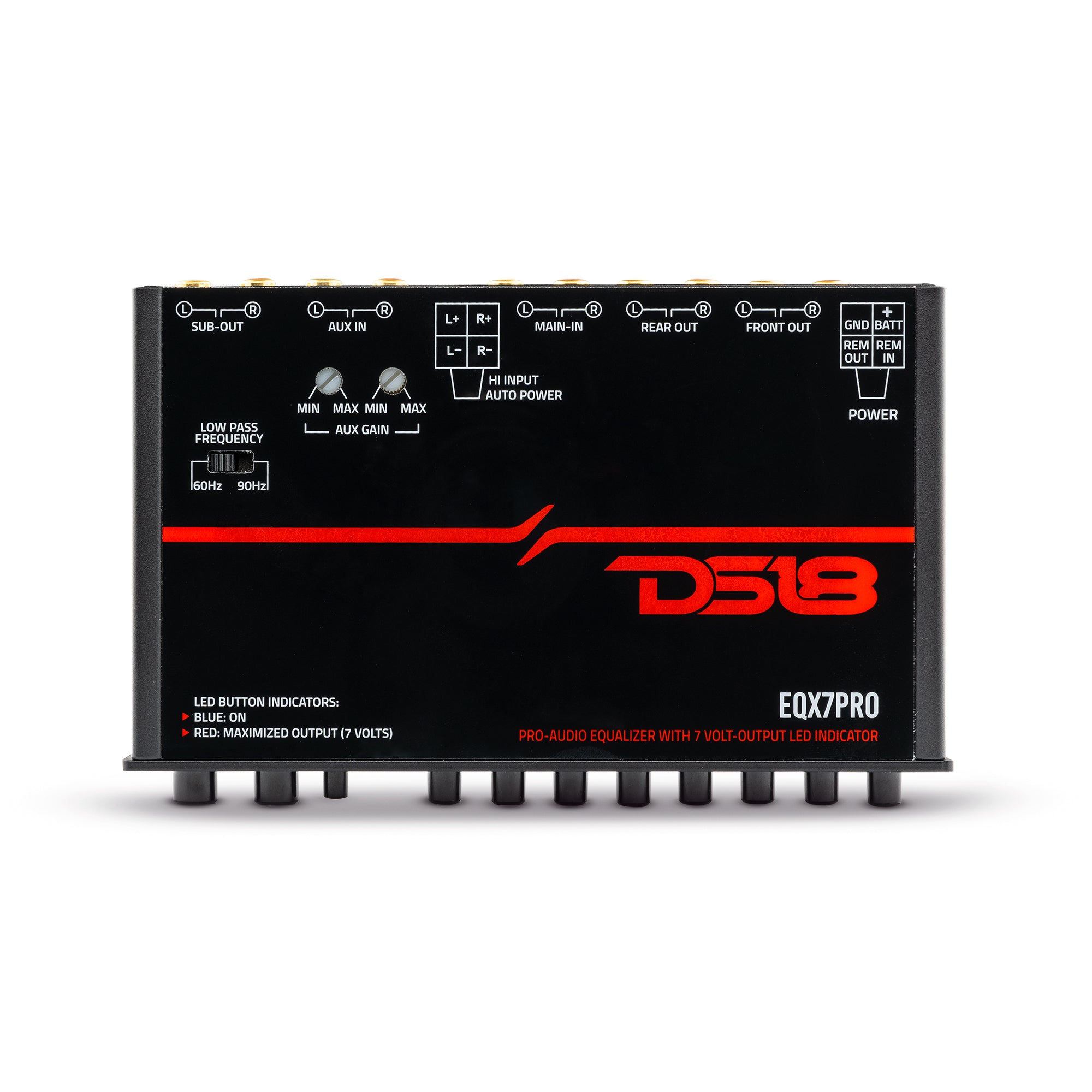

The EQX7PRO has 3 stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and selection of main or auxiliary inputs!

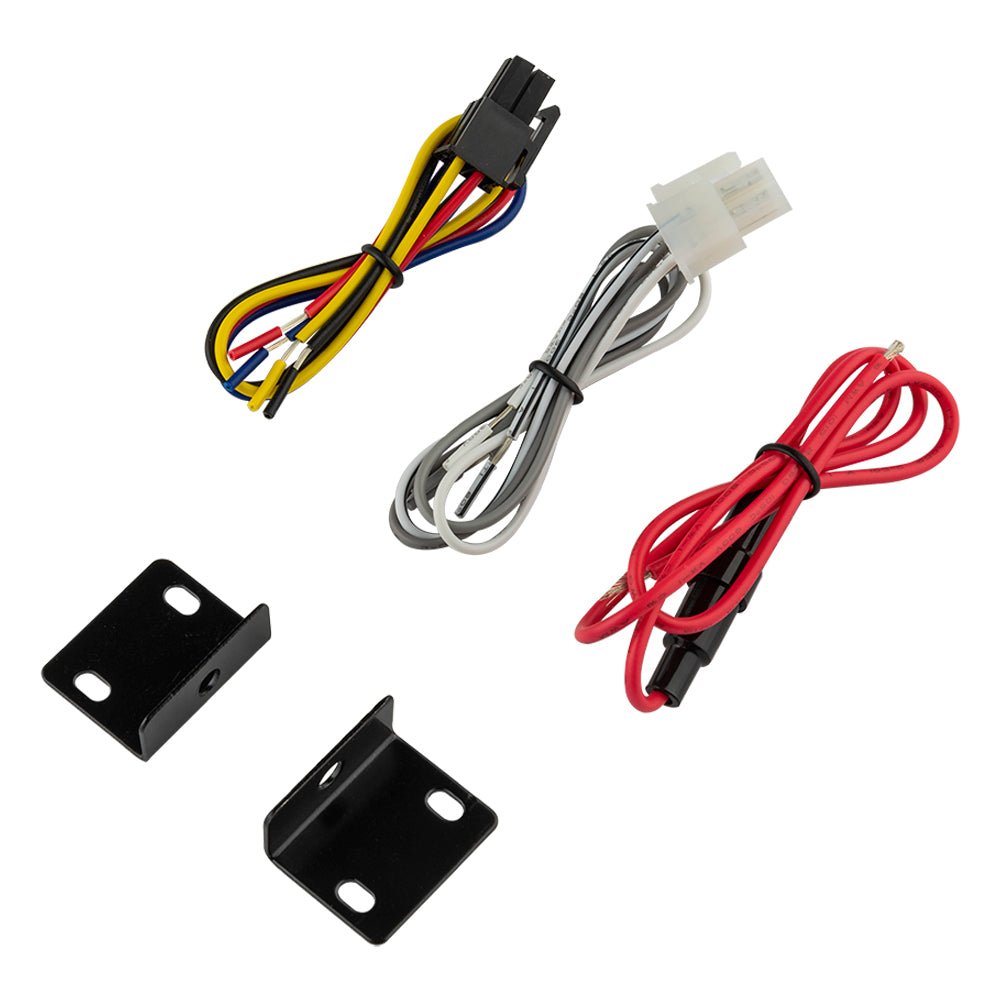

Mount the EQX7PRO next to your source unit or underneath your dash using the included mounting brackets for easy access to your front panels controls directly from your drivers seat!
Order the EQX7PRO to fine-adjust your amplifier’s DB ranges with precision, bringing out the exact loudness level exactly where you want it!
Highlights
Great For
Technical Details Download EQX7PRO Product Manual
Technical Data
| Specification | Details |
|---|---|
| Frequency Response | 10Hz-30Khz |
| Type of Equalizer | Graphic |
| Number of bands | 7 |
| Frequency Point | 50, 125, 320, 750, 2.2k, 6k, 16k |
| Boost/Cut | 12dB (15dB Subwoofer Frequency) |
| Passive Crossover Ways / Type | 1 (LPF) (Subwoofer Ch) |
| Frequency Crossover point | 60/120Hz Selectable |
| Cut-Off Slope | 12dB/Oct |
| S/N Ratio | 100dB |
| THD | 0.005% |
| Input Sensitivity | 50mV-3V |
| Input Impedance | 20Kohm |
| Output Voltage | 8V |
| Output Impedance | 2Kohm |
| Head Room | 20dB |
| Stereo Separation | 82dB @ 1Khz |
| Operating Voltage | 11-15V |
| Subwoofer Output | Yes (9V) |
| Audio Controls | Subwoofer Level, Master Volume, Fader |
| Audio Inputs | Main (RCA) , Auxiliar (RCA) |
| RCA Type | Gold-plated |
| Housing Material | Metal / Aluminum |
| Adjustments | Aux Input Gain |
| Extra Features | Blue Backlit with Red 7V output indicator |
| Hi-Level Speaker Input | Yes |
| Auto Turn-on | Yes (Hi-Level input) |
| Remote Turn-on Input/Output | Yes Input and Output |
| Color / Finish | Satin Black |
| Overall Length | 7″ / 178mm |
| Overall Depth | 4.4″ / 112mm |
| Overall Height | 1.18″ / 30mm |
