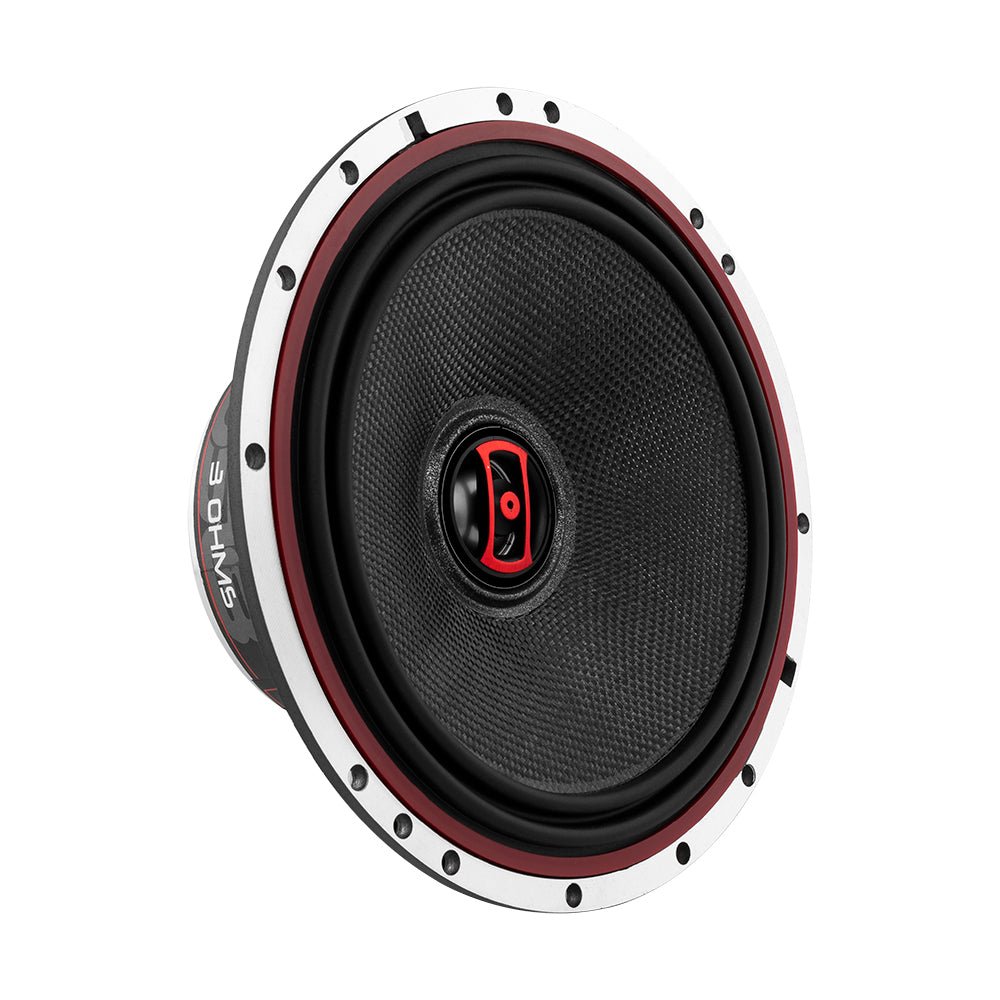

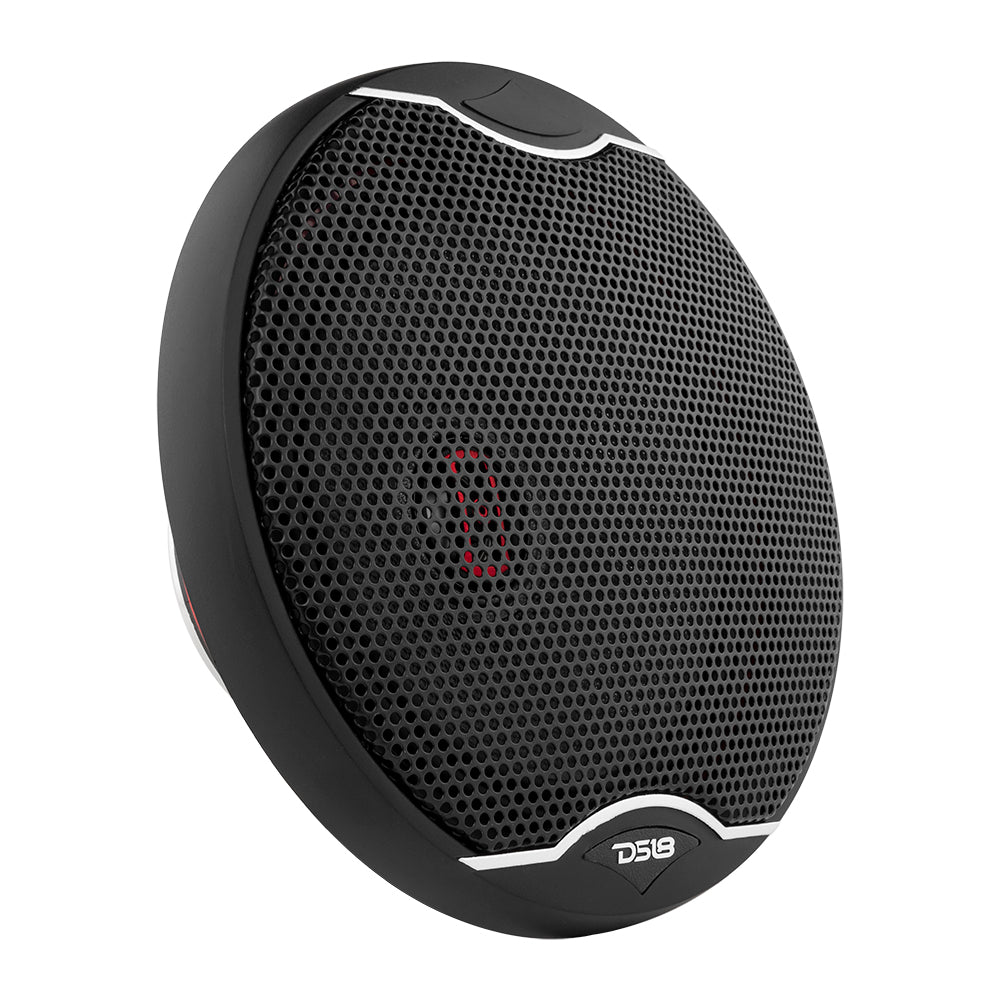

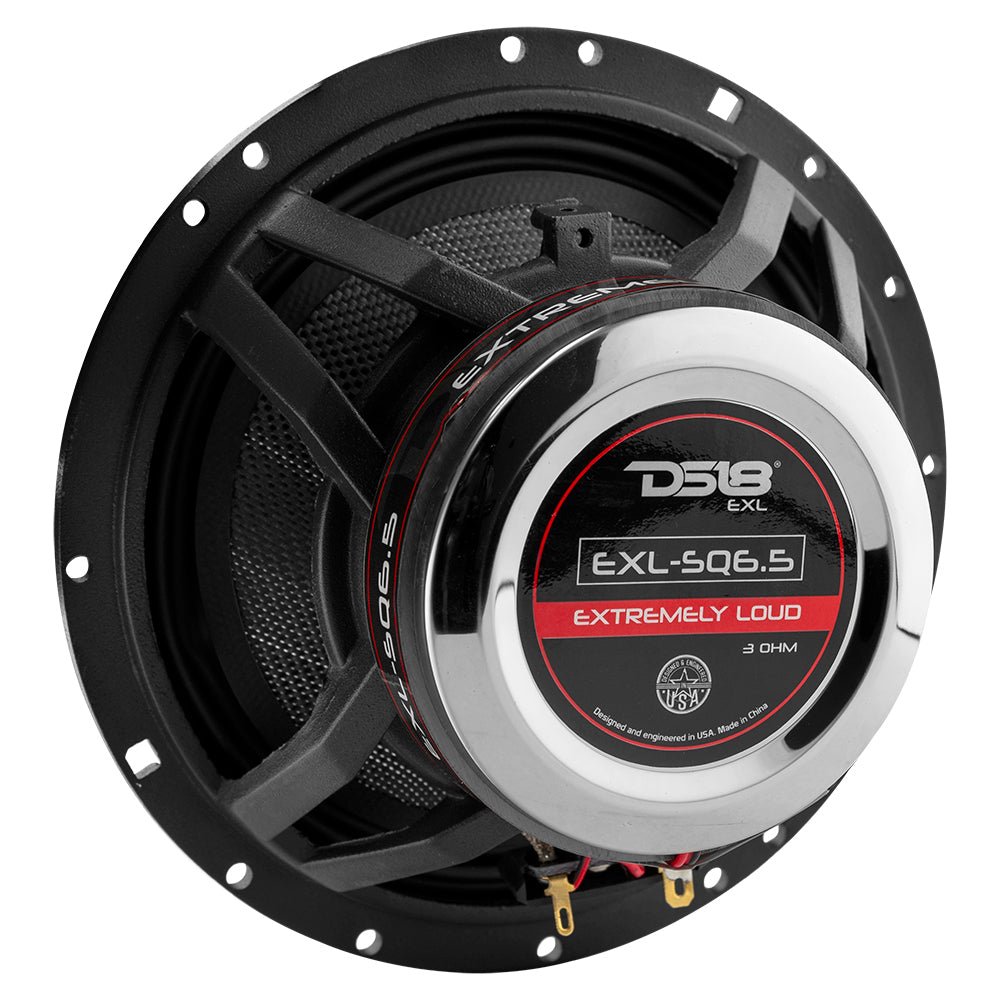

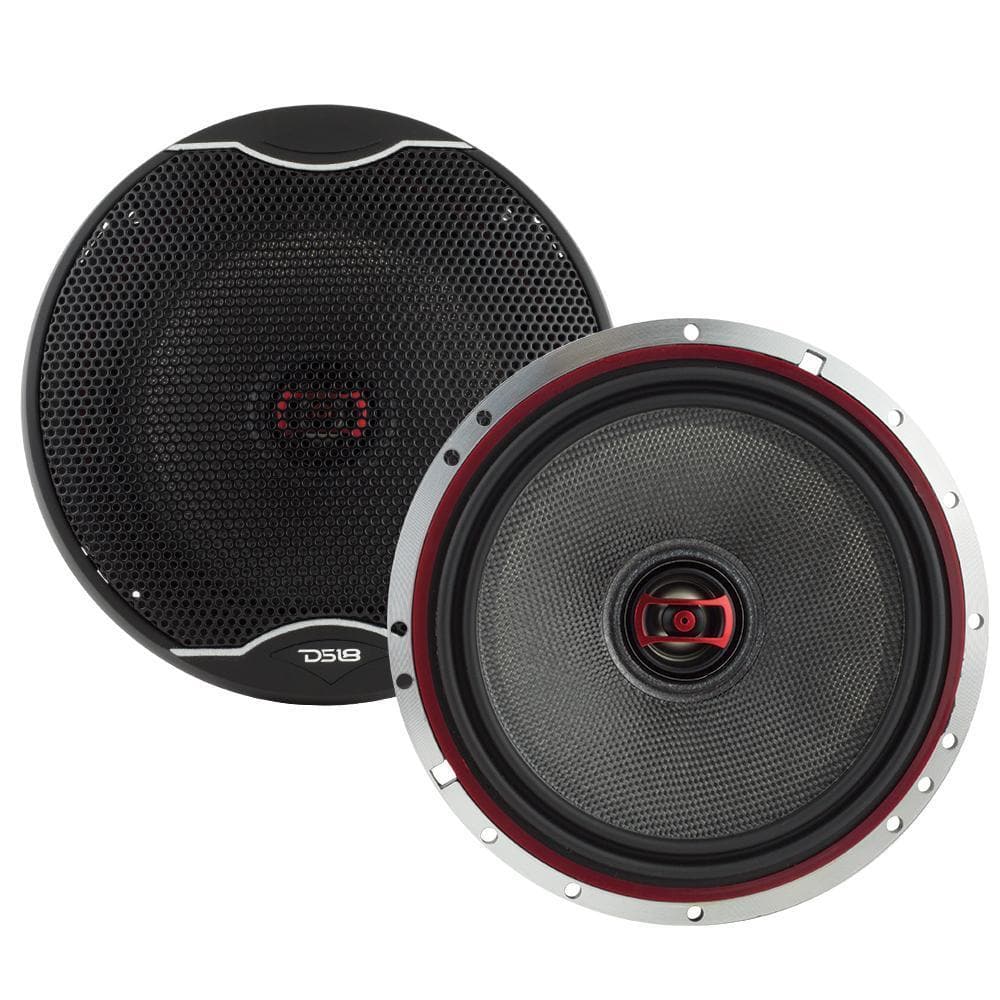

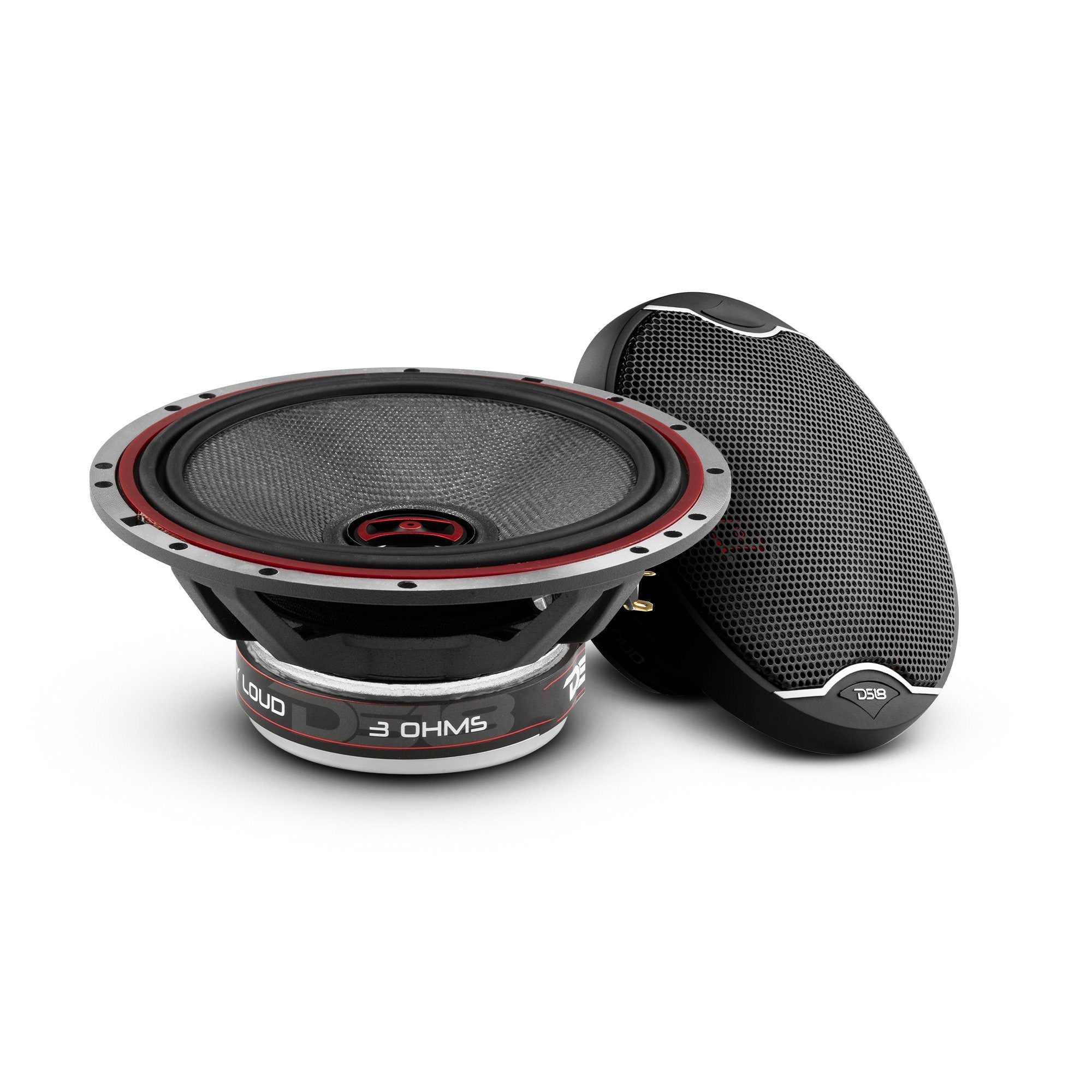

DS18 EXL-SQ6.5 EXL 6.5″ 2-Way Coaxial Speaker with Fiber Glass Cone | 120W RMS 3-Ohm

$134.95

RMS Power120W
Peak Power400W
Sensitivity90dB
01 Overview

The details

Product Overview

Why we stock the DS18 EXL-SQ6.5

The DS18 EXL-SQ6.5 is a 6.5″ sound quality coaxial built with a black glass fiber cone, a PEI dome tweeter and a neodymium magnet. It’s rated at 120 watts RMS (400 max) at 3 ohms with 90 dB sensitivity and covers 80Hz to 22kHz.

At 3 ohms it gets a bit more out of factory and aftermarket head units. It fits standard 6.5″ openings. Match the rear deck with the EXL-SQ6.9, or power the set with a full-range amp like the FRP-1.2K4.

When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, advanced PEI dome tweeter, NEO magnets, die-cast baskets, 1″ BASV voice coils, 3 OHMS impedance strontium-magnets and aluminum basket.

Highlights

Technical Details

Download EXL-SQ6.5 Product Manual

02 Tech specs

By the numbers

EXL-SQ6.5 · Manufacturer rated
RMS Power 01
120W
Continuous rating
Peak Power 02
400W
Short-burst rating
Sensitivity 03
90dB
Efficiency
Size 04
6.5in
Nominal

RMS Power
120 Watts RMS
Impedance
3 Ohms
MAX Power
400W

Frequency Response
80Hz – 22KHz
Sensitivity
90dB

Surround
Rubber edge
Cone
Black Fiber Glass
Magnet
Strontium
Voice Coil Wire
BASV
Voice Coil Size
1.3″ / 33mm
Magnet Weight
13.5 oz

Size
6.5 inch
Tweeter Size
1.14″ / 29mm, PEI Dome
Mounting depth
2.5″ / 64mm

Model
EXL-SQ6.5
Type
Coaxial
