The details
Product Overview
Why we stock the DS18 EXL-XX12.2DHE

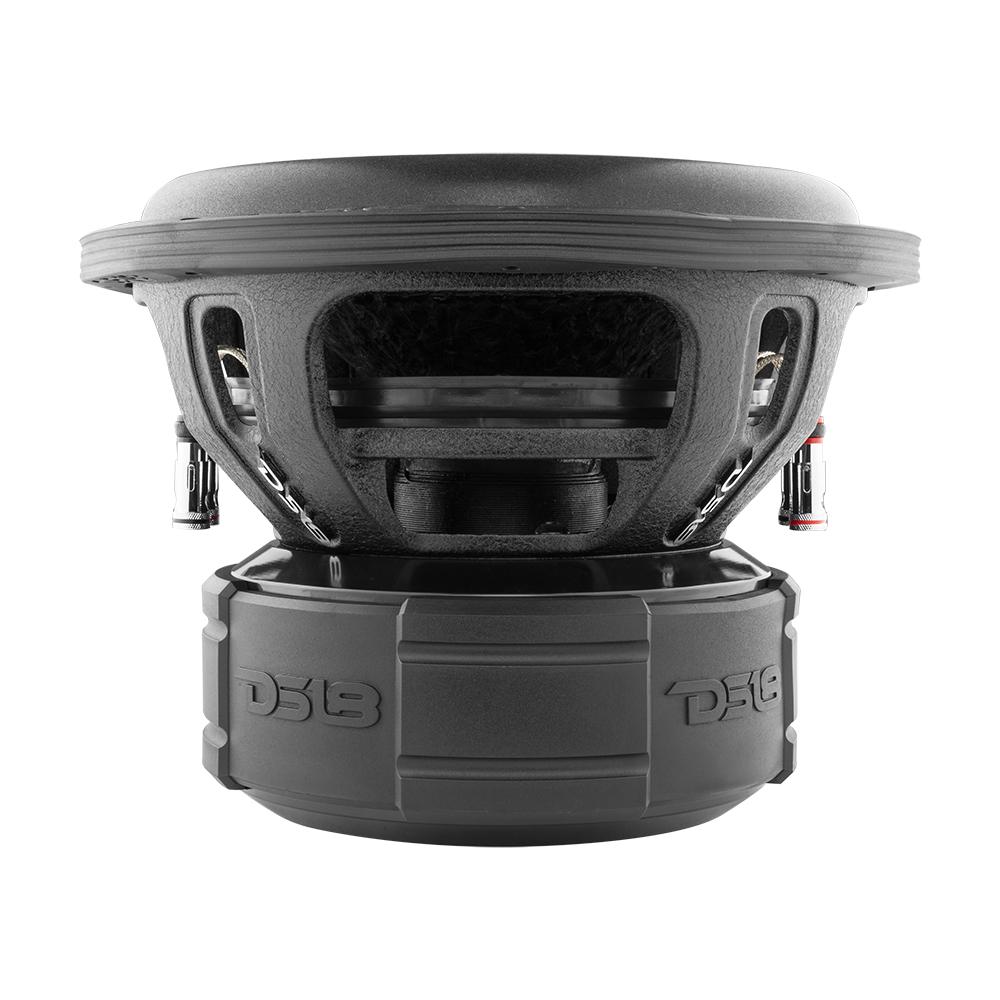

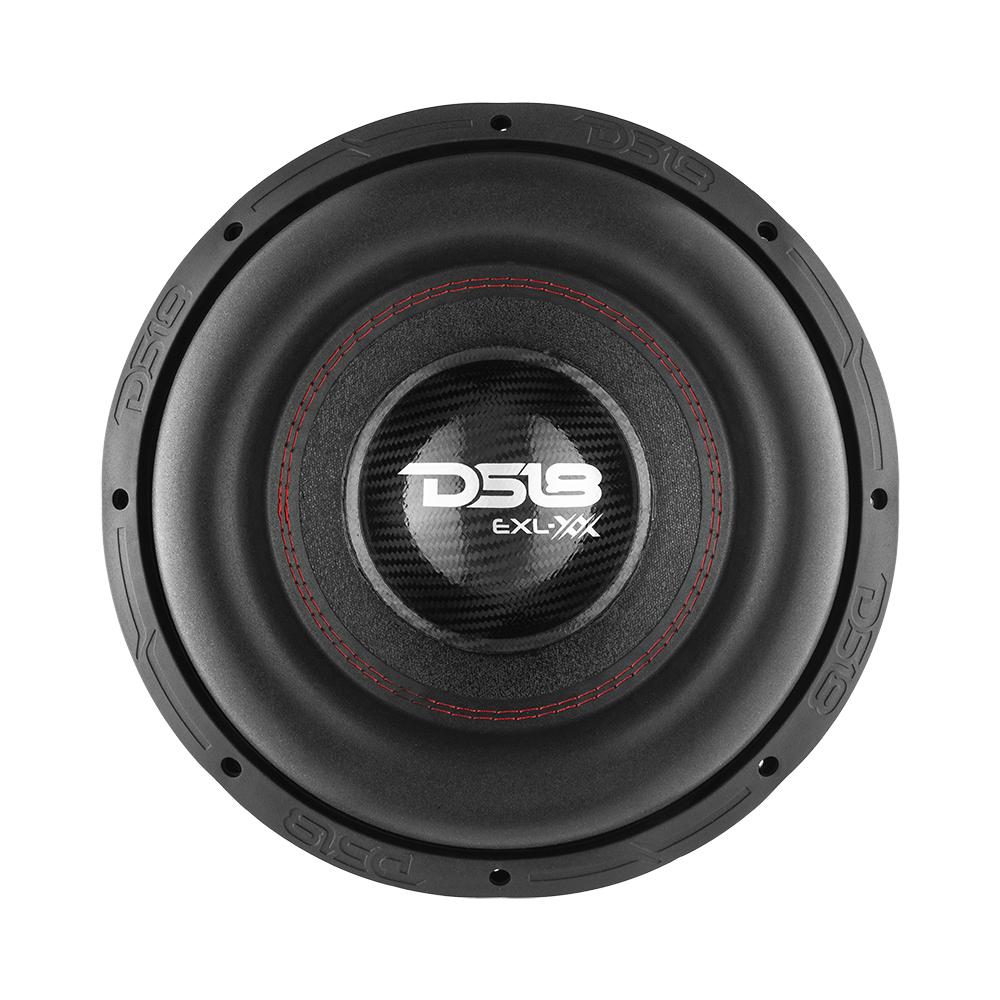

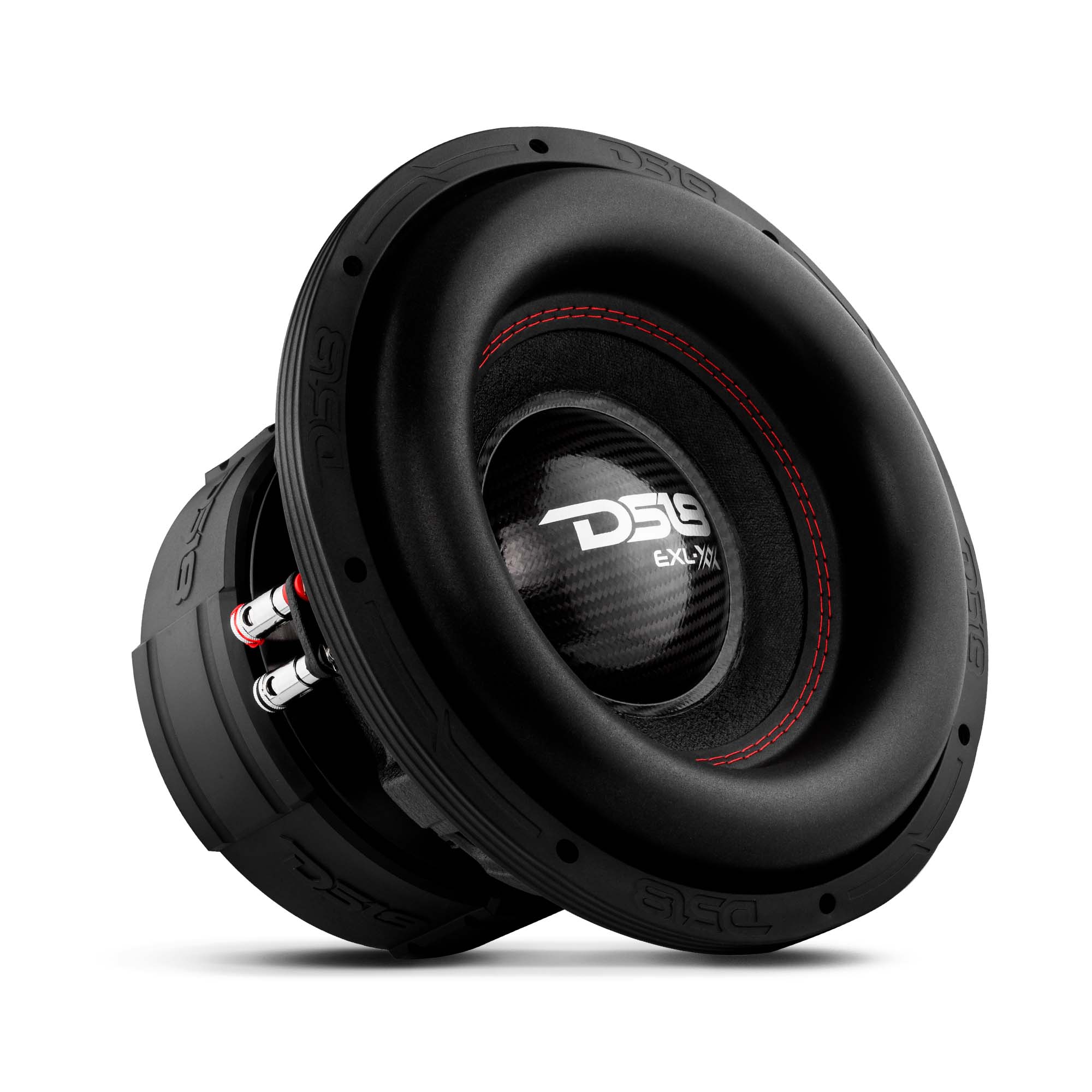

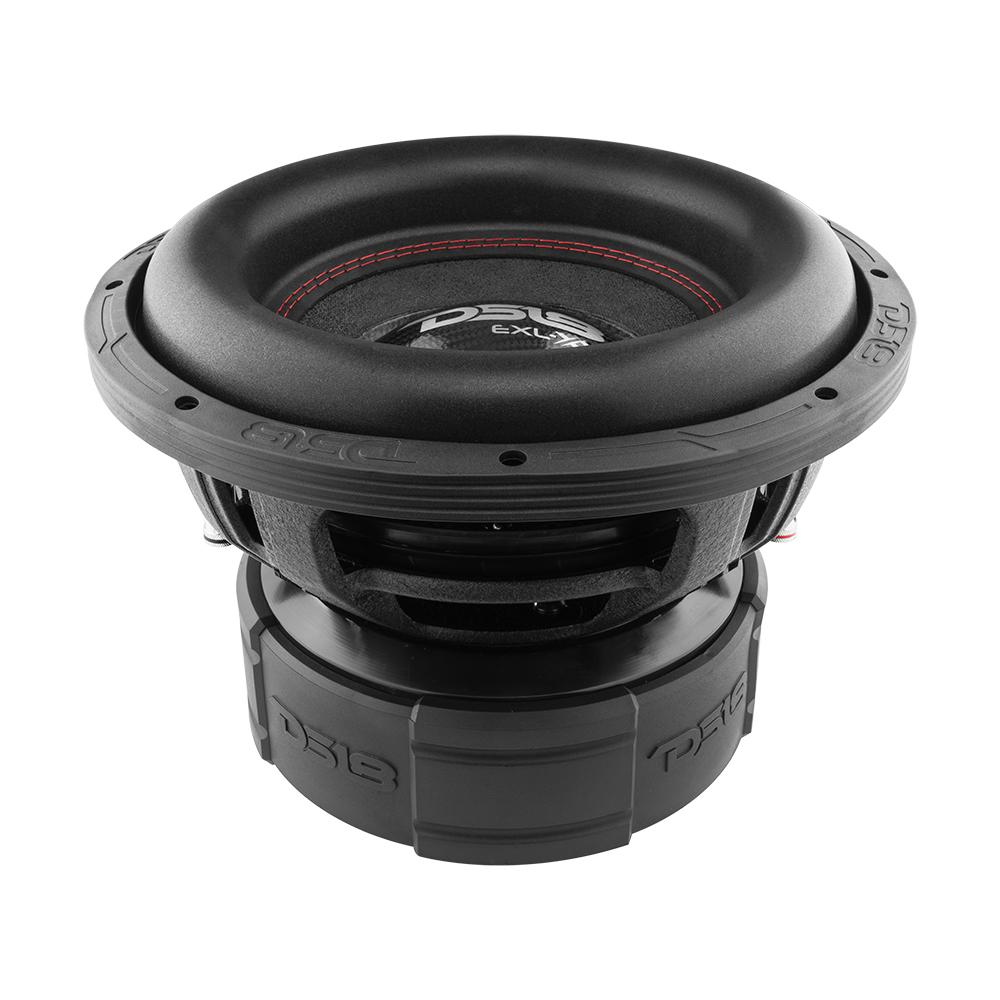

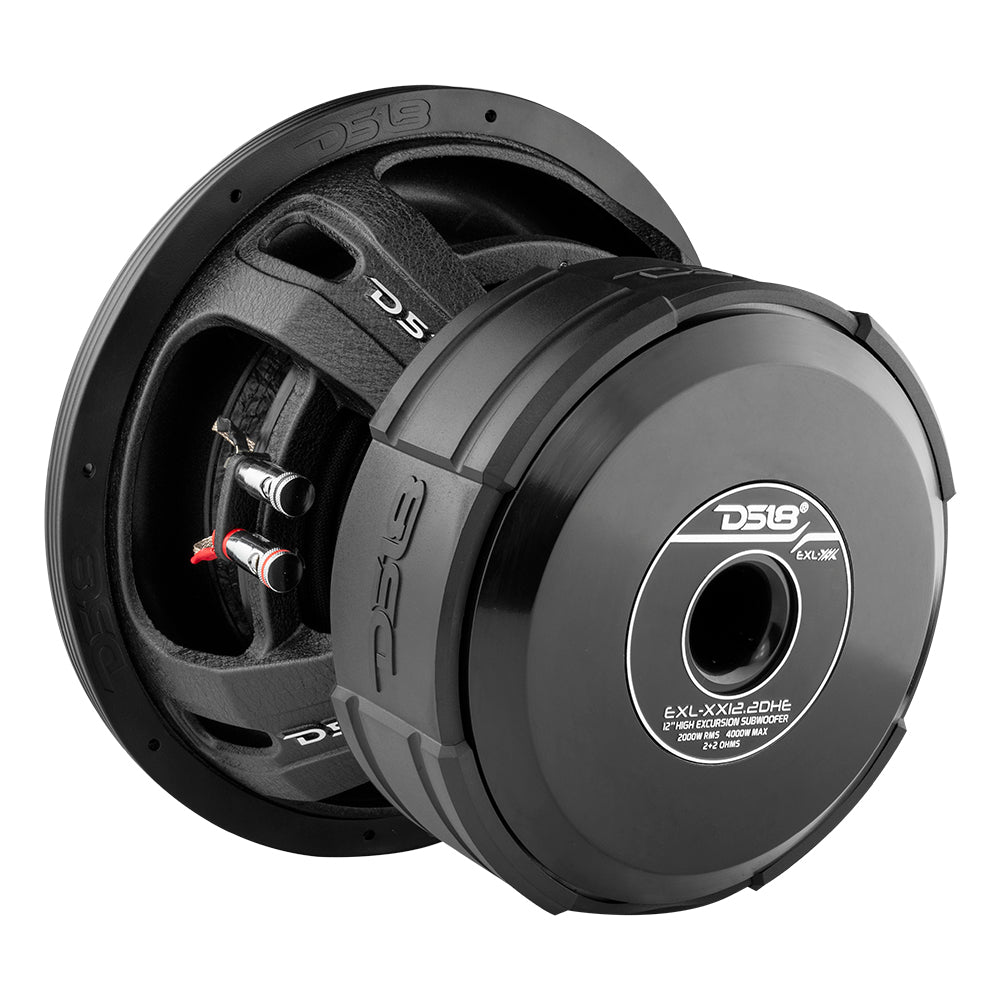

The DS18 EXL-XX12.2DHE is a 12″ high-excursion subwoofer with a dual 2 ohm voice coil. It handles 2,000 watts RMS (4,000 max) with 87 dB sensitivity and plays down to 20Hz.
It needs 7.87″ of mounting depth, much less than the Hooligan line, and is a strong step into high-power bass. Want more power? See the HOOL-X12.2DHE.
High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.2DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.
Highlights
Technical Details EXL-XX12.2DHE Product Manual
Box Info
Box Info
By the numbers
Excursion
Scale 0 to 52mm- RMS Power
- 2000 Watts RMS
- Peak Power
- 4000 Watts Max
- Impedance
- 2 Ohms
- Nominal Impedance
- 2 + 2 Ohms
- RMS Power Handling
- 2000W
- MAX Power Handling
- 4000W
- Recommended Lo Pass Crossover
- 80 Hz
- Frequency Response
- 20Hz – 1.3KHz
- Sensitivity (1w/1m)
- 87 dB
- Excursion(one way)
- Xmax 42 mm
- Free Air Resonance
- Fs 39.8 Hz
- Bl Factor
- BL 16.523
- Efficiency Bandwidth Product
- EBP 75.2
- Xmax
- 42 mm
- VC Diameter
- 3″/ 75.6mm
- VC Former Material
- Black Aluminum
- Winding Material
- CCAW
- Cone Material
- Paper
- Dust Cap Material
- Glass Fiber
- Surround Material
- Foam
- Basket Material
- Aluminum
- Basket Color/Finish
- Black
- Magnet Material
- Ferrite
- Magnet Weight
- 306 Oz
- VC Inductance
- Le 6.9 mH
- Motor Diameter
- 8.89″ / 226mm
- Size
- 12 inch
- Mounting Depth
- 7.87″ / 200mm
- Nominal Diameter
- 12
- Displacement Volume
- 3.26L
- Overall Diameter
- 12.6″ / 321mm
- Overall Depth
- 9.25″ /235mm
- Front Mount Baffle Cutout
- 11.1″ / 282mm
- Equivalent Vol
- Vas 21.986L
- Mechanical Factor
- Qms 5.128
- Electrical Factor
- Qes 0.529
- Total Factor
- Qts 0.468
- Moving Mass
- Mms 302.158 g
- Compliance
- Cms 0.025 mm/N
- Diaphragm Area
- Sd 433.74 cm²
- Dc Resistance
- Re 2 + 2 ohms
