Description
Product Overview
The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released.
We have completely redesigned the GEN-X series from the ground up to meet and audio enthusiasts high standards and complete their goals for the system of their dreams with great power, reliability, and efficiency.

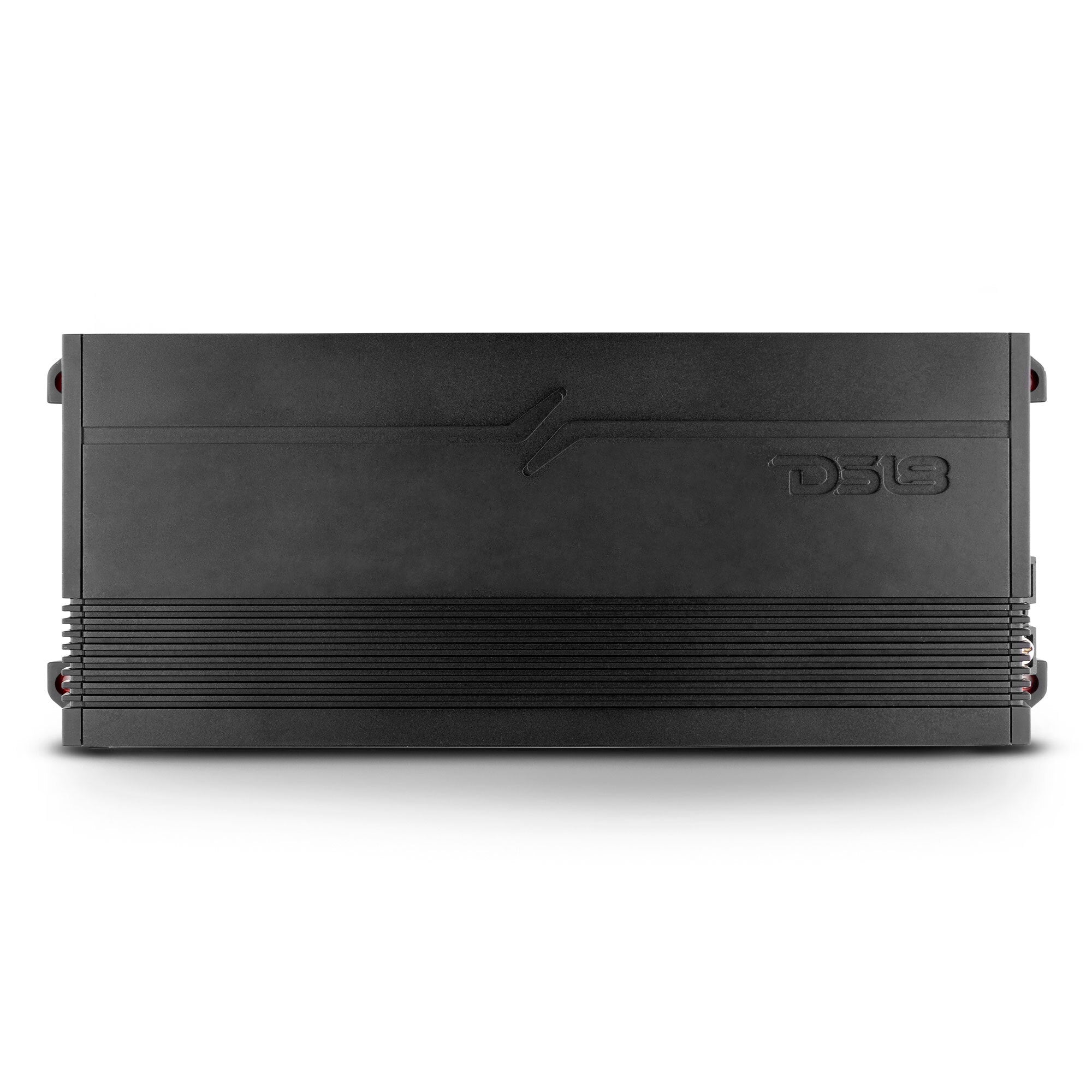

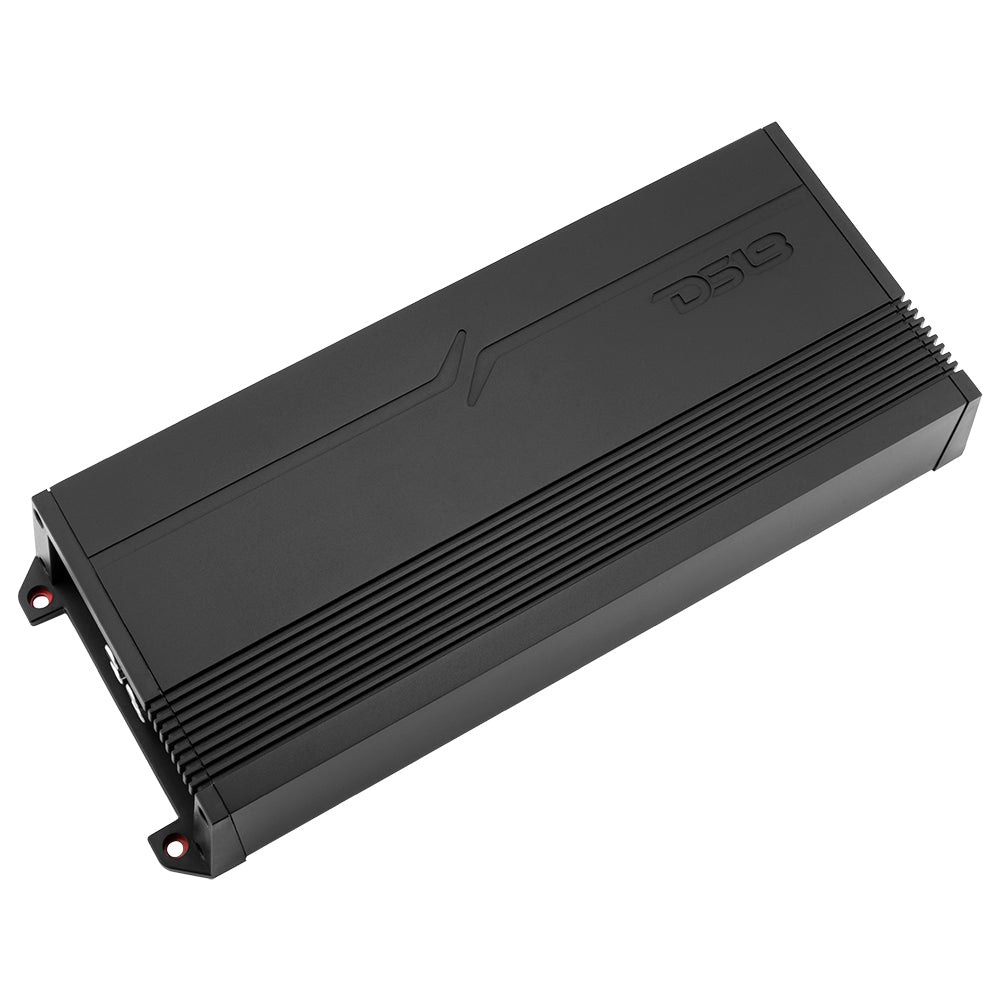

The G3600.4D has a power rating of 4 x 300 watts RMS at 4 ohms 4 x 420 RMS at 2 ohms, 2 x 740 at 4 ohm bridge, and 3600 MAX at the two load it was designed for, giving you pure and clean power on demand.
This amp has the power to drive your speakers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud.
Highlights
Key Features
Great For:
Technical Details Download Product Manual
Technical Data
| Specification | Details |
|---|---|
| Channels | 4 Channel |
| Amplifier Class | Digital (D) |
| RMS Power | 300 Watts RMS |
| Impedance | 4 Ohms |
| Frequency Response | 20Hz-20KHz |
| Total Watts (Peak) | 3600W |
| RMS Power @ 4 ohm | 4 x 300W |
| RMS Power @ 2 ohm | 4 x 420W |
| RMS Power @ 4 ohm Bridge | 2 x 740W |
| Signal to Noise Ratio | >93dB |
| Efficiency @ 4ohm | 80% |
| Damping Factor | 78 |
| Input Impedance | 22K |
| Channel Separation | 70dB |
| Total Harmonic Distortion (THD) | 0.01% |

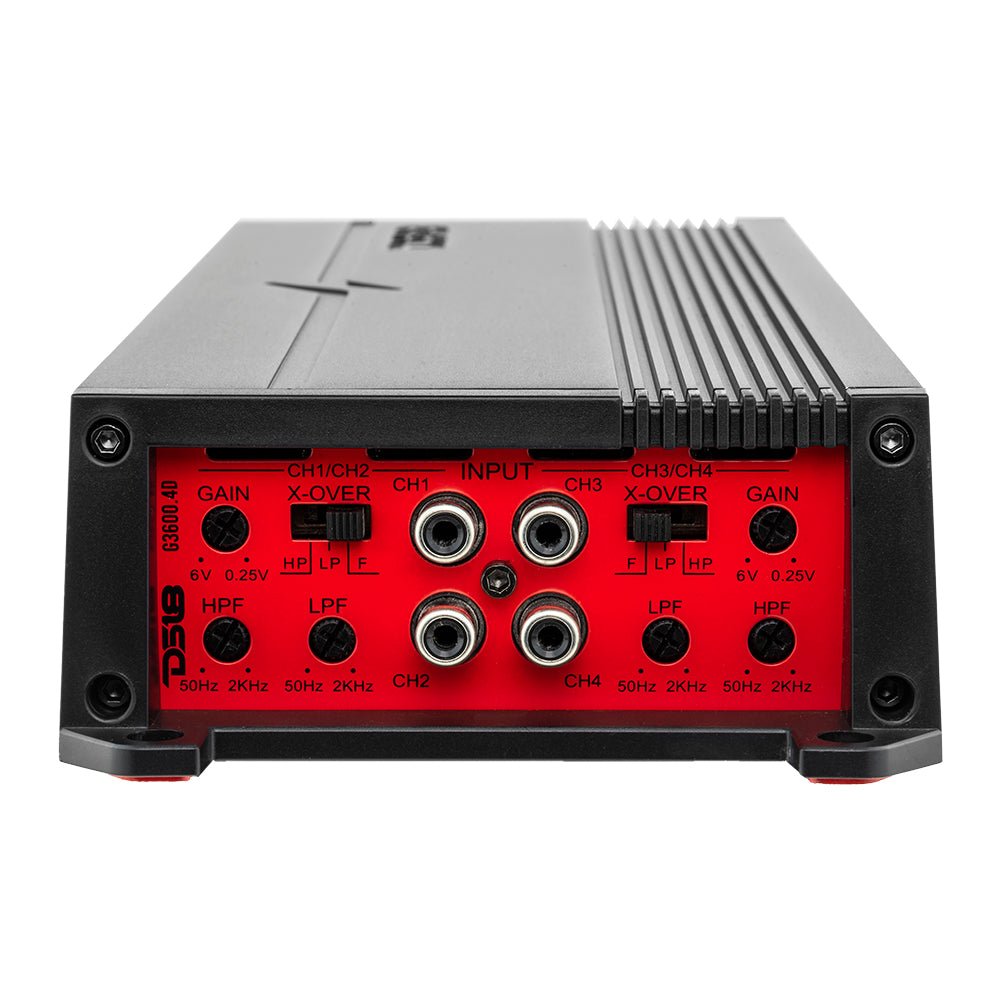

| Low Level Input Range | 0.25-6V |
| High Level Input | NO |
| Selectable X-Over | LPF/FLAT/HPF |
| X-Over Filter Range | 50 – 250Hz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | N/A |
| Phase Selector | NO |
| Amplifier Type | 4CH Full Range |
| Number of Channels | 4CH |
| Minimum Impedance | 2 ohm St / 4 ohm Bridge |
| Led Indicator | Power / Protection / Clip |

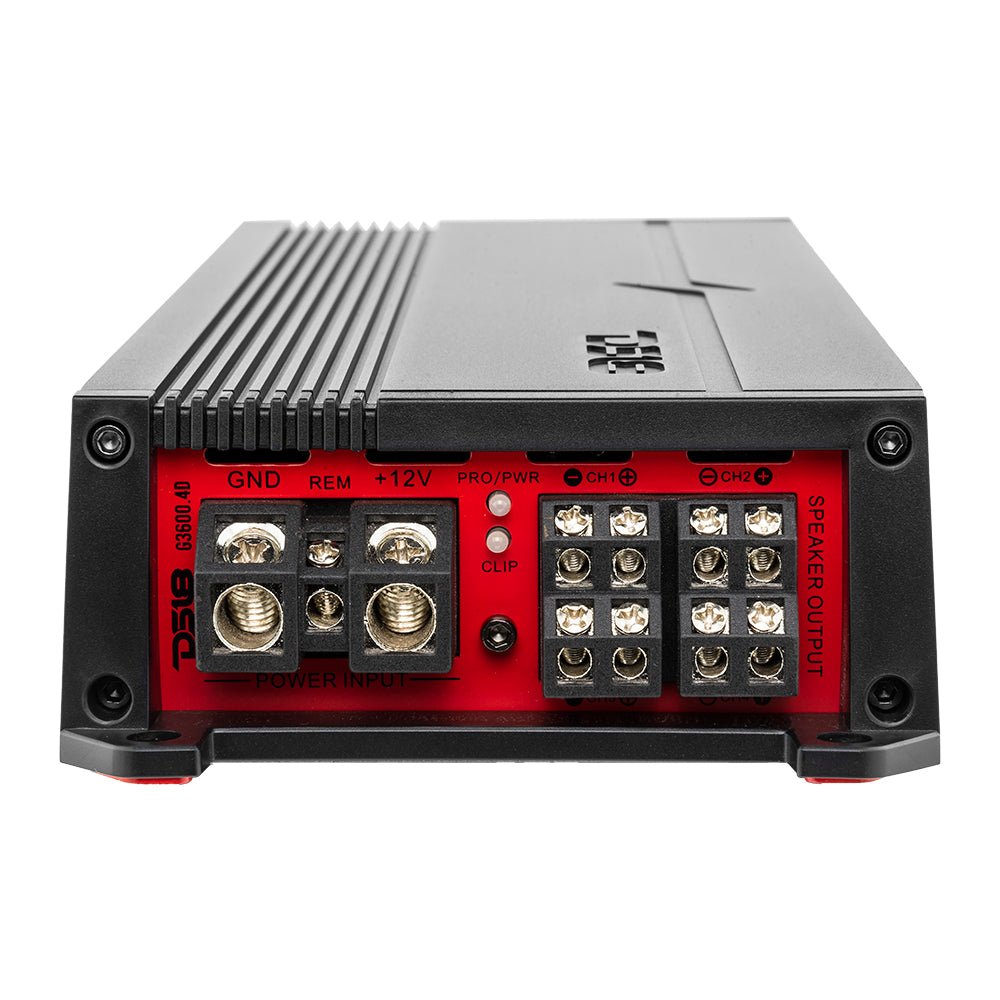

| Power Input Terminal Size | 4ga |
| Fuse Size | 3 x 40A |
| Remote Level Control | NO |
| Cooling Fan | NO |
| Voltmeter | NO |
| Thermal Protection | YES |
| Over-Load Protection | YES |
| DC Output Protection | YES |
| Short Circuit Output Protection | YES |
| Voltage Input Protection | YES |
| Clipping Protection | YES |
| Body Color / Finish | Matte black |
| Overall Length | 12″ / 305mm |
| Overall Wide | 4.72″ / 120mm |
| Overall Height | 1.96″ / 50mm |
| Heatsink Length | 10.15″ / 258mm |
| Gross Single Unit Weight | 1.9KG |
