Description
Product Overview
The GEN-X Coaxial Series is back!

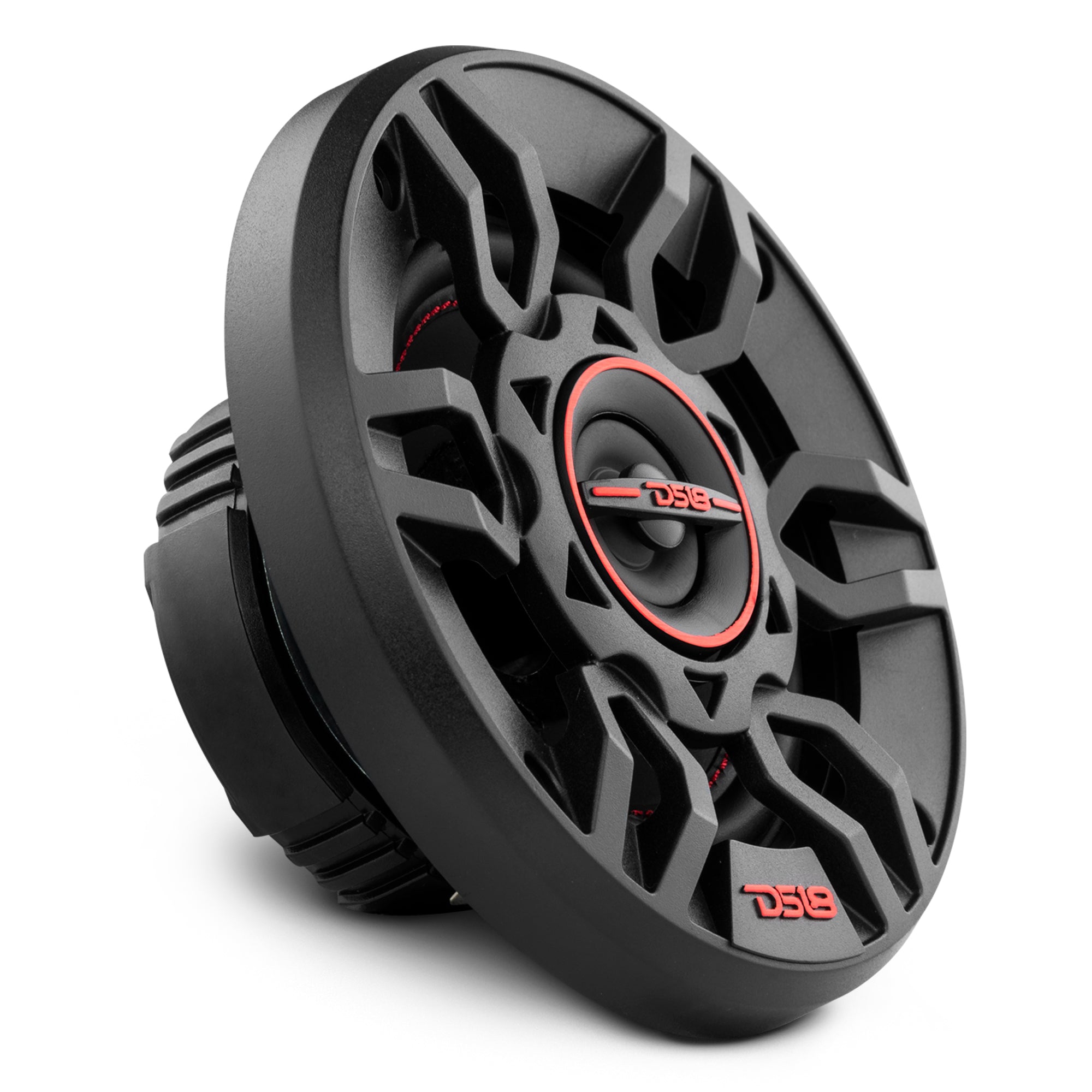

The power, clarity and range everyone who likes it LOUD loves about the GEN-X series returns in an extremely durable steel basket protected by a (PC-ABS) Grill.
The G4Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 80Hz. The 2-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.
These speakers get loud extremely easily with a MAX Power Handling of 120W and RMS Power Handling of 40W.
Order the G4XI for your system to expand your soundstage today!
Highlights
Great For
Technical Details Download G4XI Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 4 inch |
| RMS Power | 40 Watts RMS |
| Impedance | 4 Ohms |
| Frequency Response | 80Hz-20KHz |
| Mounting Depth | 1.7″ / 43.5mm |
| Nominal Diameter | 1″ / 25.5mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 40W |
| MAX Power Handling | 120W |
| Sensitivity (1w/1m) | 84dB |
| Recommended HI Pass Crossover | 90Hz |
| Number of ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
| Voice Coil Diameter | 0.5″ / 13.25mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Neodymium |
| Magnet Weight | 1.8g |
| Diaphragm Material | Mylar |
| Overall Diameter | 4″ / 103.5mm |
| Overall Depth | 2.4″ / 60.8mm |
| Overall Diameter (With Grill) | 5.28″ / 134mm |
| Overall Depth (With Grill) | 2.46″ / 62.6mm |
| Front Mount Baffle Cutout | 3.6″ / 92mm |
| Motor Diameter | 3″ / 76mm |
| Tweeter Protrusion | 0.68″ / 17.3mm |
