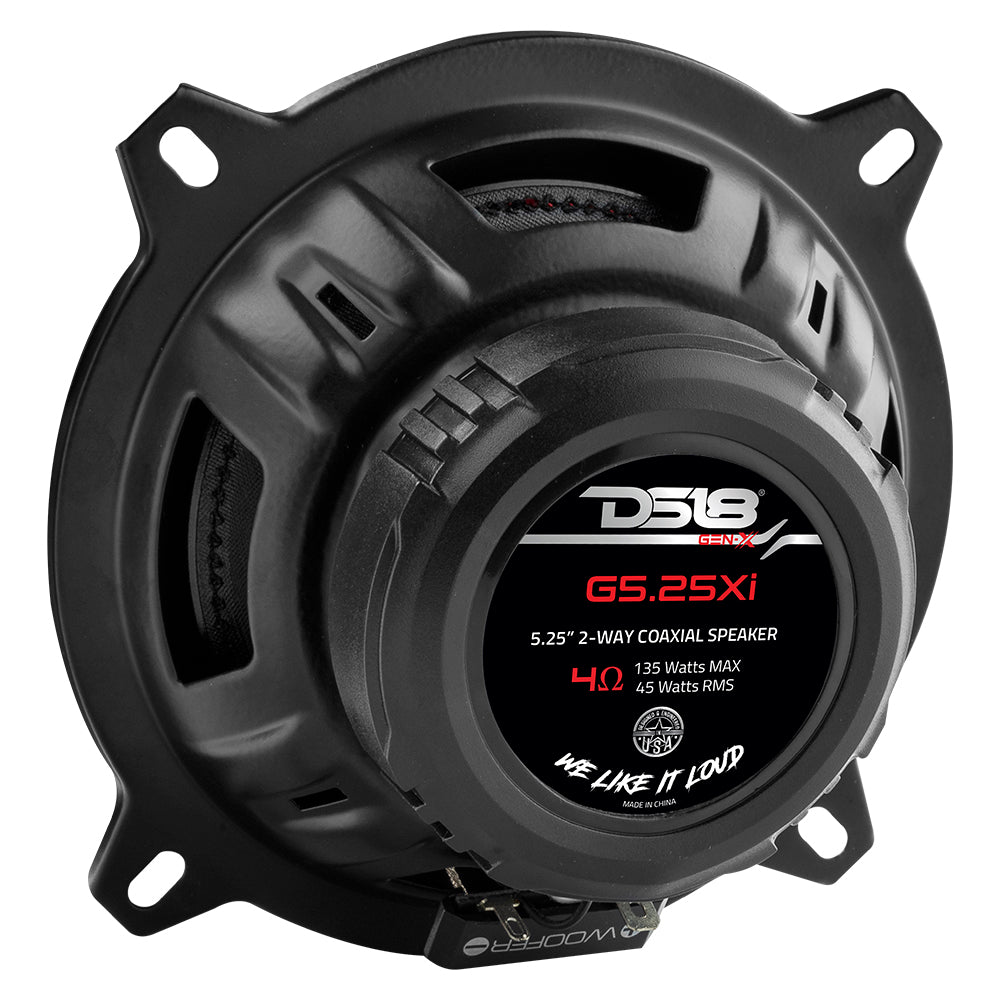

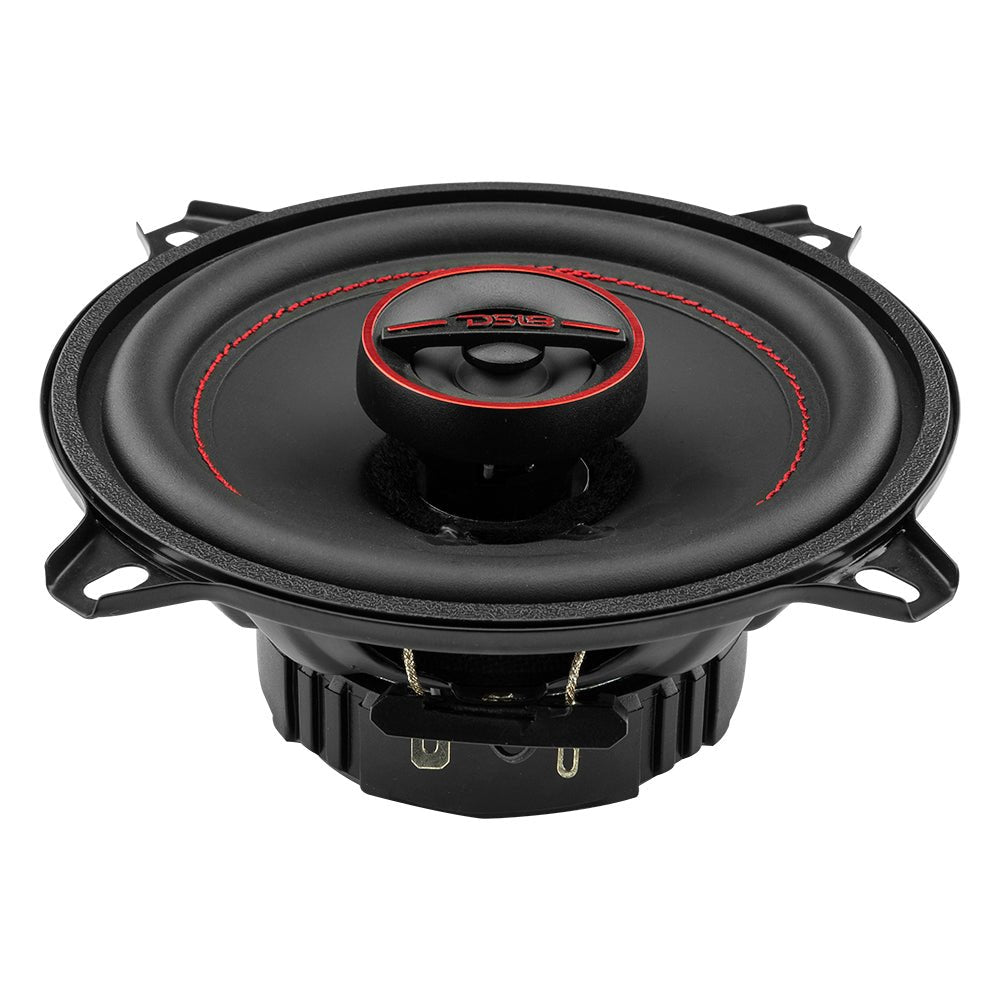

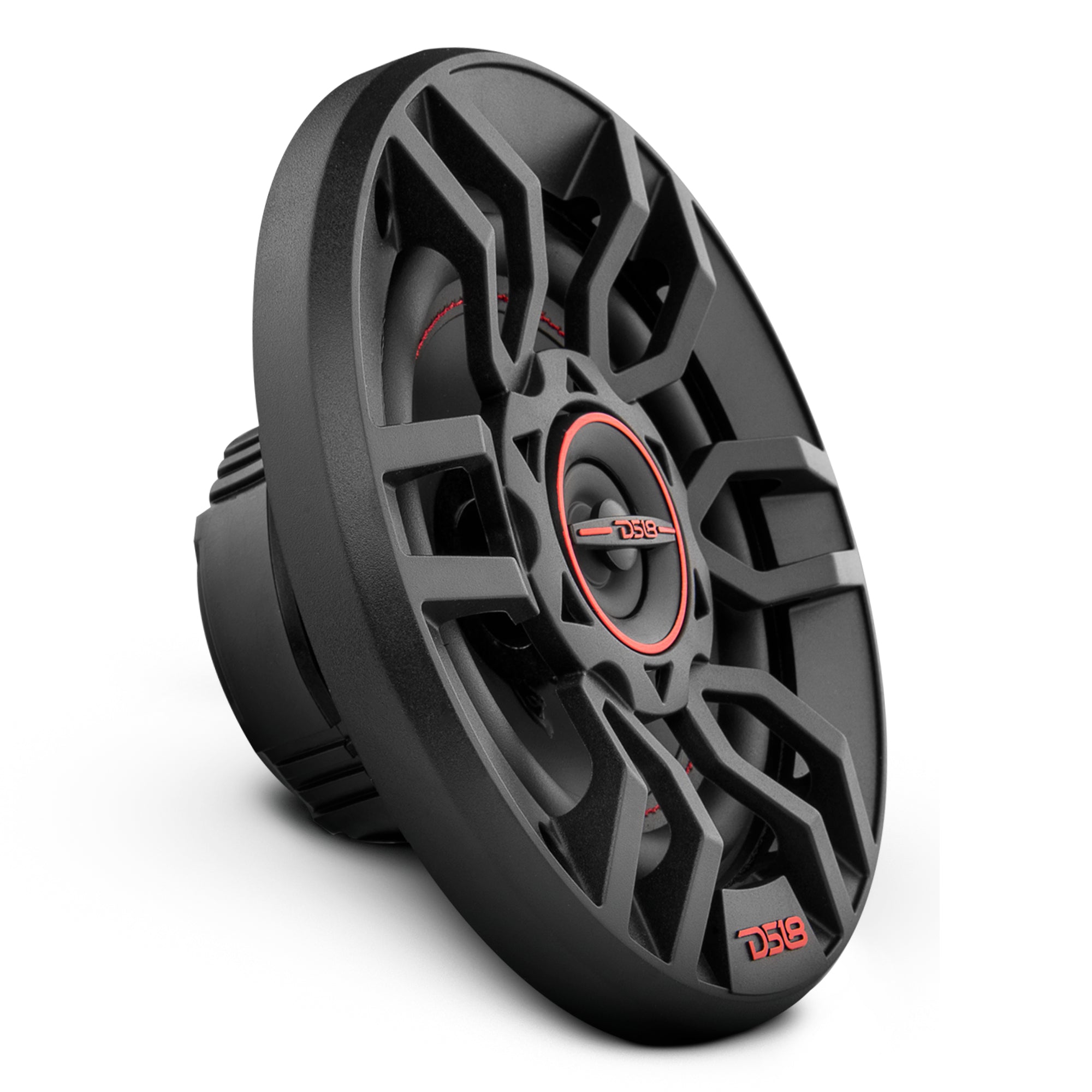

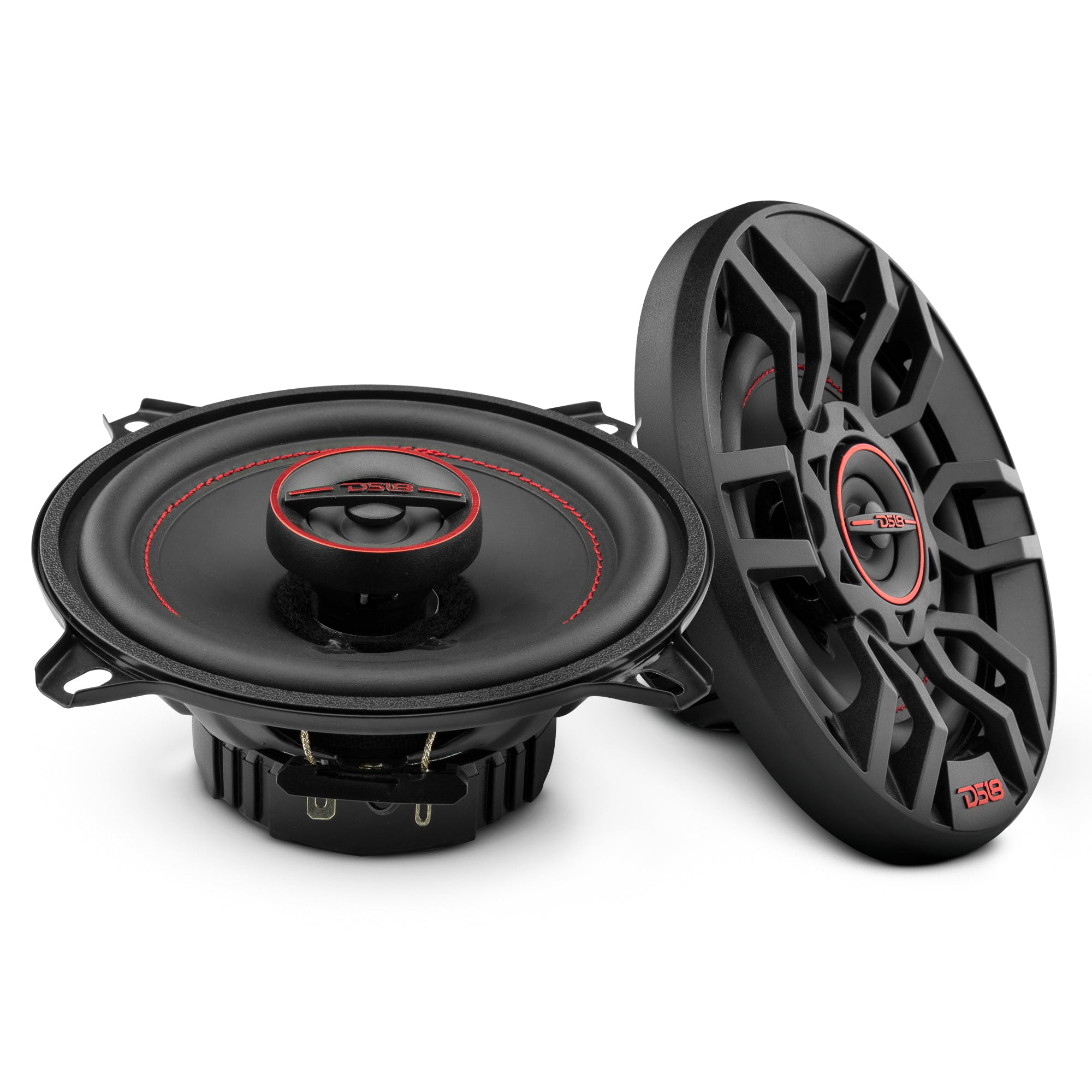

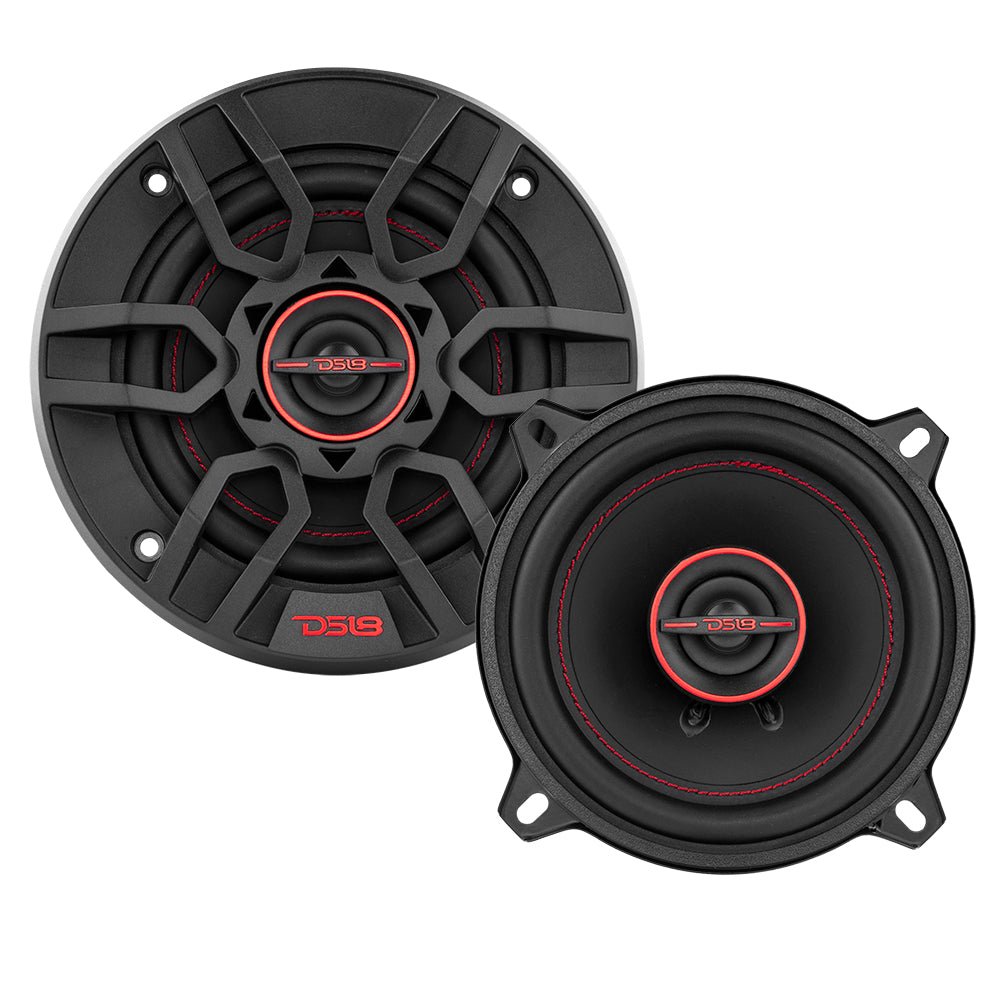

DS18 G5.25XI GEN-X 5.25″ 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

$54.95

RMS Power45W
Peak Power135W
Sensitivity84dB
01 Overview

The details

Product Overview

Why we stock the DS18 G5.25XI

The DS18 G5.25XI is a pair of 5.25″ GEN-X coaxials with a steel basket and grille. They handle 45 watts RMS (135 max) at 4 ohms with 84 dB sensitivity, play from 50Hz to 20kHz, and need just 1.97″ of mounting depth.

The shallow depth makes them easy to fit in tight doors and decks. Have 6.5″ openings elsewhere? Pair them with the G6.5XI.

The GEN-X Coaxial Series is back!

The power, clarity and range everyone who likes it LOUD loves about the GEN-X series returns in an extremely durable steel basket protected by a (PC-ABS) Grill for a speaker that will outlast any vehicle its installed in.

The G5.25Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 50Hz. The 2-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.

These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W.

Order the G5.25Xi for your system to expand your soundstage today!

Highlights

Great For

Technical Details

Download G5.25XI Product Manual

02 Tech specs

By the numbers

G5.25XI · Manufacturer rated
RMS Power 01
45W
Continuous rating
Peak Power 02
135W
Short-burst rating
Sensitivity 03
84dB
Efficiency
Size 04
1in
Nominal

RMS Power
45 Watts RMS
Impedance
4 Ohms
Nominal Impedance
4 Ohms
RMS Power Handling
45W
MAX Power Handling
135W
Recommended HI Pass Crossover
80Hz

Frequency Response
50Hz-20KHz
Sensitivity (1w/1m)
84dB

Voice Coil Diameter
0.5″ / 13.25mm
Voice Coil Former Material
ASV
Winding Material
EISVM
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Neodymium
Magnet Weight
1.8g
Diaphragm Material
Mylar
Motor Diameter
3″ / 76mm

Mounting Depth
1.97″ / 50mm
Nominal Diameter
1″ / 25.5mm
Overall Diameter
5.13″ / 130.4mm
Overall Depth
2.47″ / 62.8mm
Overall Diameter (With Grill)
6.38″ / 162mm
Overall Depth (With Grill)
2.75″ / 69.8mm
Front Mount Baffle Cutout
4.52″ / 115mm

Number of ways
2
Pair or Single
Pair
Grill Included
Yes
