Description
Product Overview

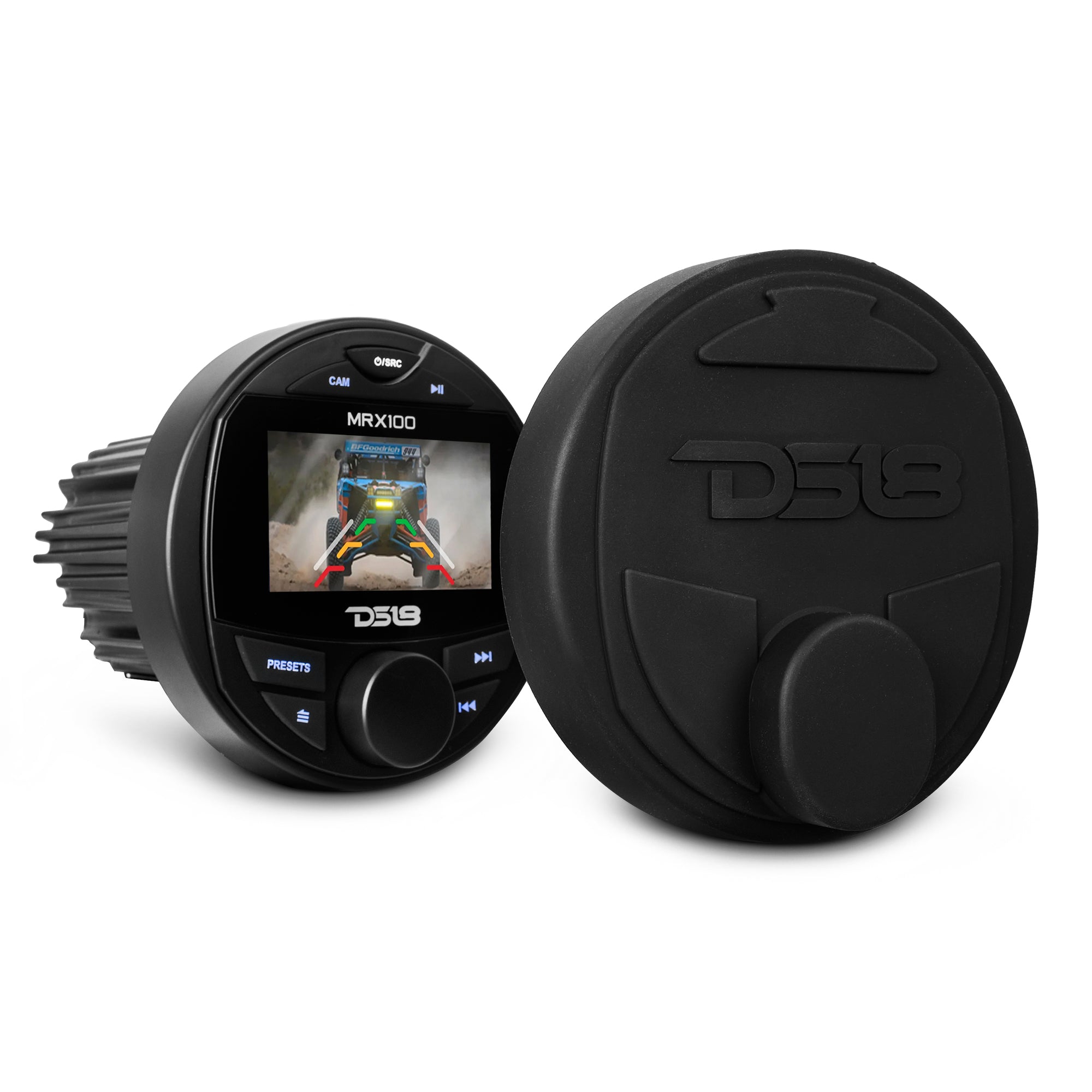

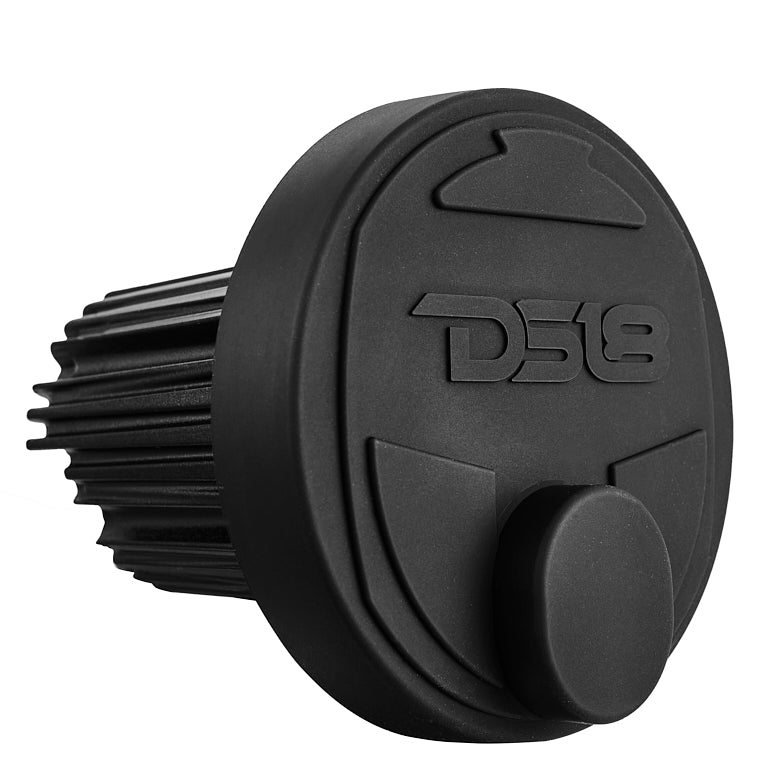

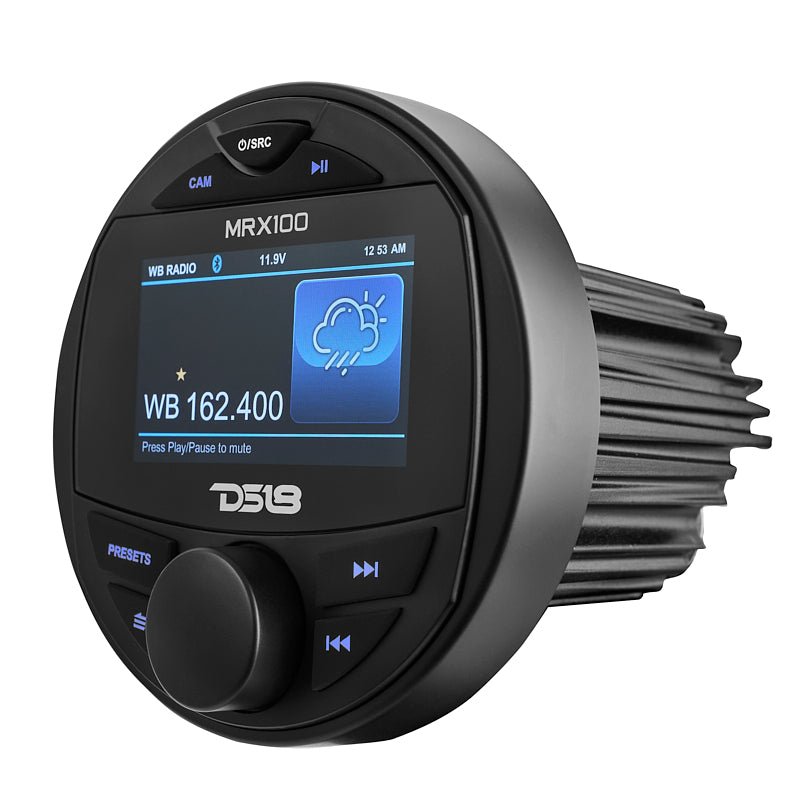

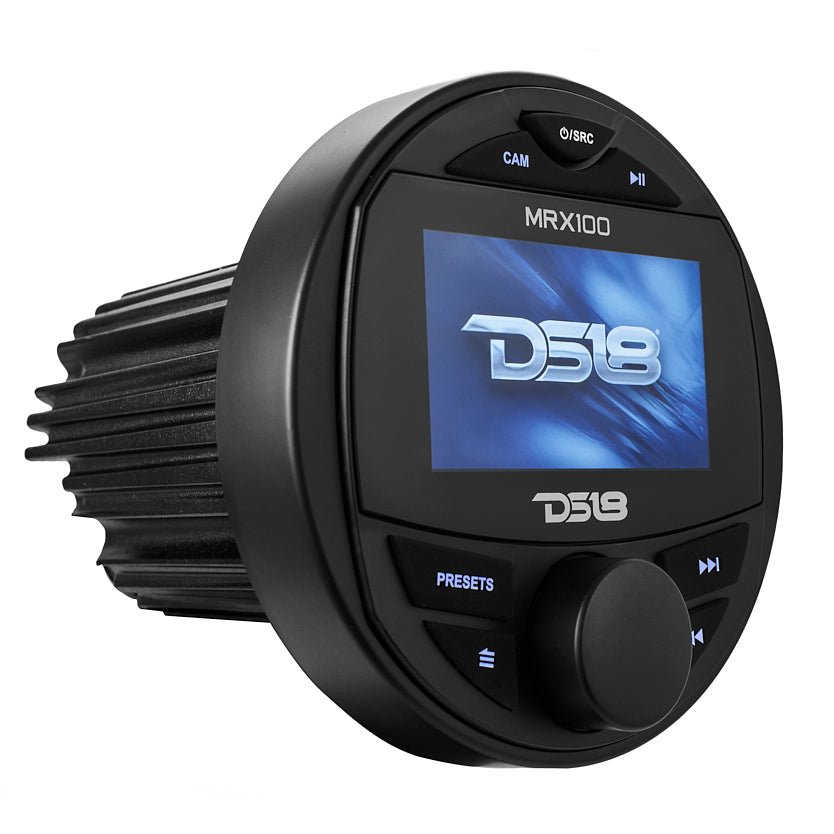

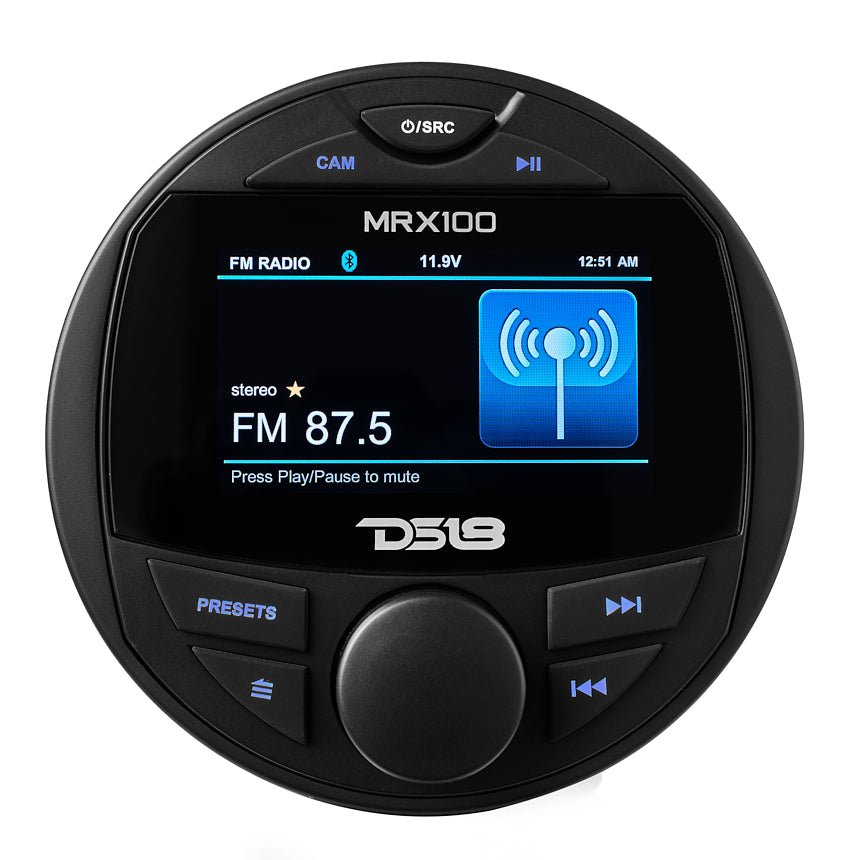

The MRX100 is DS18’s NEW all in one marine head unit that does it all!
DS18’s MRX100 Marine Head Unit is designed to do it all and then some! The same beautiful compact design, upgraded to be even more powerful and durable to endure the toughest beating any marine, golf-cart, and off-road head unit will go through.
The experts at DS18 upgraded this powerful receiver with: higher range Bluetooth connectivity, substantial material changes for extended longevity, and lower operating voltage for power consumption efficiency.
The MRX100 also allows classic users to browse over 37 presets radio stations without the need for a device being connected to it. However, if users wish to connect a device, upgraded Bluetooth connection features, as well as USB and AUX input makes it so users can connect any device they wish.
If there’s a rear camera attached to the vehicle, users can also utilize this product to view the rear camera directly helping them maneuver the vehicle they’ve attached it to.
The MRX100 is guaranteed to bring crystal clear audio quality with unchecked control over how the audio sounds (via a variety of sound settings) at all volumes in your boat, off-road, golf cart, or any vehicle that will be tested by the elements frequently.
Highlights
Great for:
Technical Details MRX100 Product Manual
Technical Data
| Specification | Details |
|---|---|
| Sensitivity | 4μV (FM), 36dBuV (AM) |
| Frequency Response | 20Hz to 20KHz |
| Operating Voltage | 10.5 -16 Volts |
| Current Drain | 15 Ampere / (Max) |
| Low Voltage Warning Alert | YES (< 11V) |
| Waterproof Rating | IPX6 |
| UV/Salt Protection | YES |
| Buttons | Rubber + RGB Backlit (Blue Color) |
| Screen Panel | Gorilla Glass with OCA Full Bonding |
| Type | TFT LCD with IPS |
| Backlight | LED |
| Power Output RMS | 4 x 18W @ 4 ohms (14.4v) / 4 x 25W @ 2 ohms (14.4v) |
| Max | 4 x 50W @ 2 ohms (14.4v) |
| Min Load | 2 ohms Stable per Channel |
| RCA Pre-Out Voltage | 4 Volts |
| Output Impedance | 500 ohms |
| Equalizer | 2 Bands (Bass 100Hz ± 10 dB, Treble 10KHz ± 10dB) |
| Presets | YES (S-Bass / Vocal /Powerful / Clarity) |
| Subwoofer Control | Level (-10 to +10) |
| Audio Zones | 2 Zones (Zone 1: Front R+L, Rear R+L / Zone 2: R+L) |
| Independent Zone Control | YES (Level/Tone) |
| Audio Input | L+R RCA (Aux Input) |
| FM Frequency Range | 87.5 -107.9 MHz |
| AM Frequency Range | 530 -1710 KHz |
| Weather Band | 162.40 -162.55 MHz |
| NOAA Weather Band | YES Compatible |
| Tuner Presets | 18 FM / 12 AM / 7 WB |
| Radio Data System | YES (AF / TA / NEWS) Selectable |
| IF | 10.7MHz (FM), 450KHz (AM) |
| Signal to Noise Ratio | >30dB(FM) |
| Stereo Separation | >25dB |
| Bluetooth Version | 5.0 + EDR |
| Audio Streaming | A2DP |
| USB Compatibility | v2.0 |
| USB Capacity | 64 Gb Max |
| USB Charge Capacity | 2.1 Amp |
| Audio Files Compatibility | MP3, WMA |
| Remote Control | Wired 3.5mm Jack Input (Compatible with MXRC) |
