Description
Product Overview

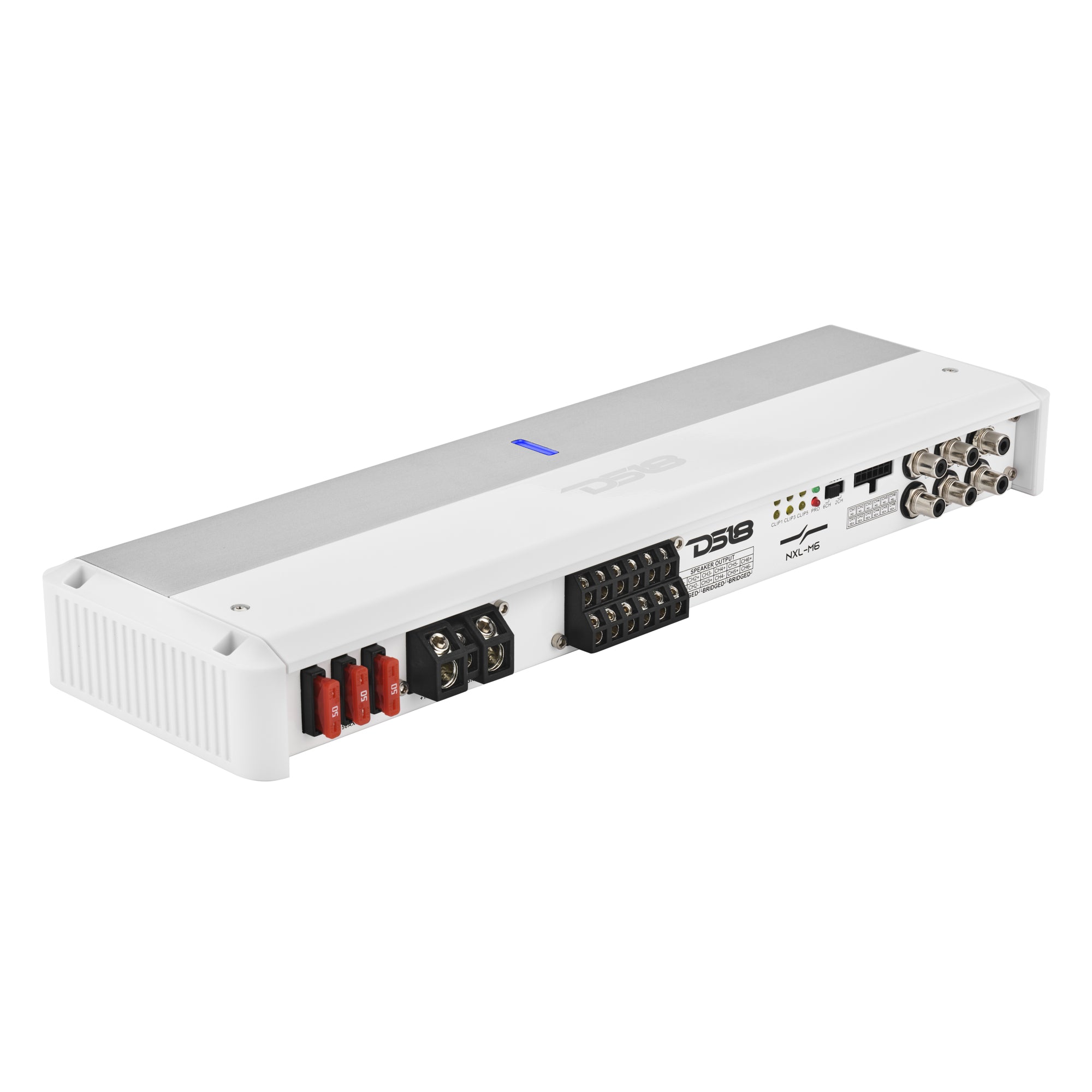

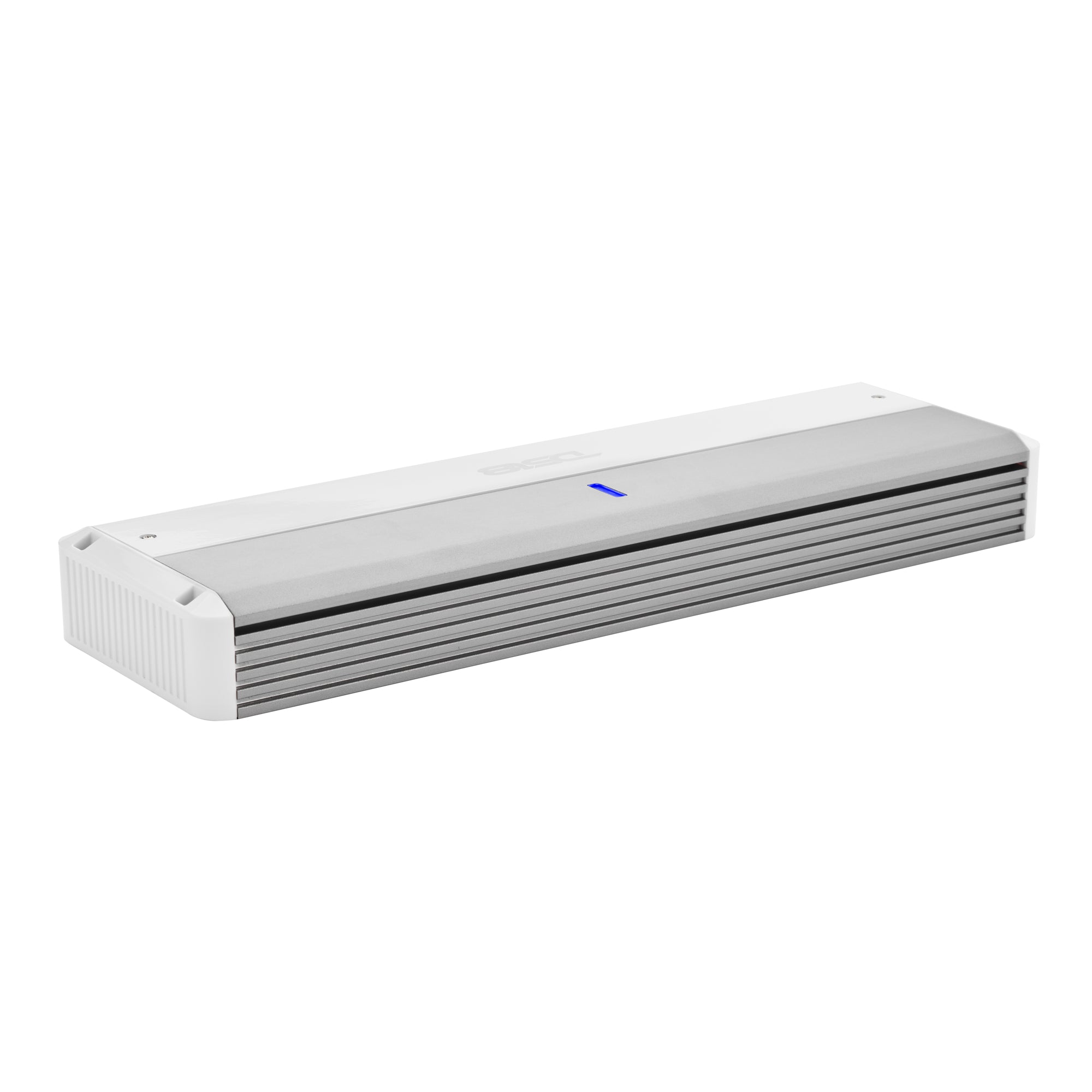

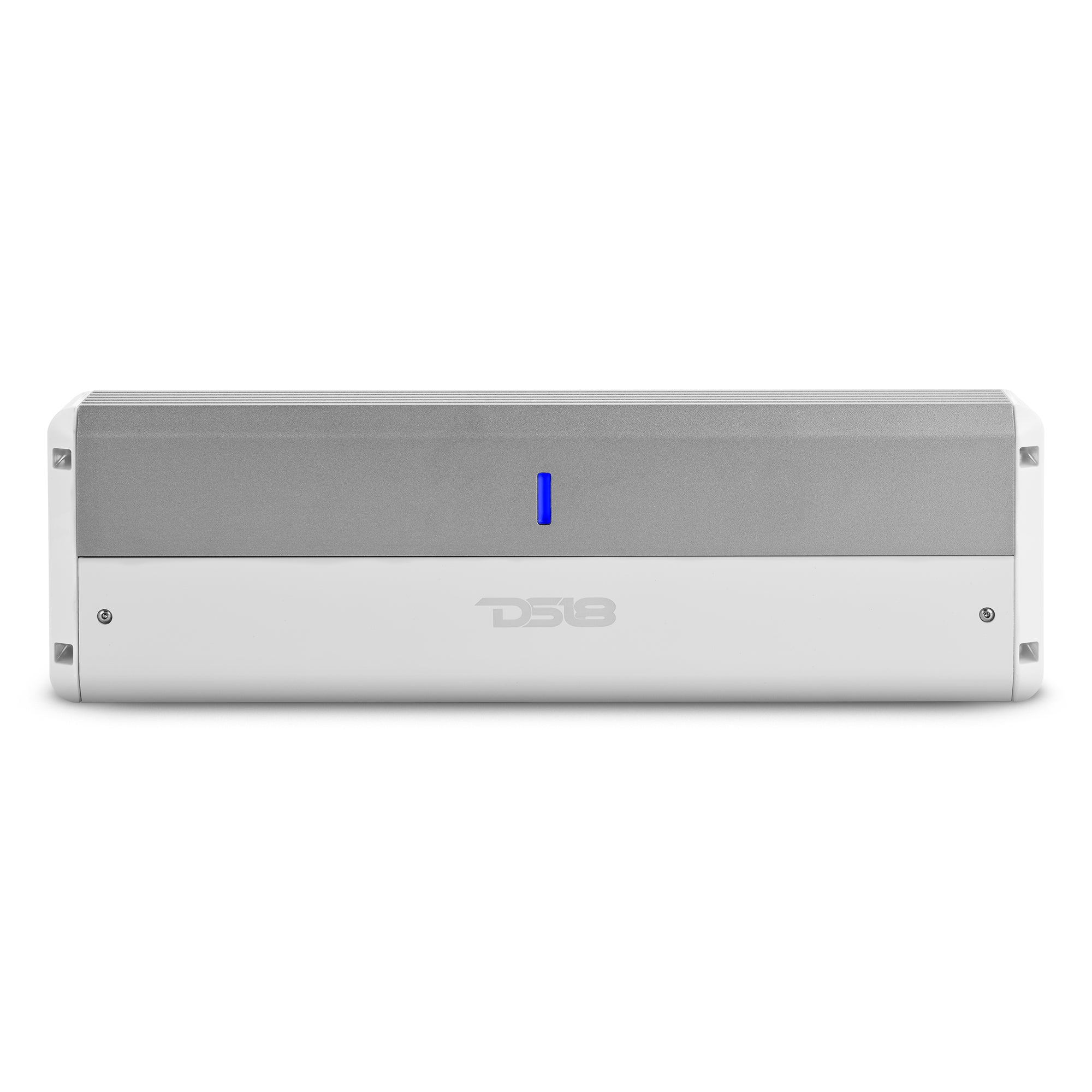

DS18’s NXL-M6 pumps out 150W RMS per channel at 4 ohms, 230W at 2 ohms, and when bridged, it delivers 440W across 3 channels at 4 ohms. It’s a perfect match for multi-speaker setups on boats, ATVs, and more.
Complete Audio Control Customize your sound with adjustable gain controls (0.2V to 6V), selectable high-pass, low-pass, or full-range crossovers adjustable between 40Hz and 2kHz, and a variable bass boost up to 12dB at 45Hz. This amp fine-tunes AND optimizes your setup’s performance.
Endure the Elements With an IP55 water-resistant rating, corrosion-resistant hardware, and a coated 4-layer PCB, the NXL-M6 thrives in the harshest marine environments. Thermal, overload, DC output, short circuit, voltage input, and clipping protections keep your system safe and reliable.

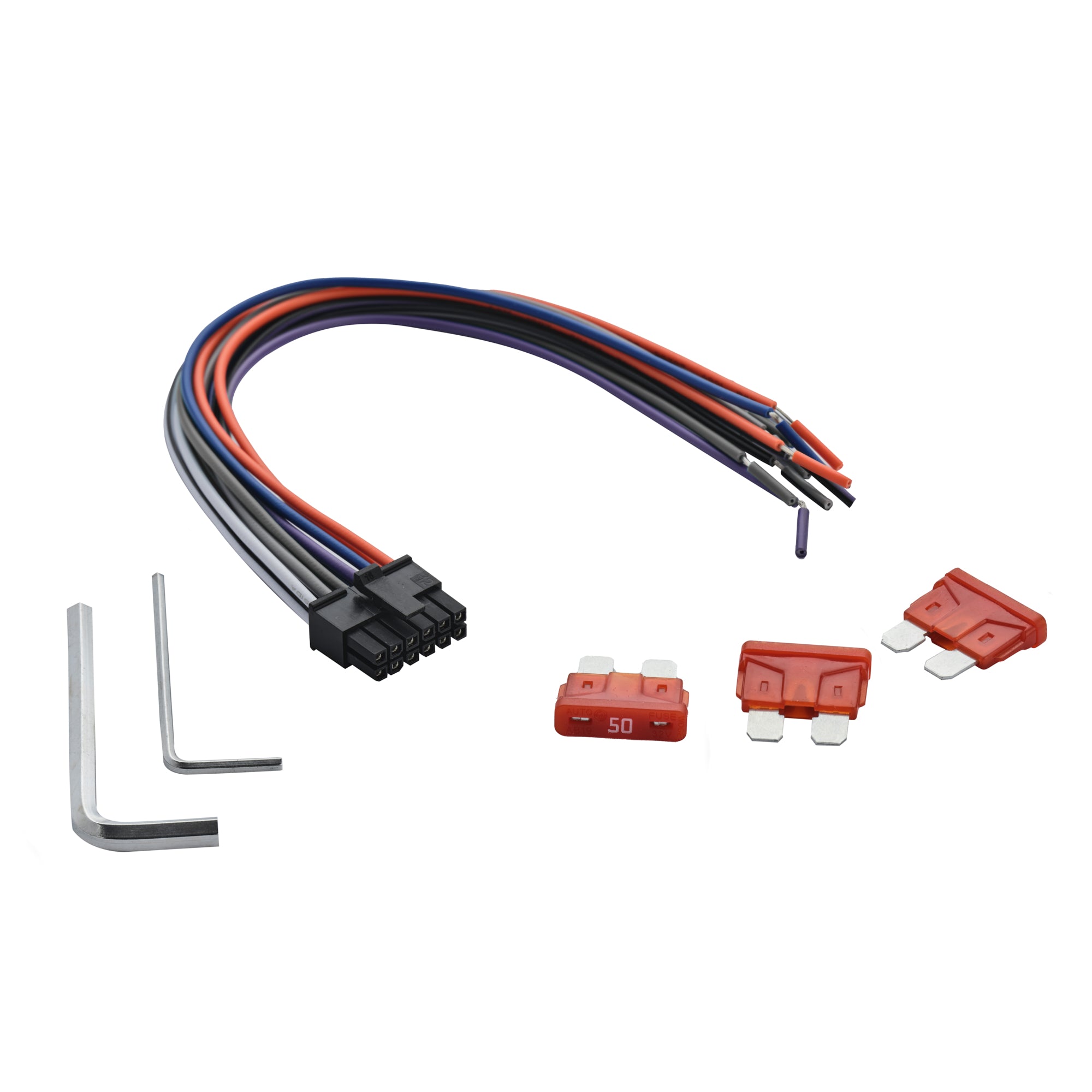

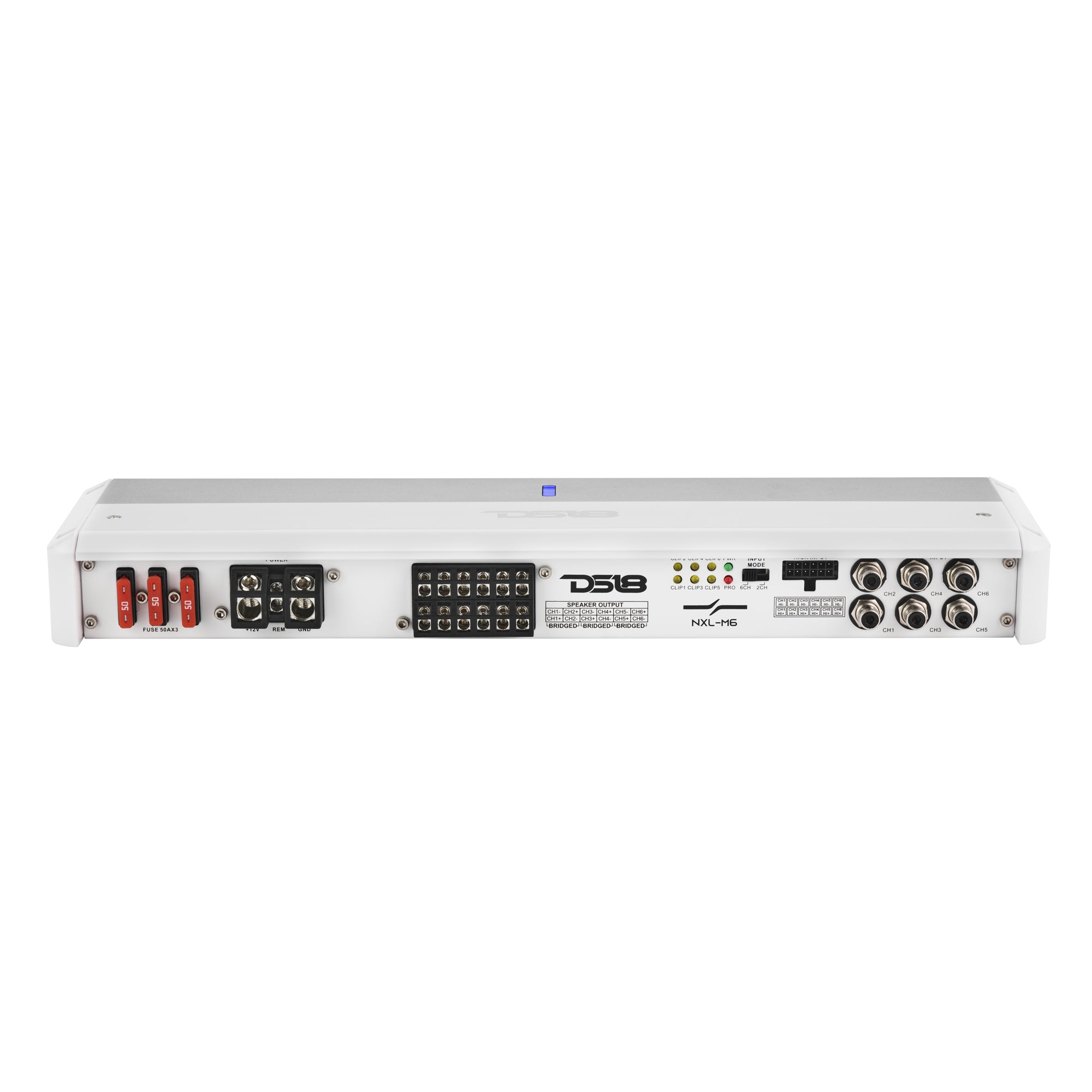

Installation Made Simple The M6 comes with marine-grade mounting hardware and direct-insert power and speaker terminals for secure, clean connections. With clear LED indicators for power, clip, and protection status, you’ll always know your amp’s performance status.
Upgrade your marine or powersports audio setup today with DS18’s NXL-M6 and experience quality on the water or off-road!
Technical Data
| Specification | Details |
|---|---|
| Channels | 6 Channel |
| Amplifier Class | Class D |
| RMS Power | 230 Watts RMS |
| Impedance | 4 Ohms |
| Sensitivity | 12 dB |
| Voltage | 0.2 Volts |
- 6-Channel
- Full-Range
- 6 x 150 Watts RMS @ 4Ω
- IP55 Waterproof Rating
