DS18

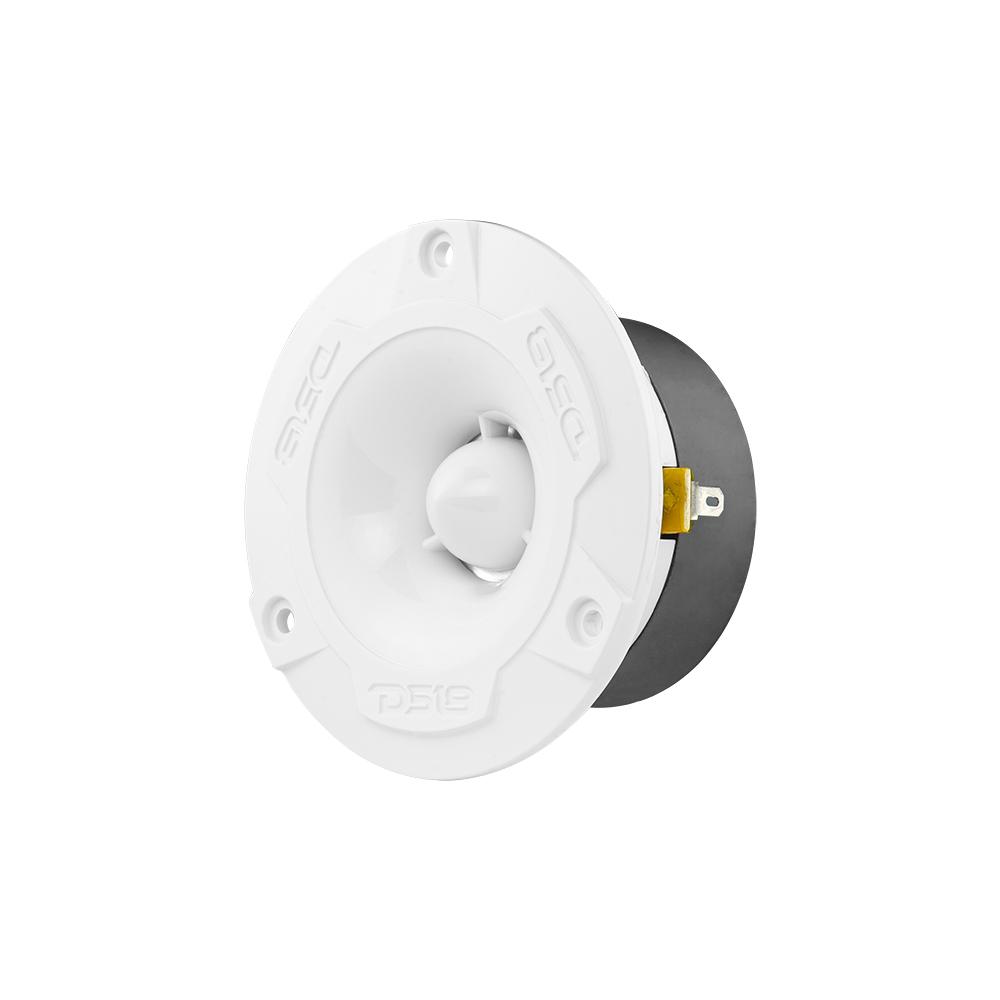

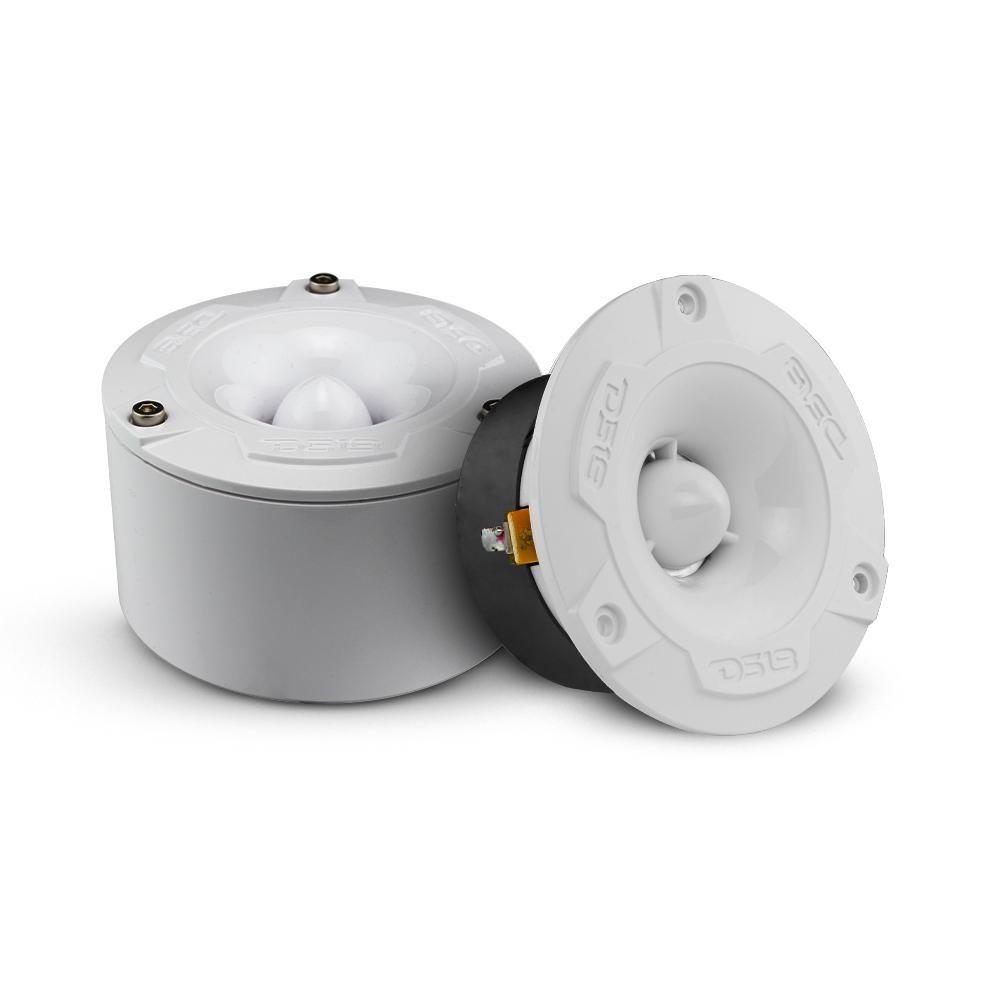

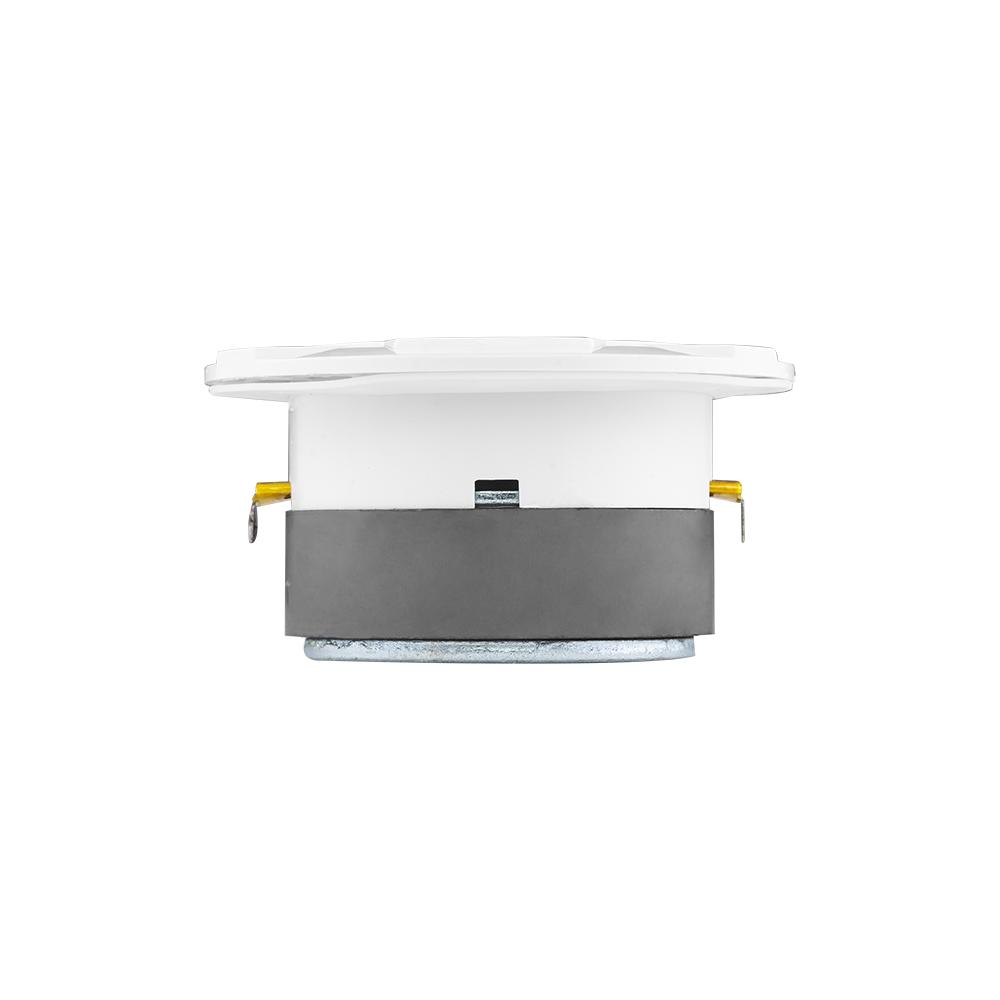

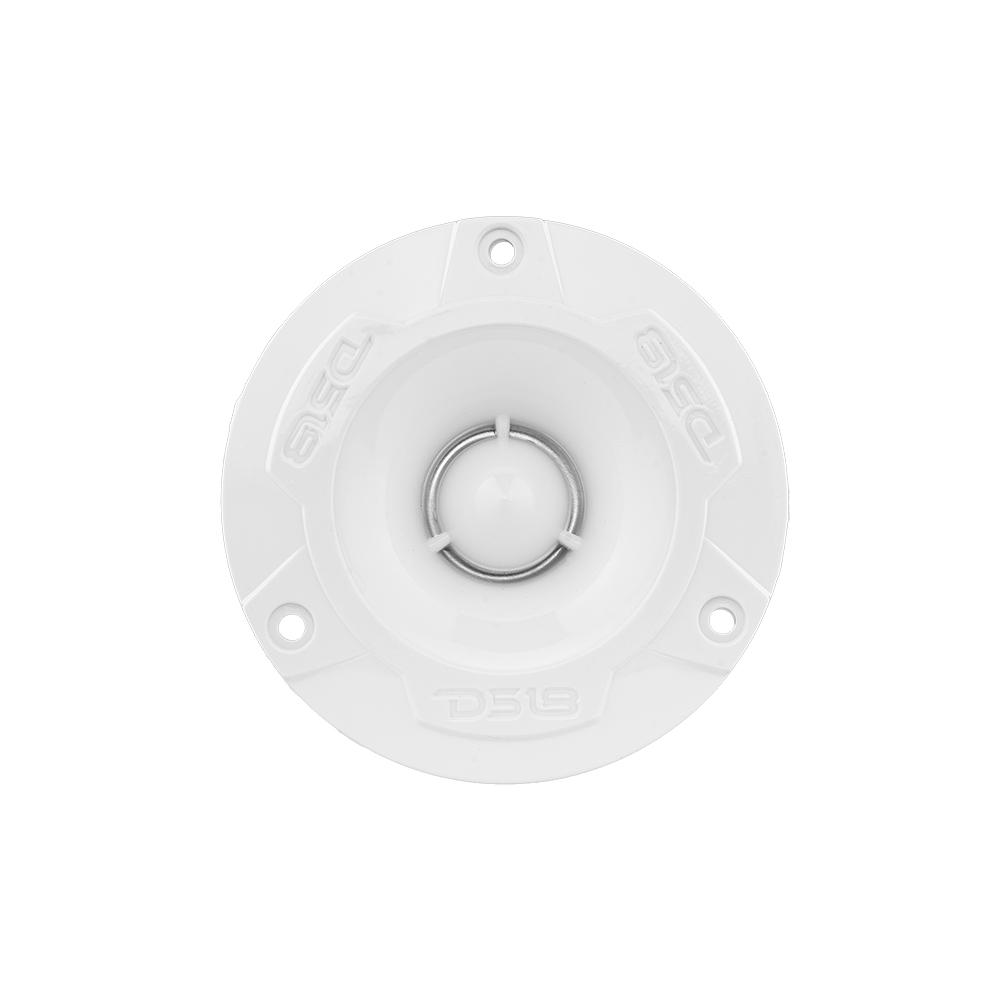

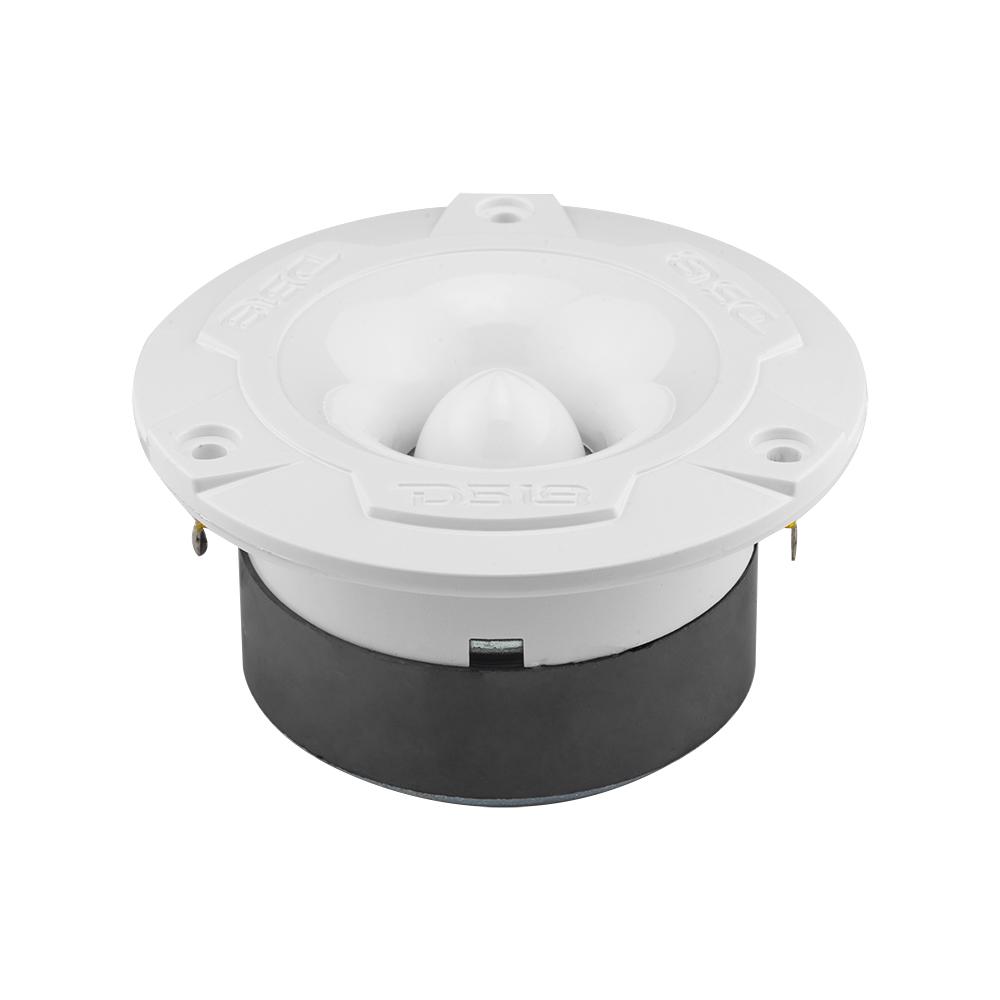

DS18 NXL-T1 NXL 3.8” Marine Water-Resistant Super Bullet Tweeter with 1” Aluminum Voice Coil | 120W RMS 4-Ohm
$79.95
RMS Power120W
Peak Power240W
Sensitivity103dB
01 Overview
The details
Product Overview
For fierce elements you need a completely 100% waterproof tweeter. DS18 is now happy to introduce the NXL-T1 Hydro water proof tweeter to blast the highs while you are out in the elements. This tweeter is designed to bring amazing clear highs while not leaving any of the inner working exposed so they will not be damaged by corrosion or water. These tweeters are perfect for exposed 4×4, marine, and motorcycle applications for worry free sound.
Highlights
Technical Details NXL-T1 Product Manual
02 Tech specs
By the numbers
RMS Power 01
120W
Continuous rating
Peak Power 02
240W
Short-burst rating
Sensitivity 03
103dB
Efficiency
Size 04
3.8in
Nominal
- RMS Power
- 120 Watts RMS
- Impedance
- 4 Ohms
- Nominal Impedance
- 4 Ohms
- AES Power Handling
- 60W
- Program Power Handling
- 120W
- Peak Power Handling
- 240W
- Recommended Hi Pass Crossover
- 2 KHz
- Frequency Response
- 3KHz-20 KHz
- Sensitivity (1w/1m)
- 103dB
- Voice Coil Diameter
- 1”/25.4 mm
- Voice Coil Former Material
- Kapton
- Winding Material
- CCAW
- Diaphragm Material
- Aluminum
- Magnet Material
- Ferrite
- Magnet Weight
- 8 Oz
- Body Material
- ASA
- Size
- 3.8 inch
- Mounting Depth
- 1.57” / 40 mm
- Nominal Diameter
- 3.75” / 95.2 mm
- Overall Diameter
- 3.78″ / 96 mm
- Overall Depth
- 2.26″ / 57.4 mm
- Front Mount Baffle Cutout
- 2.72″ / 70 mm
- Pair or Single
- Single
- Marine Grade Type
- IP36
- UV & Salt Protection
- Yes
