The details
Product Overview
DS18 designed the NXL-X850.4D for customers looking for a compact and waterproof amplifier with exceptional power output and prioritizes boosting sound.
The NXL series impressive power output is supplemented by its outstanding efficiency, and its durability in harsh conditions makes it a favorite among customers in need of a waterproof amplifier to be the powerhouse of their system.

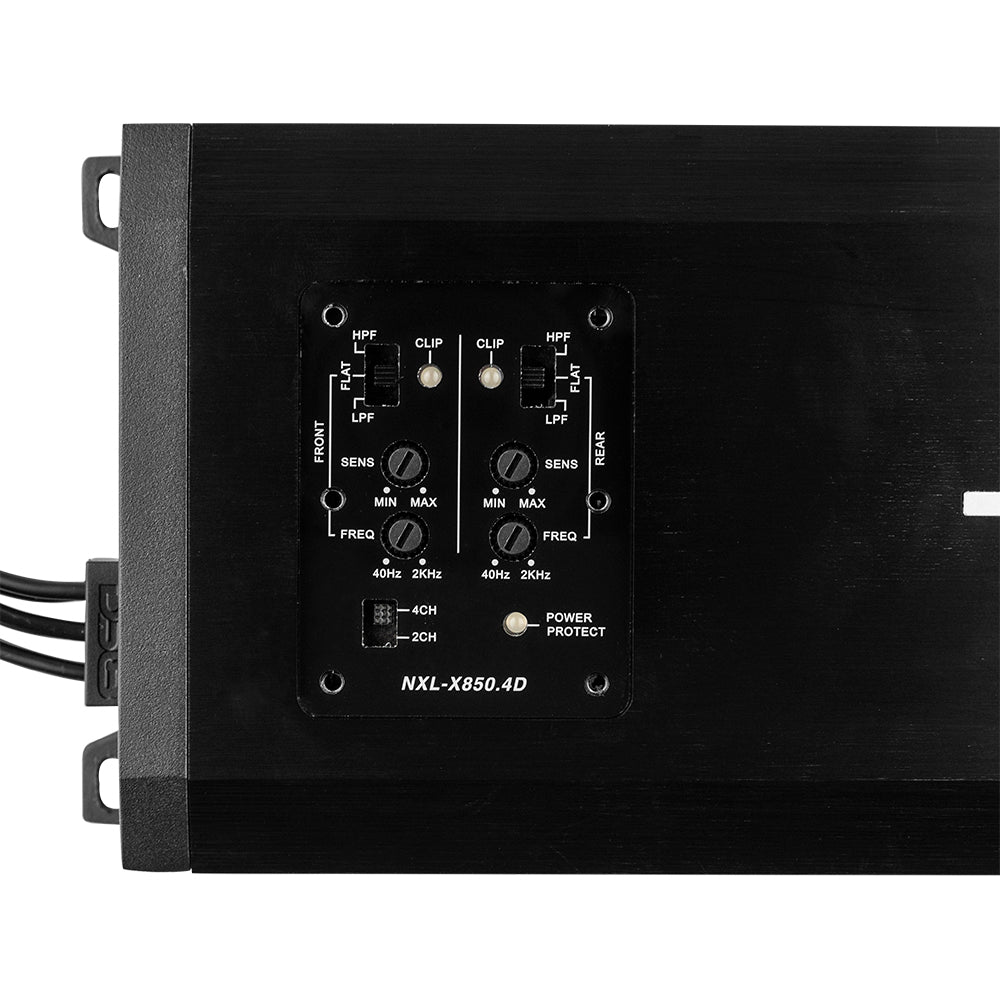

The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience.
All NXL units have stable and reliable 4-layer PCB layouts, IP67waterproof rating for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.
The NXL Marine Amplifier series is perfect for outdoor enthusiasts looking for a durable, waterproof amplifier with intense power for their marine vehicle’s audio system. This series is best used in various rugged and wet environments, such as on trails or at the lake.
Highlights
Great For
Technical Details Download NXL-X850.4D Product Manual
By the numbers
- Channels
- 4 Channel
- Amplifier Class
- Digital
- RMS Power
- 200 Watts RMS
- Impedance
- 4 Ohms
- Total Watts (Peak)
- 2400W
- RMS Power @ 4 ohm
- 4 x 200W
- RMS Power @ 2 ohm
- 4 x 300W
- RMS Power @ 1 ohm
- –
- RMS Power @ 4 ohm Bridge
- 2 x 600W
- Input Impedance
- 20KΩ
- Channel Separation
- 60dB
- Low Level Input Range
- 200mV-5V
- X-Over Filter Range
- 40Hz-2KHz
- Bass Boost Range
- N/A
- Infrasonic Filter
- No
- Number of Channels
- 4
- Minimum Impedance
- 2 Ohms (Stereo) / 4 Ohm (Bridge)
- Power Input Size
- 8GA Tinned OFC
- Fuse Size
- 2 x 50A (100A)
- Short Circuit Output Protection
- Yes
- Voltage Input Protection
- Yes (7-16V)
- Frequency Response
- 10Hz-20KHz
- Efficiency @ 4ohm
- 0.83
- Total Harmonic Distortion (THD)
- < 0.04%
- Bass Boost Frequency
- N/A
- Body Color / Finish
- Black Brushed Aluminum
- Overall Length
- 11.8″ / 301mm
- Overall Height
- 1.77″ / 45mm
- Heatsink Length
- 10.2″ / 261mm
- Gross Single Unit Weight
- 2.4kg
- Signal to Noise Ratio 1W@4Ω
- > 83dB
- Selectable X-Over
- Yes (HPF/Full/LPF)
- Phase Selector
- No
- Amplifier Type
- Stereo Full Range
- Led Indicators
- Power / Protection / Clip
- Thermal Protection
- Yes (78°C)
- Over-Load Protection
- Yes
- Overall Wide
- 4.4″ / 112mm
