Description
Product Overview
DS18 designed the NXL-X900.6D for customers looking for a compact and waterproof amplifier with exceptional power output and prioritizes boosting sound.
The NXL series impressive power output is supplemented by its outstanding efficiency, and its durability in harsh conditions makes it a favorite among customers in need of a waterproof amplifier to be the powerhouse of their system.
The NXL-X900.6D comes in a 6-channel configuration making it great for powering more complicated active setups.

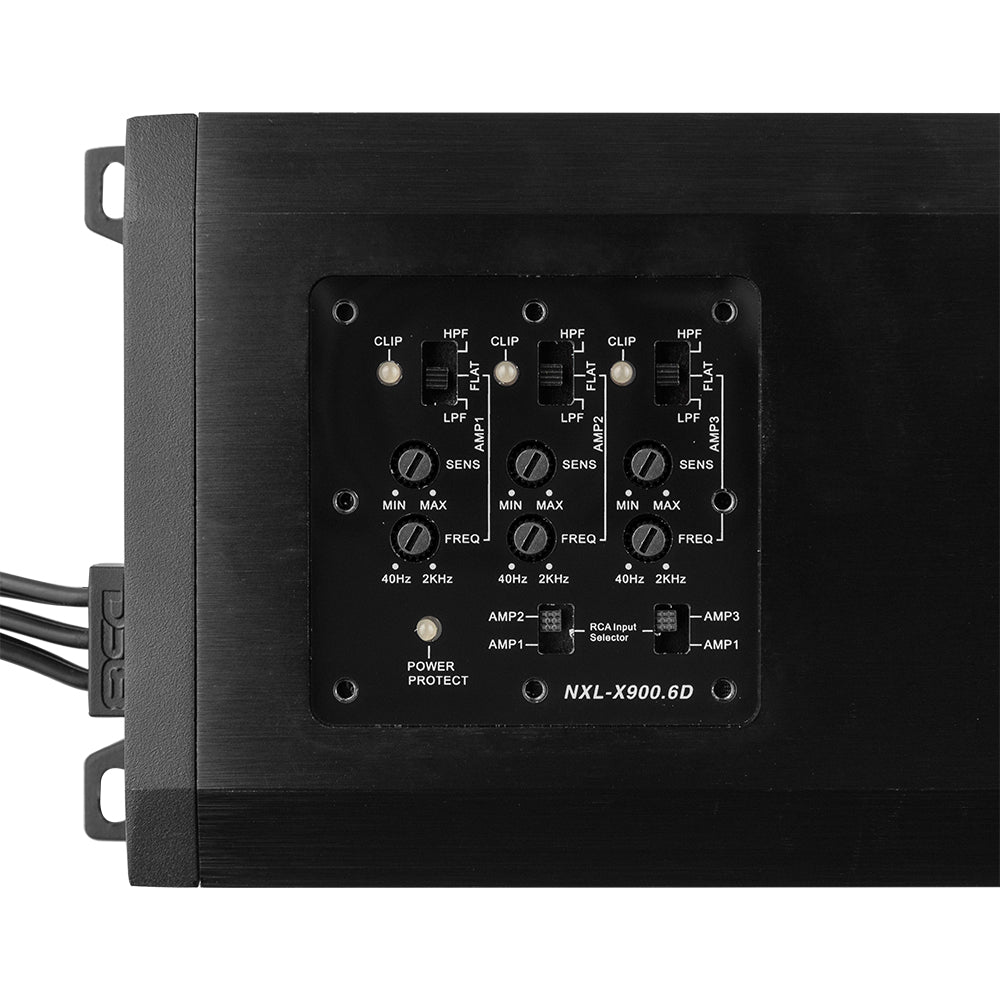

The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience.
All NXL units have stable and reliable 4-layer PCB layouts, IP67waterproof rating for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.
The NXL Marine Amplifier series is perfect for outdoor enthusiasts looking for a durable, waterproof amplifier with intense power for their marine vehicle’s audio system. This series is best used in various rugged and wet environments, such as on trails or at the lake.
Highlights
Great For
Technical Details Download NXL-X900.6D Product Manual
Technical Data
| Specification | Details |
|---|---|
| Channels | 6 Channel |
| Amplifier Class | Digital |
| RMS Power | 150 Watts RMS |
| Impedance | 4 Ohms |
| Frequency Response | 10Hz-20KHz |
| Total Watts (Peak) | 3000W |
| RMS Power @ 4 ohm | 6 x 150W |
| RMS Power @ 2 ohm | 6 x 250W |
| RMS Power @ 1 ohm | – |
| RMS Power @ 4 ohm Bridge | 3 x 500W |
| Signal to Noise Ratio 1W@4Ω | > 84dB |
| Efficiency @ 4ohm | 0.87 |
| Input Impedance | 20KΩ |
| Channel Separation | 60dB |
| Total Harmonic Distortion (THD) | < 0.03% |
| Low Level Input Range | 200mV-5V |
| Selectable X-Over | Yes (HPF/Full/LPF) |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | No |
| Phase Selector | No |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 6 |
| Minimum Impedance | 2 Ohms (Stereo) / 4 Ohm (Bridge) |
| Led Indicators | Power / Protection / Clip |
| Power Input Size | 4GA Tinned OFC |
| Fuse Size | 2 x 60A (120A) |
| Thermal Protection | Yes (75°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7-16V) |
| Body Color / Finish | Black Brushed Aluminum |
| Overall Length | 14″ / 360mm |
| Overall Wide | 4.4″ / 112mm |
| Overall Height | 1.77″ / 45mm |
| Heatsink Length | 12.5″ / 320mm |
| Gross Single Unit Weight | 2.6kg |
