Product Overview
Why we stock the DS18 PRO-1.5KP10.4

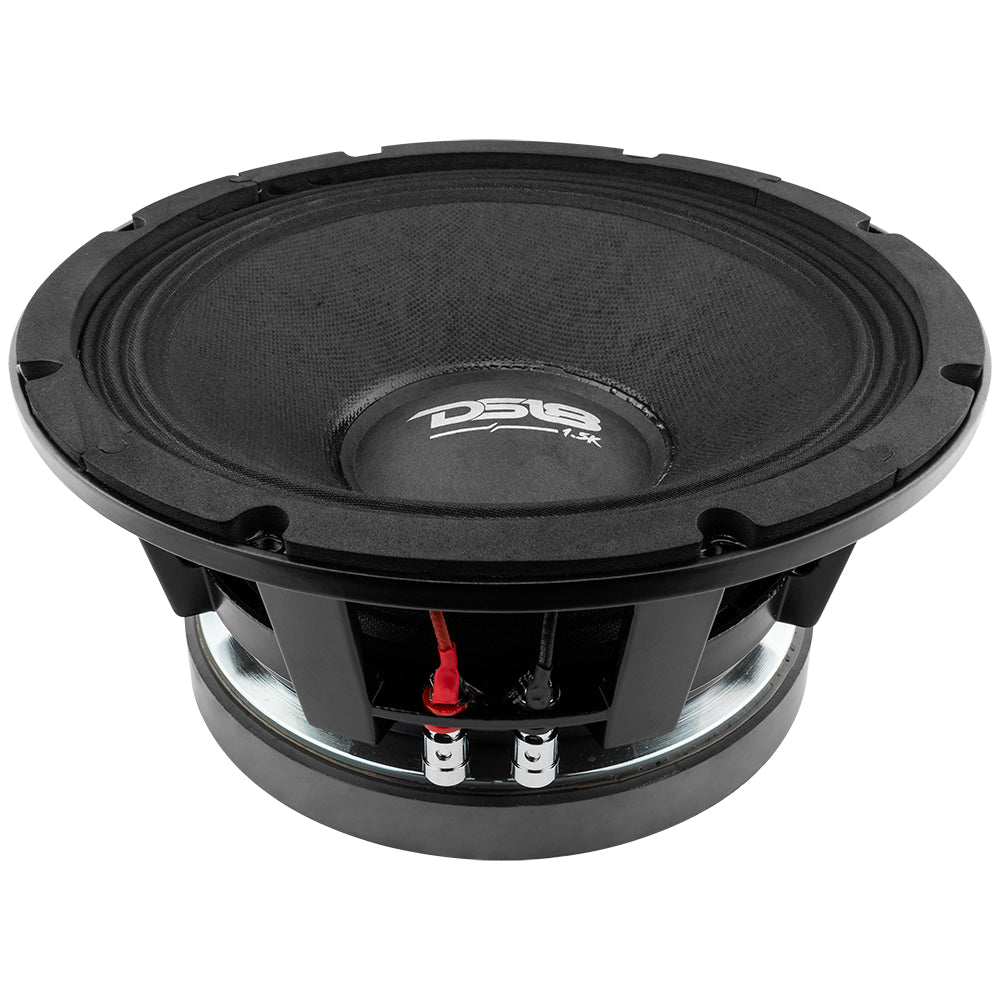

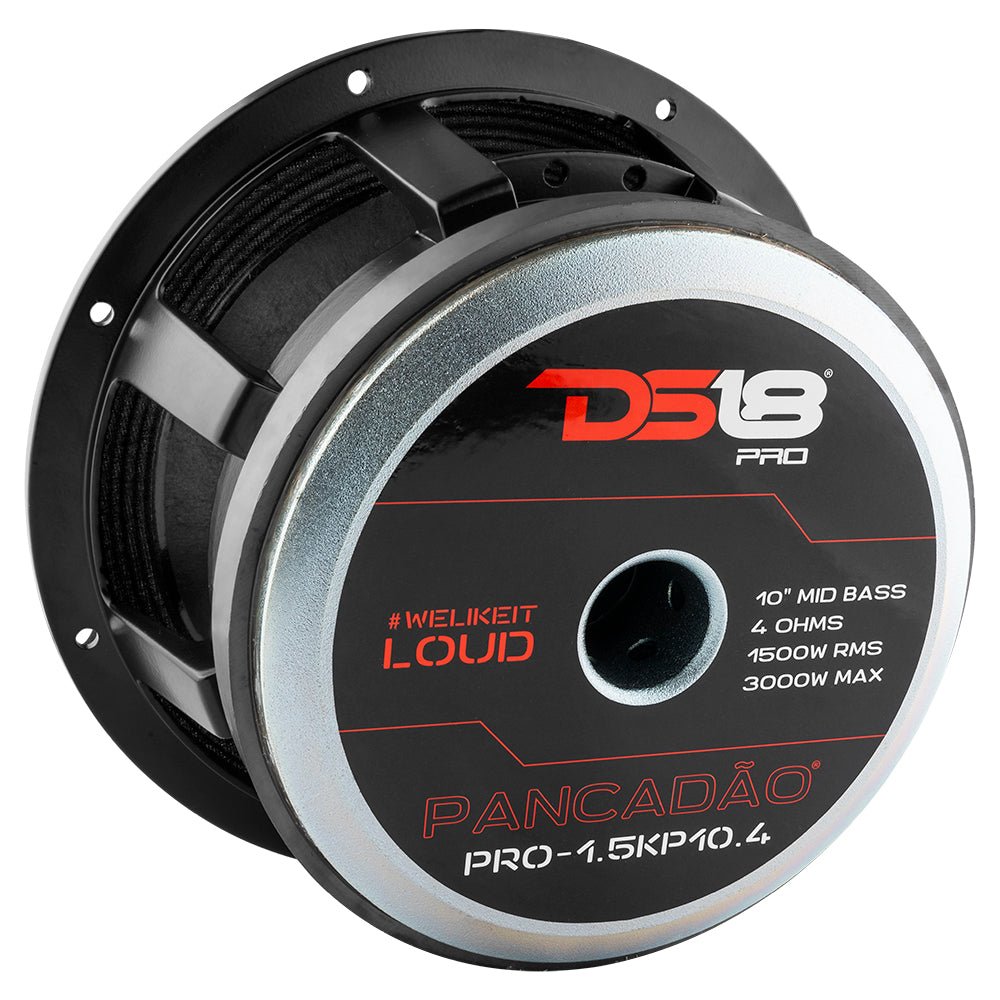

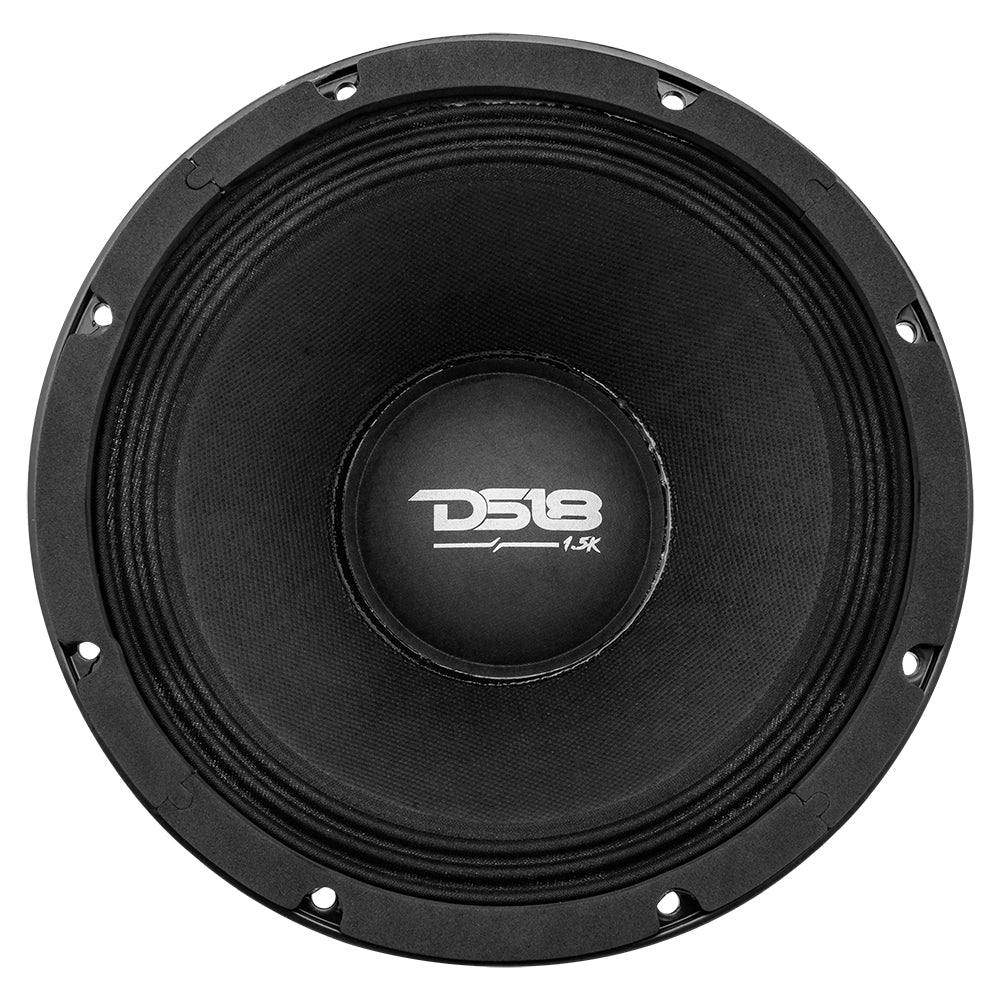

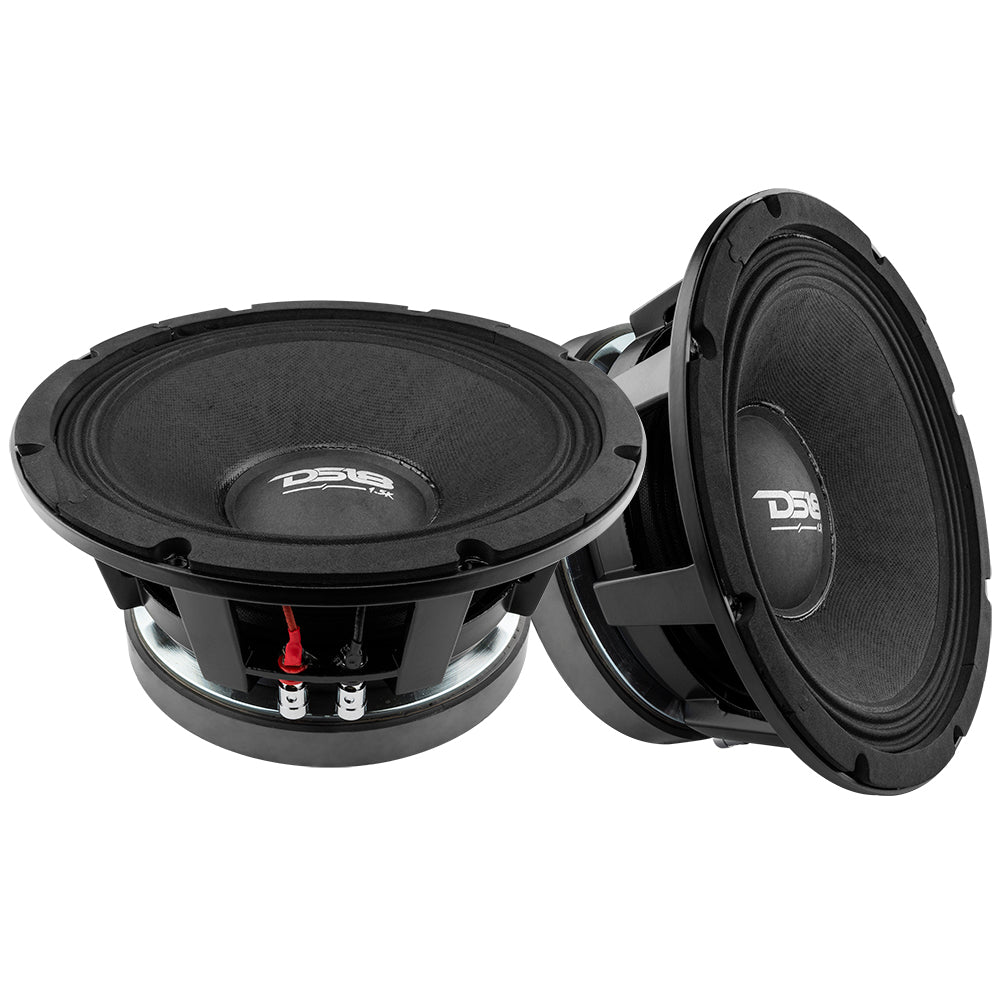

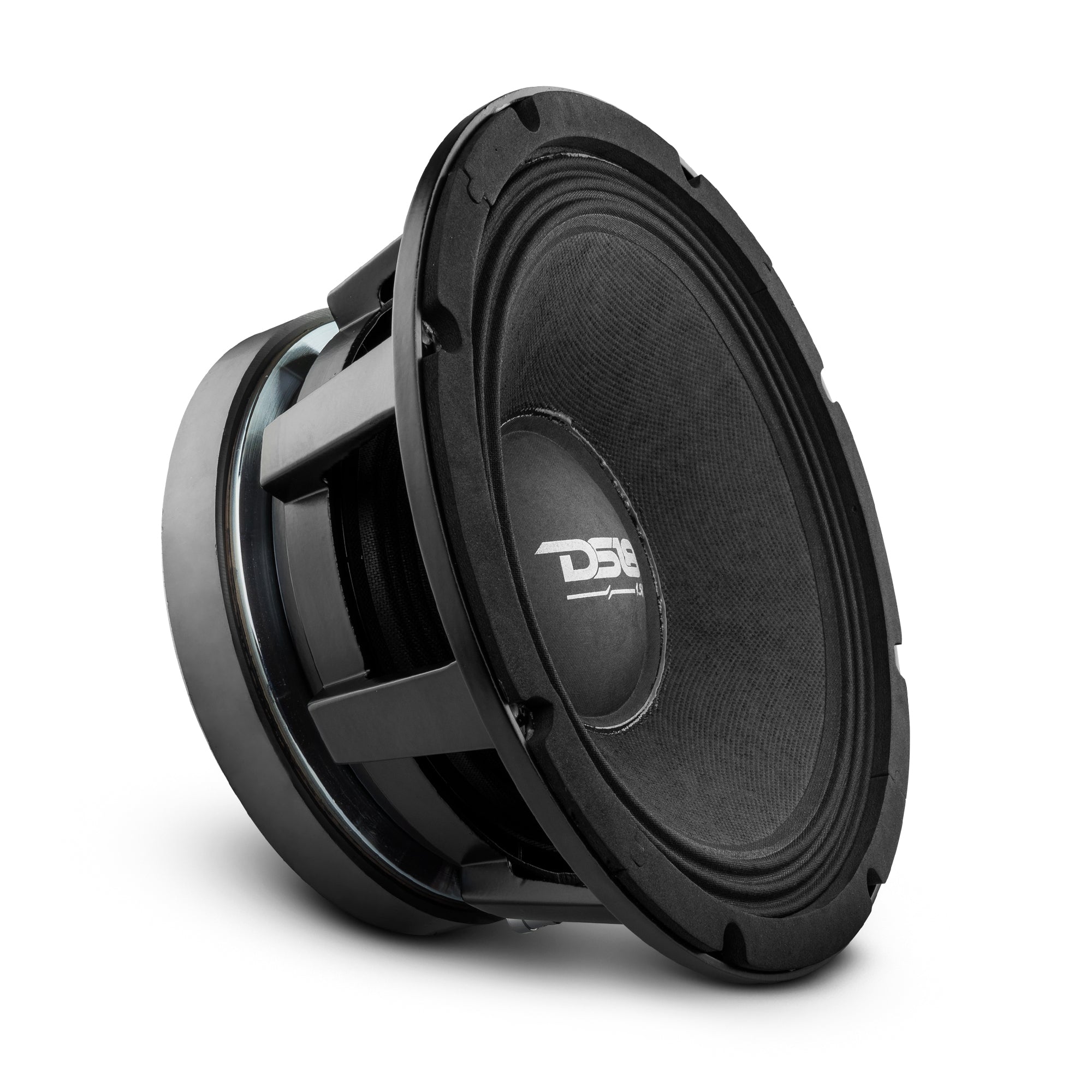

The DS18 PRO-1.5KP10.4 is the 10″ PANCADÃO mid-bass. It handles 1,500 watts RMS (3,000 max) at 4 ohms with 94.4 dB sensitivity, uses a 3″ voice coil and a 91 oz ferrite magnet, and plays from 80Hz to 10kHz.
It hits hard on kick drum while still playing vocals. Need 8 ohms for more speakers per channel? See the PRO-1.5KP10.8. Want even more low end? Look at the PRO-1.5KP12.4.
The PANCADAO from DS18 has new siblings to complement anyone’s high performance pro audio system! Now, not only do we offer them in 12″, but also 10″, and 8″ so everyone can get a piece of PANCADAO in their build. These high performance “do all” woofers can play an amazing range of frequencies. From hard punching mid-bass to mid high vocals at an unbelievable volume. These are the go to DS18 Pro Audio speakers to set your sound above the rest.
Technical Details Download PRO-1.5KP10.4 Product Manual
Key Features
- The most powerful midbass DS18 has to offer that not only plays intense punch mid-bass, it also has the ability to play mid to high vocals as well.
- Large high strength ferrite magnet and reinforced basket for great power handing and durability.
- Designed for intense mid-bass and high powered audio systems needing massive mid-bass.
By the numbers
- RMS Power
- 1500 Watts RMS
- Impedance
- 4 Ohms
- RMS Power Handling
- 1500 Watts
- MAX Power Handling
- 3000 Watts
- Minimum Impedance
- 4 Ohms
- Sensitivity (1w/1m)
- 94.4dB
- Frequency Response
- 80Hz-10KHz
- Voice Coil Diameter
- 3″
- Winding Material
- CCAW
- Magnet Weight
- Ferrite 91oz
- Basket Material
- Aluminum
- Size
- 10 inch
- Overall Diameter
- 10.51″
- Baffle Cutout Diameter
- 9.6″
- Overall Depth
- 5.23″
- Mounting Depth
- 4.8″
- Model
- PRO-1.5KP10.4
