Description
Product Overview
Neodymium is known for being the best option for magnets in your speaker motors which give the loudest and most efficient speaker.

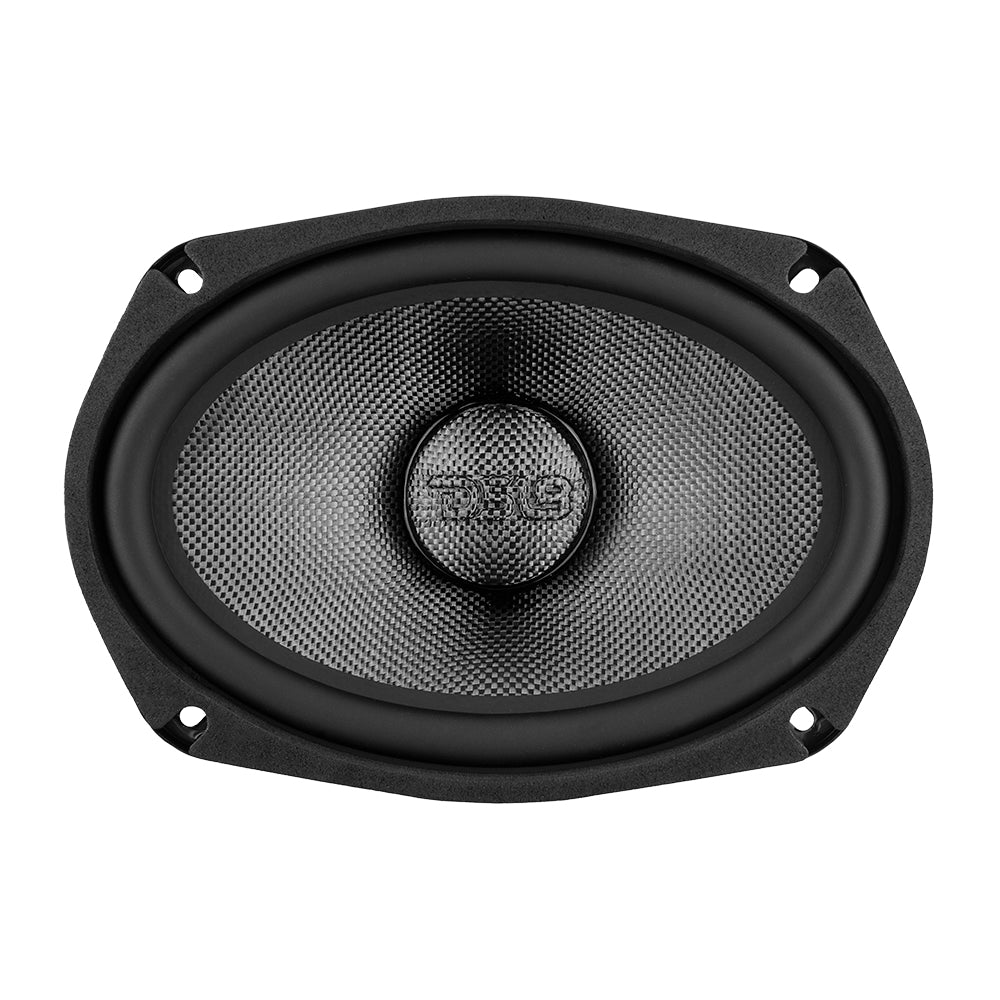

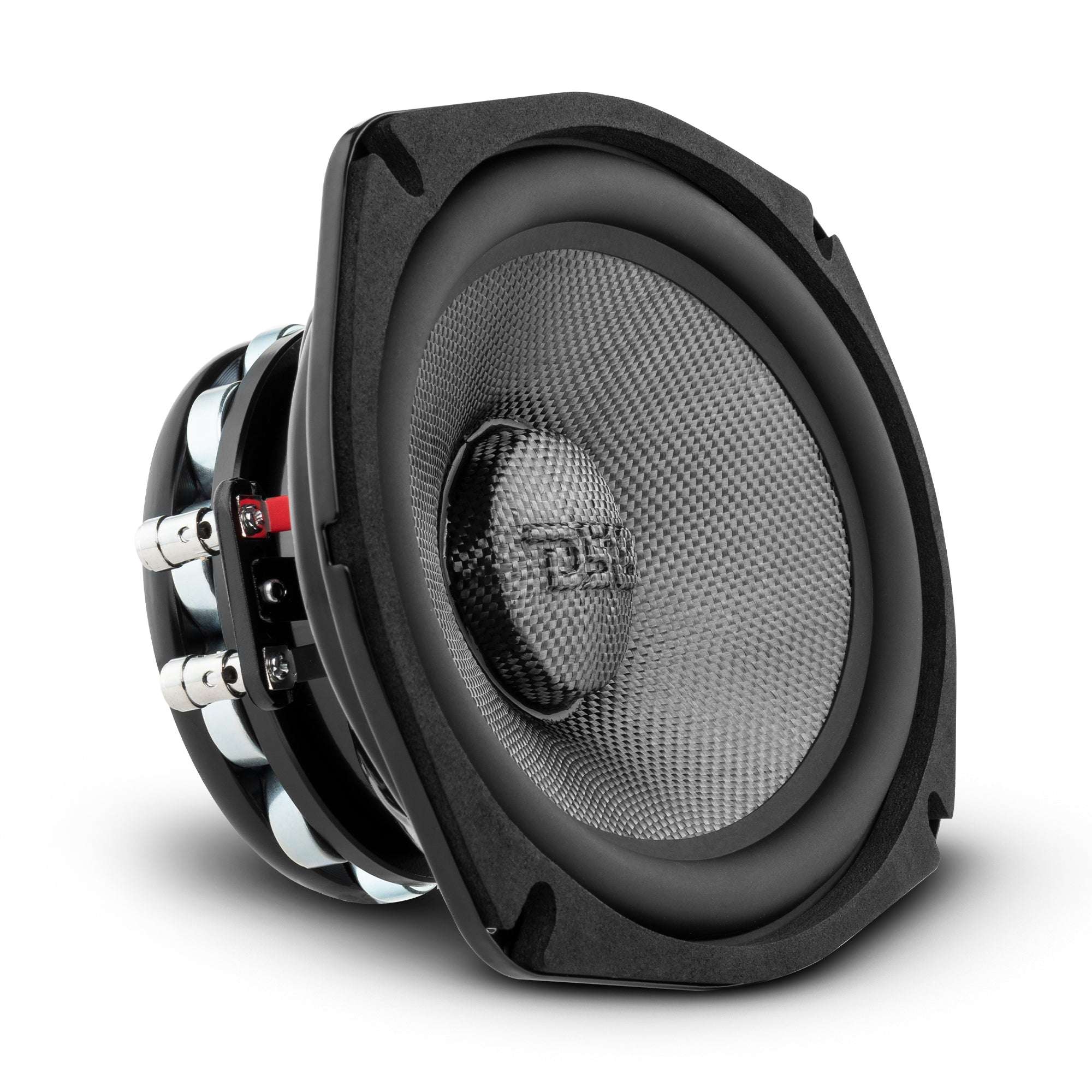

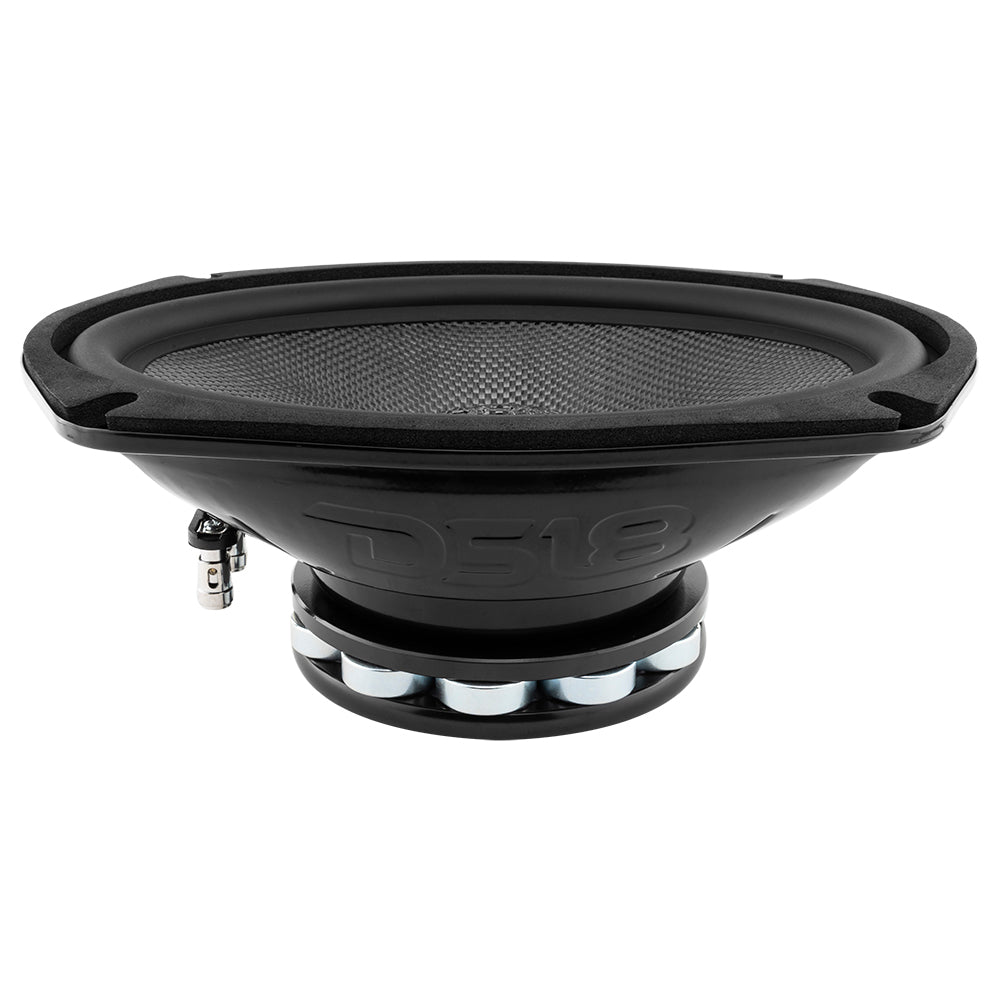

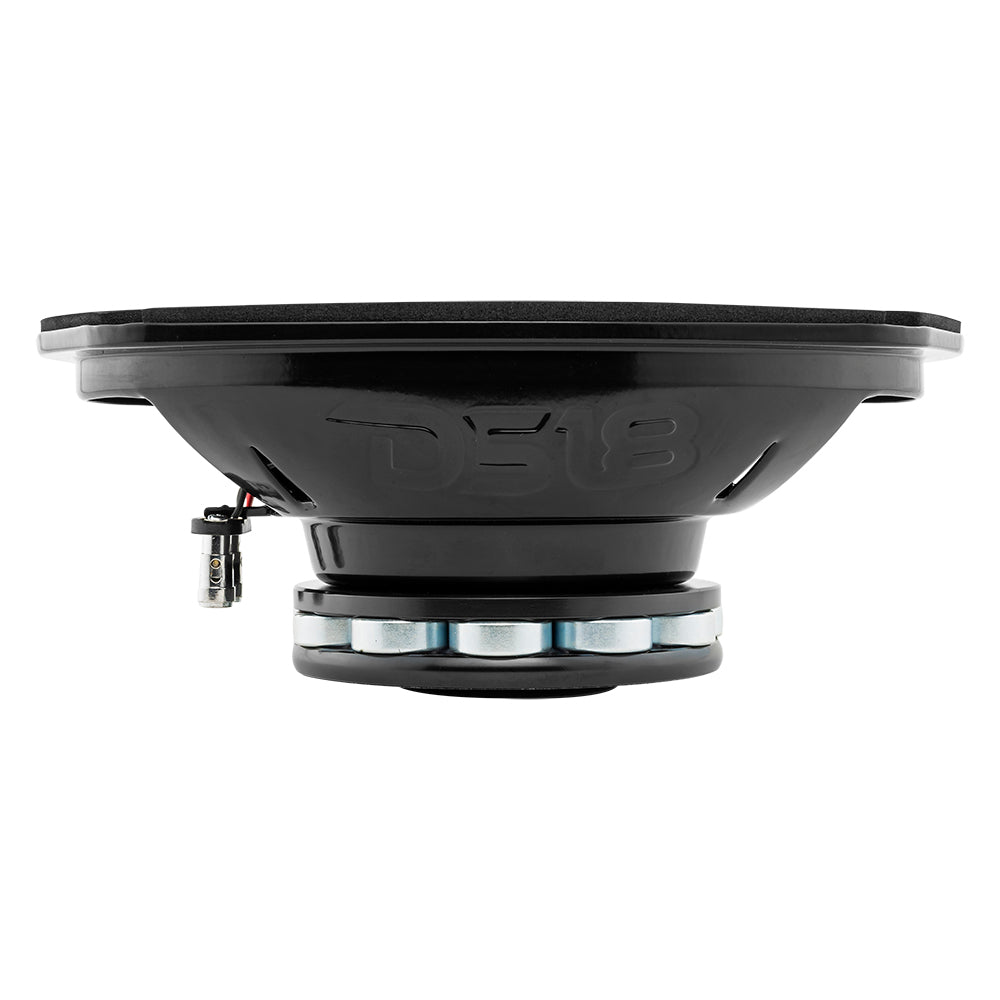

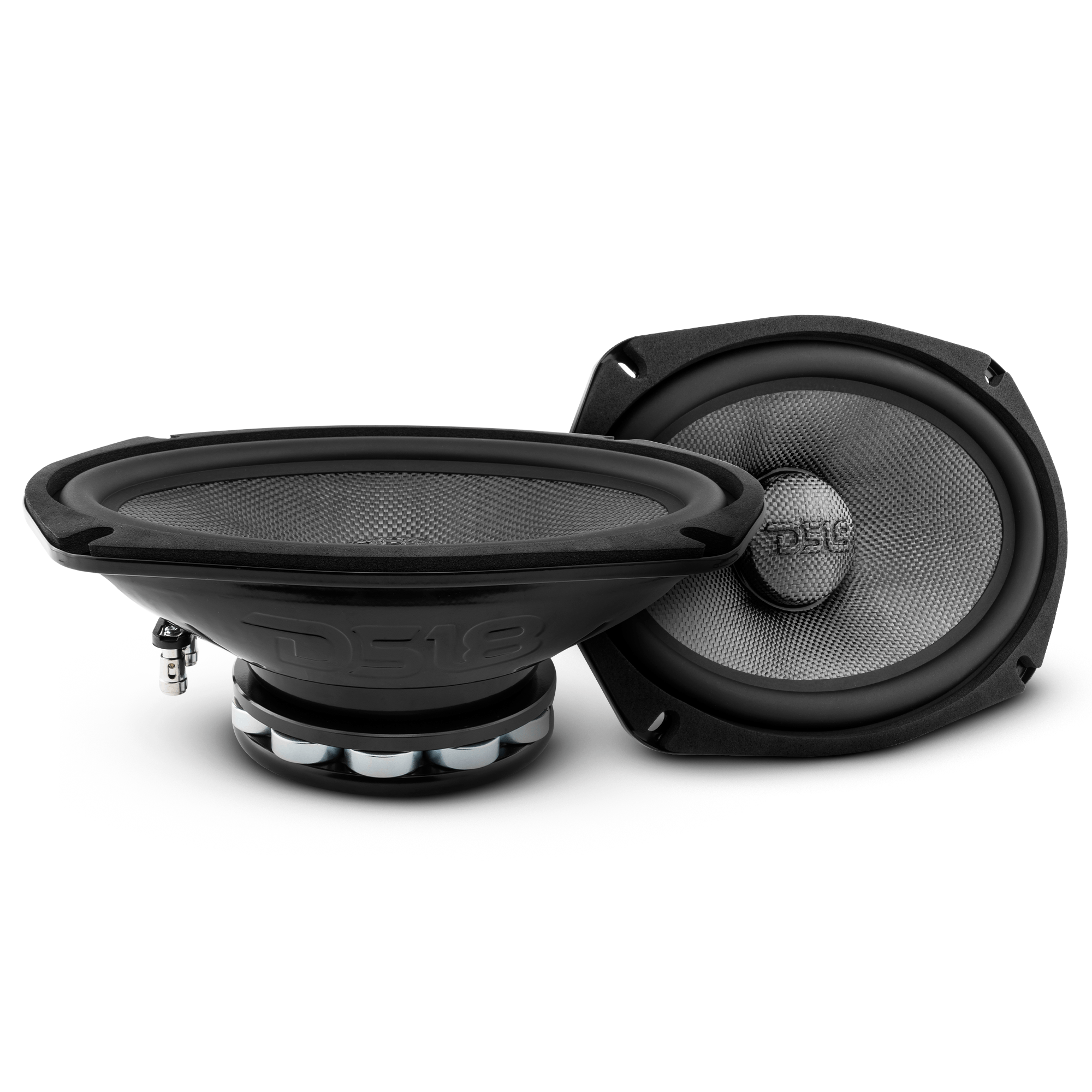

DS18 has an amazing line of loudspeakers that are not only water resistant, they are centered around a Neodymium magnet, with super strong rubber surround, and high tech carbon fiber cones that gives not only great looks, but very high sensitivity levels for an amazing water resistant speaker that you can play loud and clear out in the elements.
This super loudspeaker can be used for many applications, It can be used in motorcycles, cars, motorsports, home, and marine applications alike!
The PRO-CF69.2NR handles great power; rated at 300 watts RMS and 600 watts max, you know this powerhouse of a speaker can get loud and clear!
Highlights
Key Features
Great For:
Technical Details PRO-CF69.2NR Product Manual
Technical Data
| Specification | Details |
|---|---|
| RMS Power | 300 Watts RMS |
| Peak Power | 600 Watts Max |
| Impedance | 2 Ohms |
| Frequency Response | 63Hz-12KHz |
| Mounting Depth | 3.25″ / 82.5mm |
| Nominal Diameter | 6×9″ / 152x228mm |
| Nominal Impedance | 2 ohms |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 95dB |
| Recommended HI Pass Crossover | 80Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 2″ / 50mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | WP Carbon Fiber |
| Dust Cap Material | WP Carbon Fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Gloss Black |
| Magnet Material | Neodymium Rings |
| Magnet Weight | 0.3Kg |
| Overall Diameter | 6.48×9.29″ / 164.5x236mm |
| Overall Depth | 3.44″ / 87.5mm |
| Front Mount Baffle Cutout | 5.94×8.58″ / 151x218mm |
| Motor Diameter | 4.45″ / 113mm |
