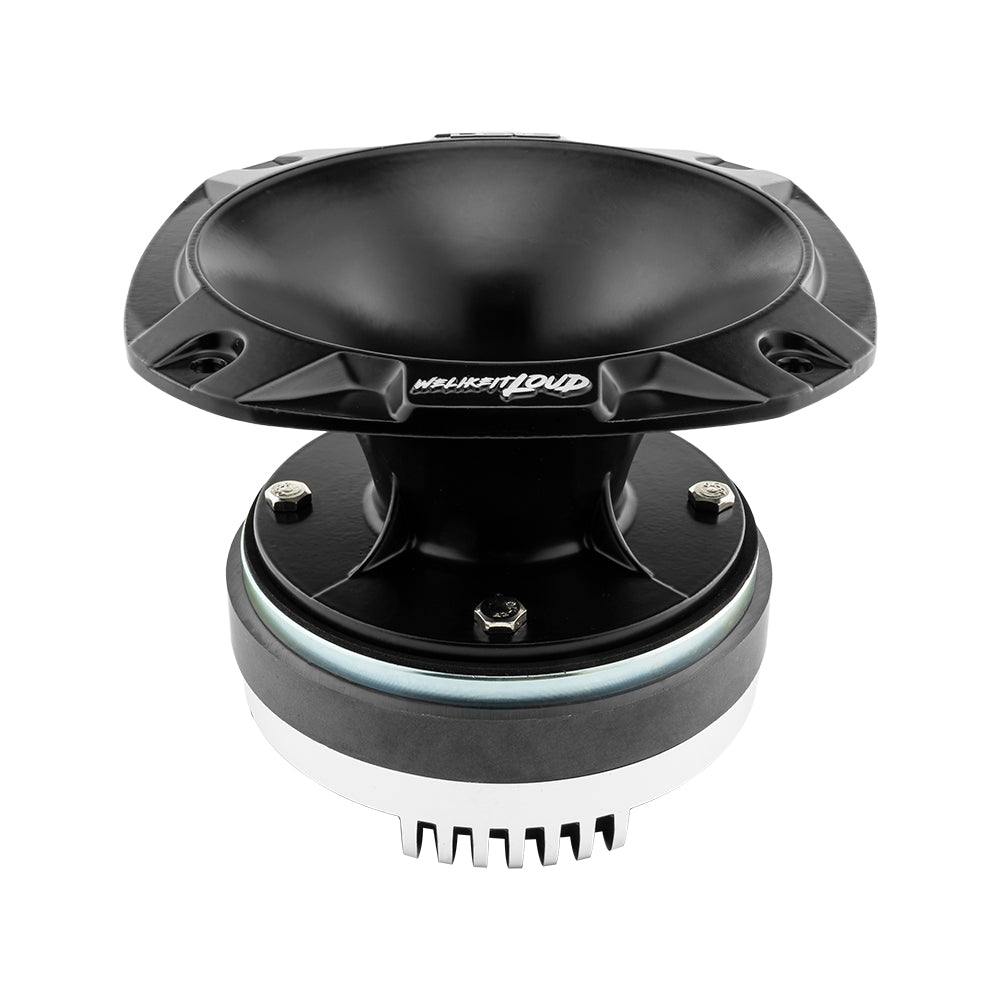

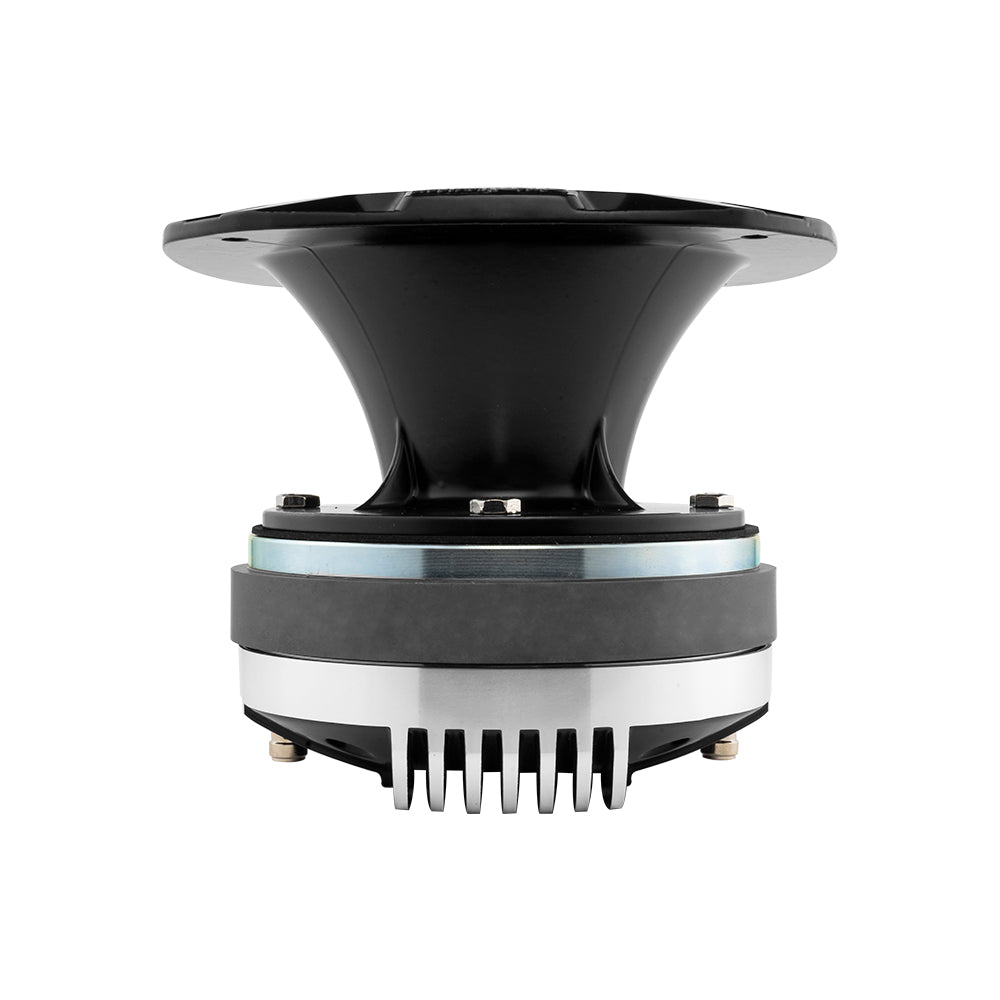

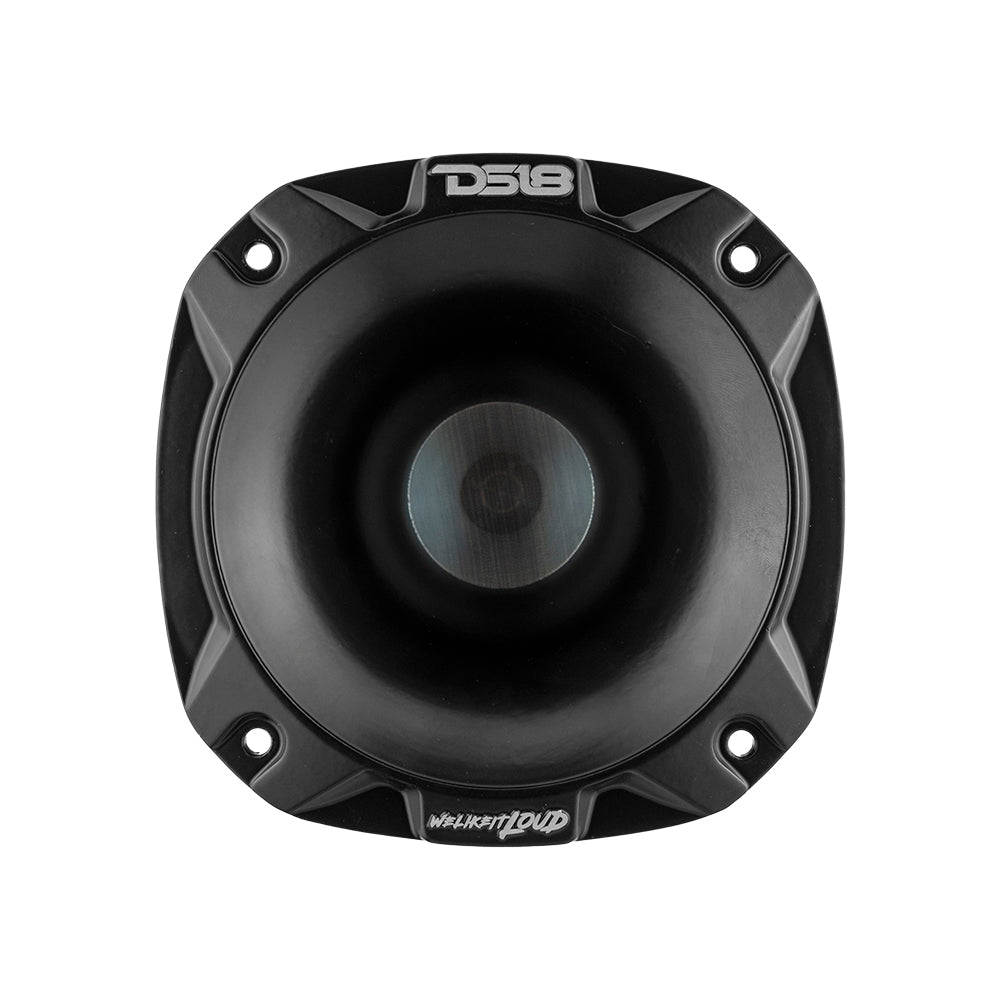

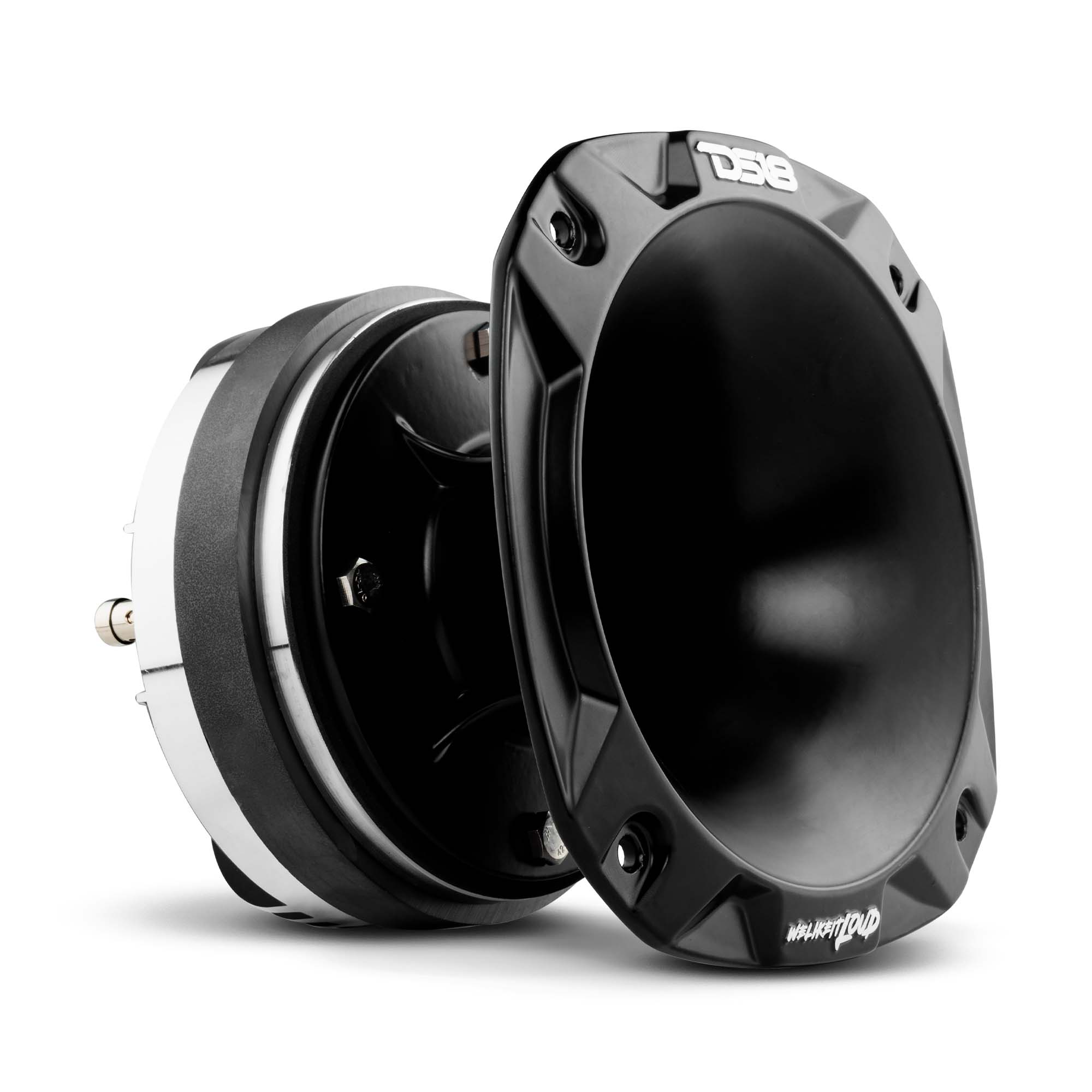

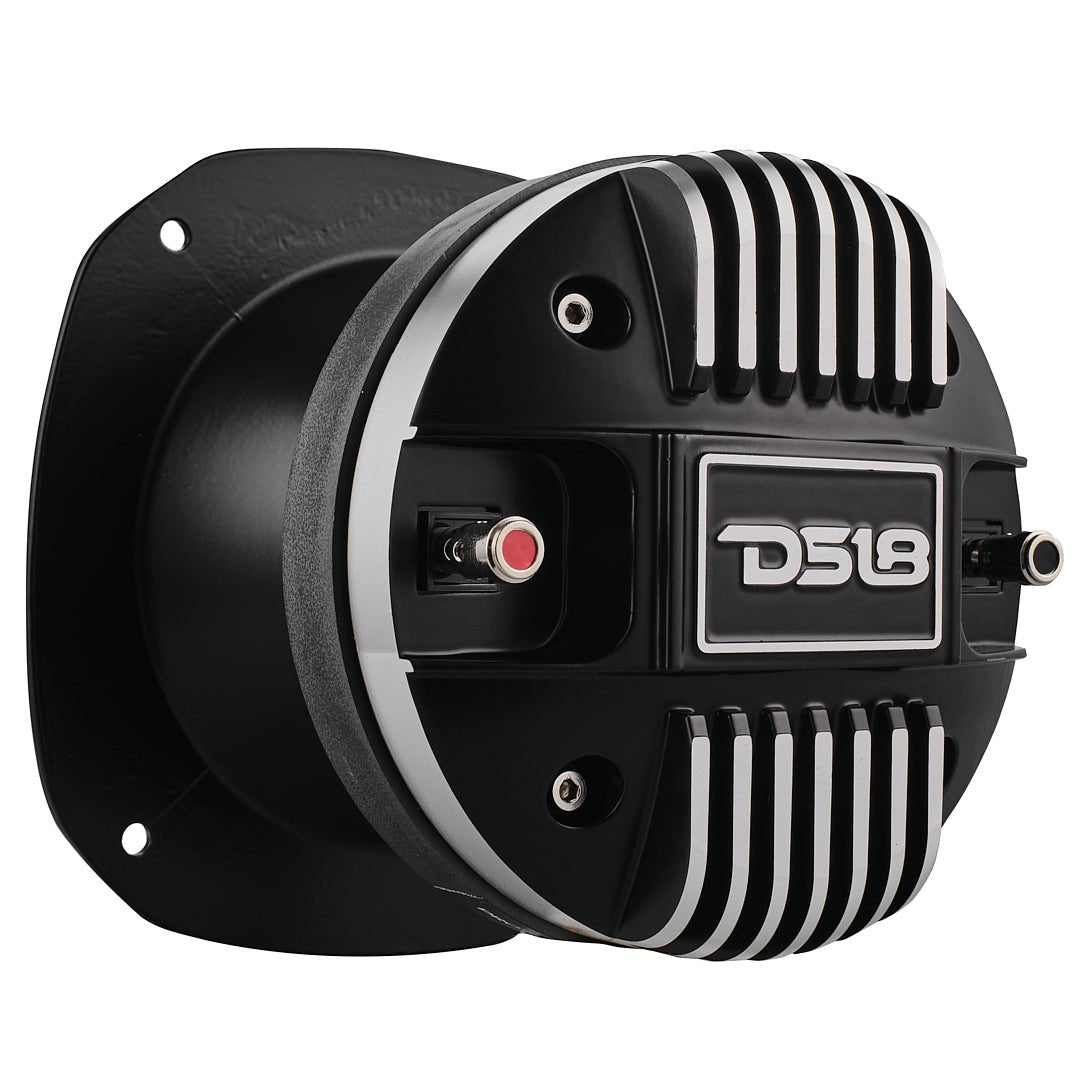

DS18 PRO-DKH1S 2″ Driver Short Horn Kit 320 Watts 2″ Titanium 8-Ohm Vc (PRO-D1+PRO-HA52/BK)
$109.95
Peak Power640W
Sensitivity111dB
Size2in
01 Overview
The details
Product Overview
DS18 PRO-DKH1S 2″Bolt On Throat Compression Driver 2″ Throat Titanium VC and PRO-HA52/BK Horn 640 Watts 110 Db 8 ohm Mounting Depth 4.9″
The DKH1S includes the DS18 DKH1 driver plus our newly redesigned shorty throat so you only need 4.9 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and Peak at 640w you will be sure to draw everyone’s attention to your audio!
Highlights
Technical Details PRO-DKH1S Product Manual
02 Tech specs
By the numbers
Peak Power 01
640W
Short-burst rating
Sensitivity 02
111dB
Efficiency
Size 03
2in
Nominal
Weight 04
35oz
Per unit
- Impedance
- 8 Ohms
- Nominal Impedance
- 8 Ohms
- Program Power Handling
- 320W
- Peak Power Handling
- 640W
- AES Power Handling
- 160W
- Recommended HI Pass Crossover
- 900 Hz
- Sensitivity
- 111dB
- Frequency Response
- 630Hz-20KHz
- Voice Coil Diameter
- 2.03″/51mm
- Voice Coil Former Material
- Kapton
- Winding Material
- CCA
- Diaphragm Material
- Titanium
- Magnet Material
- Ferrite
- Magnet Weight
- 35oz
- Size
- 2 inch
- Mounting Depth
- 4.9″/125.8mm
- Throat Diameter
- 2″/50.8mm
- Overall Diameter
- 7″/180mm
- Overall Depth
- 5.3″/134.7mm
- Mounting Hole Diameter
- 5.7″/145mmm
- Installation Type
- Bolt-on
- Bolt Pattern/Type
- 5.5mm hole-6.3″/161 mm Diameter
