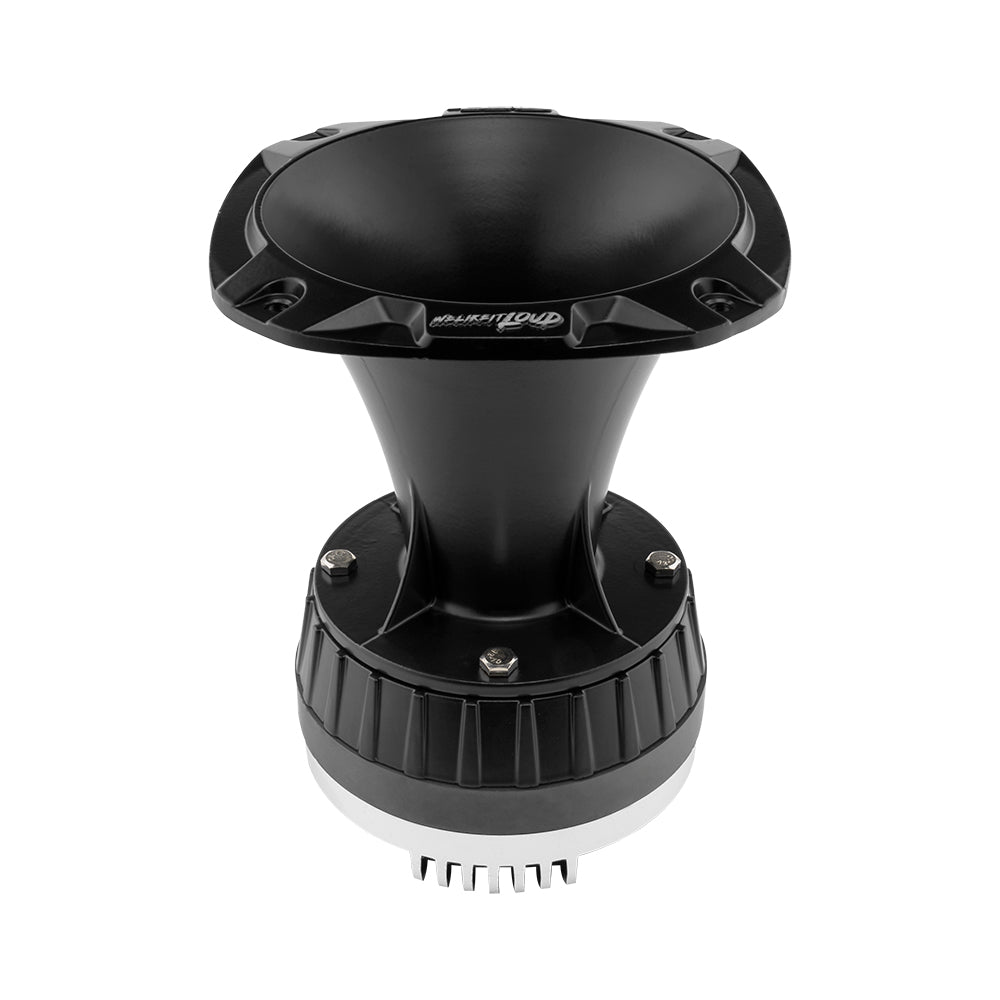

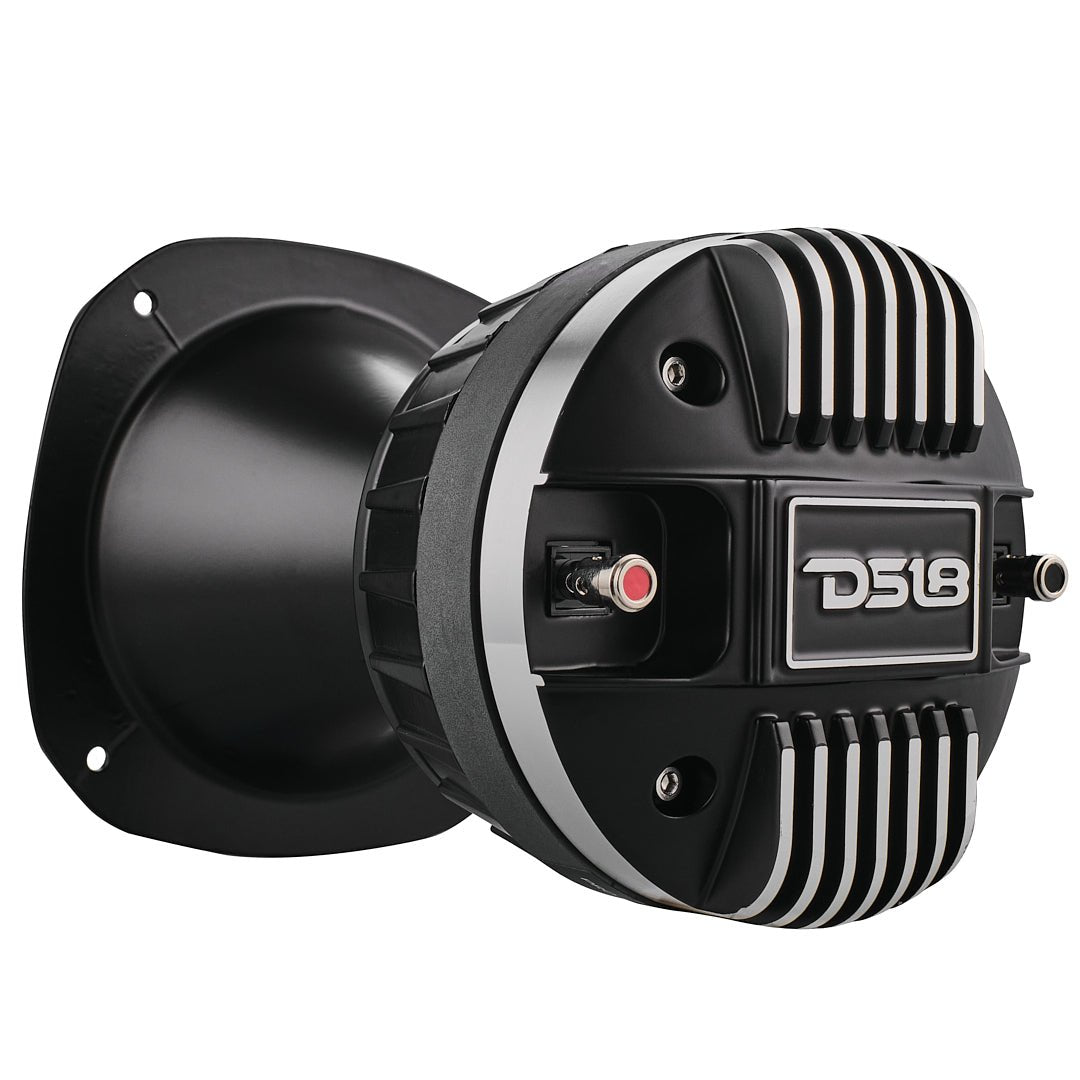

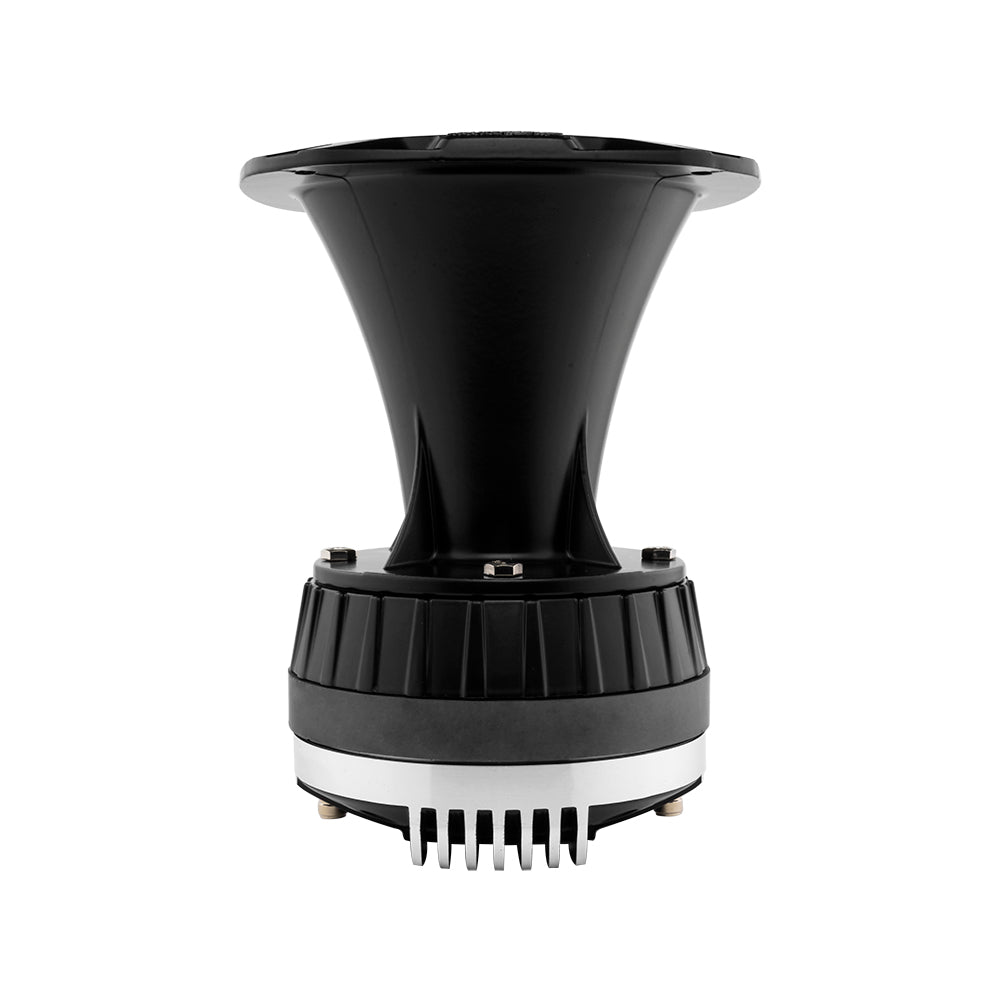

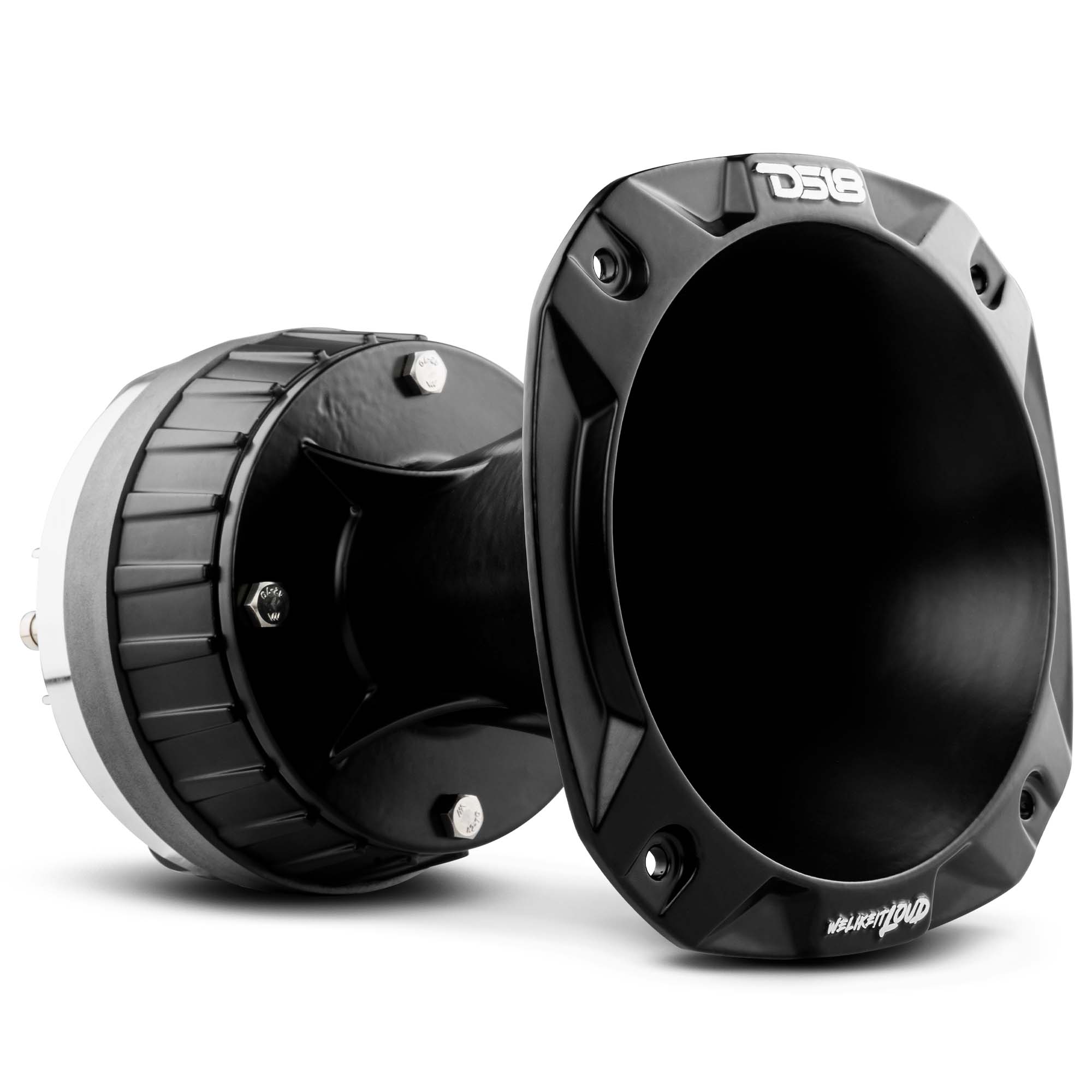

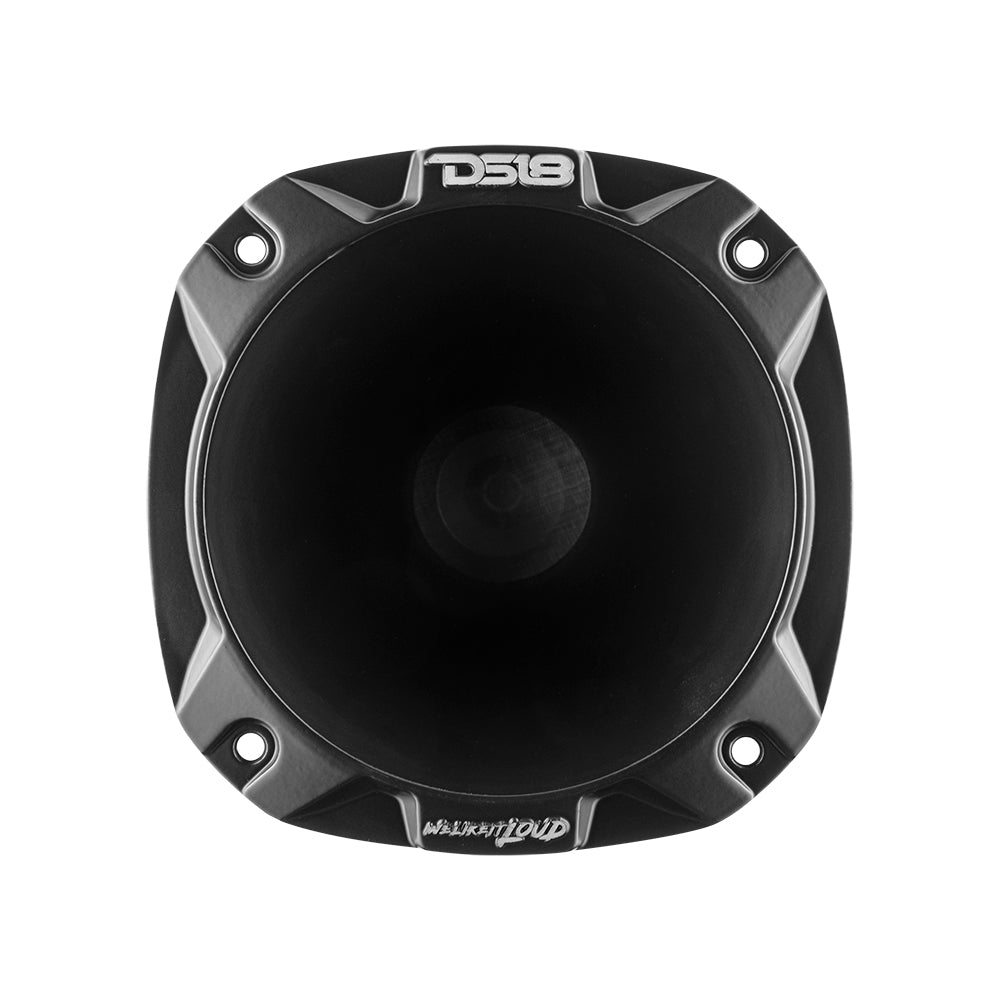

DS18 PRO-DKH1X 2″ Driver with Spacer And Horn Kit 320 Watts 2″ Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)

$129.95

Peak Power640W
Sensitivity111dB
Size2in

Out of stock

01 Overview

The details

Product Overview

Everyone is looking for louder horns and what they can do to tweak them. We make that easy for you with no guesswork with the DKH1X. This full size driver includes the DS18 DKH1 redesigned to be louder with the included dB spacer to increase the drivers overall sensitivity. Plus our newly redesigned shorty throat so you only need 7.9 inches depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and Peak at 640w you will be sure to draw everyone’s attention to your audio!

Highlights

Technical Details

PRO-DKH1X Product Manual

02 Tech specs

By the numbers

PRO-DKH1X · Manufacturer rated
Peak Power 01
640W
Short-burst rating
Sensitivity 02
111dB
Efficiency
Size 03
2in
Nominal
Weight 04
35oz
Per unit

Impedance
8 Ohms
Nominal Impedance
8 Ohms
Program Power Handling
320W
Peak Power Handling
640W
AES Power Handling
160W
Recommended HI Pass Crossover
900 Hz

Sensitivity
111dB
Frequency Response
630Hz-20KHz

Voice Coil Diameter
2.03″/51mm
Voice Coil Former Material
Kapton
Winding Material
CCA
Diaphragm Material
Titanium
Magnet Material
Ferrite
Magnet Weight
35oz

Size
2 inch
Mounting Depth
7.9″/201.5mm
Throat Diameter
2″/50.8mm
Overall Diameter
7″/180mm
Overall Depth
8.3″/211mm
Mounting Hole Diameter
5.7″/145mmm

Installation Type
Bolt-on
Bolt Pattern/Type
5.5mm hole-6.3″/161 mm Diameter
