DS18

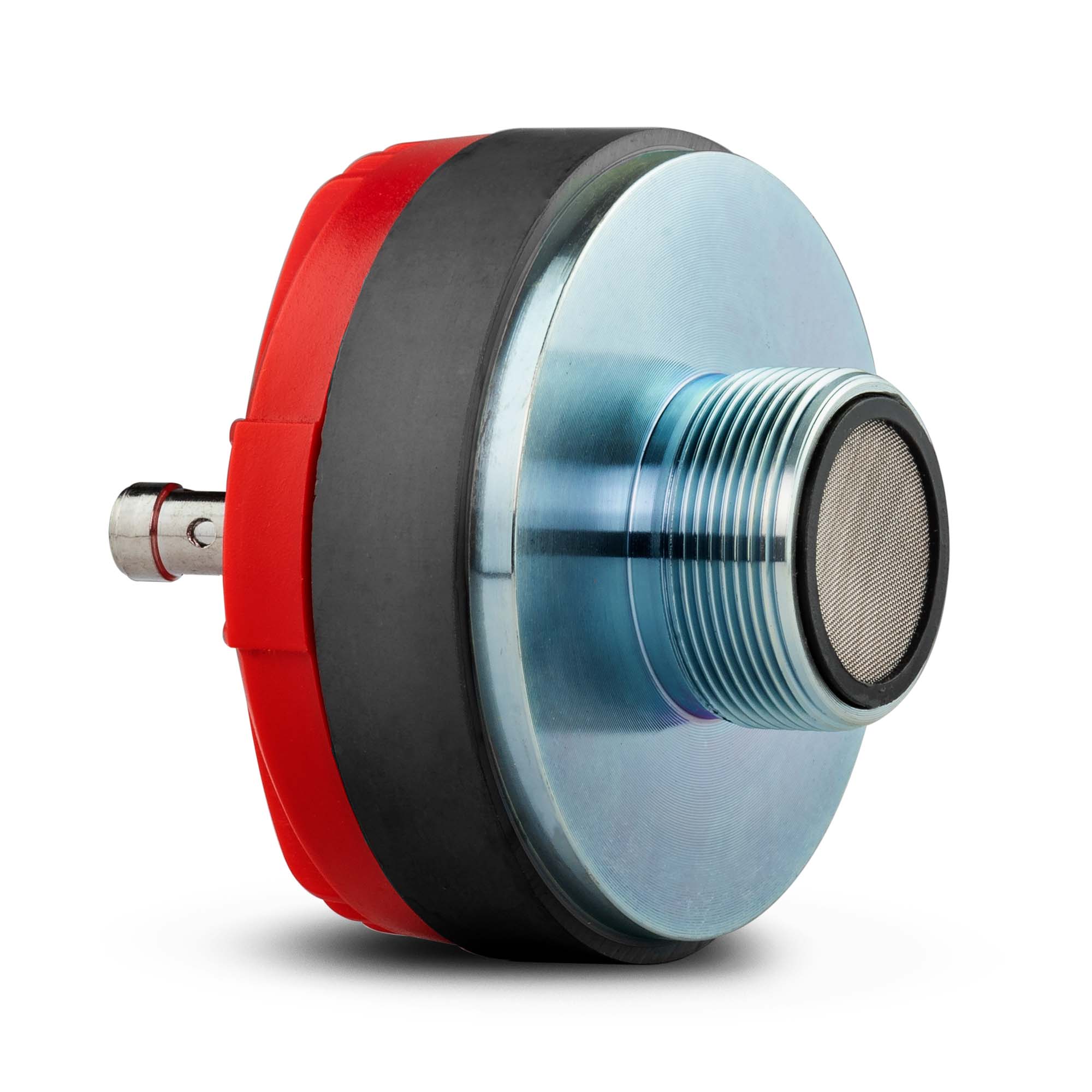

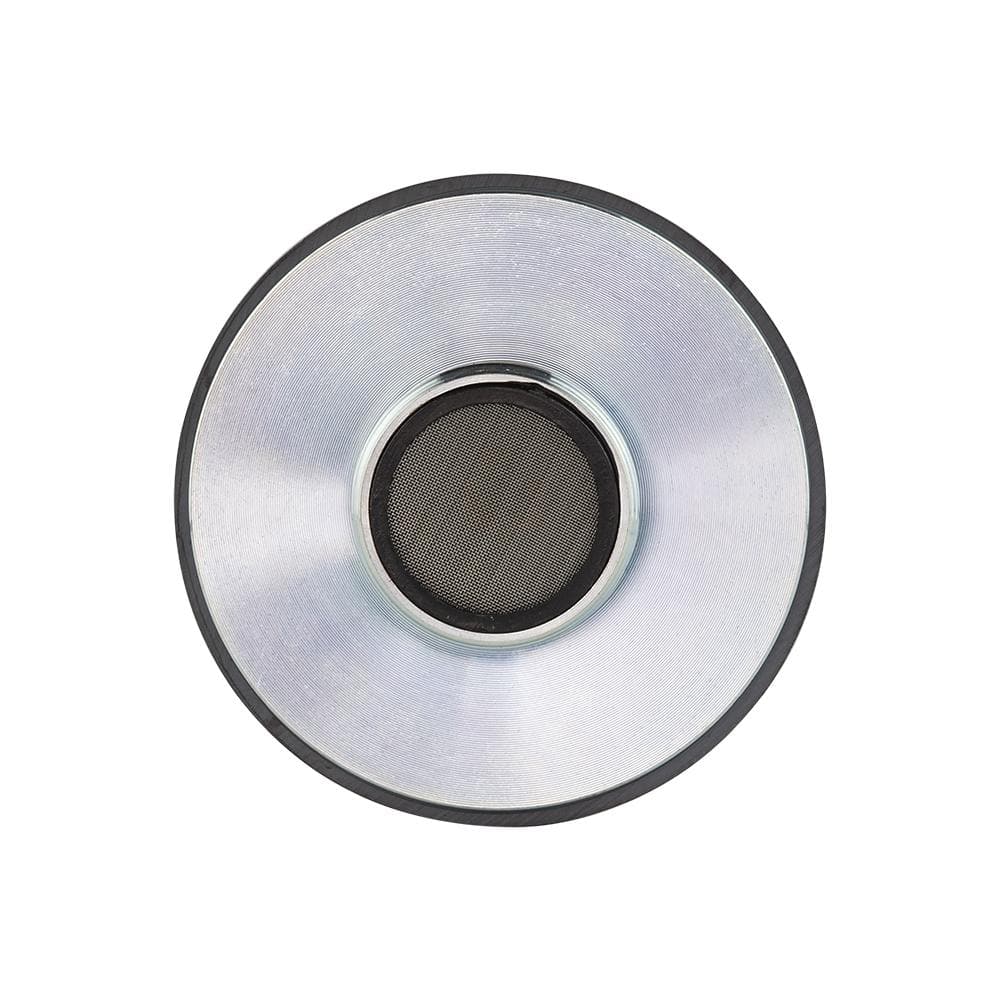

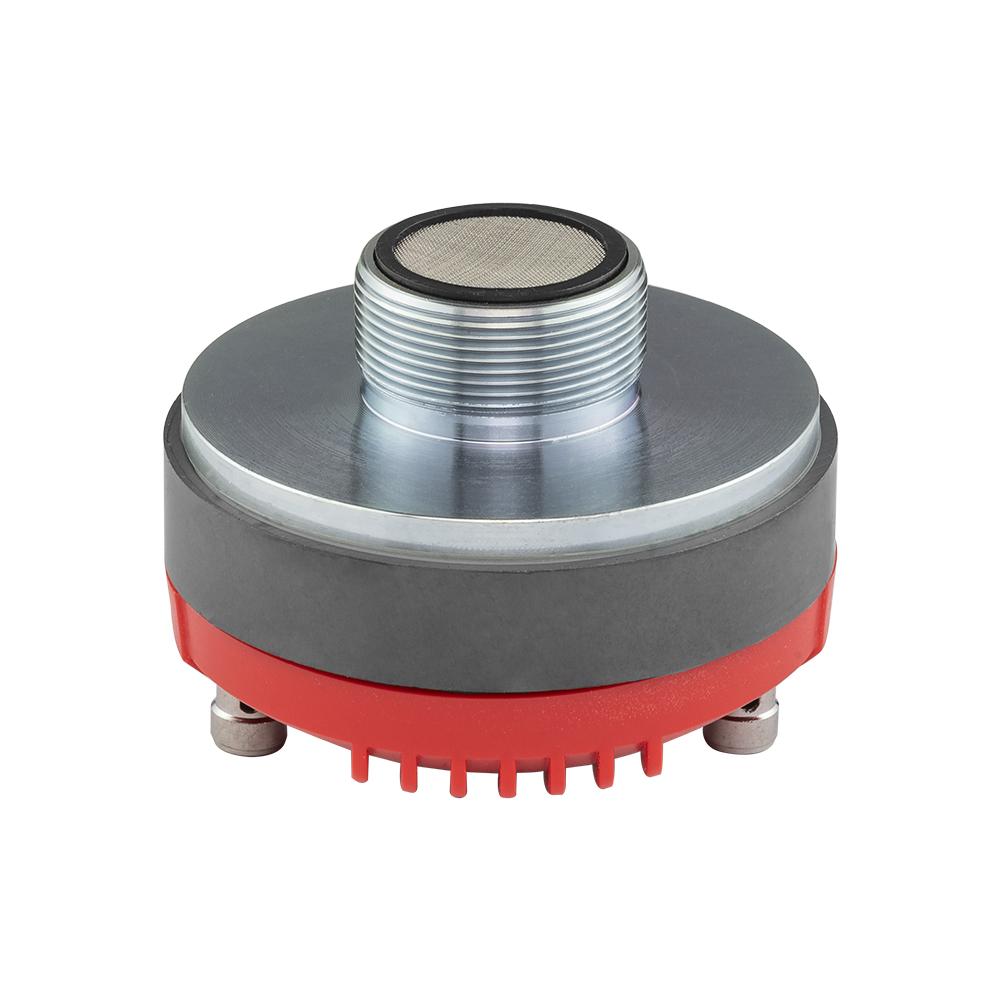

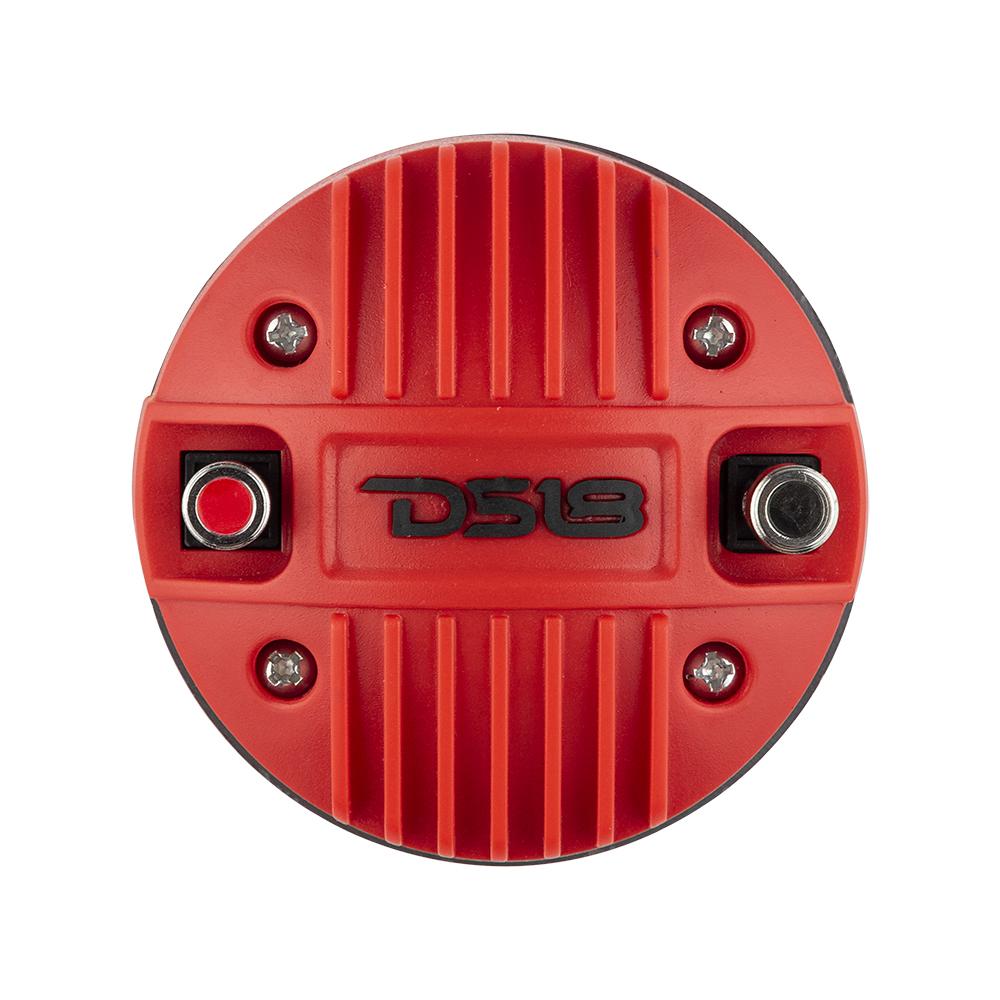

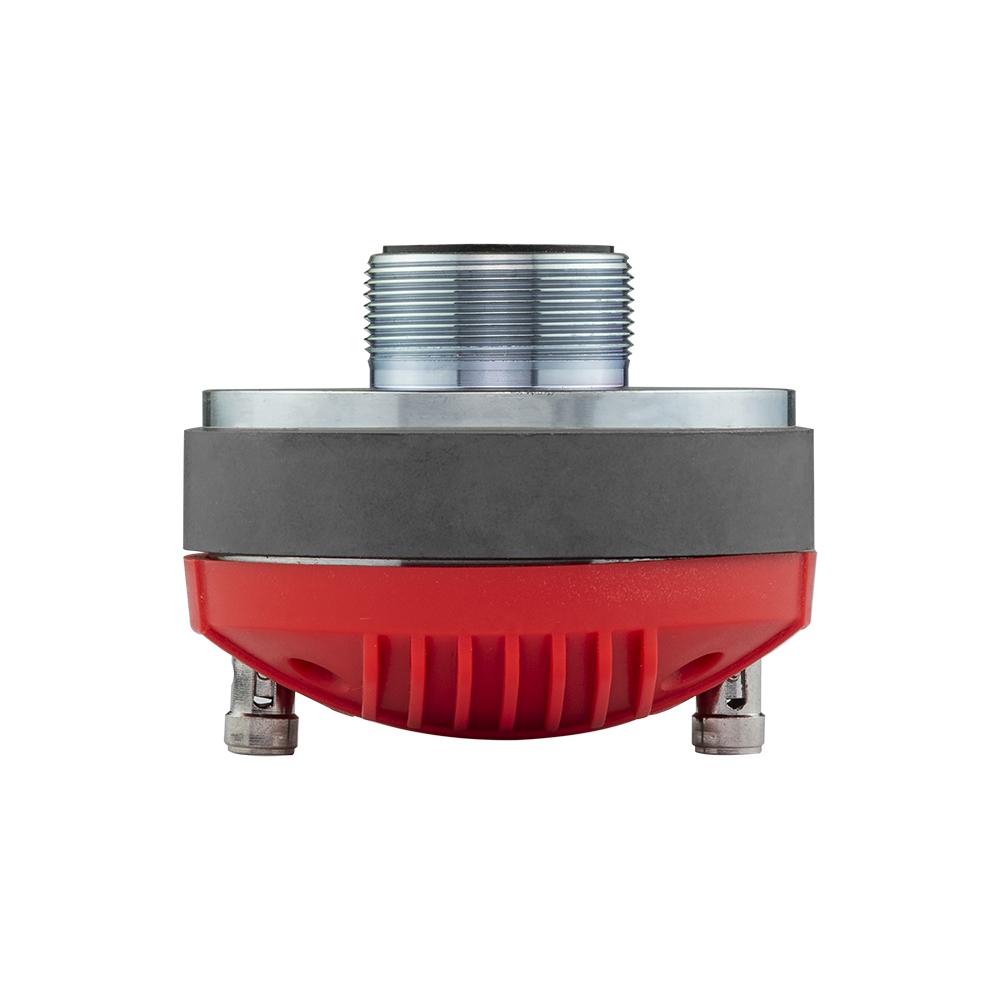

DS18 PRO-DR1P 1″ Throat Twist On Compression Driver with 1″ Phenolic VC 240 Watts 8 ohm
$26.95
Peak Power240W
Sensitivity103dB
Size1in
01 Overview
The details
Product Overview
Screaming onto the scene is DS18’s PRO-DR1P that has an all new design and has been tweaked for maximum performance and loudness. This horn driver sports a 1″ 8-ohms CCA voice coil to absorb the 240W Peak power and is designed to really make it loud with efficiency. This driver has a 103 dB sensitivity so the potential of screaming loudness is easily obtainable with the right combination of power. This driver’s frequency range is very wide starting at 800Hz all the way up to ear drum shattering 20KHz! The PRO-DR1P is sure to complete your pro audio system and complement all your other speakers with crisp and clear high range sound.
Highlights
Technical Details
Download PRO-DR1P Product Manual
02 Tech specs
By the numbers
Peak Power 01
240W
Short-burst rating
Sensitivity 02
103dB
Efficiency
Size 03
1in
Nominal
Weight 04
0.38oz
Per unit
- Peak Power
- 240 Watts Max
- Impedance
- 8 Ohms
- Nominal Impedance
- 8 ohms
- Peak Power Handling
- 240W
- Program Power Handling
- 120W
- AES Power
- 60 W
- Recommended HI Pas Crossover
- 900Hz
- Sensitivity
- 103 dB
- Frequency Response
- 800Hz-20KHz
- Sensitivity (1w/1m)
- 103dB
- Voice Coil Diameter
- 1″
- Voice Coil Former Material
- Kapton
- Winding Material
- CCA
- Diaphragm Material
- Phenolic
- Magnet Material
- Ferrite
- Magnet Weight
- 0.38oz
- Size
- 1 inch
- Mounting Depth
- 1.79″
- Throat Diameter
- 1″
- Overall Diameter
- 3.13″
- Overall Depth
- 2.4″
- Installation Type
- Screw Down
- Bolt Type
- M34
