01 Overview
The details
Product Overview

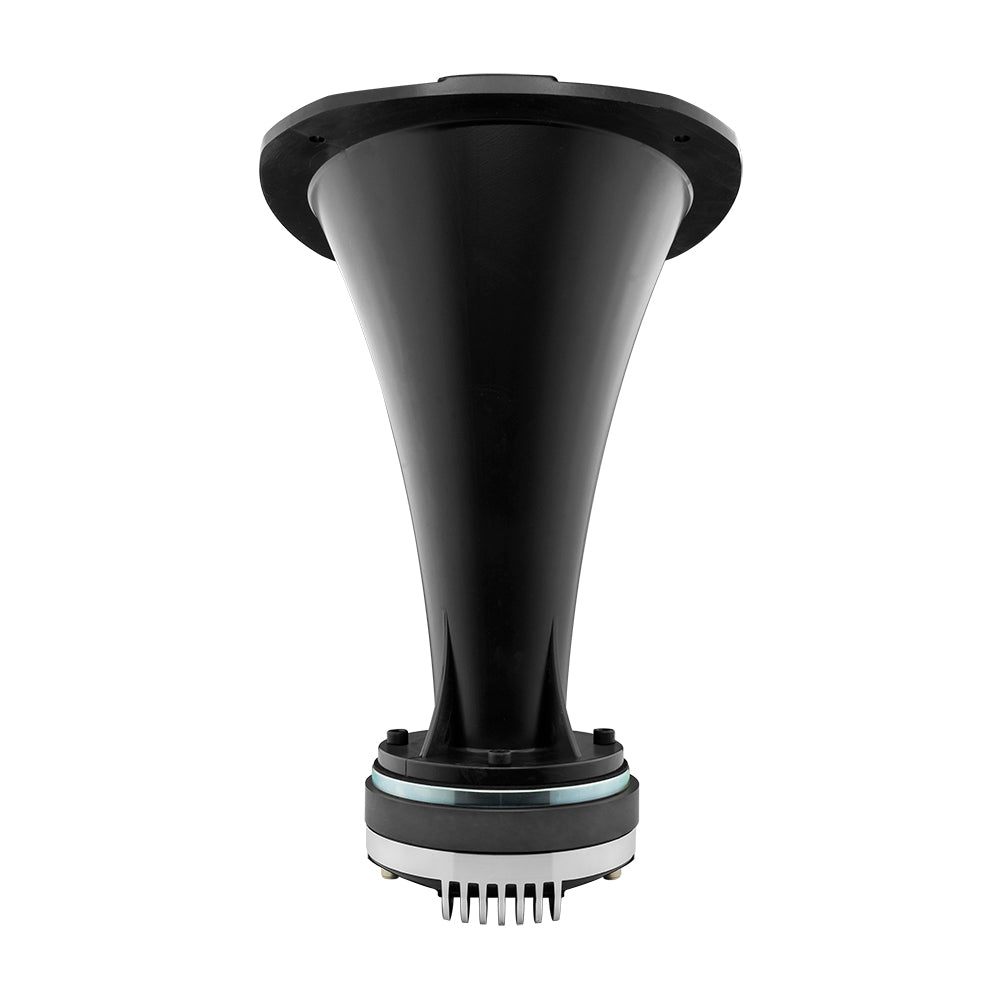

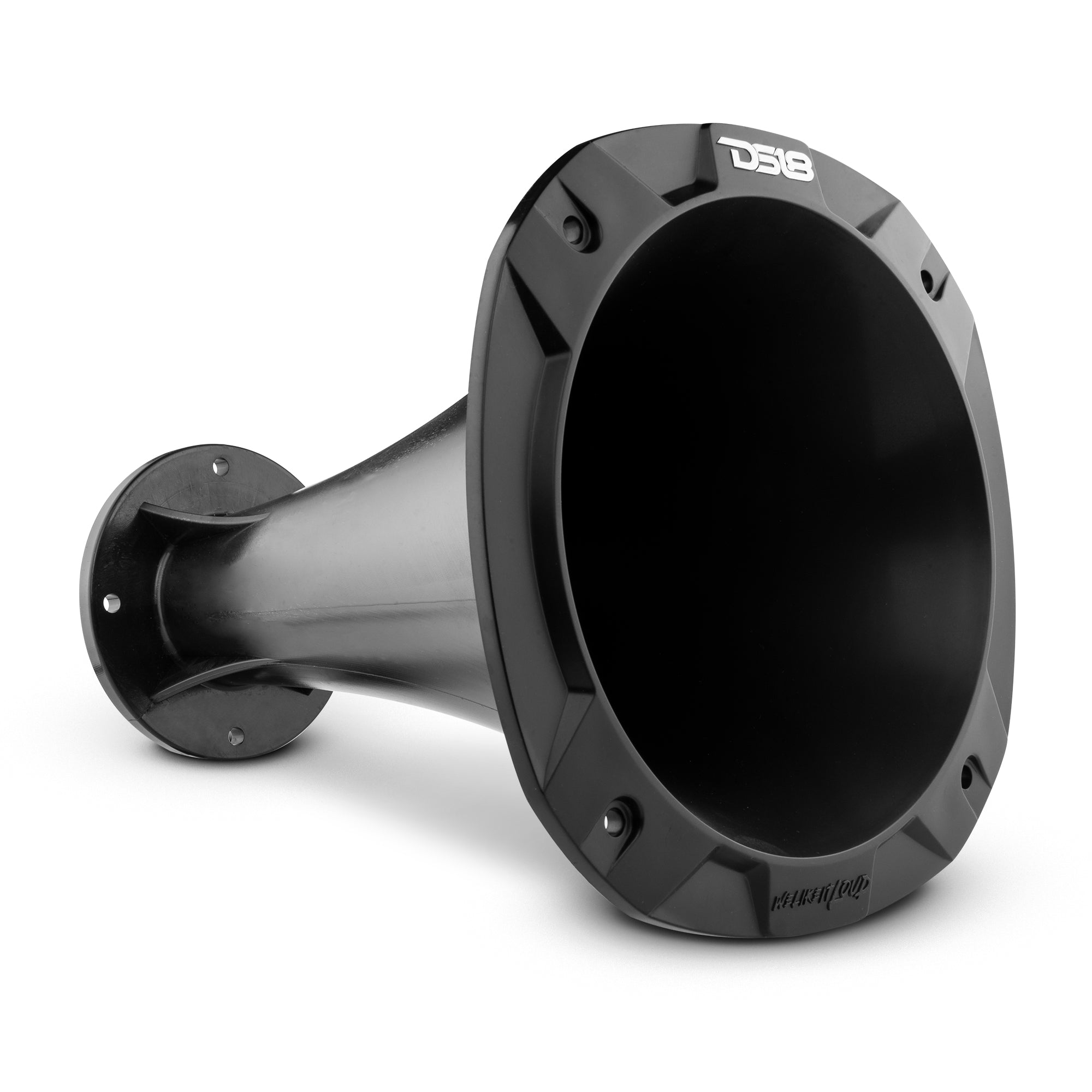

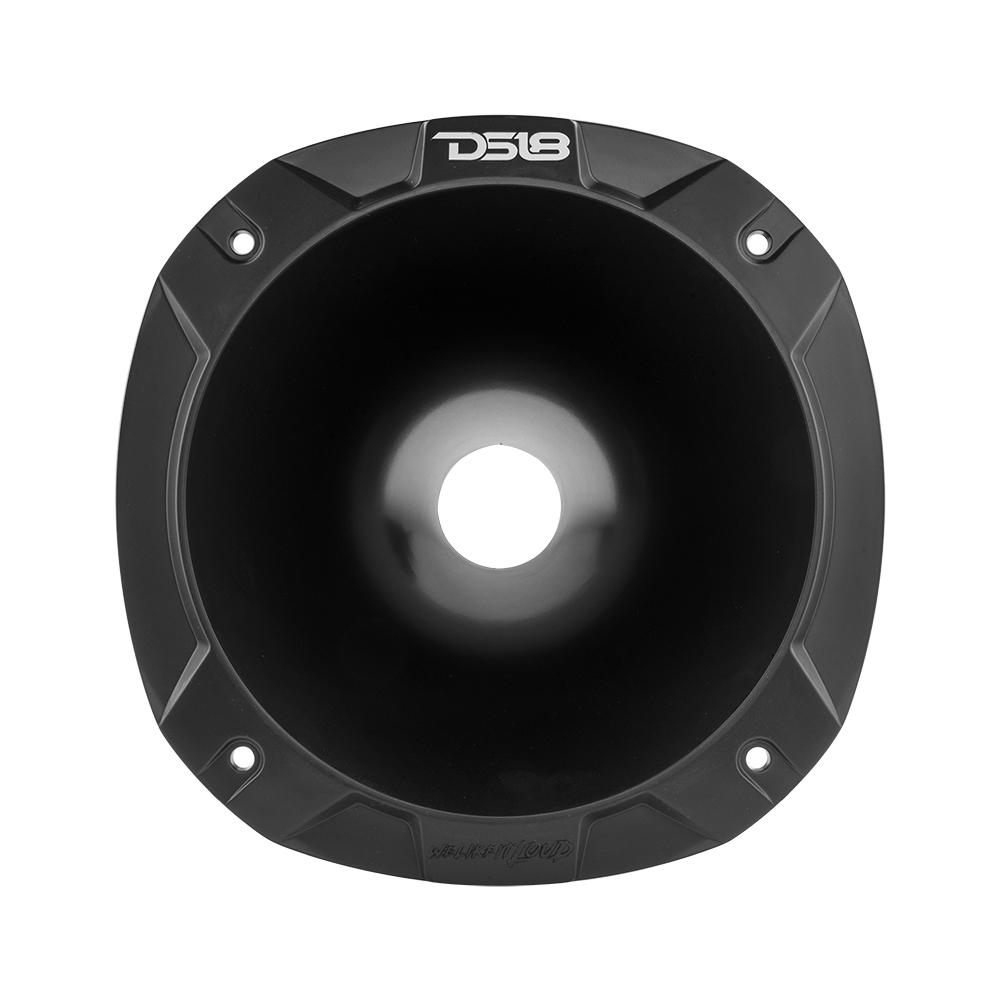

DS18’s PRO-HP202 is our latest and greatest in throated horns!
This horn has a mounting depth of 10.84” and a throat diameter of 2” expanding your directional sound by almost ONE HUNDRED TIMES!
This horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage!

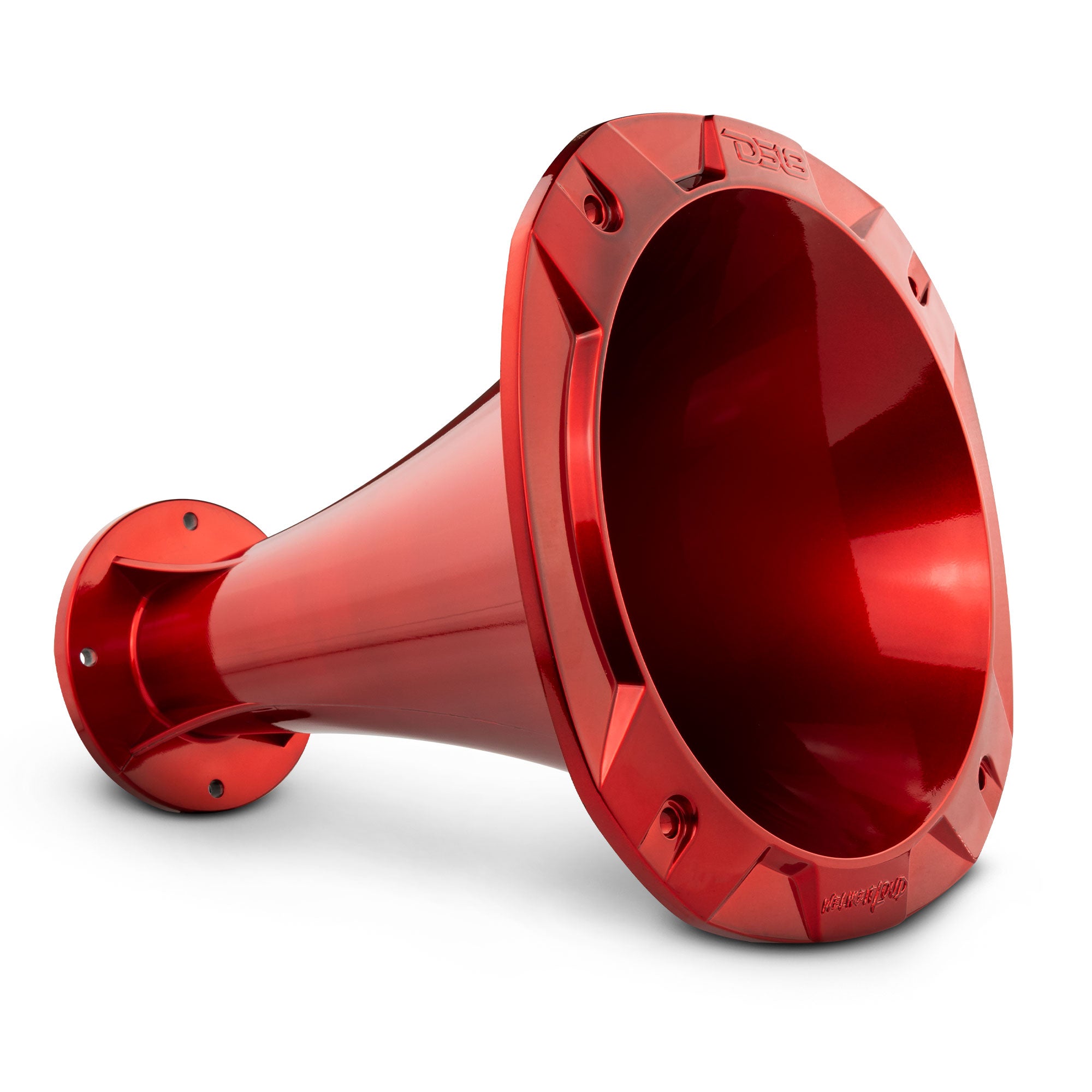

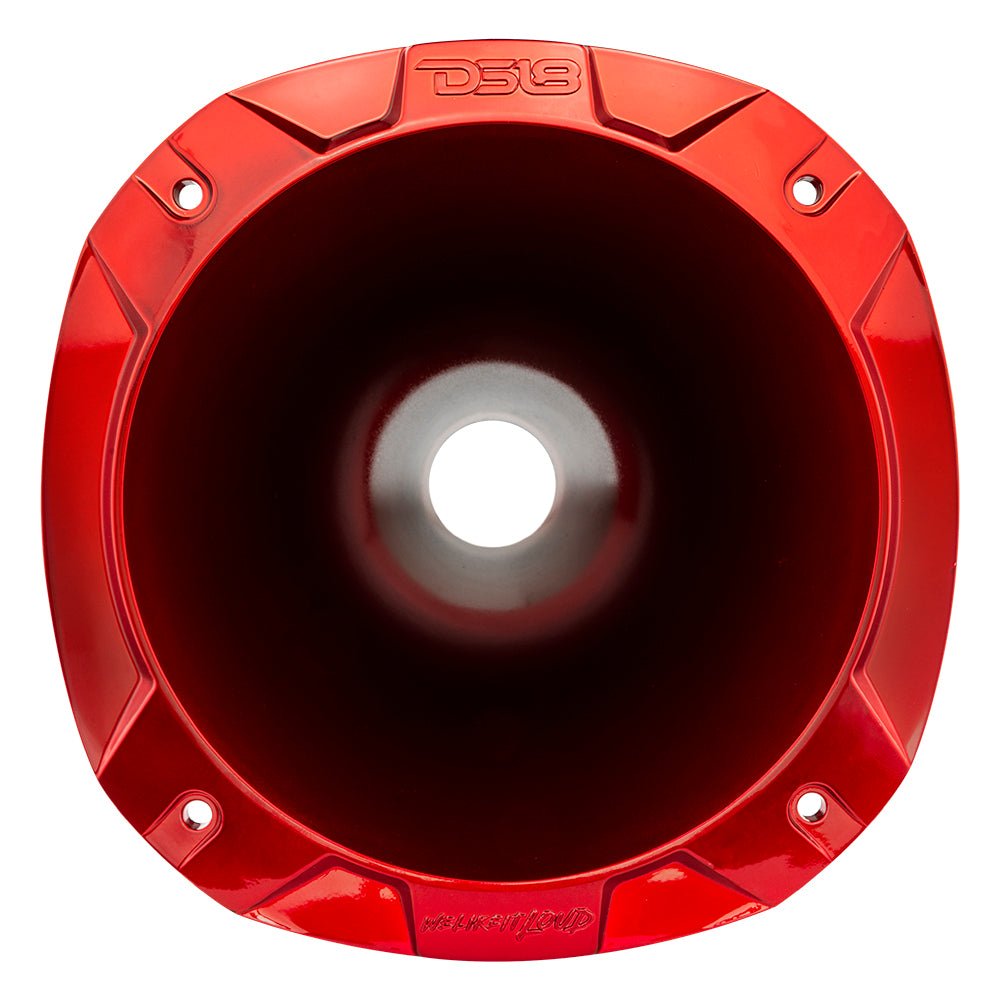

To give your system a more polished look, DS18 is offering the PRO-HP202 in four glossy finished colors: Blue, Gold, Red and Red with White Inside.
This bolt on throat horn requires a 4-bolt pattern on your driver to be installed correctly.
Get full sound coverage with the PRO-HP202!
Highlights
Great For
Technical Details Download PRO-HP202 Product Manual
02 Tech specs
By the numbers
- Size
- 2 inch
- Throat Diameter
- 2″ / 50.8mm
- Nominal Horn Diameter
- 8″
- Overall Diameter
- 9.69″ / 246mm
- Overall Depth
- 11.25″ / 286mm
- Mounting Depth
- 10.84″ / 275.336mm
- Mounting Bolt Pattern
- 8.58″ / 218mm x 4- 0.21″ / 5.5mm
- Mounting Hole Diameter
- 7.95″ / 202mm
- Installation Type
- Bolt-on
- Sound Coverage
- 27° Rounded
- Driver Bolt Pattern
- 4″/ 102mm x 4-0.26″ / 6.8mm
