Product Overview

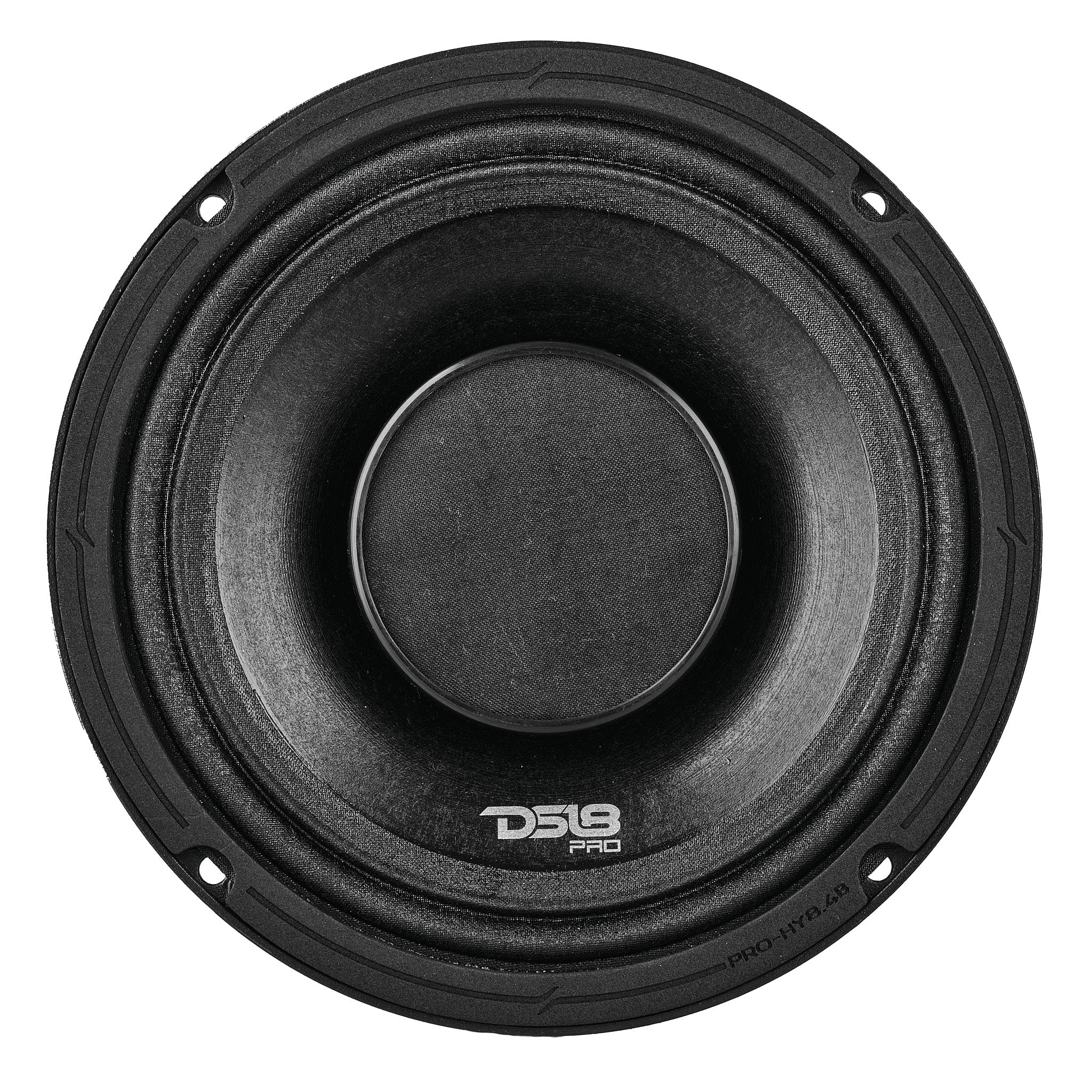

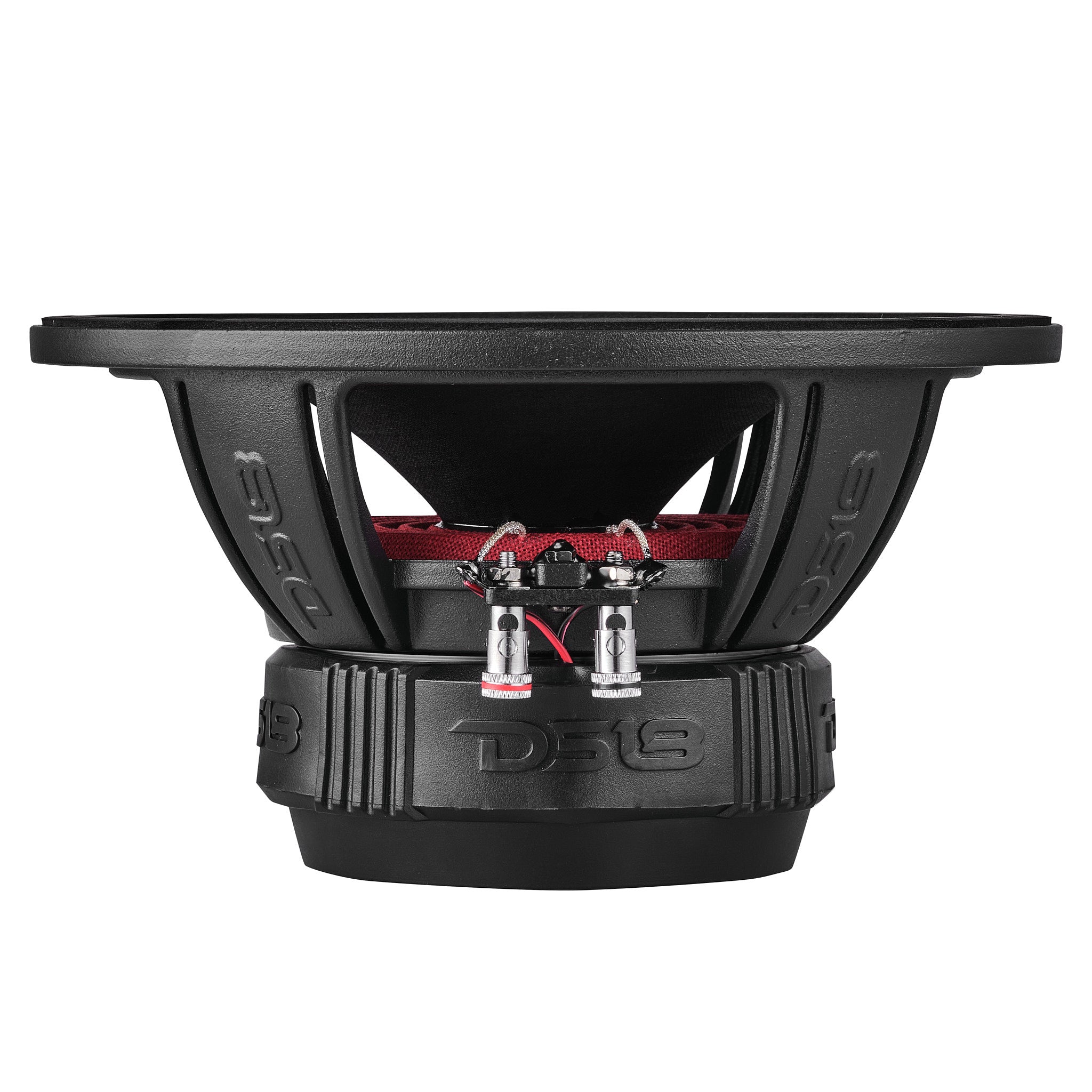

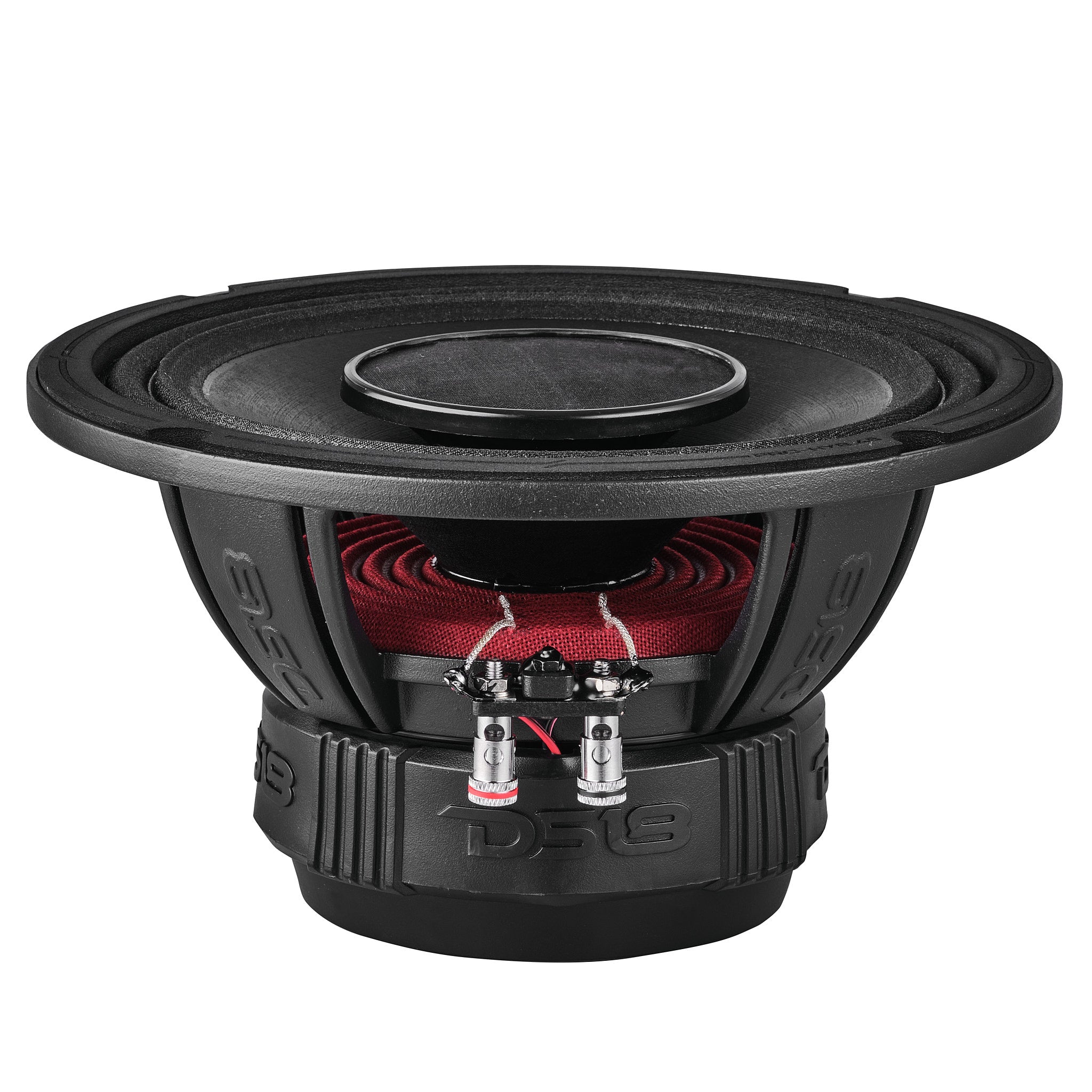

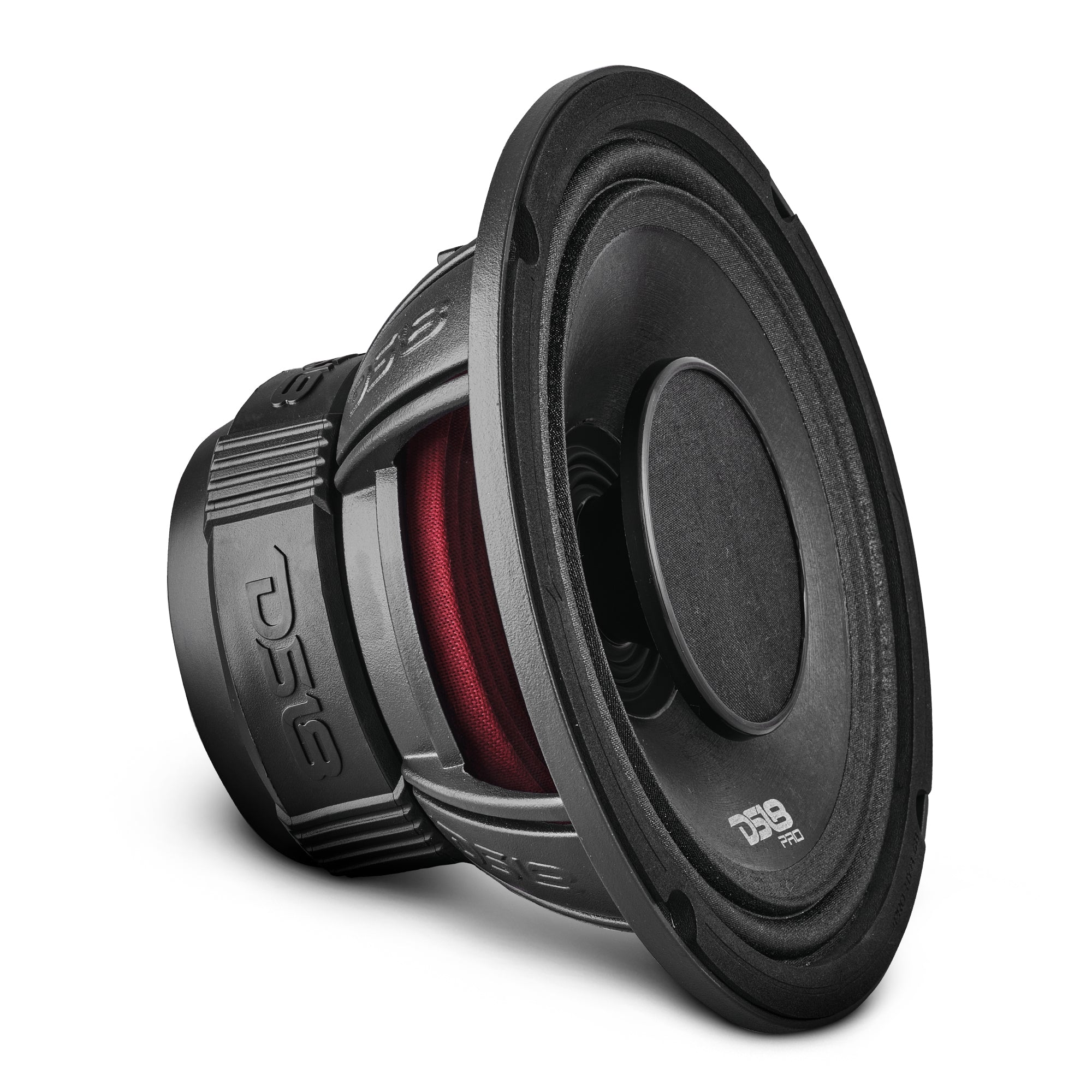

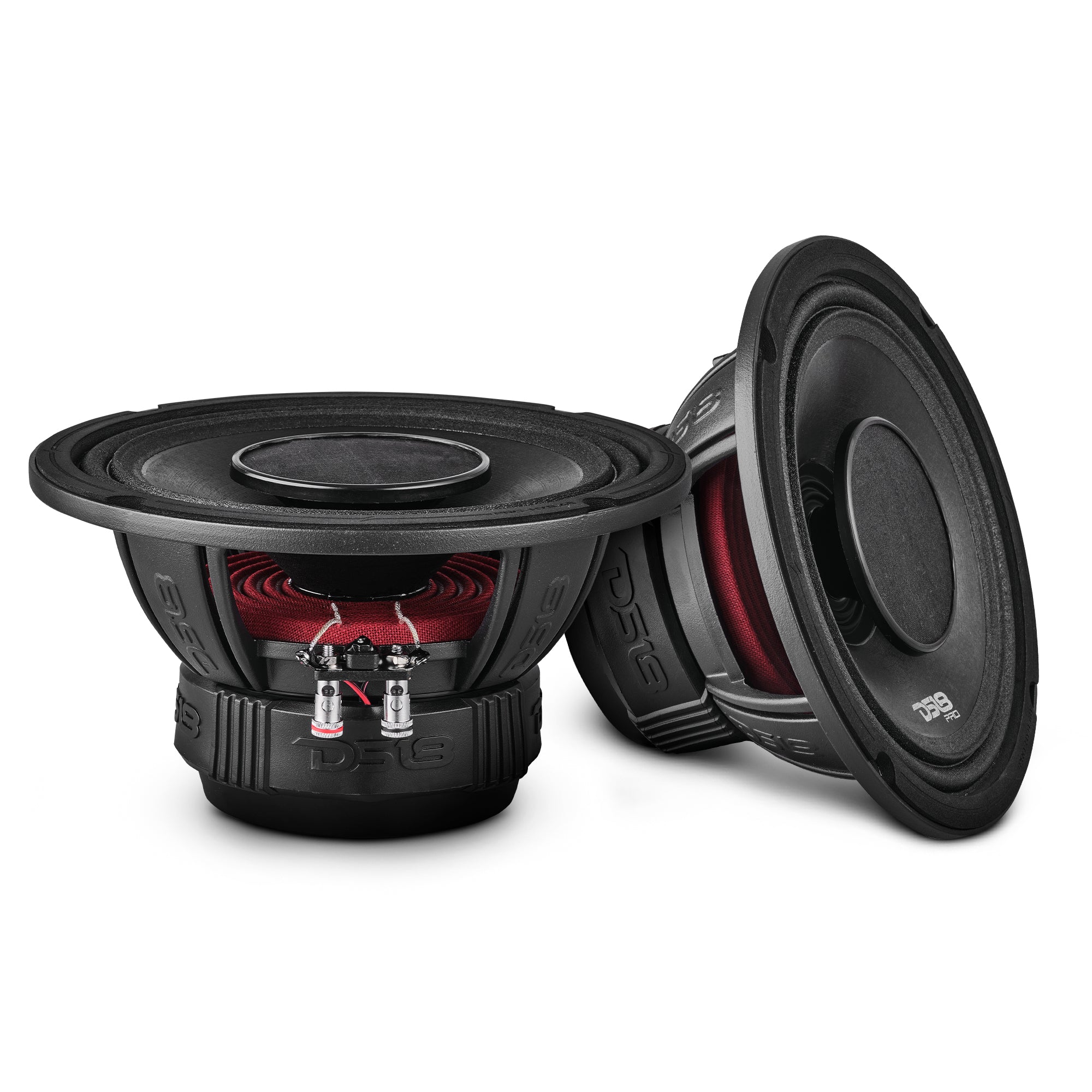

DS18’s HYBRID speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 8″ high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.
Highlights
Technical Details PRO-HY8.4B Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 8 inch |
| RMS Power | 250 Watts RMS |
| Impedance | 4 Ohms |
| Frequency Response | 80Hz-20KHz |
| Mounting Depth | 4.29″ / 109mm |
| Nominal Diameter | 8” |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 97dB |
| Recommended Hi Pass Crossover | 100 Hz |
| Number of Ways | 2 |
| Pair or Single | Single |
| Voice Coil Diameter | 1” / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Neodymium |
| Magnet Weight | 27 oz |
| Displacement volume | 0.051L |
| Equivalent Volume | Vas 10.048L |
| Excursion (one way) | Xmax 9.2 mm |
| Free Air Resonance | FS 135Hz |
| Mechanical Factor | Qms 5.96 |
| Electrical Factor | Qes 1.321 |
| Total Factor | Qts 1.011 |
| Mechanical Mass | Mms 9.69g |
| Mechanical Compliance | Cms 137.345 mm/N |
| BL Factor | BL 4.58 |
| Voice Coil Inductance | Le 4.22mH |
| Cone Area | Sd 226.98 Cm2 |
| DC Resistance | Re 3.4 ohms |
| Mechanical Mass w/o Air | Mmd 7.724g |
| Diaphragm Material | Titanium |
| Horn Diameter | 3.26″ |
| Overall Diameter | 8.31″ / 211mm |
| Overall Depth | 4.65″ / 118.2mm |
| Front Mount Baffle Cutout | 7.1″ / 180.3mm |
| Motor Diameter | 4.59″ / 116.6mm |
