Description
Product Overview

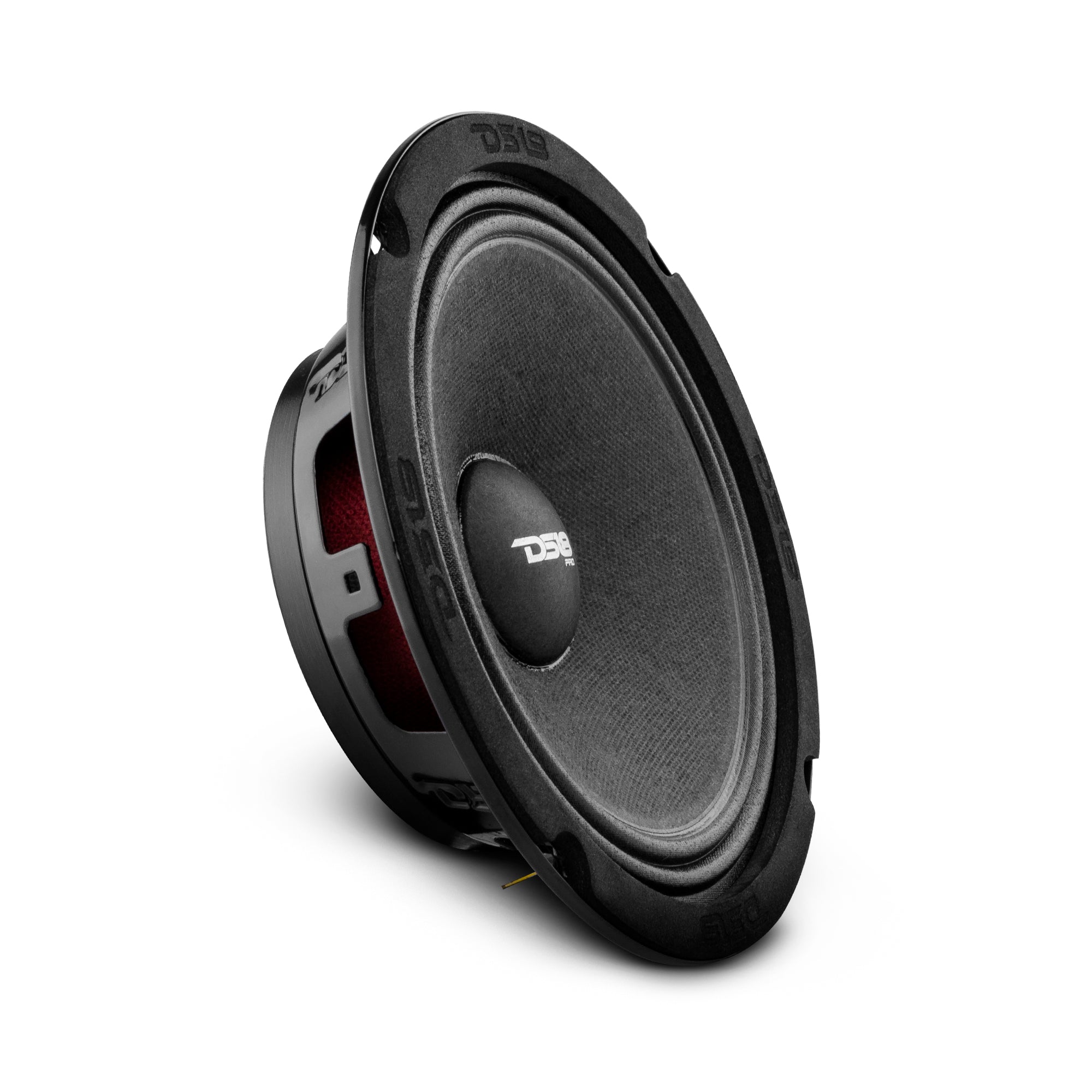

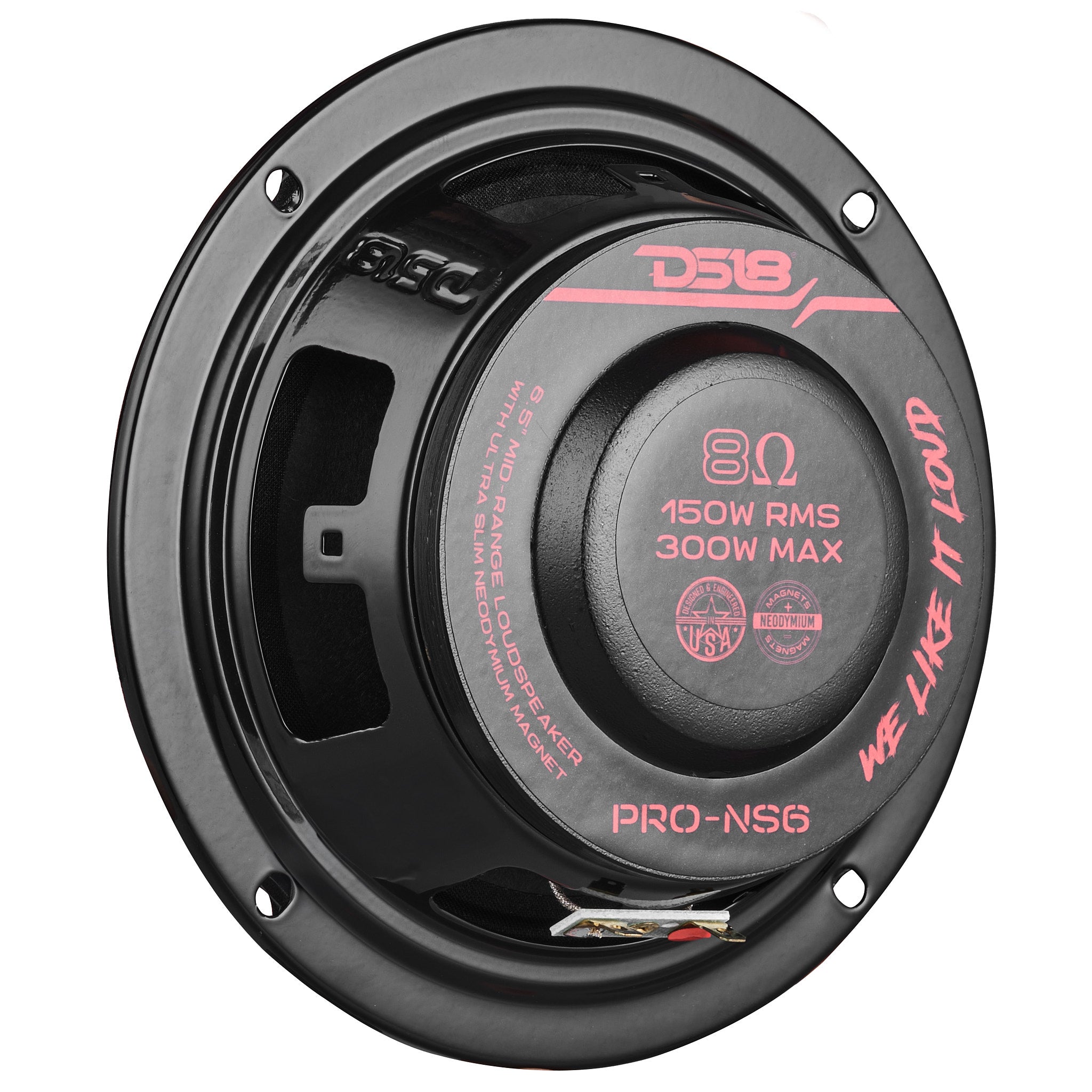

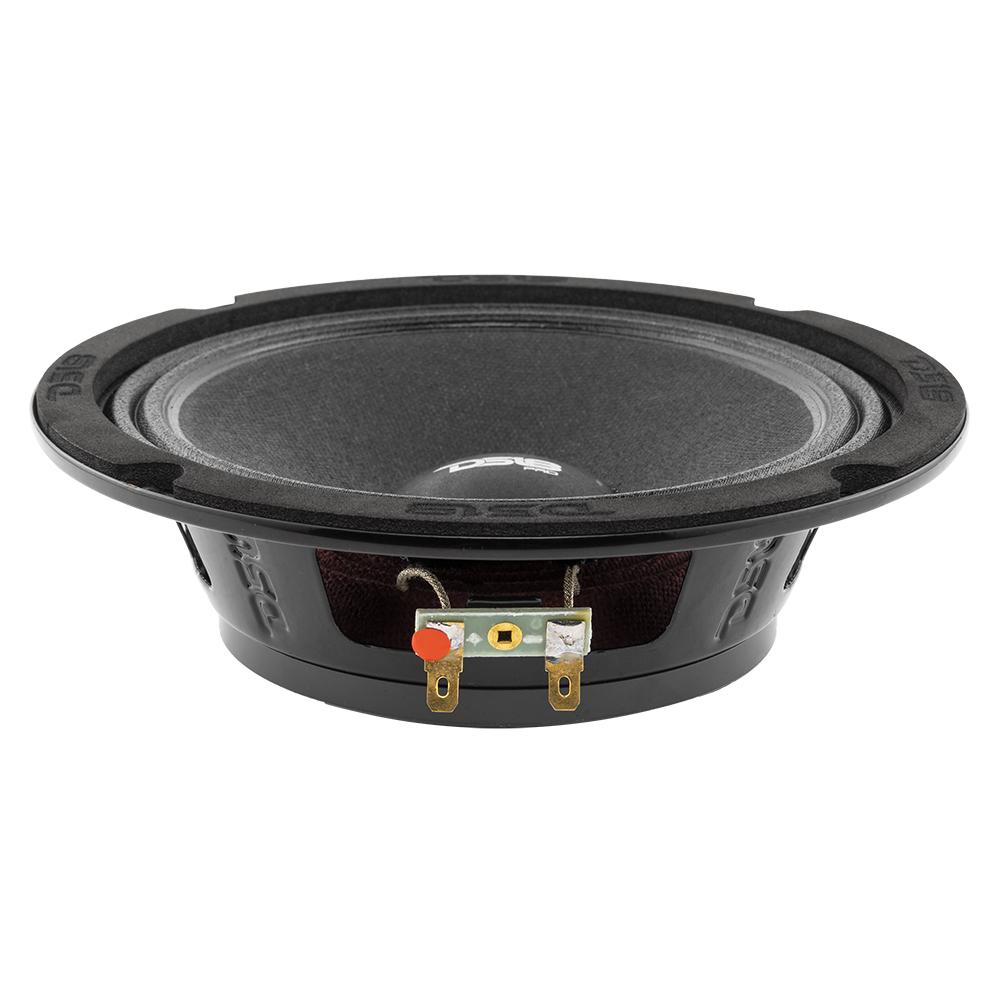

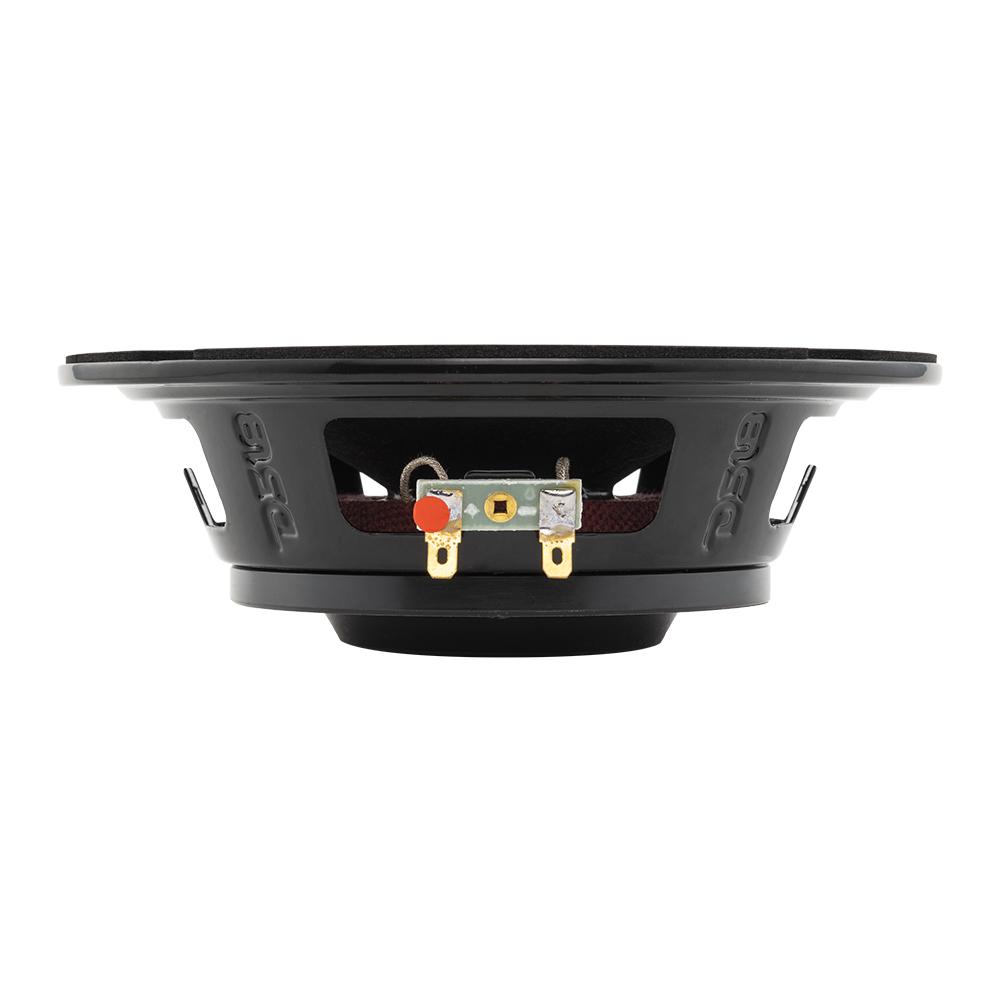

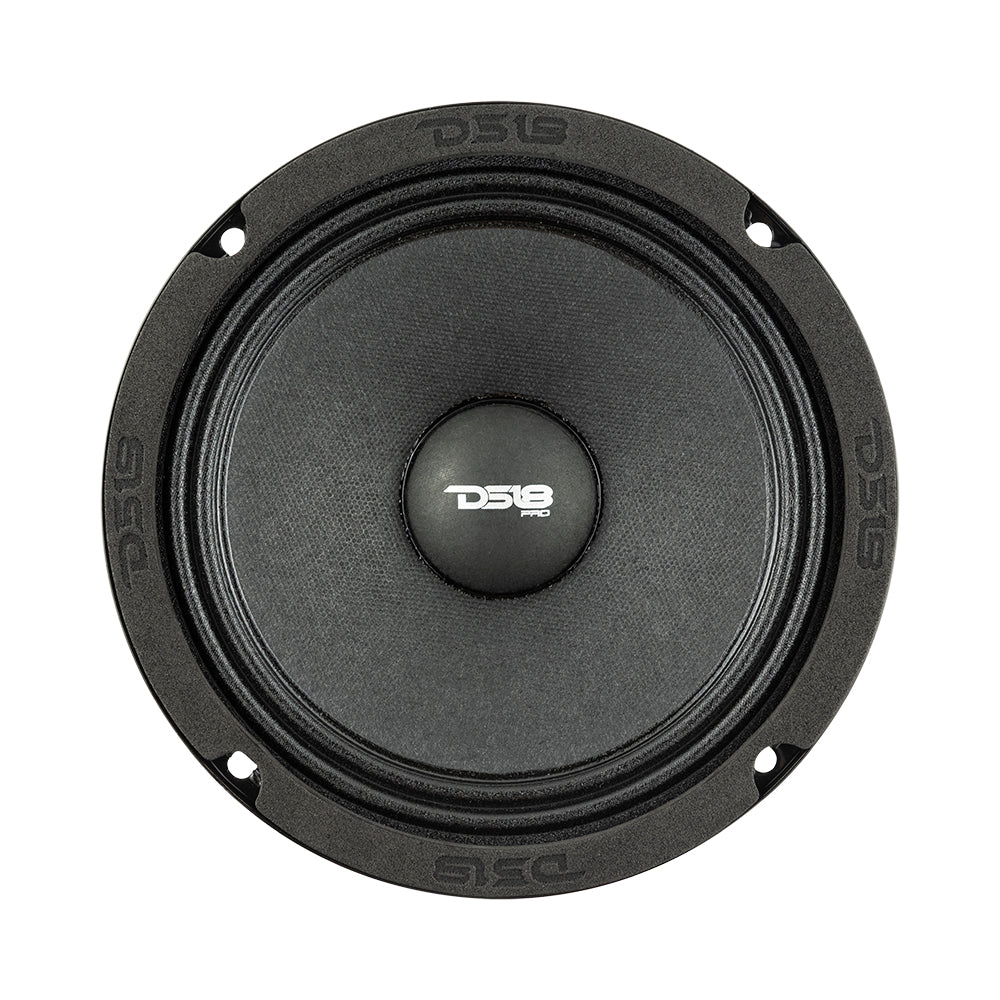

DS18’s new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers. This 6.5 inch neodymium 1.5″ voice coil Mid-Range speaker takes 150w RMS and 300w peak power, so you know they will get loud easily. The 94dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.
Highlights
Technical Details PRO-NS6 Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 6.5 inch |
| RMS Power | 150 Watts RMS |
| Peak Power | 300 Watts Max |
| Impedance | 8 Ohms |
| Voice Coil | 1.5 inch |
| Sensitivity | 94 dB |
| Frequency Response | 100Hz – 12KHz |
| Mounting Depth | 1.96” / 50mm |
| Nominal Diameter | 6.5″ / 167mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 94 dB |
| Recommended Hi Pass Crossover | 180Hz |
| Pair or Single | Single |
| MOTOR | 1.5”/38.6 mm |
| Voice Coil Diameter | KSV |
| Voice Coil Former Material | Copper |
| Winding Material | Paper |
| Cone Material | Paper |
| Dust Cap Material | Cloth |
| Surround Materia | Steel |
| Basket Material | Glossy Red |
| Basket Color | Neodymium |
| Magnet Material | 1.79 Oz |
| Equivalent Volume | 4.8L / 0.169ft3 |
| Excursion (one way) | 2 mm |
| Free Air Resonance | 139 Hz |
| Mechanical Factor | 5.781 |
| Electrical Factor | 1.245 |
| Total Factor | 1.025 |
| Mechanical Mass | 6.498g |
| Mechanical Compliance | 192.236m cm/N |
| BL Factor | 5.38 |
| Voice Coil Inductance | 5.1455mH |
| Cone Area | 132.732 Cm3 |
| DC Resistance | 6.5 ohms |
| Mechanical Mass w/o air/ | 8.9g |
| Overall Diameter | 6.57” / 167mm |
| Overall Depth | 2.2” / 56mm |
| Front Mount Baffle Cutout | 5.7” / 145mm |
| Motor Diameter | 4” / 103mm |
