DS18

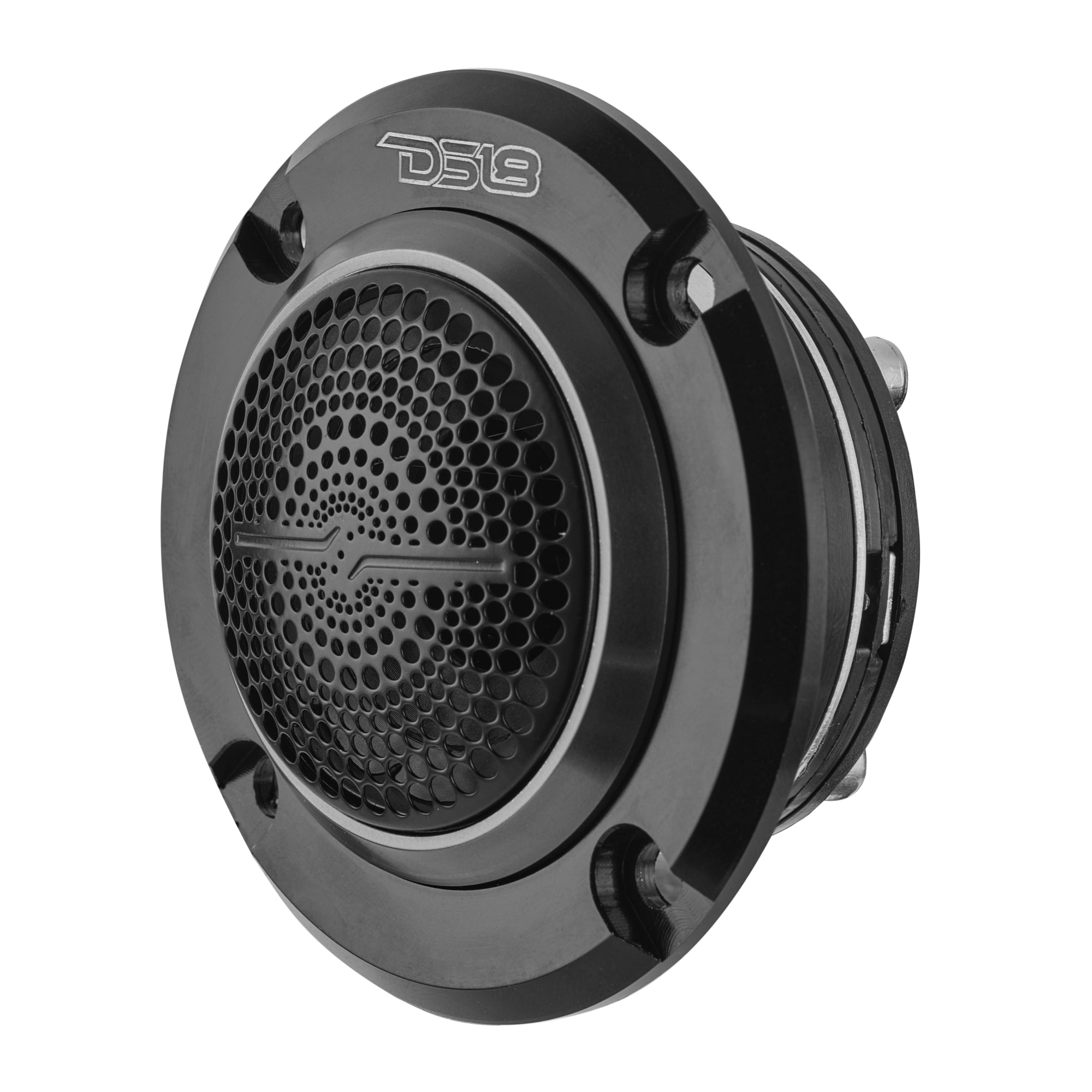

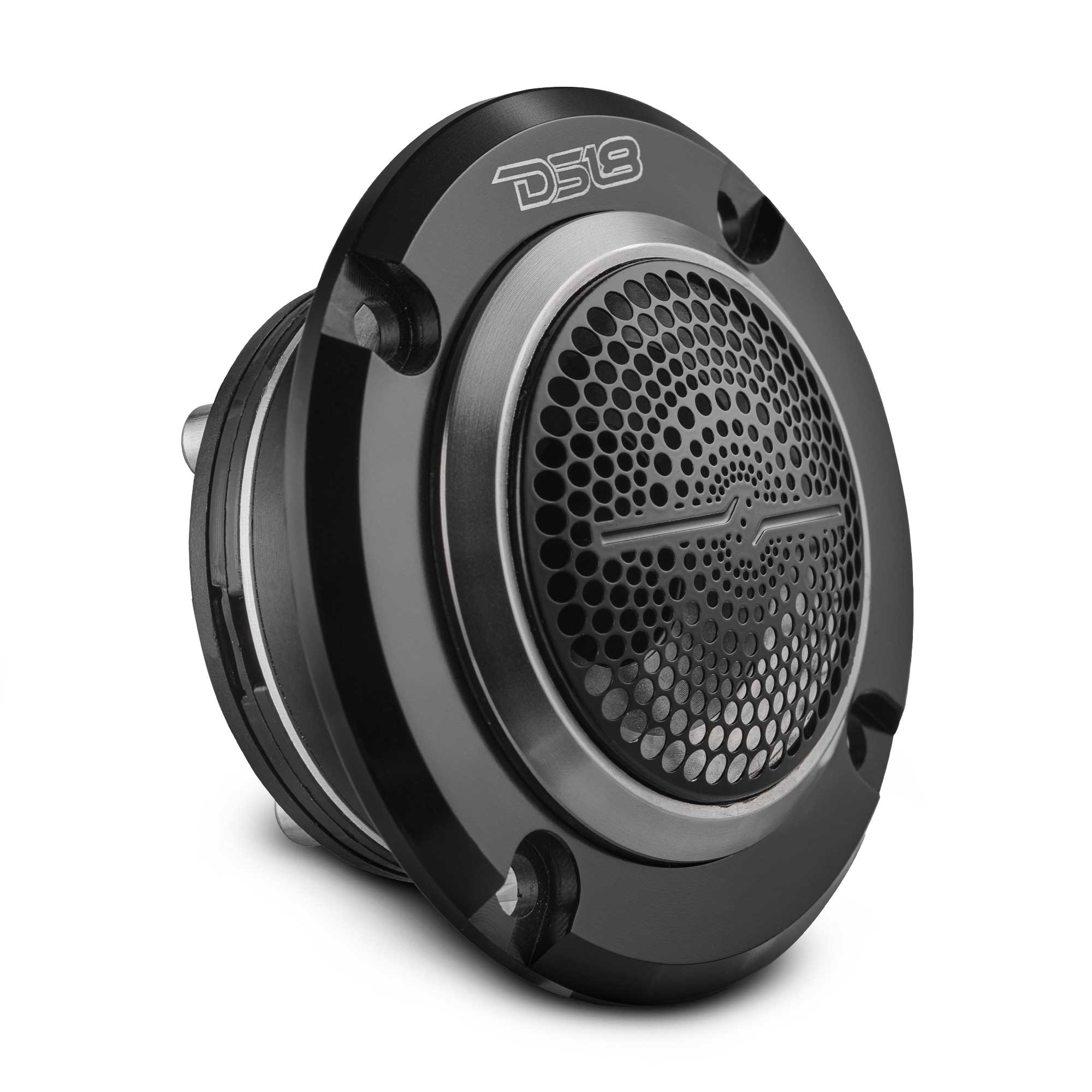

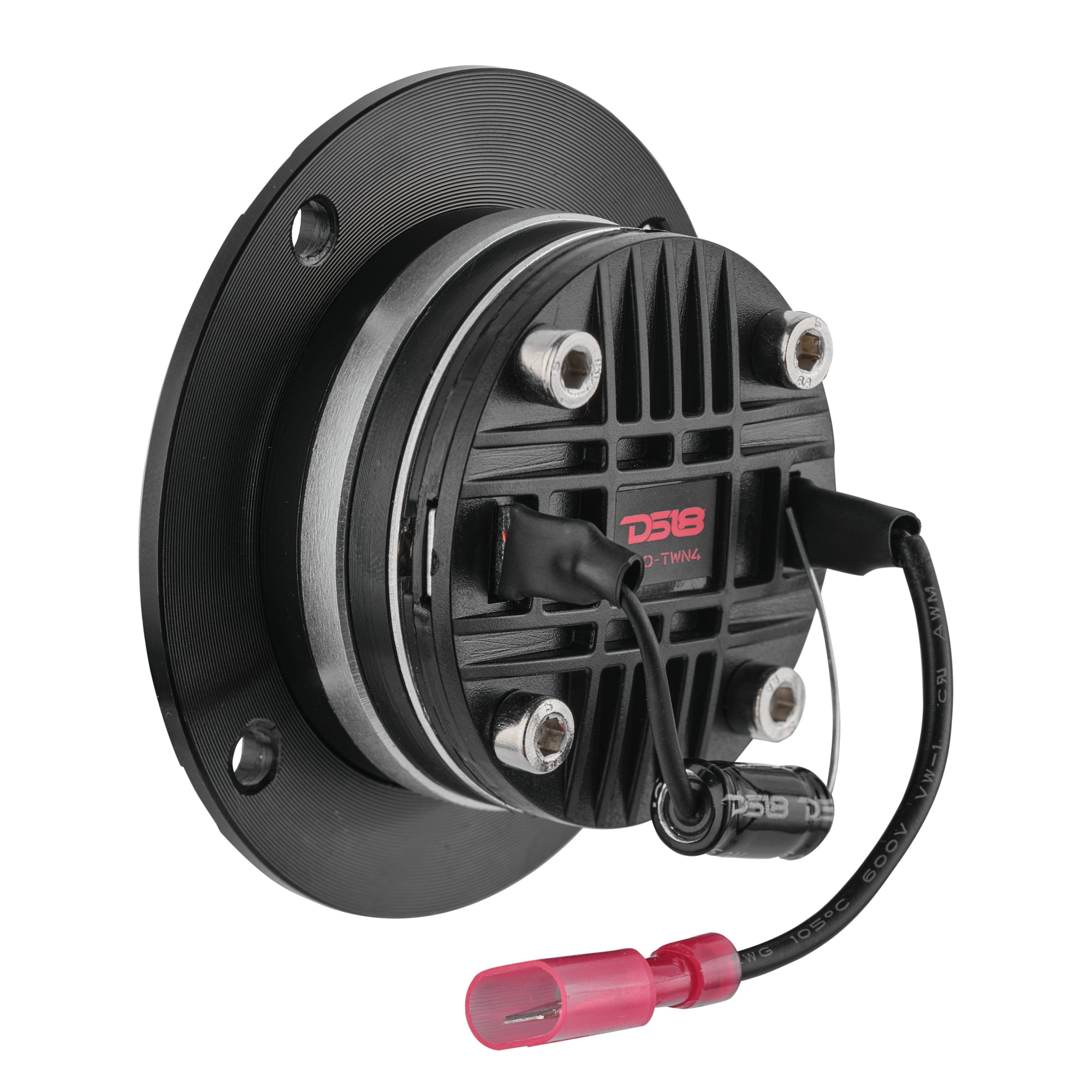

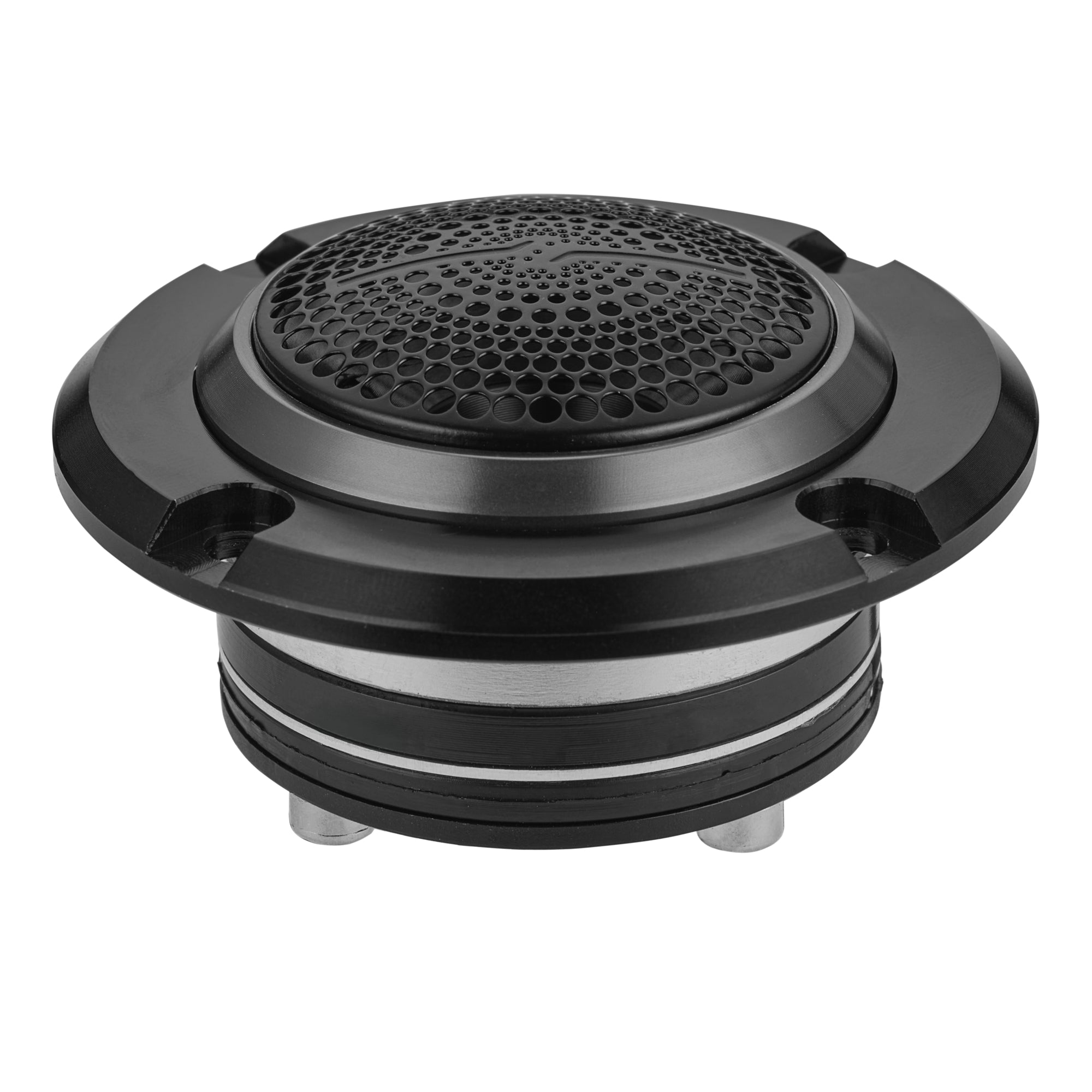

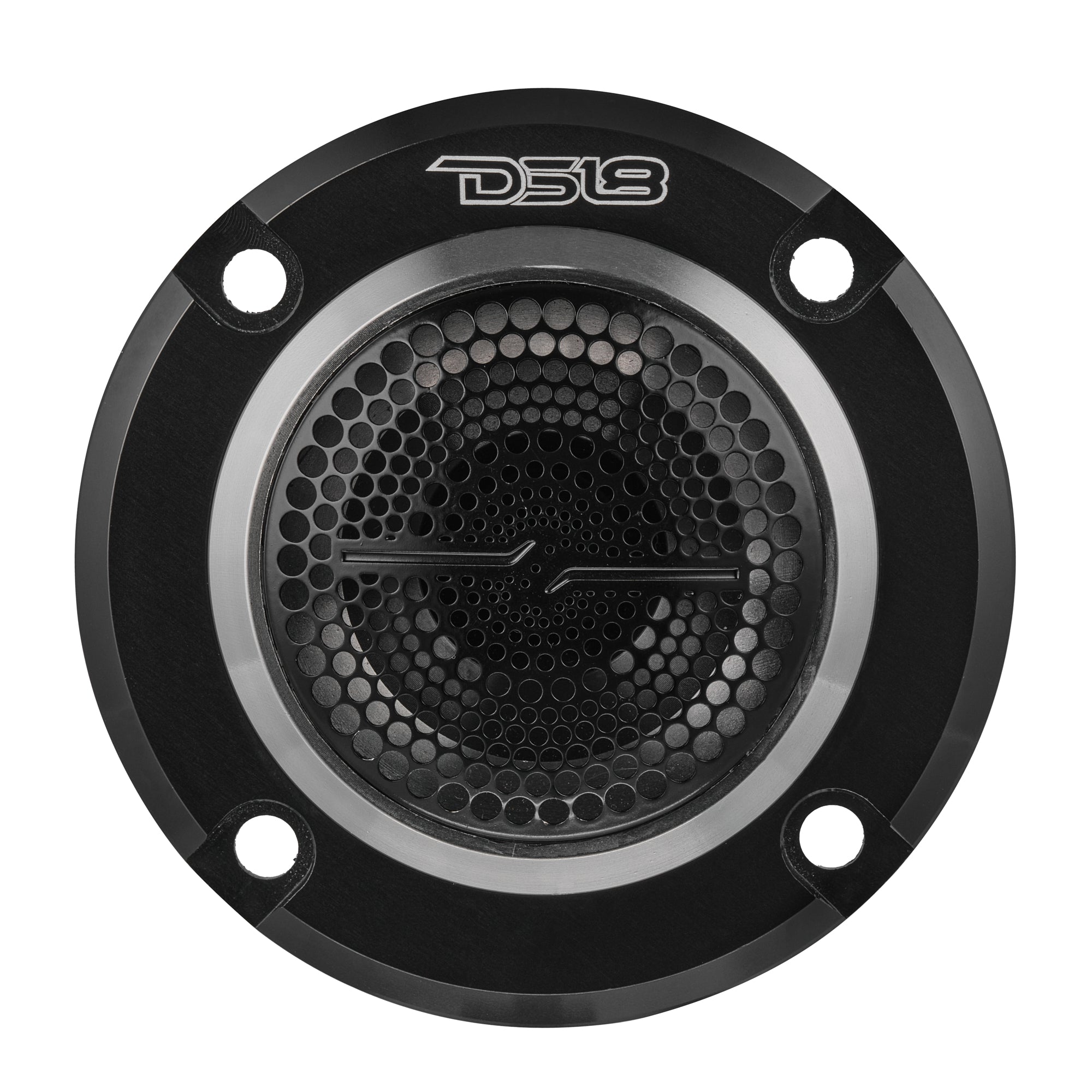

DS18 PRO-TWN4 3″ High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1″ Pen 4-Ohm Vc

$54.95

RMS Power140W
Peak Power280W
Sensitivity105dB
01 Overview

The details

Product Overview

DS18 new PRO-TWN4 has all the looks of a driver but has been compactly sized to fit into super tweeter dimensions. This new super tweeter 1 inch voice coil can handle 140W RMS and 280W Peak. Comes with a neodymium magnet which increases the tweeters efficiency and lowers the weight dramatically. Each tweeter comes with an included bass blocker for extra protection against frequencies that would otherwise damage the tweeter so you can feel safe your equipment can play loud and long. These tweeters have a very high sensitivity of 105 dB so the do not require full power to get extremely loud. This opens you up to multiple amp choices for your tweeters and gives you the versatility everyone looks for in powering and using your new tweeters.

Highlights

Technical Details

PRO-TWN4 Product Manual

02 Tech specs

By the numbers

PRO-TWN4 · Manufacturer rated
RMS Power 01
140W
Continuous rating
Peak Power 02
280W
Short-burst rating
Sensitivity 03
105dB
Efficiency
Size 04
3in
Nominal

RMS Power
140 Watts RMS
Peak Power
280 Watts Max
Impedance
4 Ohms
Peak Power Handling
280 Watts
Program Power Handling
140 Watts
AES Power Handling
70 Watts

Sensitivity
105 dB
Frequency Response
1.5KHz – 20KHz

Voice Coil
1 inch
Voice Coil Diameter
1″
Diaphragm Material
PEN
Magnet
Neodymium

Size
3 inch
Mounting Depth
1.13″
Overall Diameter
2.95″
Overall Depth
1.81″
Front Mount Baffle Cutout
2.05″

Model
PRO-TWN4
Type
Super Bullet Tweeter
Package Quantity
1
Replacement Diaphragm
PRO-TWN4VC
