Description
Product Overview

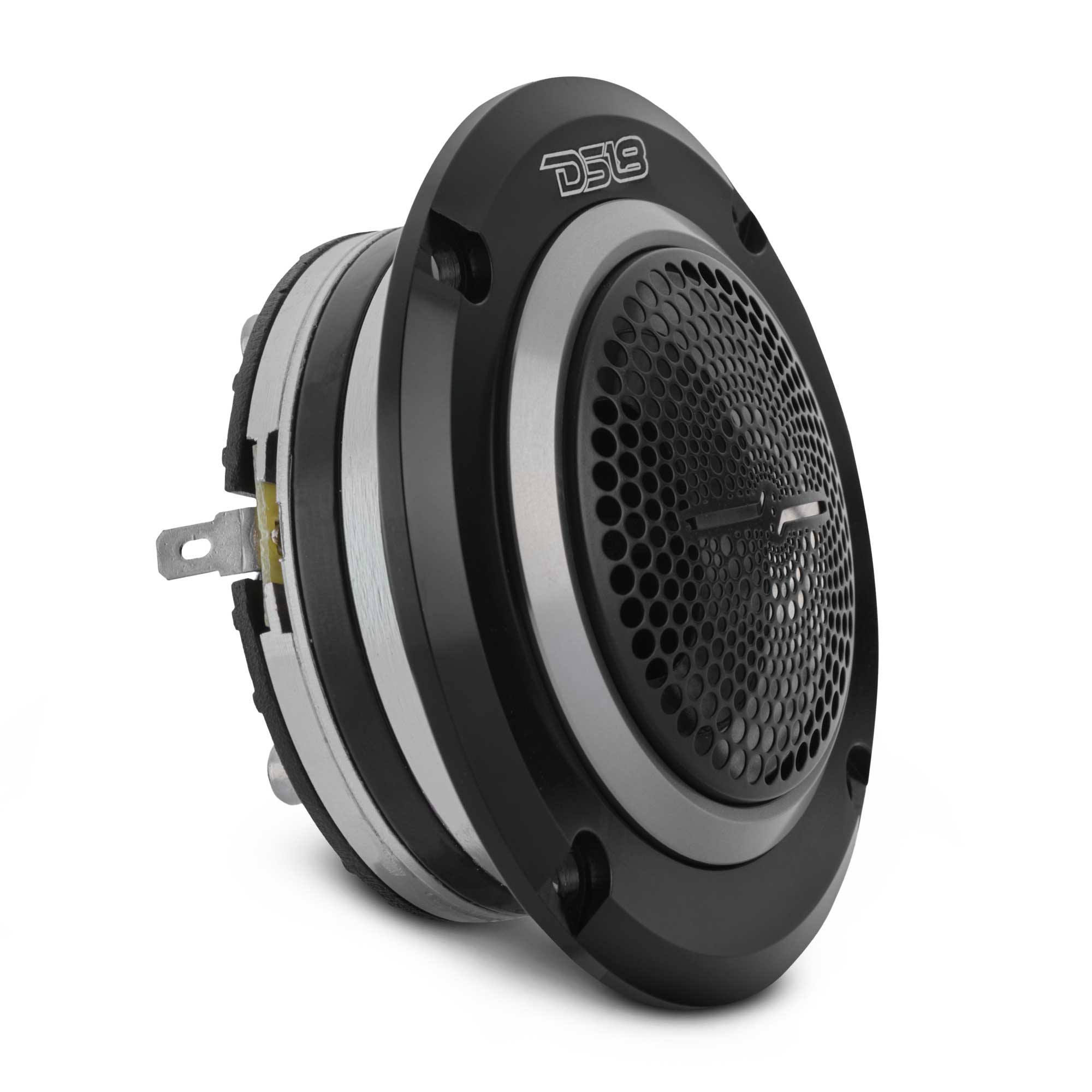

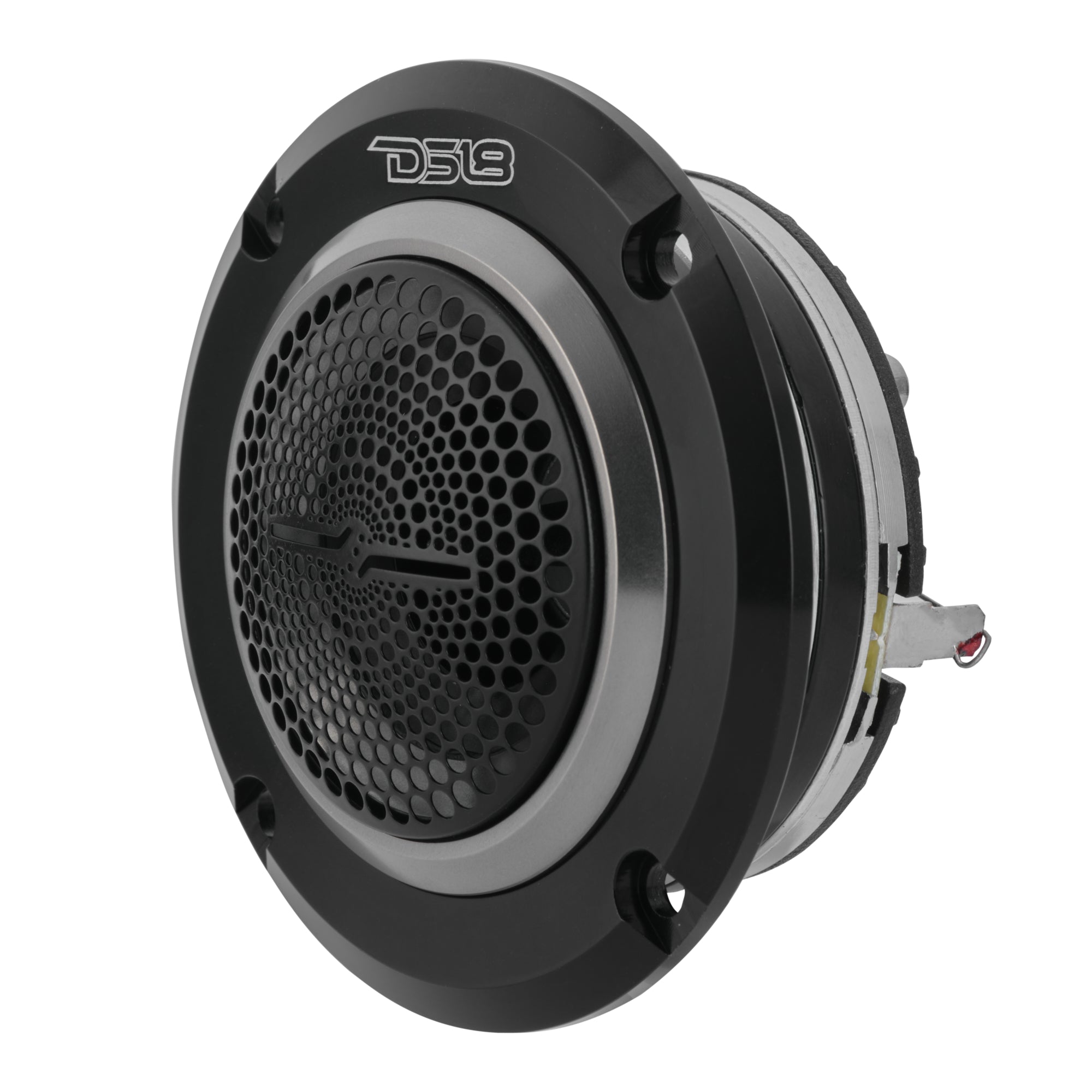

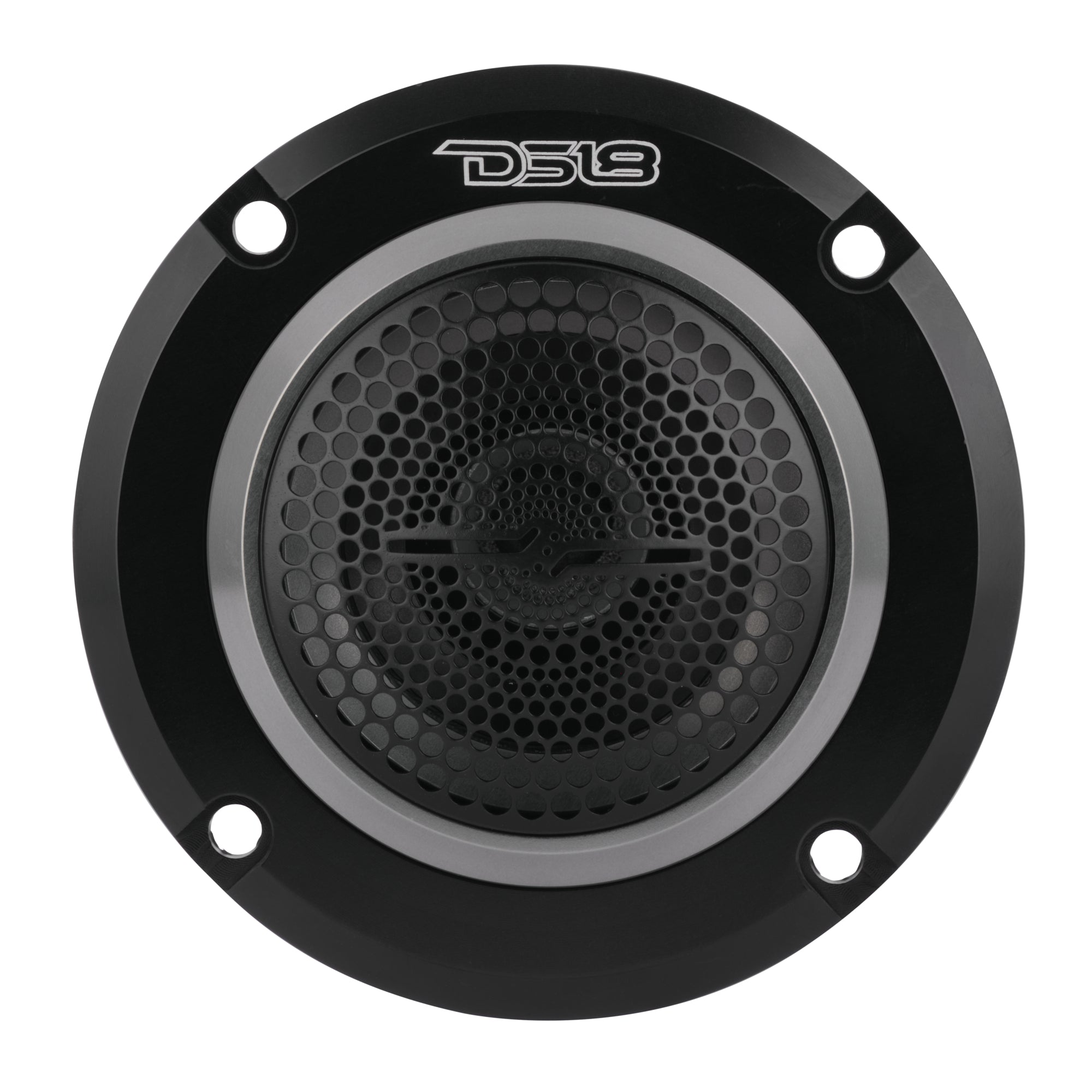

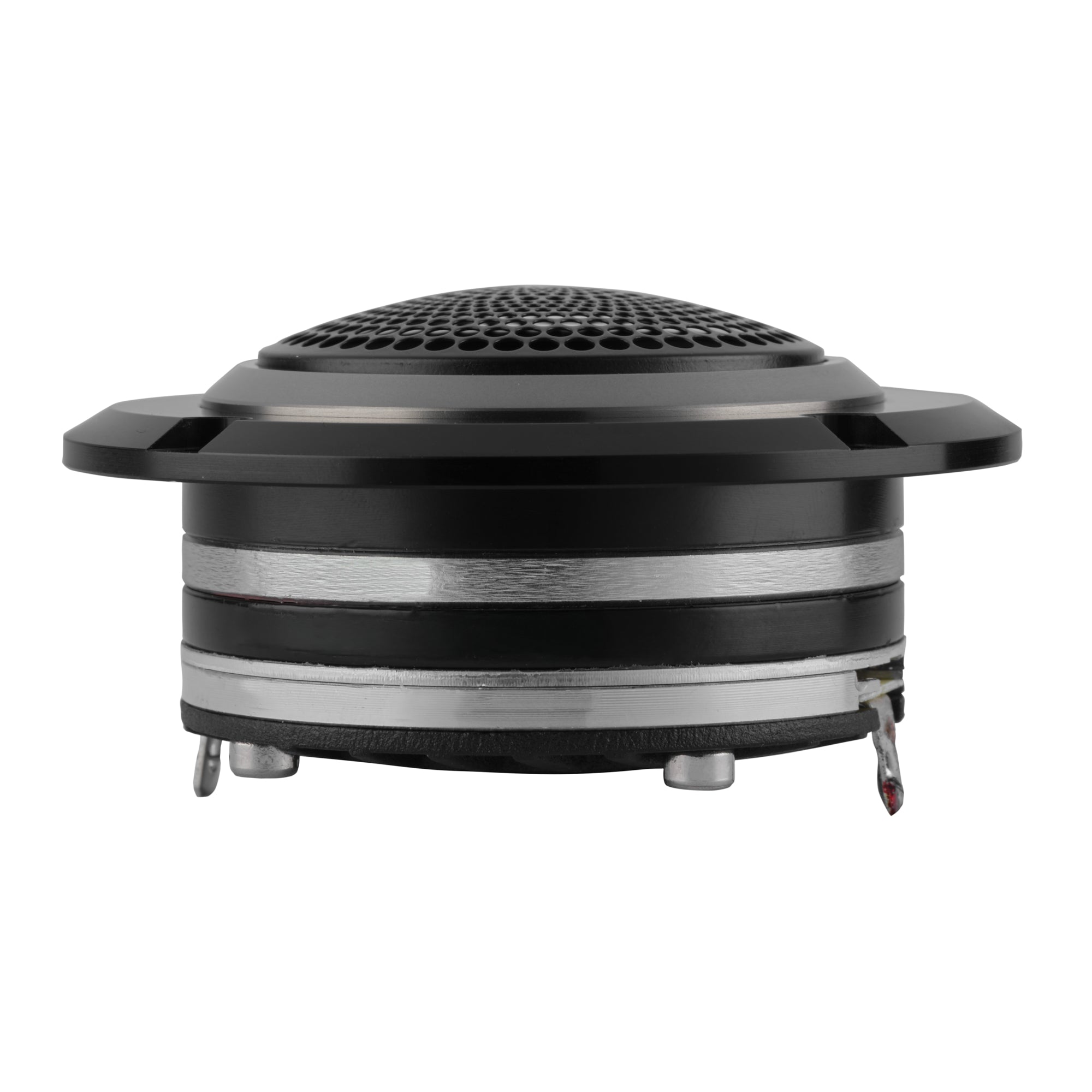

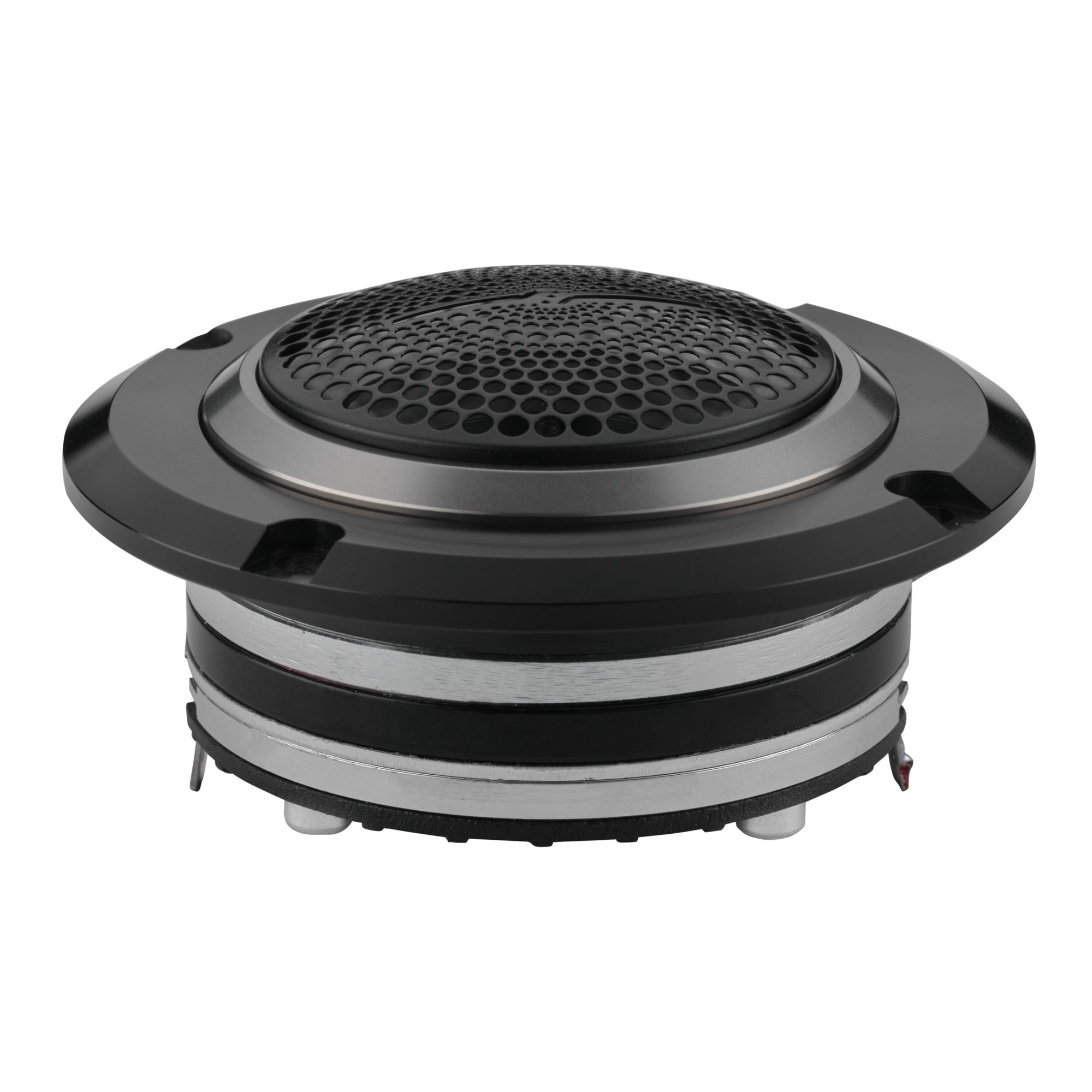

DS18 new PRO-TWN5 has all the looks of a driver but has been compactly sized to fit into super tweeter dimensions. This new super tweeter 1.5 inch voice coil can handle 200W RMS and 400W Peak. Comes with a neodymium magnet which increases the tweeters efficiency and lowers the weight dramatically. Each tweeter comes with an included bass blocker for extra protection against frequencies that would otherwise damage the tweeter so you can feel safe your equipment can play loud and long. These tweeters have a very high sensitivity of 107 dB so the do not require full power to get extremely loud. This opens you up to multiple amp choices for your tweeters and gives you the versatility everyone looks for in powering and using your new tweeters.
Highlights
Technical Details PRO-TWN5 Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 3.6 inch |
| RMS Power | 200 Watts RMS |
| Peak Power | 400 Watts Max |
| Impedance | 4 Ohms |
| Voice Coil | 1.5 inch |
| Sensitivity | 107 dB |
| Model: | PRO-TWN5 |
| Type: | Super Bullet Tweeter |
| Peak Power Handling | 400 Watts |
| Program Power Handling | 200 Watts |
| AES Power Handling | 100 Watts |
| Voice Coil Diameter: | 1.5″ |
| Diaphragm Material: | PEN |
| Sensitivity: | 107 dB |
| Impedance: | 4 Ohms |
| Frequency Response: | 1.5KHz – 20KHz |
| Package Quantity: | 1 |
| Replacement Diaphragm: | PRO-TWN5VC |
| Magnet | Neodymium |
| Overall Diameter: | 3.66″ |
| Overall Depth: | 2.05″ |
| Front Mount Baffle Cutout: | 2.75″ |
| Mounting Depth: | 1.27″ |
Reviews
There are no reviews yet.
